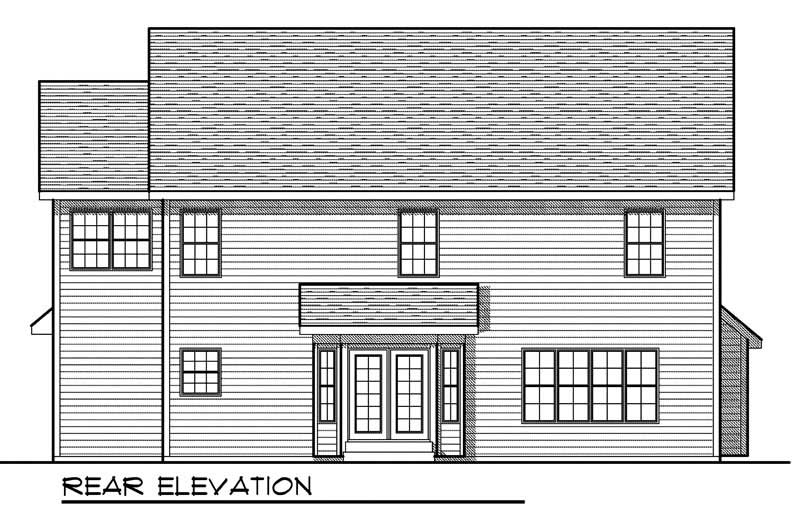

REAR ELEVATION
4-Bedroom, 2477 Sq Ft Craftsman House Plan - 101-1617 - Front Exterior
REAR ELEVATION

About Plan # 101-1617

About Plan # 101-1617

2477 SQUARE FEET 4 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 50' 8" WIDTH 62' 0" DEPTH 3 GARAGE BAY
This traditional two-story home features a carefully crafted open floor plan that makes use of every square foot to maximize the main living area. The kitchen, nook and great room all work together to create a space large enough to entertain the entire family during the holidays. You’ll love the two-story entry and 9-foot ceilings that can be found throughout the main level of this home, and the view out the great room to the back yard is sure to please. Upstairs, you’ll find a master suite with as step ceiling in the bedroom, a large walk-in closet and Jacuzzi tub in the spacious bathroom. Bedrooms three and four share a Jack and Jill bathroom, while bedroom two sports a cathedral ceiling. Finally, the three-stall garage provides ample room for storage and the family cars.

Each plan set includes the following:

  • Front, Back & Side Elevations
  • Floor Plans
  • Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
  • Roof Plan (Birdseye view)
  • Foundation Layout
  • Wall & Stair Sections
  • Cross Section
  • Kitchen Layout
  • General Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and locations.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

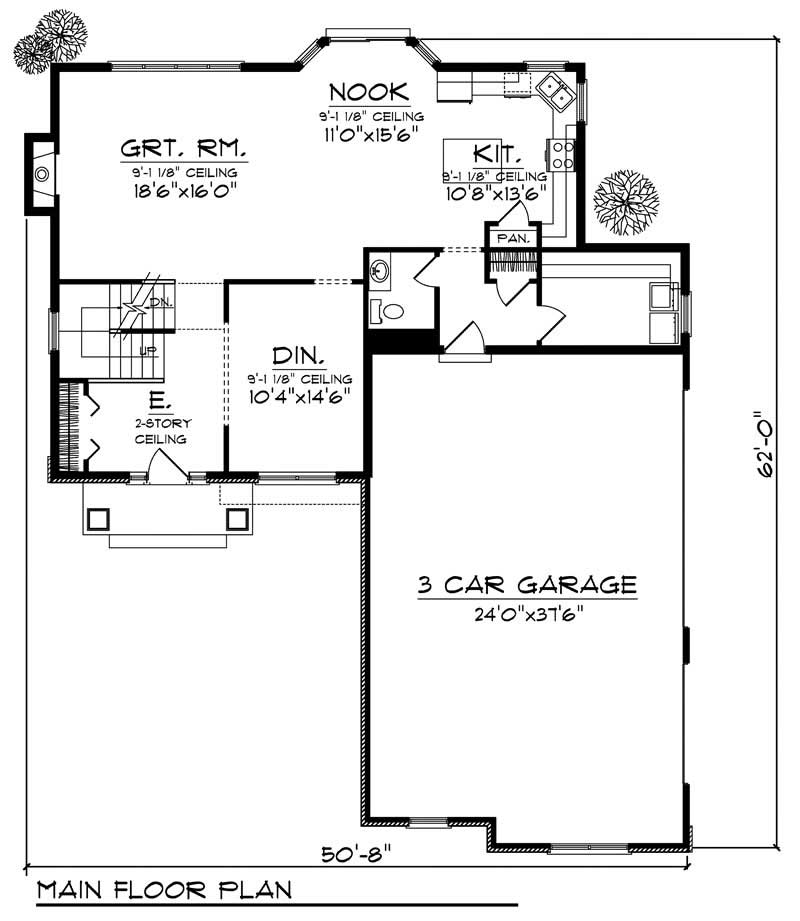

Home Plan: #101-1617 Floor Plan First Story - main Floor Plan First Story of Craftsman Plan #101-1617

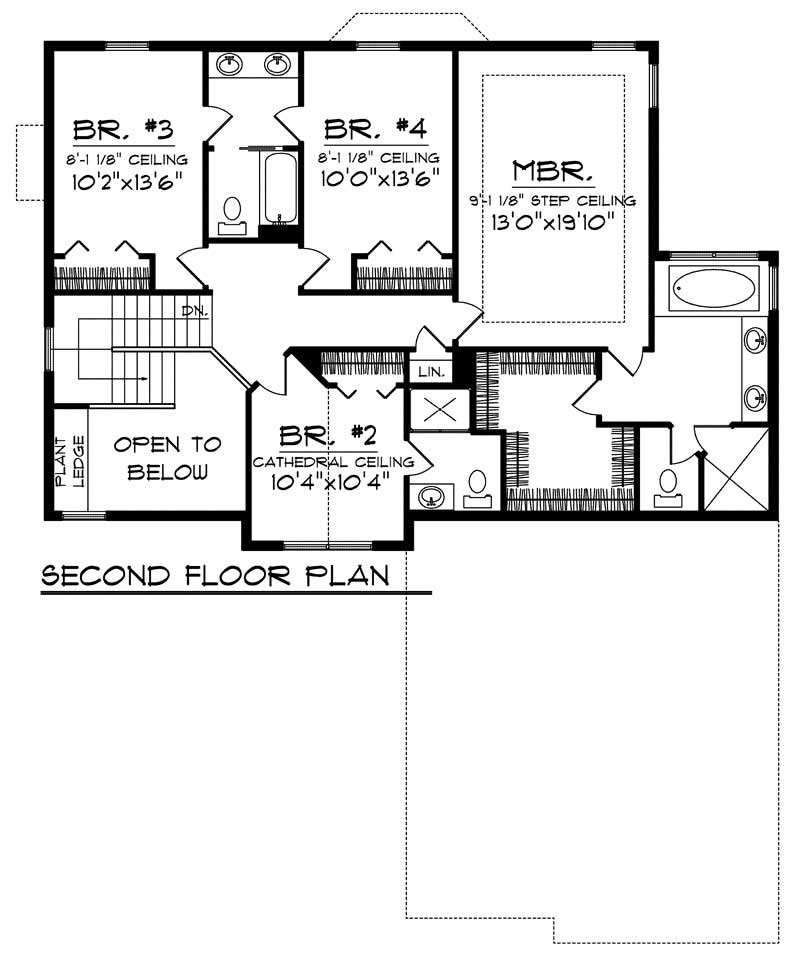

#101-1617 Floor Plan Second Story - second Floor Plan Second Story of Craftsman Plan #101-1617
