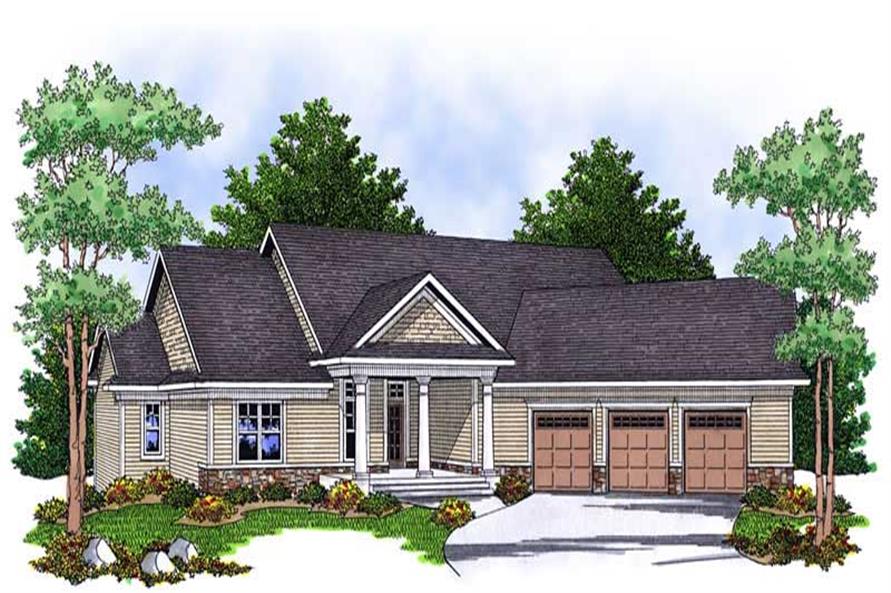

4-Bedroom, 3042 Sq Ft Ranch Home Plan - 101-1697 - Main Exterior

About Plan # 101-1697

About Plan # 101-1697

3042 SQUARE FEET 4 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 88' 3" WIDTH 77' 4" DEPTH 3 GARAGE BAY
This traditional ranch home offers spacious rooms and thoughtful details for a unique plan with lots of style. The kitchen features a large eat-in island that overlooks both the great room and sun room to create a space that is open and comfortable. A sunroom and dining area affords sunlit relaxation, and access to the rear deck. The master suite revels in a magnificent bath, and a secondary bedroom nearby could serve as a refined study. Downstairs, two bedrooms are separated by a recreation room with a wet bar, and a cozy study area. Ample storage is great for family treasures and seasonal equipment.

Each plan set includes the following:

  • Front, Back & Side Elevations
  • Floor Plans
  • Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
  • Roof Plan (Birdseye view)
  • Foundation Layout
  • Wall & Stair Sections
  • Cross Section
  • Kitchen Layout
  • General Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and locations.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

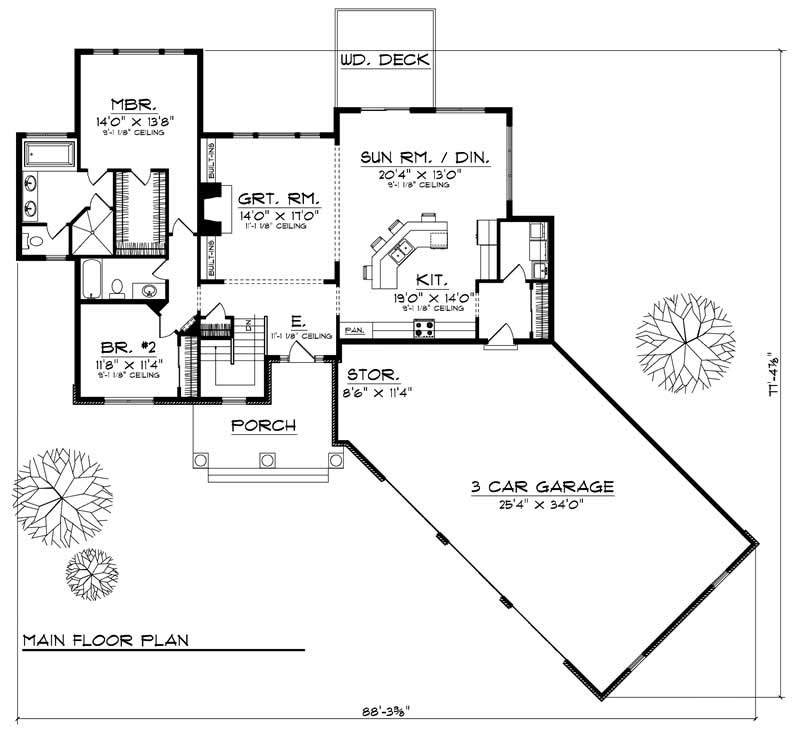

Home Plan: #101-1697 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #101-1697

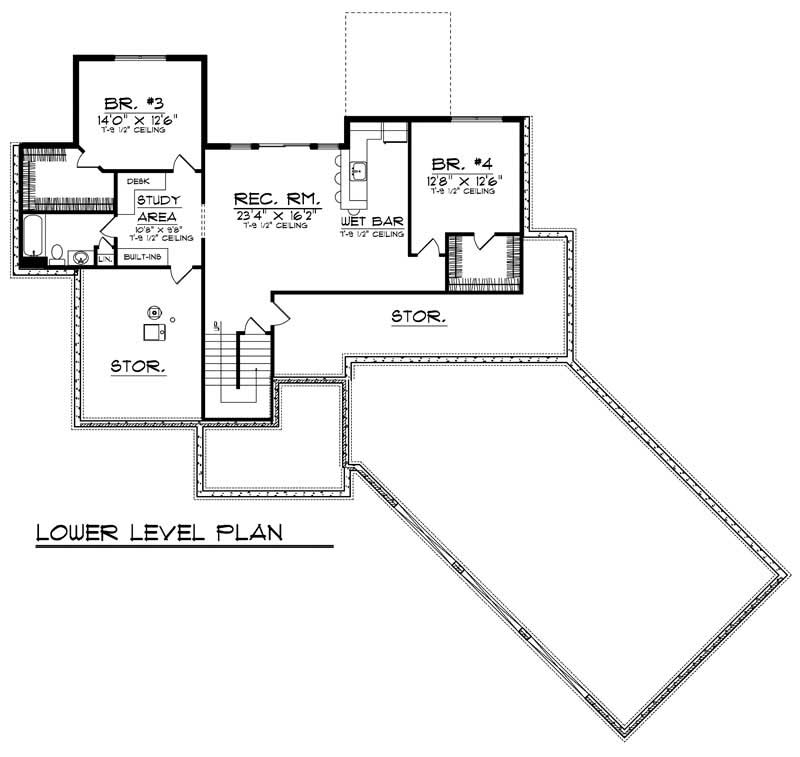

#101-1697 Floor Plan Basement - basement Floor Plan Basement of Ranch Plan #101-1697
Home Plan: #101-1697 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #101-1697
#101-1697 Floor Plan Basement - basement Floor Plan Basement of Ranch Plan #101-1697
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 101-1697
Floors:
1
Bedrooms:
4
Full Baths:
3

Square Footage

Heated Sq Feet:
3042
Main Floor:
1872
Unfinished Sq Ft:
Lower Floor:
1170

Dimensions

Width:
88' 3"
Depth:
77' 4"

Architectural Styles

Ranch
Traditional

Exterior Wall Material

Vinyl Siding
Rock/Stone

Roof Pitch

8/12

Ceiling Height

9 Foot Ceiling

Garage Type

Attached Garage

Exterior Wall Framing

2x6

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
