3-Bedroom, 1763 Sq Ft Ranch Plan with Second Floor Master
Related House Plans
Photographs may reflect modified designs. Copyright held by designer.
| 1763 SQUARE FEET | 3 BEDROOMS | 2 FULL BATH | 0 HALF BATH |
| 1 FLOOR | 50' 4" WIDTH | 53' 4" DEPTH | 2 GARAGE BAY |
This three-bedroom ranch uses and open and welcoming floor plan to create a sense of space inside. The large great room will be the center of your home; it offers a fireplace surrounded by windows. The kitchen offers wrap-around counters and an eating bar and easily accesses both the formal dining room and sunny nook—the nook leads to a rear wood deck. A master bedroom with a walk-in closet and a private bath will satisfy homeowners, while two additional bedrooms share a full bath and offer plenty of space for family and friends. The three-car garage contains extra storage space and is accessible through a large laundry area.
Each plan set includes the following:
- Front, Back & Side Elevations
- Floor Plans
- Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
- Roof Plan (Birdseye view)
- Foundation Layout
- Wall & Stair Sections
- Cross Section
- Kitchen Layout
- General Notes
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Framing layouts with beam sizes and locations.
- Energy calculations - handled locally when required.
Write Your Own Review
FLOOR PLANS Flip Images

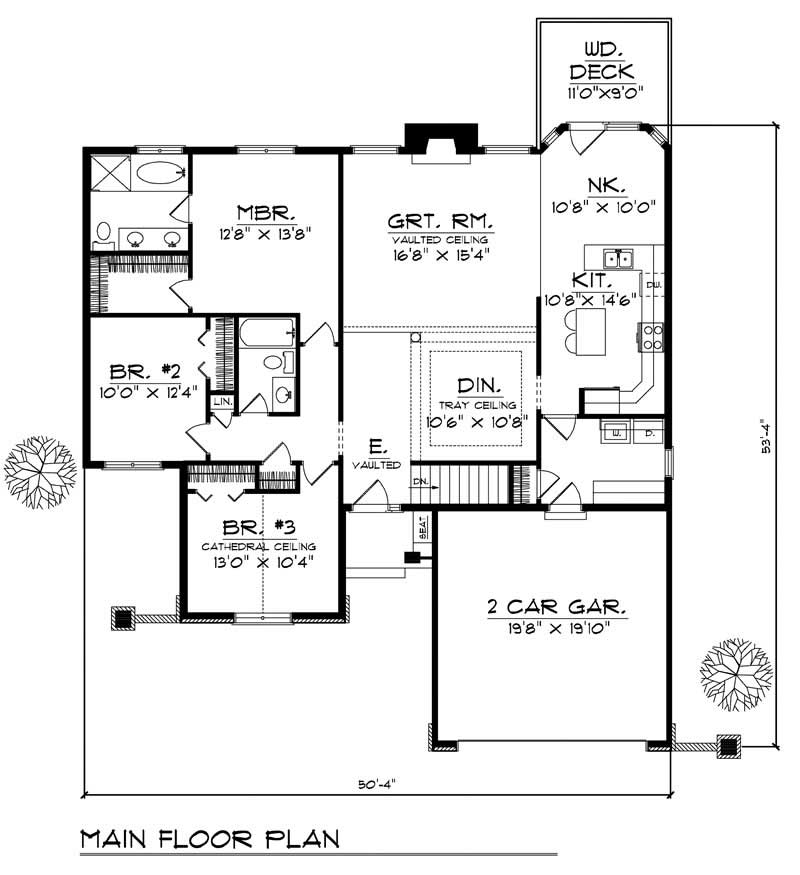

Home Plan: #101-1272 Floor Plan First Story
-
main
![Floor Plan First Story of Ranch Plan #101-1272]( "MAIN FLOOR PLAN")
#101-1272 Floor Plan Second Story
-

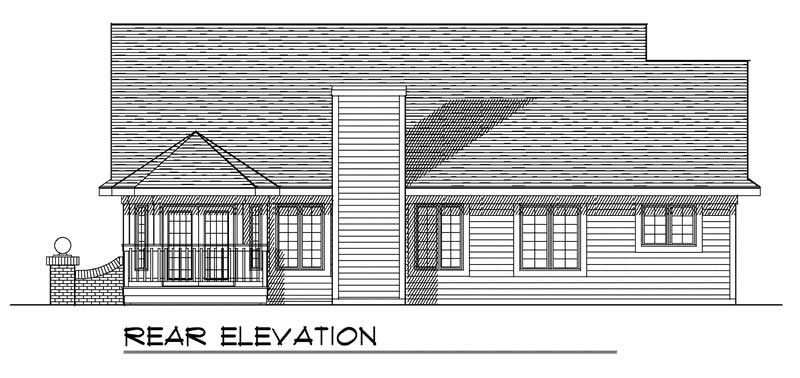

rear elevation
