2-Bedroom, 2121 Sq Ft Ranch Plan with Split Master Bedroom

Main image for house plan # 13434

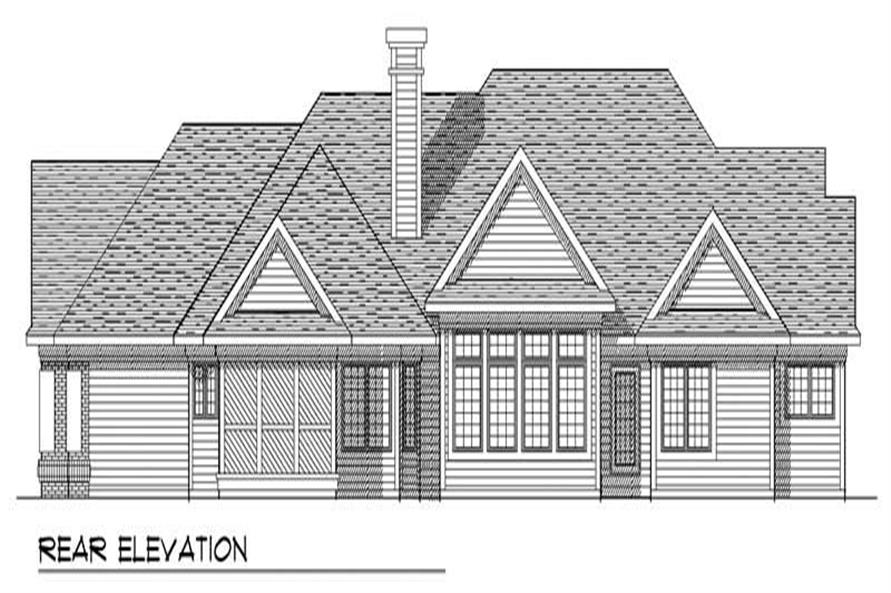

REAR ELEVATION
2-Bedroom, 2121 Sq Ft Ranch Home Plan - 101-1773 - Main Exterior
REAR ELEVATION

About Plan # 101-1773

About Plan # 101-1773

2121 SQUARE FEET 2 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 80' 0" WIDTH 65' 0" DEPTH 3 GARAGE BAY
This ranch home features Tudor details giving it the flavor of the Old World. Inside, a tiled foyer leads to the spacious great room that features a see-thru fireplace and a wall of windows. The large kitchen/nook area is designed for convenience, with a cook-top snack bar, an adjacent screen porch, and plenty of counter space. The master bedroom features two closets, a corner whirlpool tub, separate shower and direct access to the rear yard. The cozy den across the hall can be used as a home office or media room. A three-car garage easily shelters the family fleet.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION LAYOUT: Dimensioned plan detailing the layout and construction of the foundation.
  • ROOF PLAN: A birdseye view showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. It does not include wiring schematics.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. These can include wall and stair sections. Kitchen layout and cabinet elevations included.
  • RENDERING: Sketch of what the finished home may look like. Also includes general notes.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and locations.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

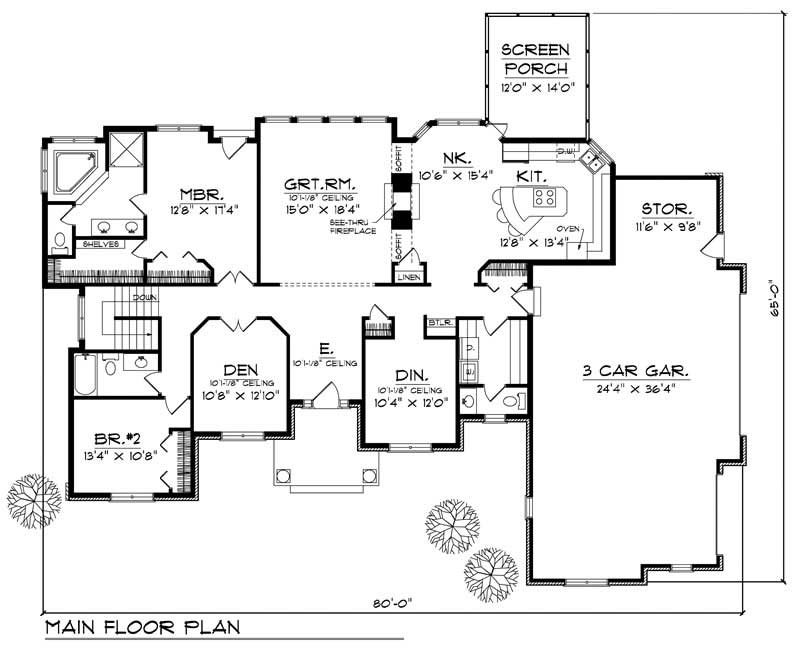

Home Plan: #101-1773 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #101-1773
Home Plan: #101-1773 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #101-1773
