About Plan # 107-1196

About Plan # 107-1196

5642 SQUARE FEET 5 BEDROOMS 5 FULL BATH 2 HALF BATH
2 FLOOR 69' 8" WIDTH 106' 8" DEPTH 3 GARAGE BAY

Luxury House Plan features include concrete-block exterior construction; covered entry with round columns to French doors; foyer with coffered ceiling open to dining and living rooms as well as library; round columns to living room with fireplace and open to upper floor; dining room with coffered ceiling; kitchen with island and walk-in pantry and open to cafe; family room with coffered ceiling and access to rear covered patio bedroom 2 with private bath and access to rear patio library with coffered ceiling; upper floor master suite with coffered ceiling; two walk-in closets and private balcony master bath with whirlpool tub, corner shower, and split vanities; vestibule to loft with private balcony; Bedrooms 3, 4, and 5 with private baths and walk-in closets; play room

Each plan set includes the following:

  • Floor plan
  • Kitchen & Bath layout
  • Exterior elevations
  • Sections
  • Structural plans
  • Foundation plan
  • Roof plan
  • Mechanical layout
  • Electrical layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

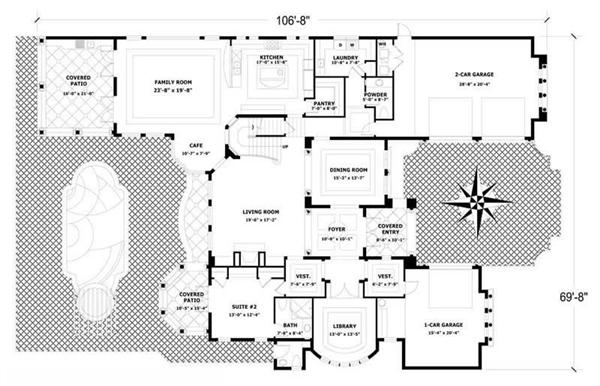

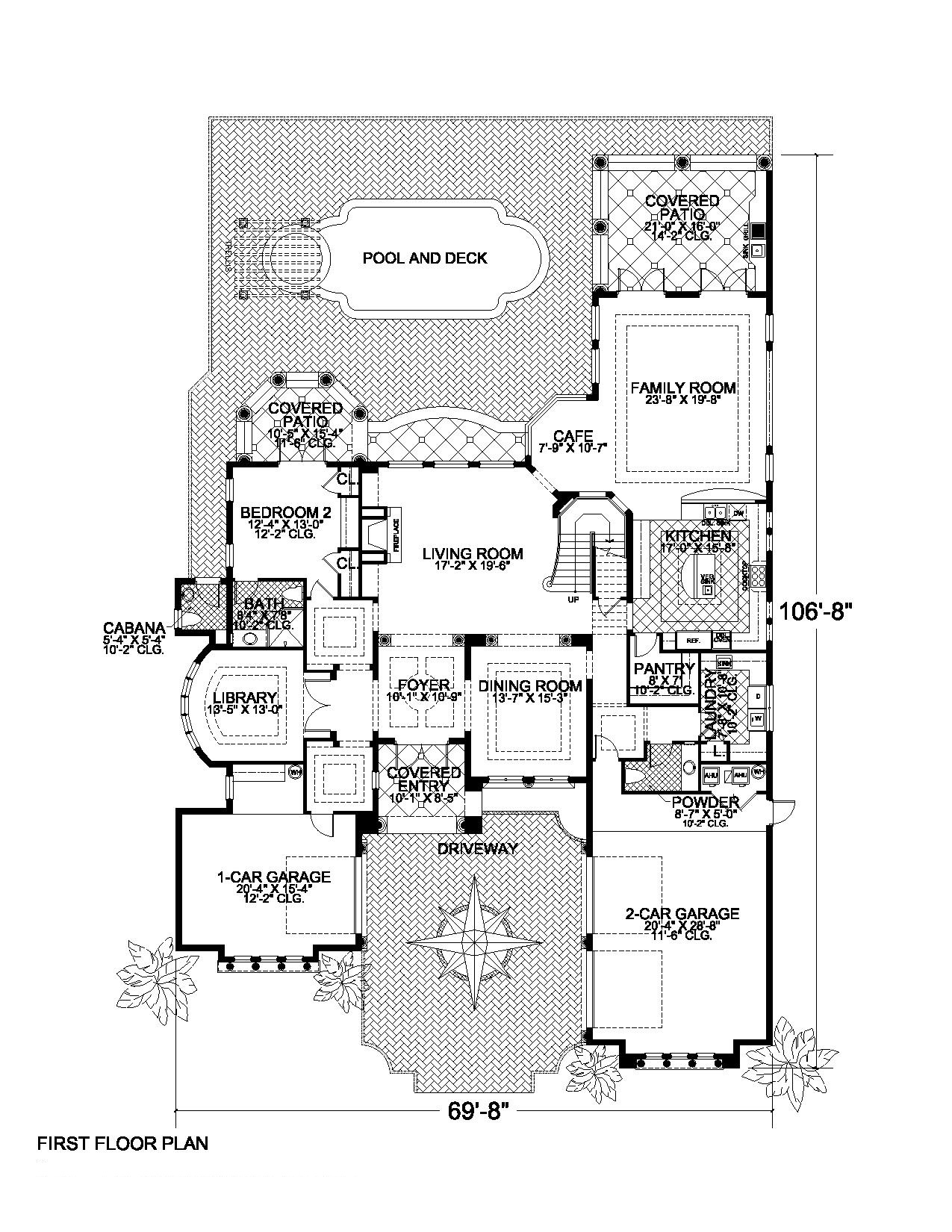

Home Plan: #107-1196 Floor Plan First Story - main level Floor Plan First Story of Coastal Plan #107-1196

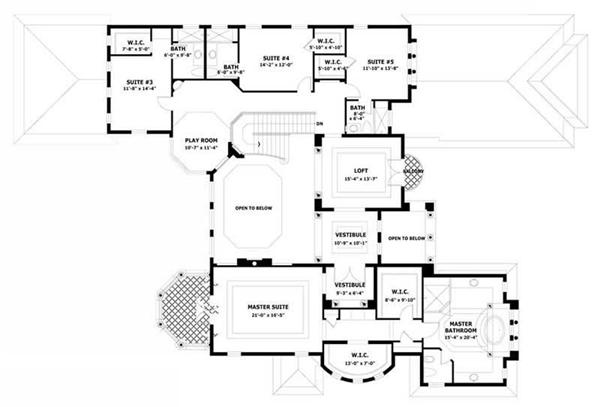

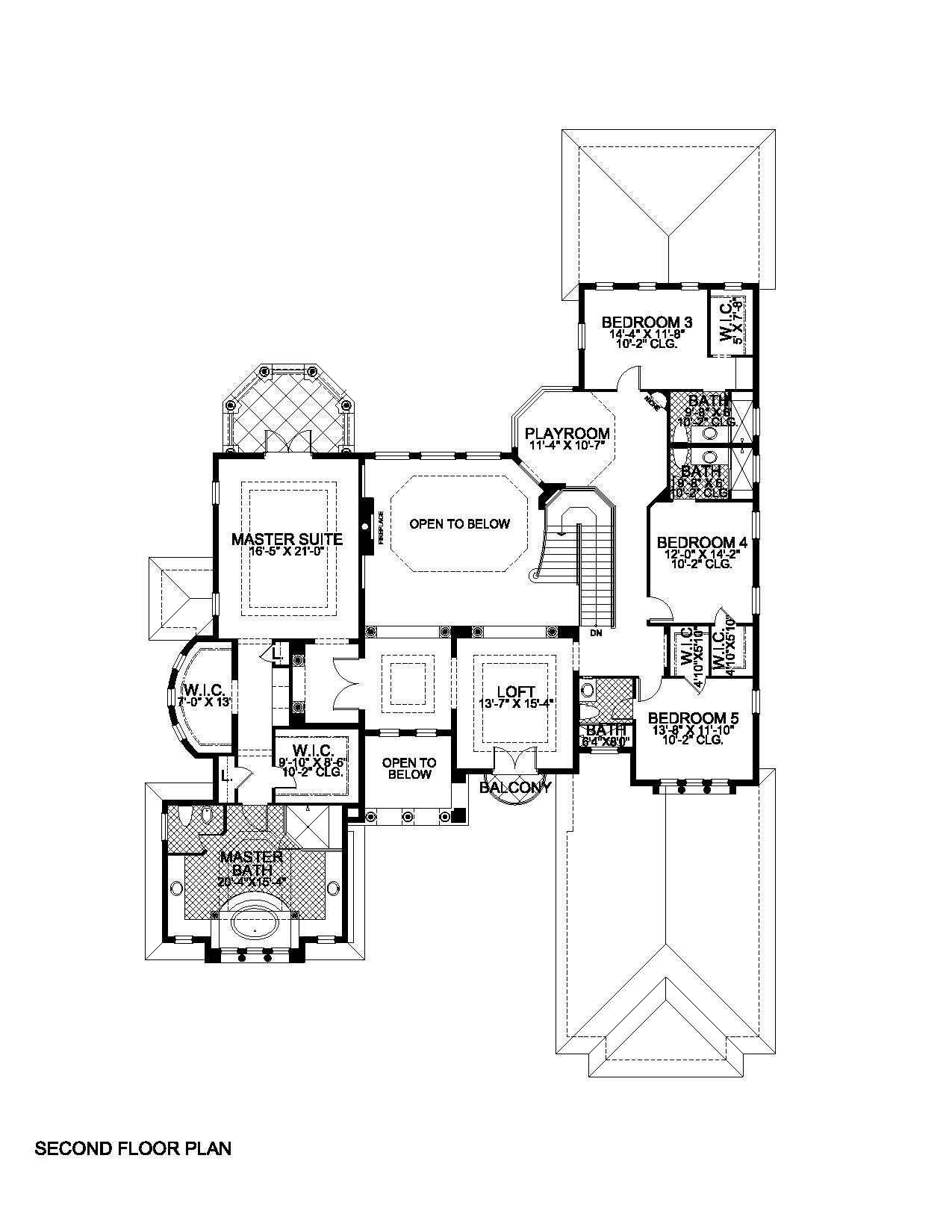

#107-1196 Floor Plan Second Story - second floor Floor Plan Second Story of Coastal Plan #107-1196
Home Plan: #107-1196 Floor Plan First Story - main level Floor Plan First Story of Coastal Plan #107-1196
#107-1196 Floor Plan Second Story - second floor Floor Plan Second Story of Coastal Plan #107-1196
