5-Bedroom, 7421 Sq Ft Luxury Plan with Outdoor Kitchen

Main image for house plan # 16241

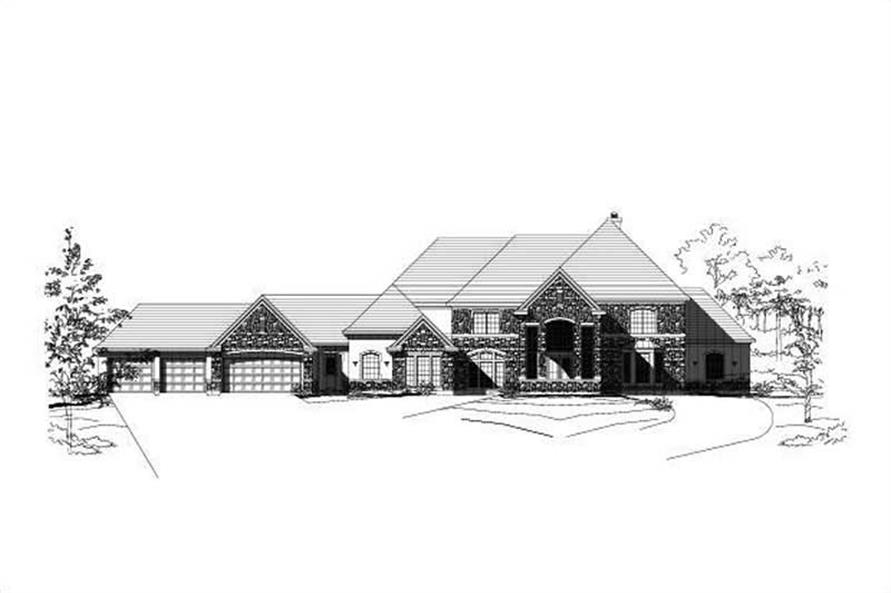

5-Bedroom, 7421 Sq Ft Luxury Home Plan - 156-1401 - Main Exterior

About Plan # 156-1401

About Plan # 156-1401

7421 SQUARE FEET 5 BEDROOMS 6 FULL BATH 0 HALF BATH
2 FLOOR 149' 0" WIDTH 125' 0" DEPTH 4 GARAGE BAY
Home plan number 40228 is a two story, Traditional style home with a total square footage of 7,421. There are 5 bedrooms and 6 and 1/2 bathrooms, along with a straight in, front loading, 4 car garage. The master bedroom includes a sitting area, fireplace and seperate closets. Plan number 40228 has a covered rear porch, pavillion and side porch. There is also an exterior balcony. Special features include a cabana bath, exercise room, hidden room, outdoor fireplace, porte cochere and a shop. Other features include a bar, unfinished storage, butler pantry and a mud entry.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. This includes wall sections.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

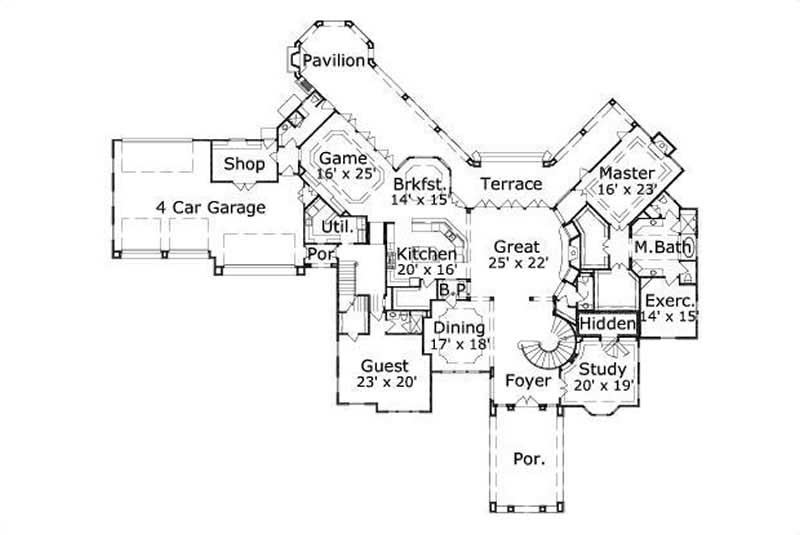

Home Plan: #156-1401 Floor Plan First Story - first story Floor Plan First Story of Luxury Plan #156-1401

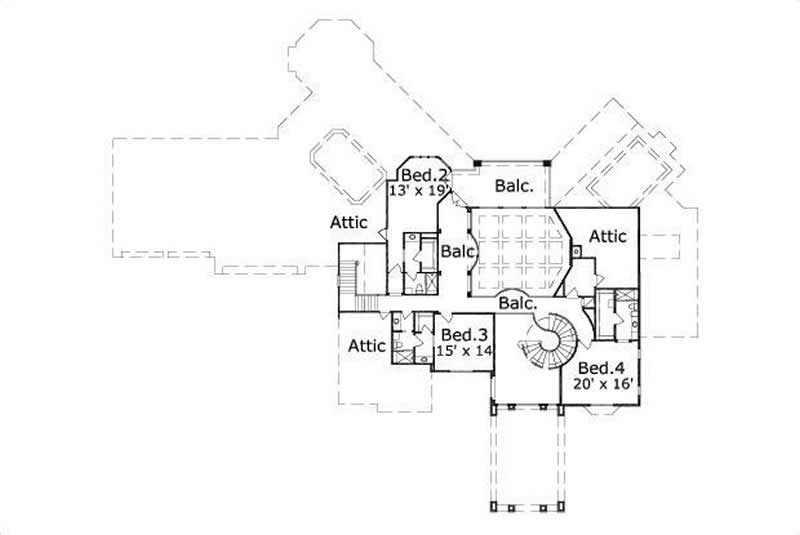

#156-1401 Floor Plan Second Story - second story Floor Plan Second Story of Luxury Plan #156-1401
Home Plan: #156-1401 Floor Plan First Story - first story Floor Plan First Story of Luxury Plan #156-1401
#156-1401 Floor Plan Second Story - second story Floor Plan Second Story of Luxury Plan #156-1401
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 156-1401
Floors:
2
Bedrooms:
5
Full Baths:
6

Square Footage

Heated Sq Feet:
7421
Main Floor:
5553
Upper Floor:
1868
Unfinished Sq Ft:

Dimensions

Width:
149' 0"
Depth:
125' 0"
Ridge Height:
40' 0"

Architectural Styles

Texas Style
Traditional

Exterior Wall Material

Rock/Stone
Stucco

Ceiling Height

10 Foot Ceiling
9 Foot Ceiling

Special Feature

Fireplace

Garage Type

Attached Garage
Front Entry

Porches and Exterior Features

Covered Rear Porch

Additional Notes from Designer

Please Note: CAD files may take up to 3 business days to receive - please contact us for availability.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
