5-Bedroom, 4222 Sq Ft Craftsman Plan with Main Floor Master

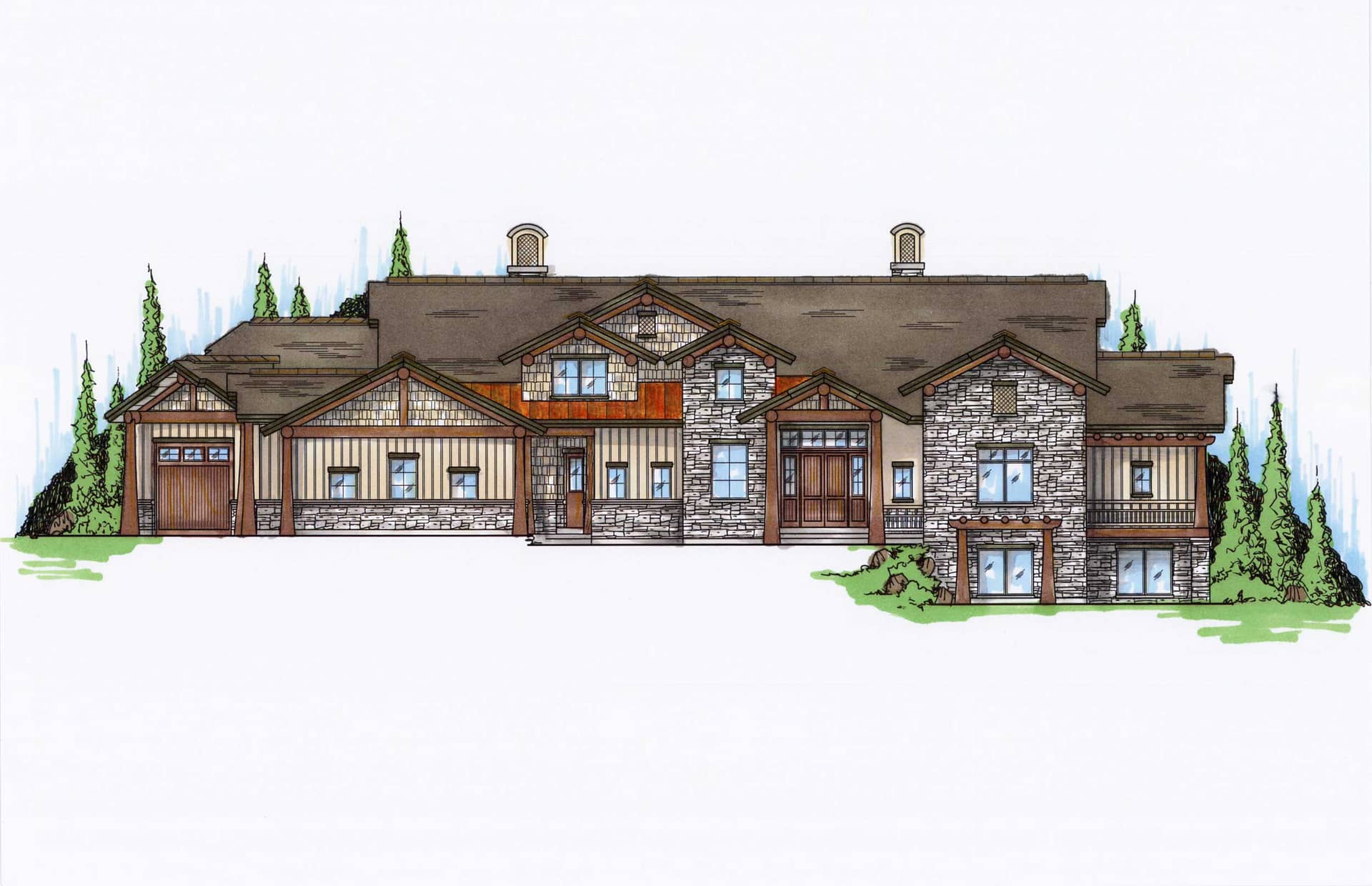

Front elevation of luxury Craftsman home (ThePlanCollection: House Plan #135-1036)

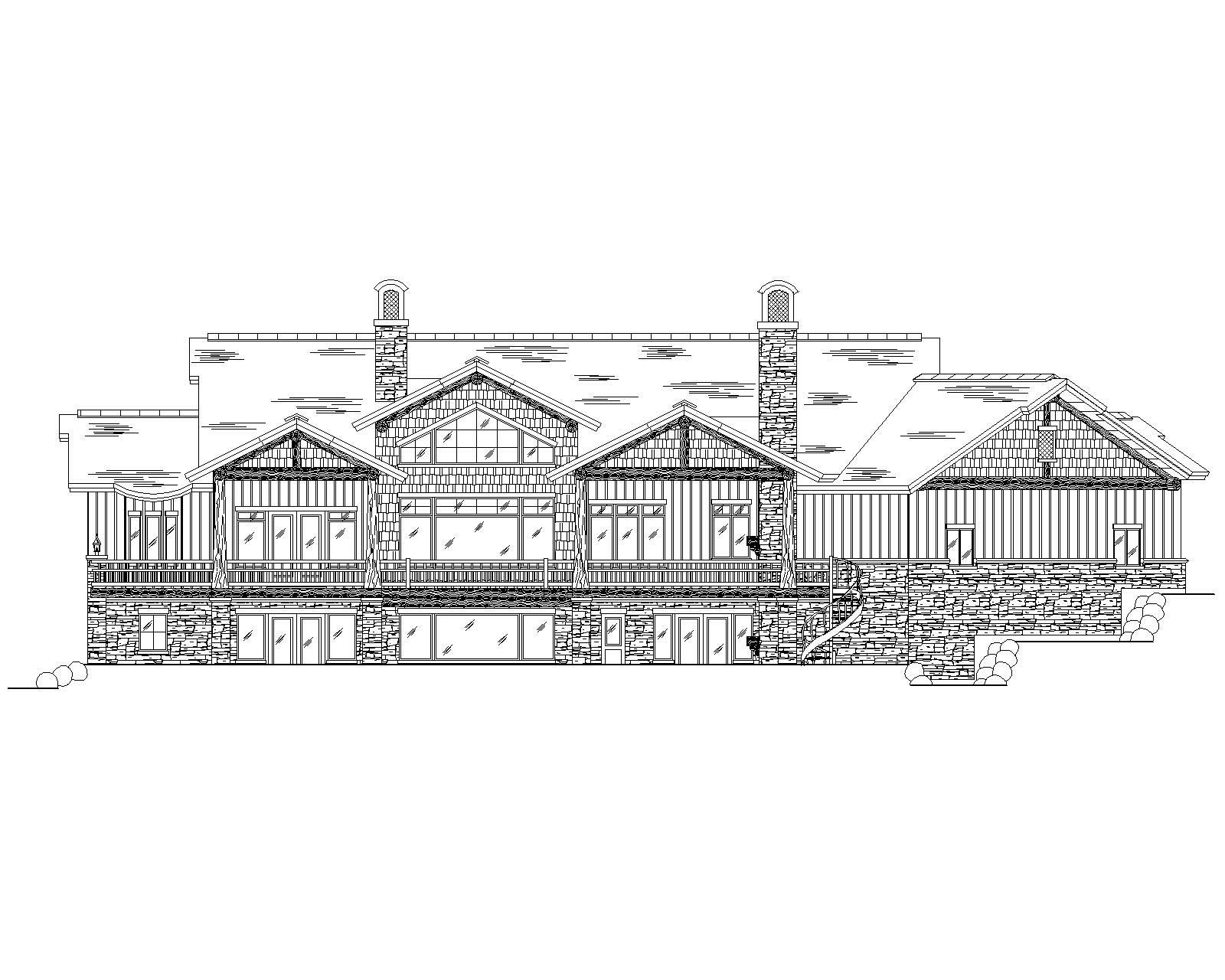

Home Plan Rear Elevation
5-Bedroom, 4222 Sq Ft Craftsman Home Plan - 135-1036 - Main Exterior
Home Plan Rear Elevation

About Plan # 135-1036

About Plan # 135-1036

8404 SQUARE FEET 5 BEDROOMS 6 FULL BATH 4 HALF BATH
2 FLOOR 116' 6" WIDTH 83' 7" DEPTH 5 GARAGE BAY

Just imagine coming home to this luxury mountain house plan. Your guests pull up to the porte-cochere and then walk along the long, covered porch to reach the double door entry. Once inside, the interior of this rustic manor continues with this look and has elongated rooms throughout the main floor. From the entry foyer, enter into the great foom and appreciate its spaciousness and the advantages of an open floor plan. At the far end is a wall of windows looking out to the sundeck. The wall to the left has a grand fireplace. On the opposite side it the open concept kitchen with its island, eating bar, walk-in pantry and breakfast nook. To enjoy the outdoors on those warm days and nights, there is an outdoor kitchen and fireplace. For those rainy or snowy days, the friend's entry and access to the 5-car garage are in the large mudroom. Want to just read a book? There is a den which can also be a guest bedroom -- as it has a walk-in closet, a full bath, and even access to a private deck.

Completing the main floor is the spectacular master suite. The master bedroom has a fireplace and double doors to the covered deck. The master bath has separate his-and-her sink vanities, a walk-in shower, a water closet, and a soaking tub. There are also two generously-sized his-and-her walk-in closets.

Above the main floor, you will find a loft area and a full-sized in-law suite with its own full bath, walk-in closet, and kitchen. Concerned about stairs? The home design includes an elevator.

Now, head downstairs to have some fun. There you will find a theater, billiards room, a game nook, a bar, and a wine cellar. There are two additional bedrooms, three full baths, and two half-baths on the lower level. Looking to get a workout in? Head over to the exercise room. Better yet, invite some buddies over to play hoops on the indoor basketball court!

Note: for grade to ridge height for back of the house: 34’-7” if you “grotto” the back as we have shown, 36’-10” if you just do it a full walk-out basement (as seen on the right side elevation where the basement double door is).

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

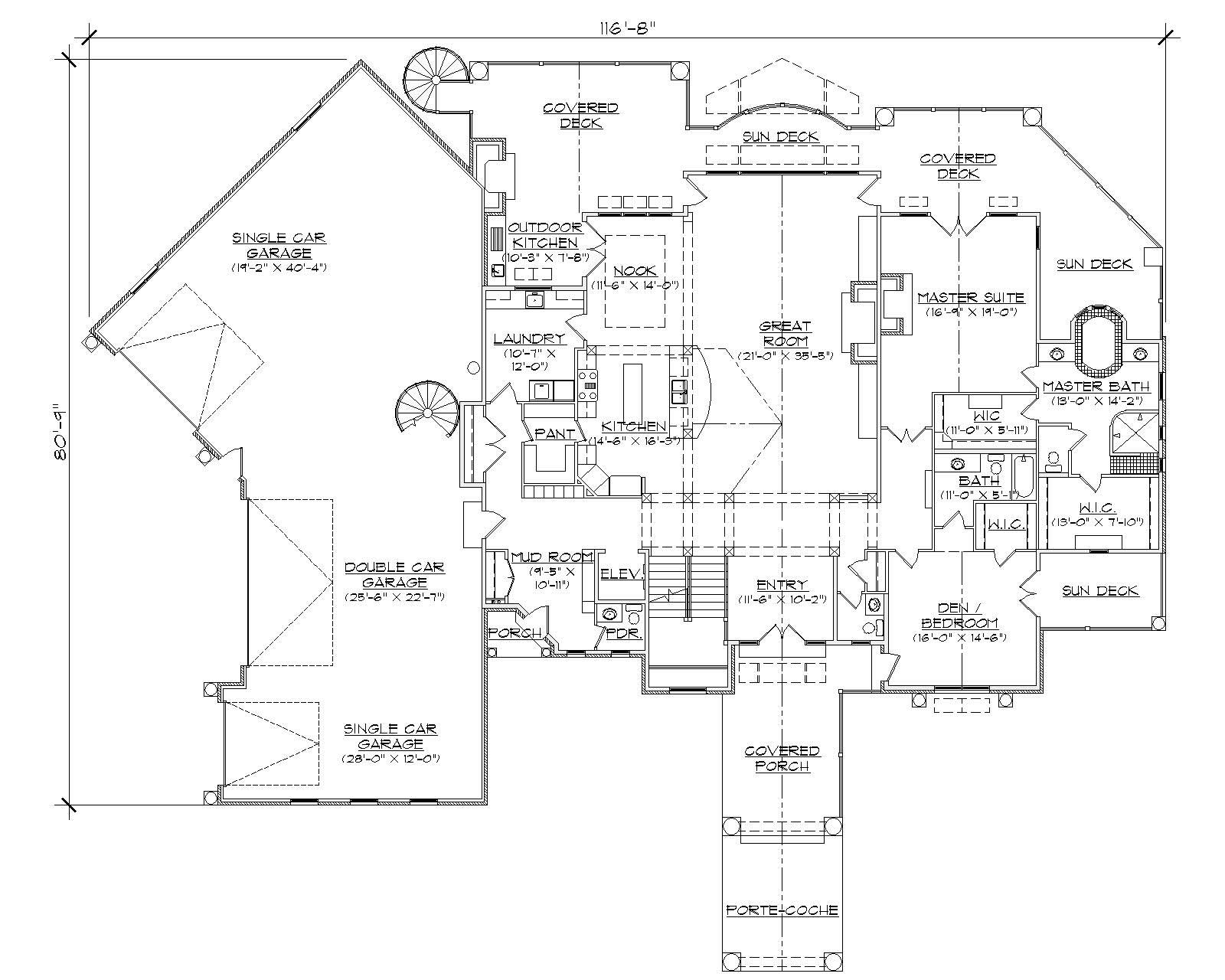

Home Plan: #135-1036 Floor Plan First Story - first story Floor Plan First Story of Craftsman Plan #135-1036

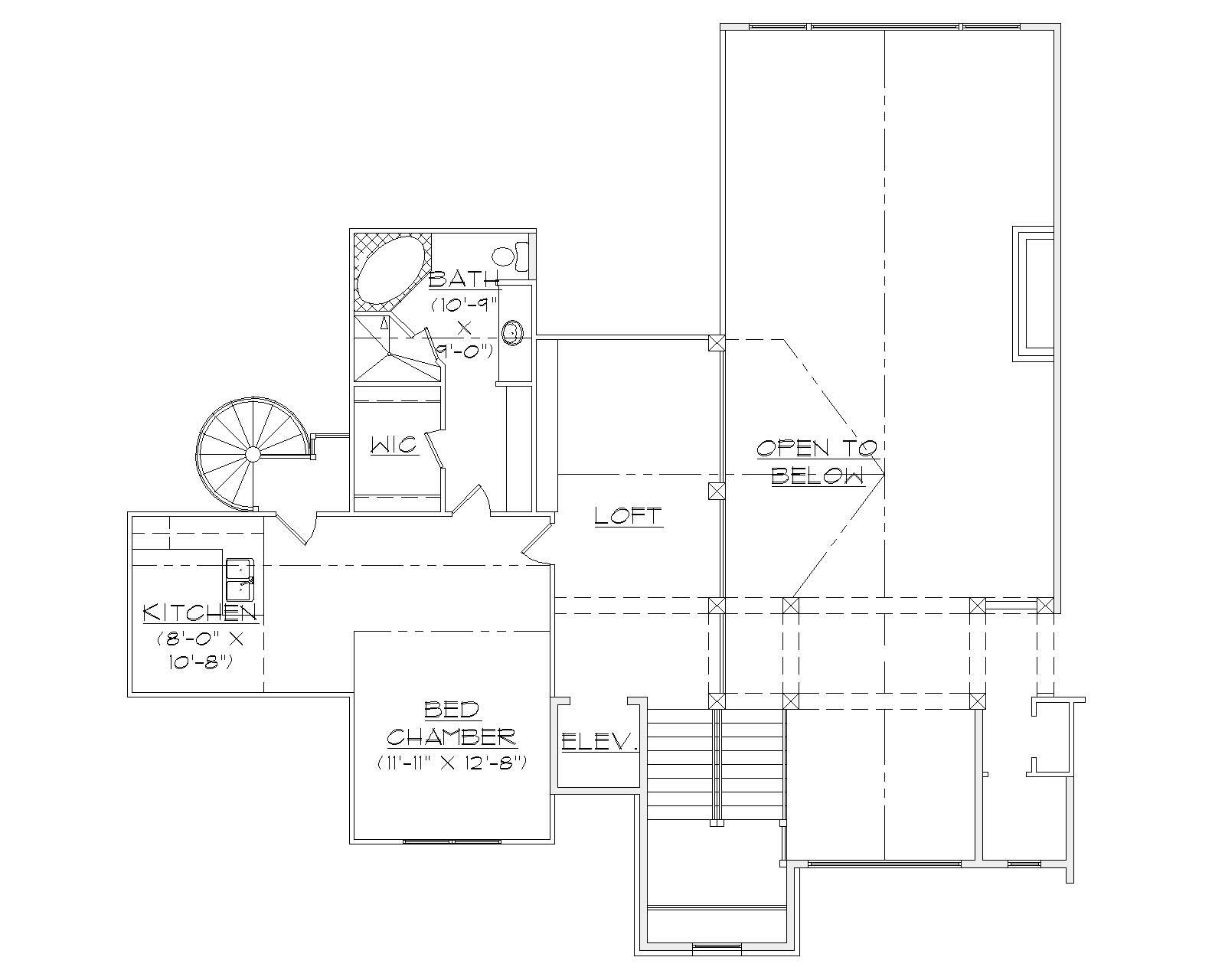

#135-1036 Floor Plan Second Story - second story Floor Plan Second Story of Craftsman Plan #135-1036

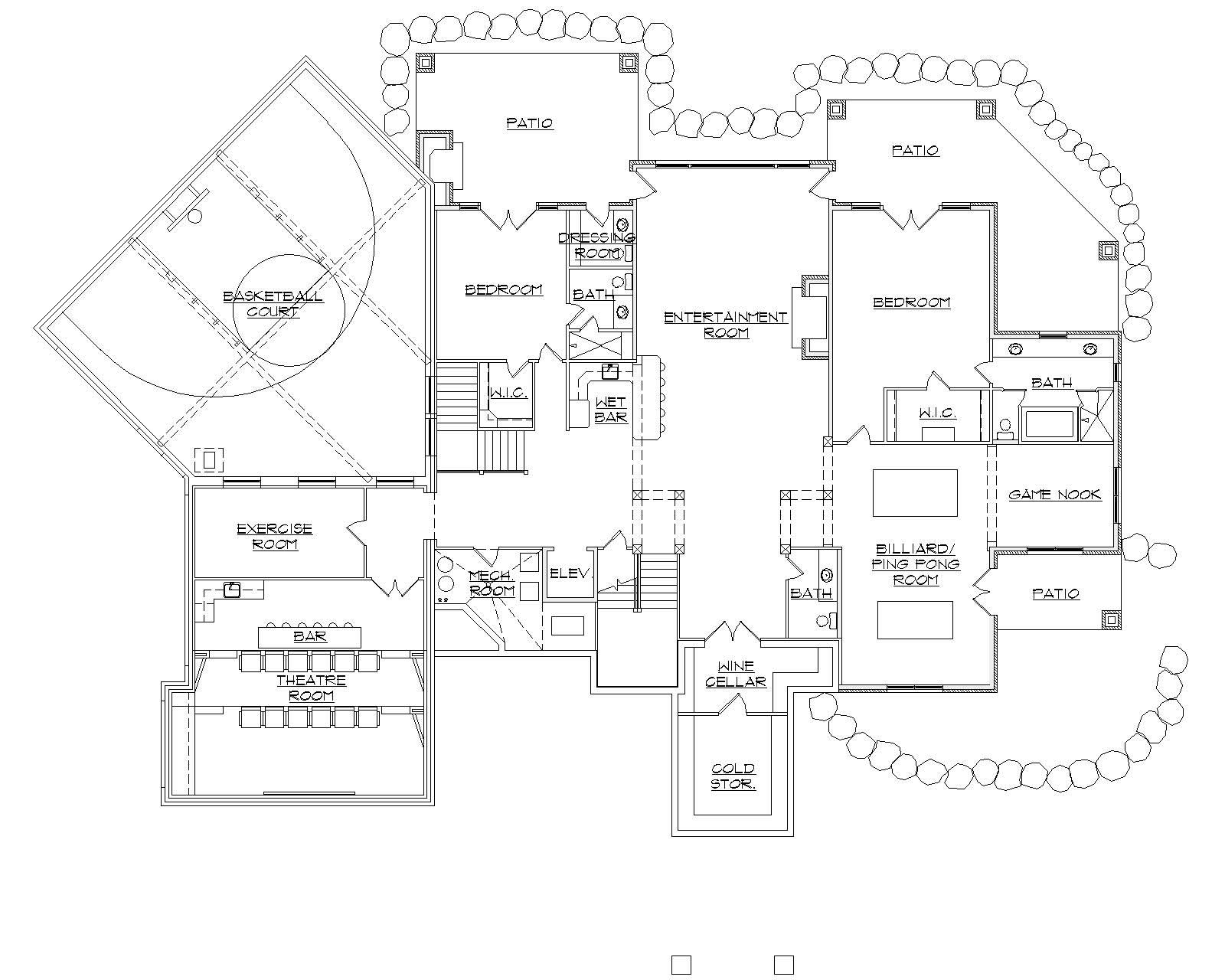

#135-1036 Floor Plan Basement - basement Floor Plan Basement of Craftsman Plan #135-1036

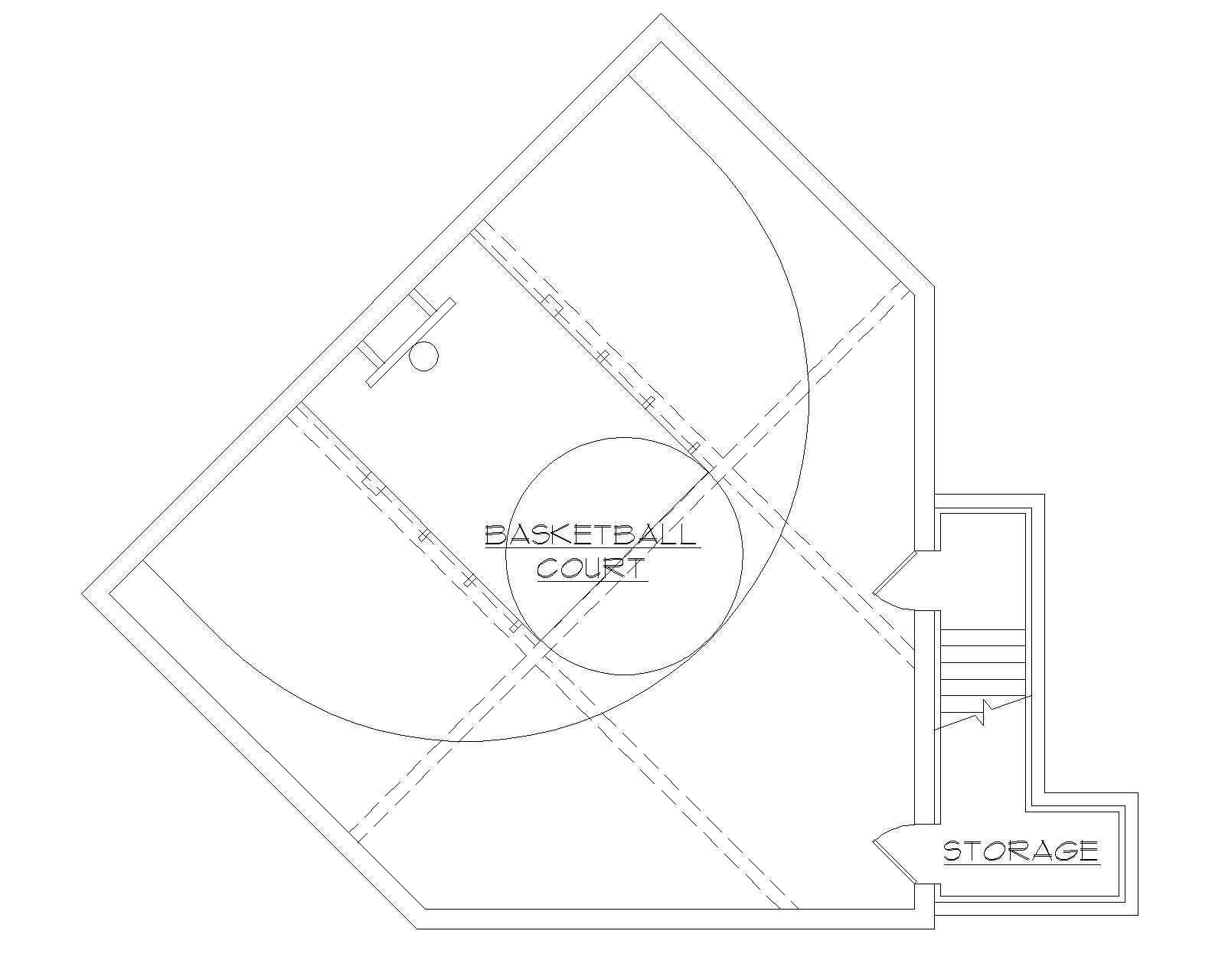

#135-1036 Floor Plan Basement - basketball court Floor Plan Basement of Craftsman Plan #135-1036
Home Plan: #135-1036 Floor Plan First Story - first story Floor Plan First Story of Craftsman Plan #135-1036
#135-1036 Floor Plan Second Story - second story Floor Plan Second Story of Craftsman Plan #135-1036
#135-1036 Floor Plan Basement - basement Floor Plan Basement of Craftsman Plan #135-1036
#135-1036 Floor Plan Basement - basketball court Floor Plan Basement of Craftsman Plan #135-1036
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 135-1036
Floors:
2
Bedrooms:
5
Full Baths:
6
Half Baths:
4

Square Footage

Heated Sq Feet:
8404
Main Floor:
3344
Upper Floor:
878
Lower Floor:
4182
Unfinished Sq Ft:

Dimensions

Width:
116' 6"
Depth:
83' 7"
Ridge Height:
28' 8"

Architectural Styles

Arts and Crafts
Craftsman
European
Luxury
Rustic

Exterior Wall Material

Rock/Stone
Shakes
Wood Siding

Roofing Type

Gable

Roof Pitch

6/12

Ceiling Height

10 Foot Ceiling
9 Foot Ceiling

Special Feature

Den
Elevator
Exercise Room
Fireplace
Game Room
Home Theater
Loft
Main Level Laundry
Mother in law apartment
Mud Room
Open Floor Plan
Storage
Vaulted Ceilings
Wine Cellar

Garage Type

Side Entry

Fireplaces

Four Fireplaces

Exterior Wall Framing

2x6

Building Lot Type

Down Site

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Outdoor Kitchen
Walk-in Pantry

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch
Friend's Entry
Porte-Cochere
Sundeck

Master Suite Features

Fireplace in Master
Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

Note: for grade to ridge height for back of the house: 34’-7” if you “grotto” the back as we have shown, 36’-10” if you just do it a full walk-out basement (as seen on the right side elevation where the basement double door is).

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
