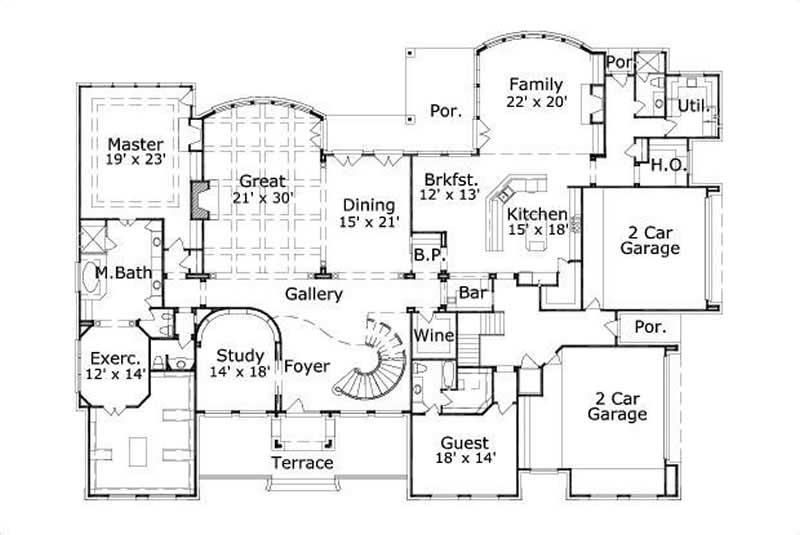

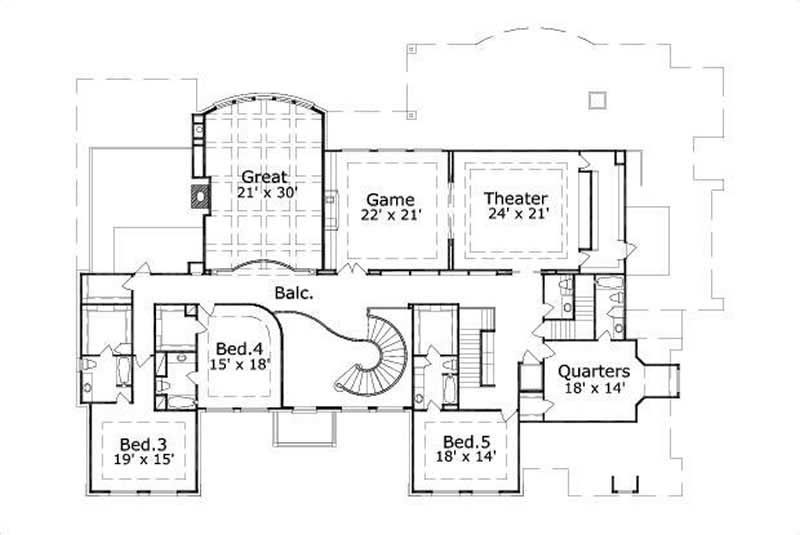

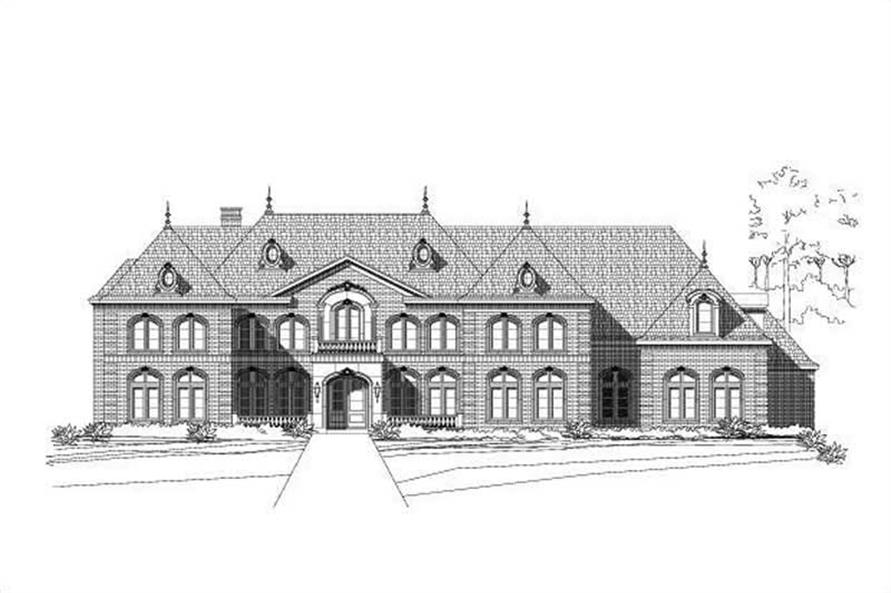

Home Plan number 177 is a two story, French style home with a total square footage of 9,765. There are 6 bedrooms and 7 and 1/2 bathrooms, along with a split entry, front loading 4 car garage. The master bedroom includes a sitting area and fireplace. Plan number 177 has a covered side porch and rear porch. It also has an interior balcony. Special features include a cabana bath, exercise room, optional elevator, rotunda, terrace, two story living room, vestibule, quarters, shop, theater/media area, and wine room. Other features include a bar, computer alcove, gallery, butler pantry, coffee/juice bar, entry courtyard, foyer, home office, mud entry, and unfinished storage.
Each plan set includes the following:
- Floor Plans
- Electrical Layout
- Building Sections
- Roofing Plan
- Interior Elevations
- General Details
- Wall Sections
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
