6-Bedroom, 6784 Sq Ft Luxury Plan with Walk-in Pantry

This image shows the front elevation of these Luxury house plans.
ELEVATION OF AA HOMEPLAN
AA HOUSE PLAN REAR ELEVATION
6-Bedroom, 6784 Sq Ft Luxury House Plan - 107-1033 - Front Exterior
ELEVATION OF AA HOMEPLAN
AA HOUSE PLAN REAR ELEVATION

About Plan # 107-1033

About Plan # 107-1033

6784 SQUARE FEET 6 BEDROOMS 7 FULL BATH 1 HALF BATH
2 FLOOR 65' 0" WIDTH 91' 0" DEPTH 3 GARAGE BAY
Luxury Home Plans #107-1033 have Spanish and Mediterranean style and flair. This plan has two stories, six Bedrooms, a three car garage , six and a half bathrooms plus a cabana bath. These plans have classic Mediterranean style which can be seen through the columns and arches that provide strong curb appeal as well as the towering covered entrance. This unique design has everything, including a Media and/or Playroom plus extra storage areas, Covered patios with summer kitchen as well as Large Living Room with two story tray ceilings and stately fireplace and wet bar. You’ll love this design if you’re looking for a home with a spacious feel while also providing more private areas

Each plan set includes the following:

  • FLOOR PLAN: Fully dimensioned floor plan indicating the size and location of all walls, doors, windows, and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Aerial view showing the elements that make up the roof, including roof slopes, ridges, hips, and valleys. In addition to the basic rooflines, our roof plans have specifically engineered truss drawings that show the length, spacing, and layout of all roof structural members.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Includes kitchen and bath layout.
  • KITCHEN & BATH LAYOUTS: The general layout of kitchens and baths is shown on the floor plan and includes fixtures and cabinetry.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

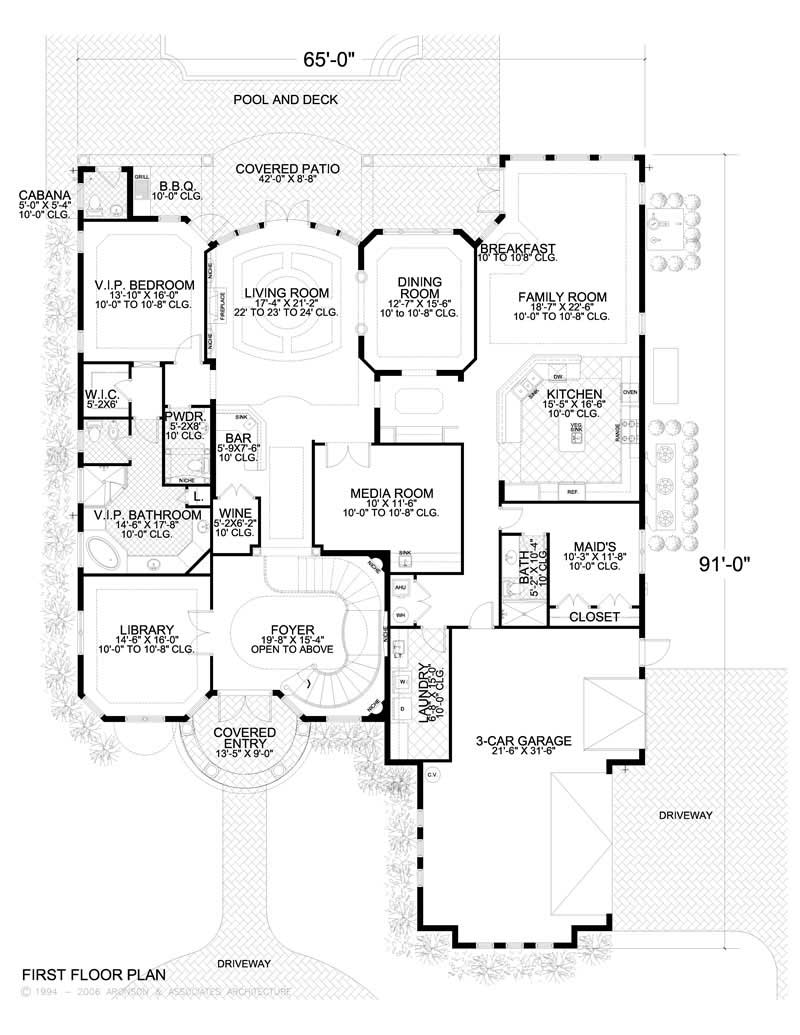

Home Plan: #107-1033 Floor Plan First Story - main level Floor Plan First Story of Luxury Plan #107-1033

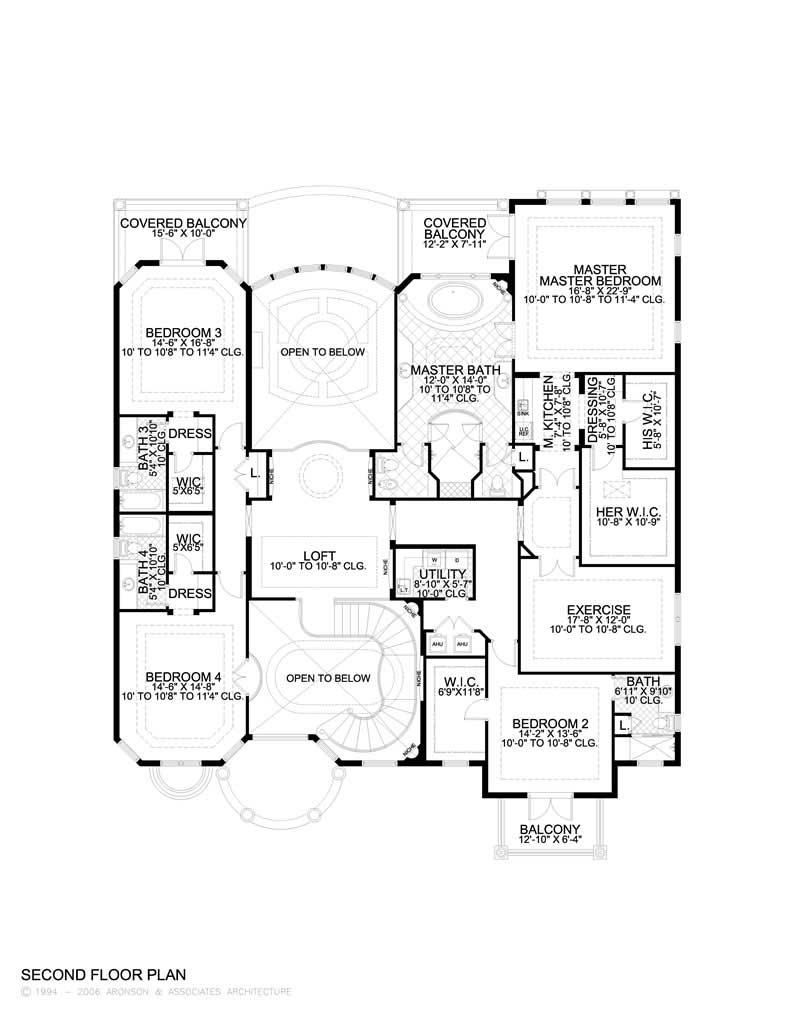

#107-1033 Floor Plan Second Story - second level Floor Plan Second Story of Luxury Plan #107-1033
