6-Bedroom, 6072 Sq Ft French Plan with Covered Rear Porch

Front elevation of French home (ThePlanCollection: House Plan #106-1277)

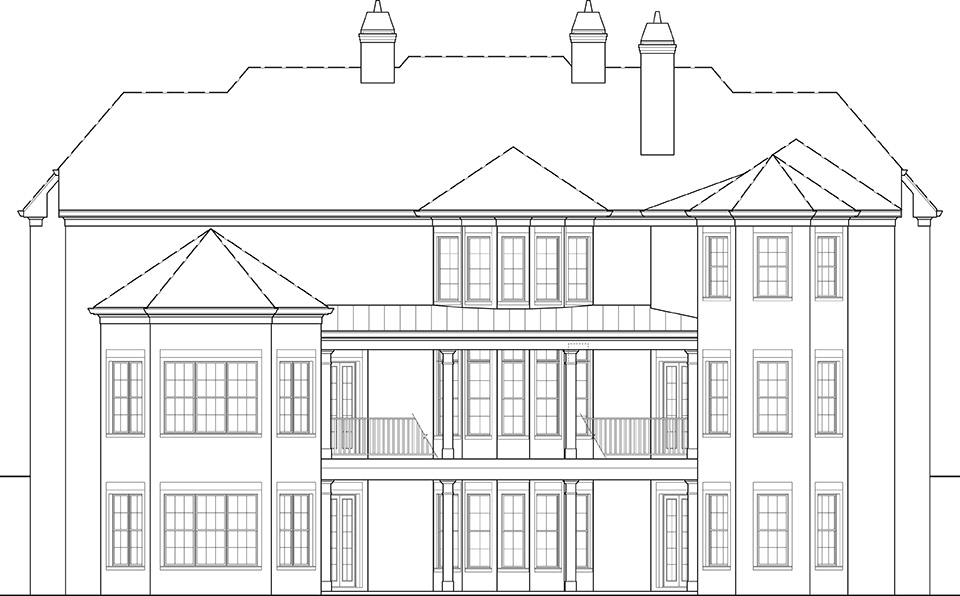

106-1277: Home Plan Rear Elevation

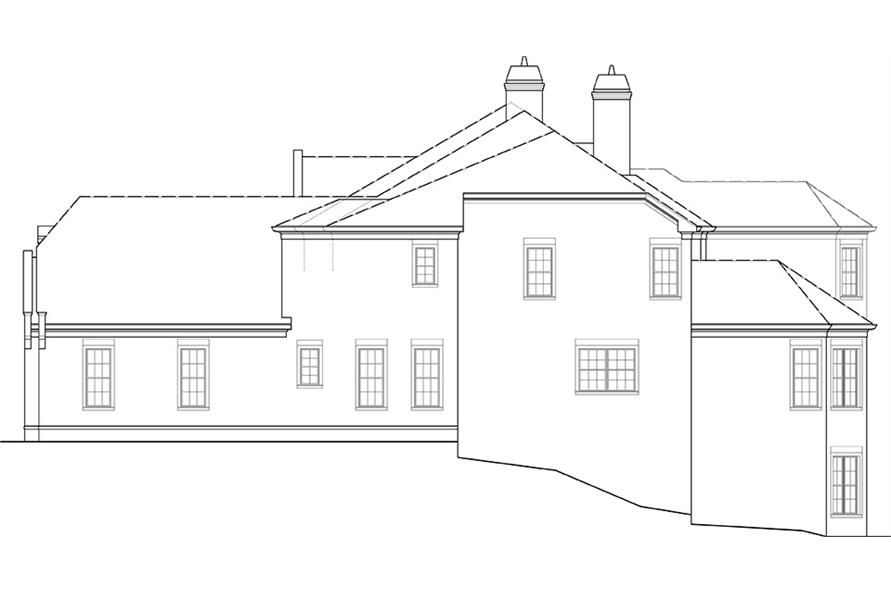

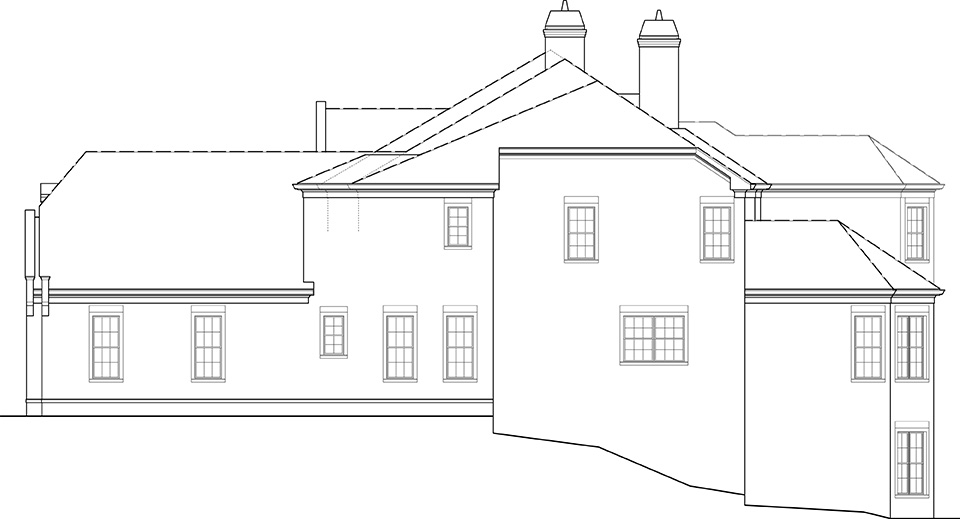

106-1277: Home Plan Left Elevation

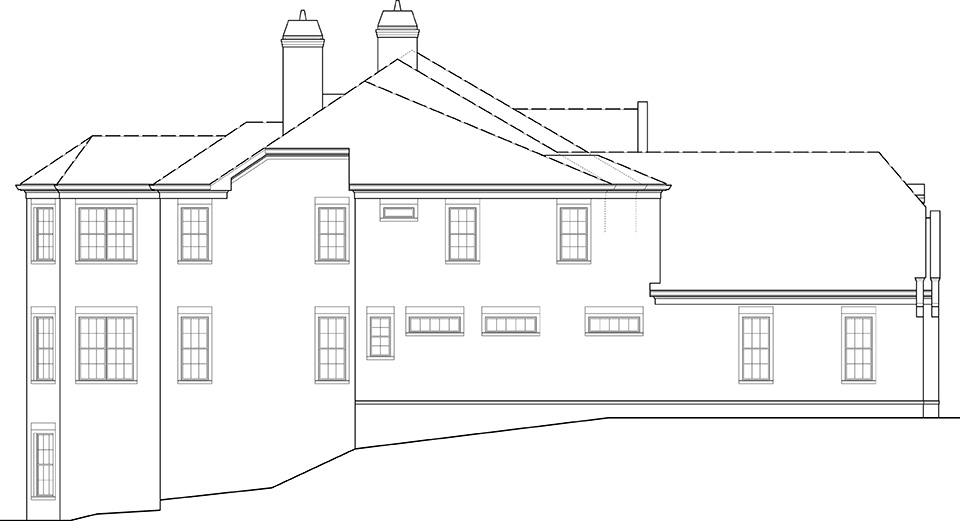

106-1277: Home Plan Right Elevation

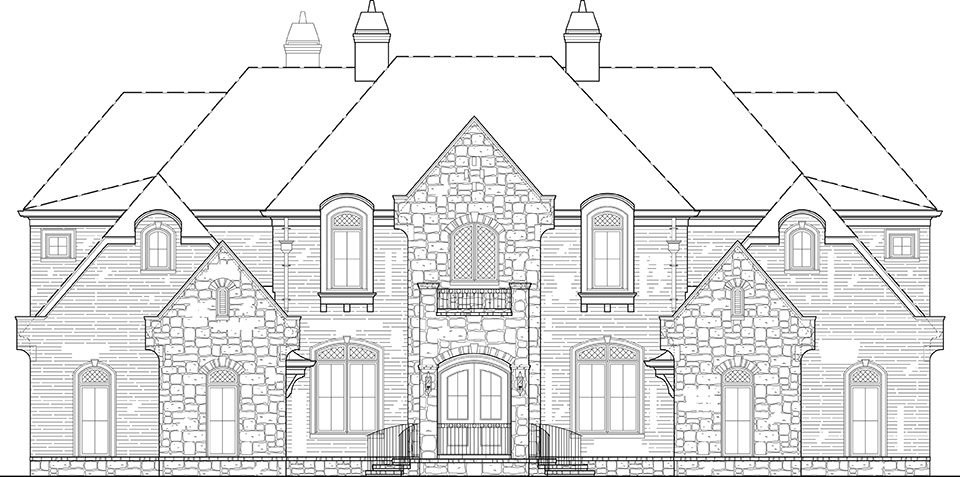

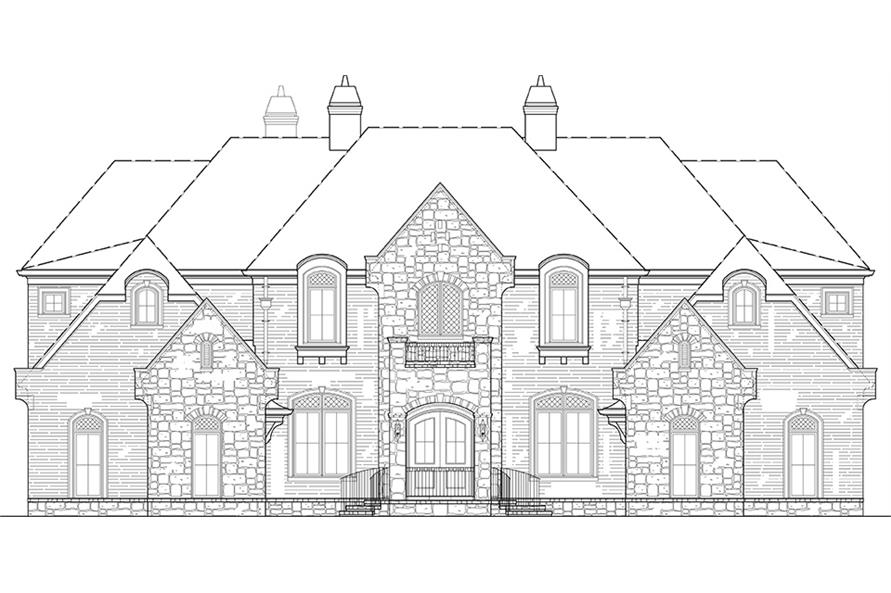

106-1277: Home Plan Front Elevation
6-Bedroom, 6072 Sq Ft French House Plan - 106-1277 - Front Exterior

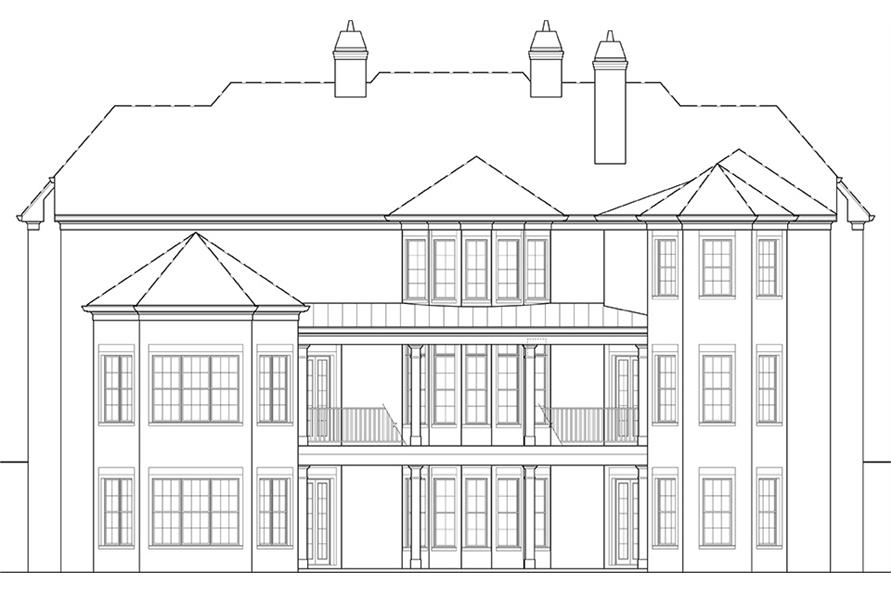

106-1277: Home Plan Rear Elevation
106-1277: Home Plan Left Elevation
106-1277: Home Plan Right Elevation
106-1277: Home Plan Front Elevation

About Plan # 106-1277

About Plan # 106-1277

6072 SQUARE FEET 6 BEDROOMS 6 FULL BATH 1 HALF BATH
2 FLOOR 76' 0" WIDTH 88' 0" DEPTH 4 GARAGE BAY

Beautiful 2 storey French, European style castle.

Each plan set includes the following:

  • COVER SHEET: Features an elevation of the home, sheet number index for the plan, and contact information.
  • FOUNDATION PLAN: These drawings will detail and illustrate the foundation of the home as well as exterior and interior footings to support the floors and structure above. If a basement is purchased, it will show the stairs, bearing walls, and basement windows and doors.
  • FIRST FLOOR PLAN: Drawn to ¼”=1’-0” scale and includes exterior dimensions to build the home. The notes are precise directions for your builder. Important features such as built-ins, niches, and appliances are noted. Doors and windows are identified and specific sizing can be found on window and door schedules. Conventional framing.
  • SECOND FLOOR PLAN (if applicable): Includes stair details. Often the reflective roof detail is shown legibly over the second-floor plan.  This is helpful for the framing contractor.
  • LIGHTING & ELECTRICAL: On this sheet, you have a schematic of the lights, electrical plugs, phone location, and code items such as smoke detectors. It is commonplace to build with your builder and/or electrician before the work starts to review this plan. Careful planning can make your home special and convenient for your family.
  • SECOND FLOOR LIGHTING (if applicable): The same details as provided for the first floor.
  • FRONT AND REAR ELEVATIONS: The front and rear elevations may be on separate pages depending on the size of the house. This page comes with exterior dimensions and notes required to complete construction. This is where the windows, doors, and interior trim details are illustrated, as well as wall heights, roof pitches, and ridge heights.
  • RIGHT AND LEFT ELEVATIONS: The right and left elevations provide the same details as the front and rear elevations.
  • ROOF PLAN: This drawing, usually at ¼”=1’-0” scale, is a bird’s-eye view of the home. It will show the ridges, hips, and valleys. This page will show a beautifully designed roof.
  • CROSS SECTIONS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. Sections are used to further describe any architectural intent necessary for the builder or framer. This drawing will illustrate important changes in the floor, ceiling, and roof heights.
  • CABINET ELEVATIONS: Cabinet elevations are provided with the plans, and like the electrical plan, they are mainly a guide for estimating purposes. Cabinets are an area that is easy to customize and your builder or cabinet maker will work with you early on in the process to ensure that the correct cabinets are specified. After framing and sheetrock installation, the sizes of walls may change slightly. The cabinet maker must take as built measurements to properly size your cabinets. **NOTE: Most house plans will contain interior/cabinet elevations, however not all plans will. Please inquire prior to purchase.
  • GENERAL NOTES: Separate sheets that provide standard construction notes, in addition, included are the details required to comply with International Residential Code (IRC) & Southern Building Code (SBC).

These items are NOT included:

  • Framing.
  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

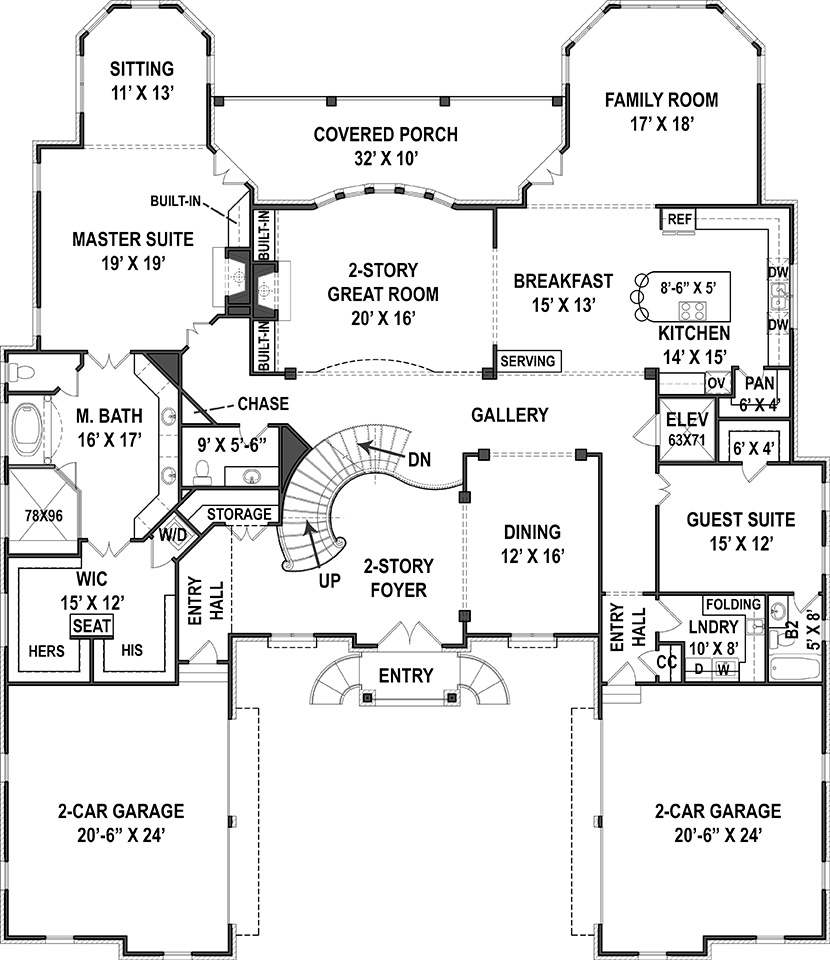

Home Plan: #106-1277 Floor Plan First Story - main level Floor Plan First Story of French Plan #106-1277

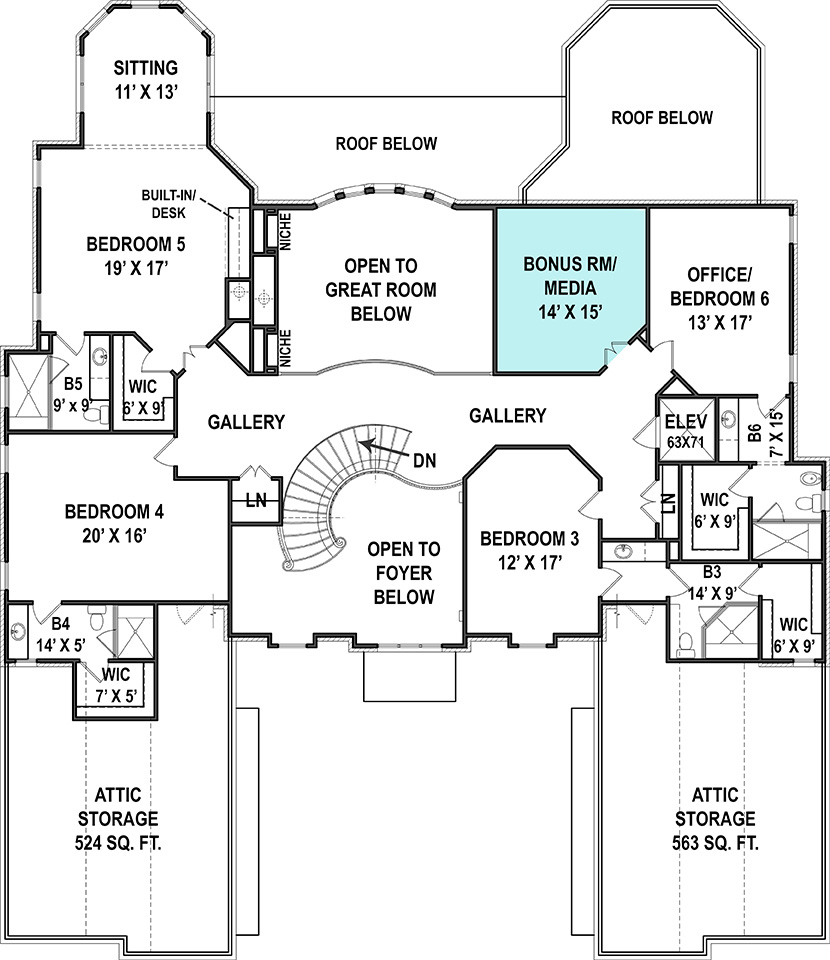

#106-1277 Floor Plan Second Story - upper level Floor Plan Second Story of French Plan #106-1277

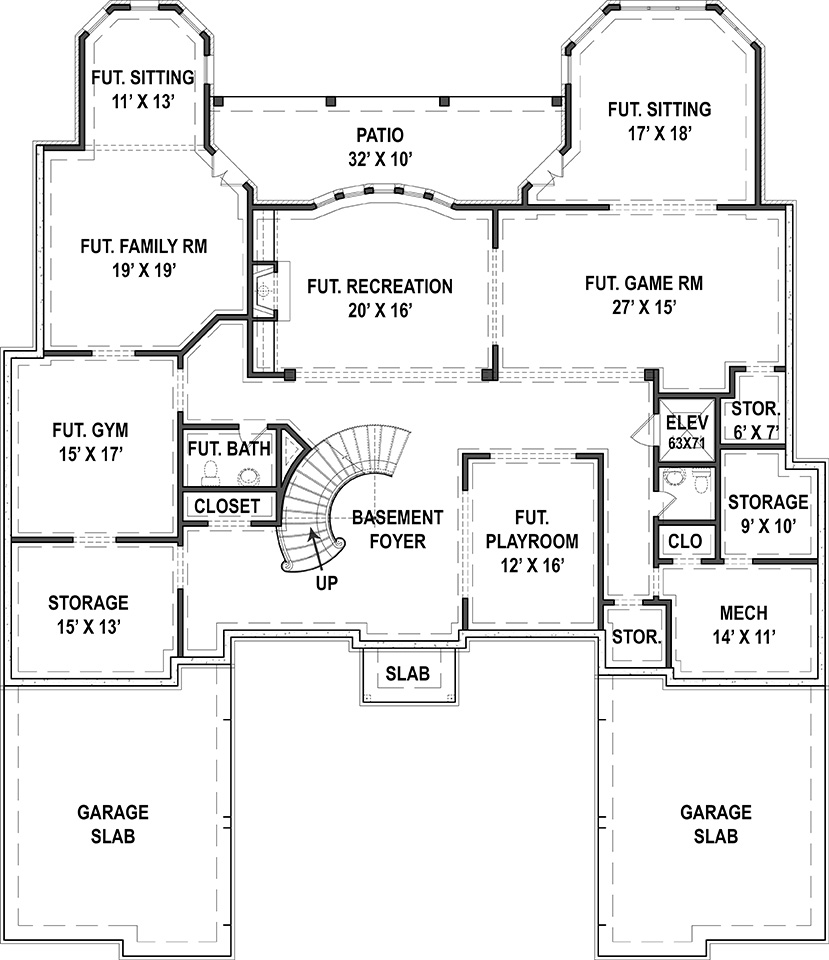

#106-1277 Floor Plan Basement - basement Floor Plan Basement of French Plan #106-1277
Home Plan: #106-1277 Floor Plan First Story - main level Floor Plan First Story of French Plan #106-1277
#106-1277 Floor Plan Second Story - upper level Floor Plan Second Story of French Plan #106-1277
#106-1277 Floor Plan Basement - basement Floor Plan Basement of French Plan #106-1277
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 106-1277
Floors:
2
Bedrooms:
6
Full Baths:
6
Half Baths:
1
Garage :
4

Square Footage

Heated Sq Feet:
6072
Main Floor:
3699
Upper Floor:
2373
Lower Floor:
3581
Unfinished Sq Ft:

Dimensions

Width:
76' 0"
Depth:
88' 0"
Ridge Height:
36' 0"

Architectural Styles

European
French
In-Law Suite

Exterior Wall Material

Brick
Rock/Stone

Roofing Type

Hip

Roofing Material

Other Composites

Roof Pitch

7/12

Ceiling Height

10 Foot Ceiling

Special Feature

Den
Dining Room
Elevator
Family Room
Guest Room
Home Office
In Home Gym
Library
Main Level Laundry
Media Room
Storage

Garage Type

Attached Garage
Courtyard Entry

Exterior Wall Framing

2x4

Kitchen Features

Eat-In Kitchen
Kitchen Island
Nook/Breakfast Area
Peninsula/Eating Bar
Walk-in Pantry

Porches and Exterior Features

Covered Rear Patio
Covered Rear Porch
Patio

Master Suite Features

Main Floor Master
Master Bathroom
Sitting Area
Split Master Bedroom
Walk In Closet

Additional Notes from Designer

PLEASE NOTE: The plans by this designer do NOT include framing. PLEASE NOTE: An Unlimited Use License is available for purchase through the designer BUT YOU MUST purchase a CAD package!

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
