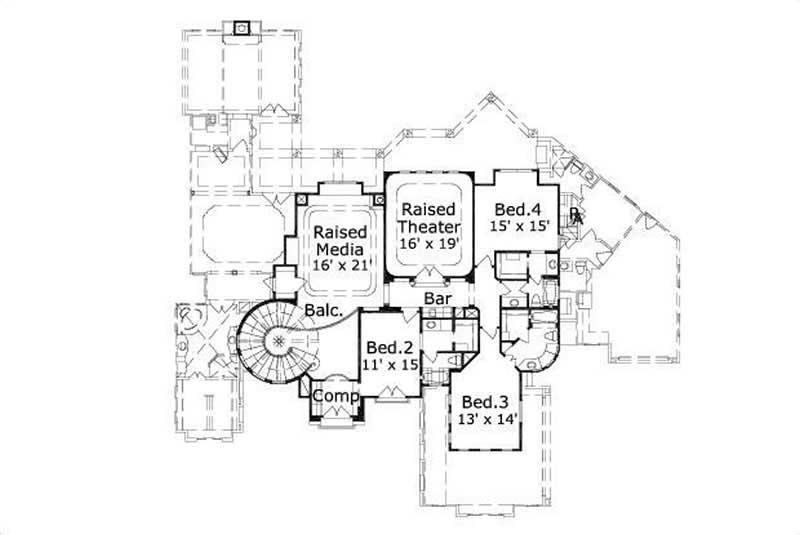

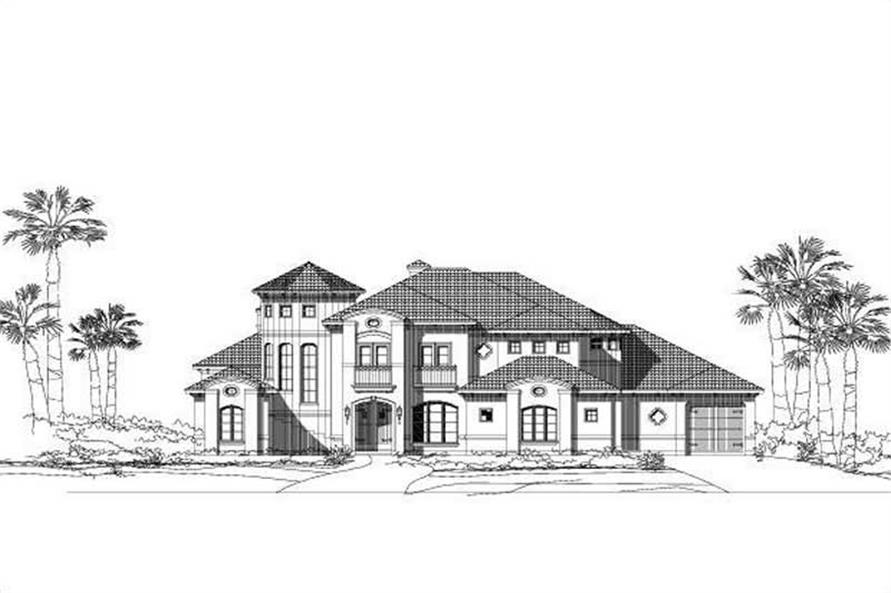

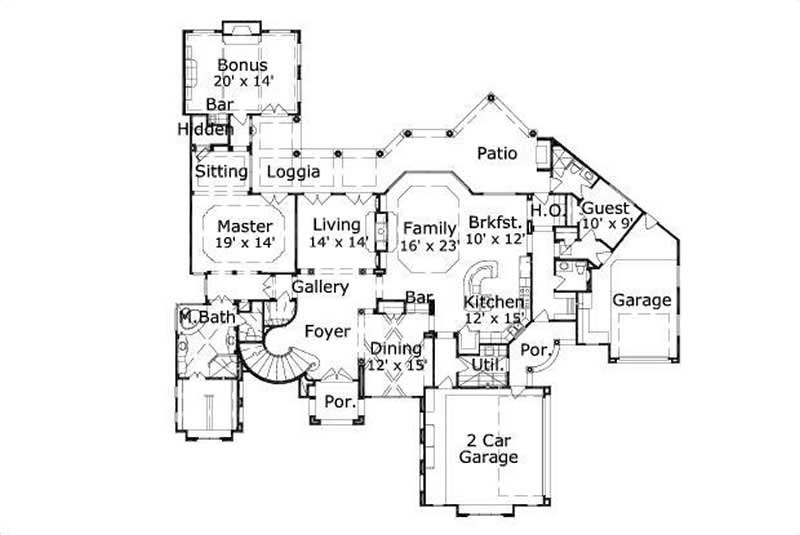

Home plan number 30420 is a two story, Mediterranean style home with a total square footage of 5,213. There are 5 bedrooms and 5 and 1/2 bathrooms, along with a split entry, front loading, 3 car garage. The master bedroom includes a sitting area. Plan number 30420 has a covered side porch, rear porch and terrace. Special features include hidden storage, an outdoor kitchen, shop, tile roof, wine closet, cabana bath, quarters and a theater/media area. Other features include a bar, butler pantry, computer alcove, foyer, bench hooks and cubbies, galler, home office, mud entry and unfinished storage.
Each plan set includes the following:
- Floor Plans
- Electrical Layout
- Building Sections
- Roofing Plan
- Interior Elevations
- General Details
- Wall Sections
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
