5-Bedroom, 5176 Sq Ft Luxury Plan with Nook/Breakfast Area

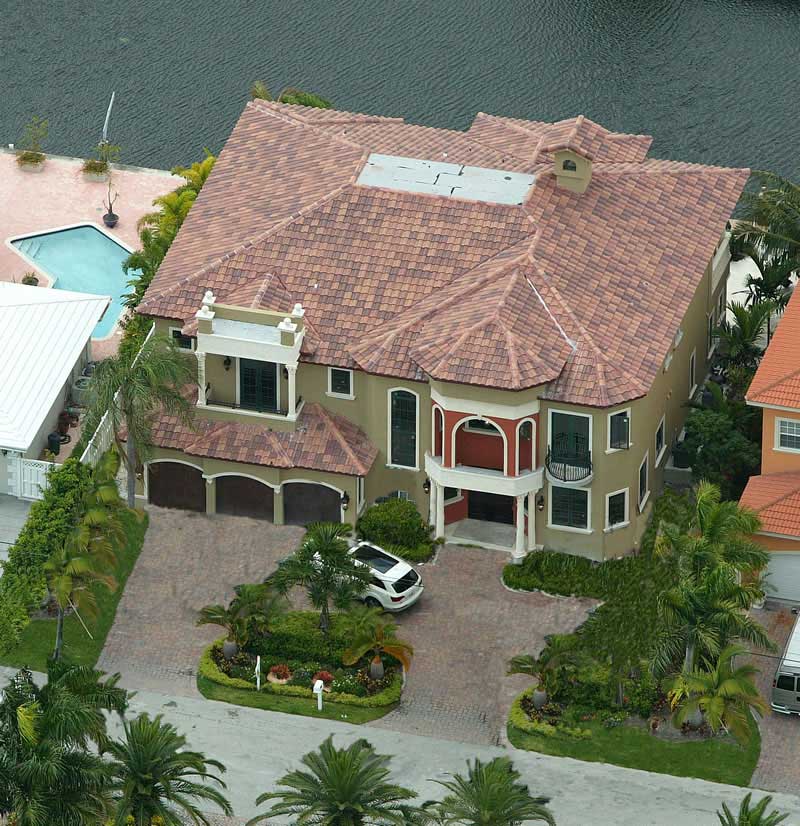

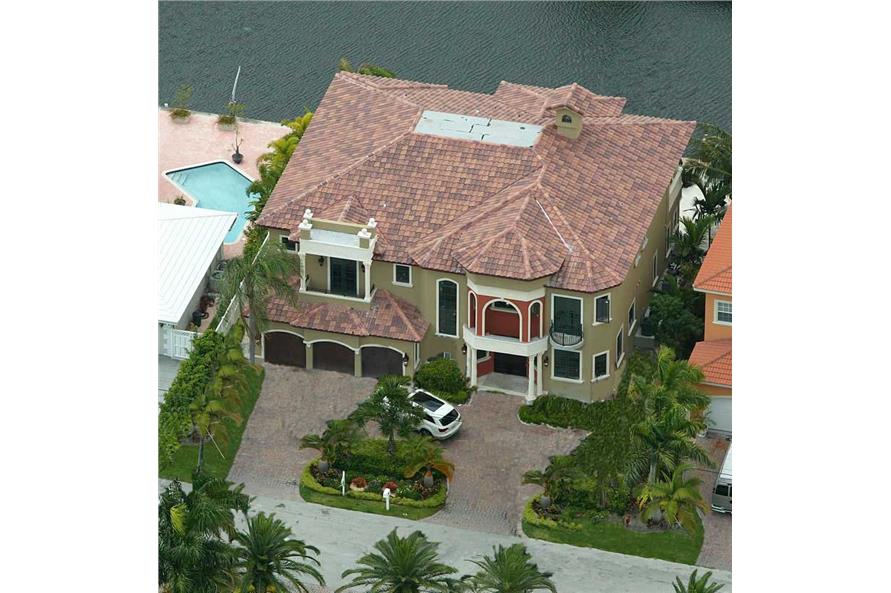

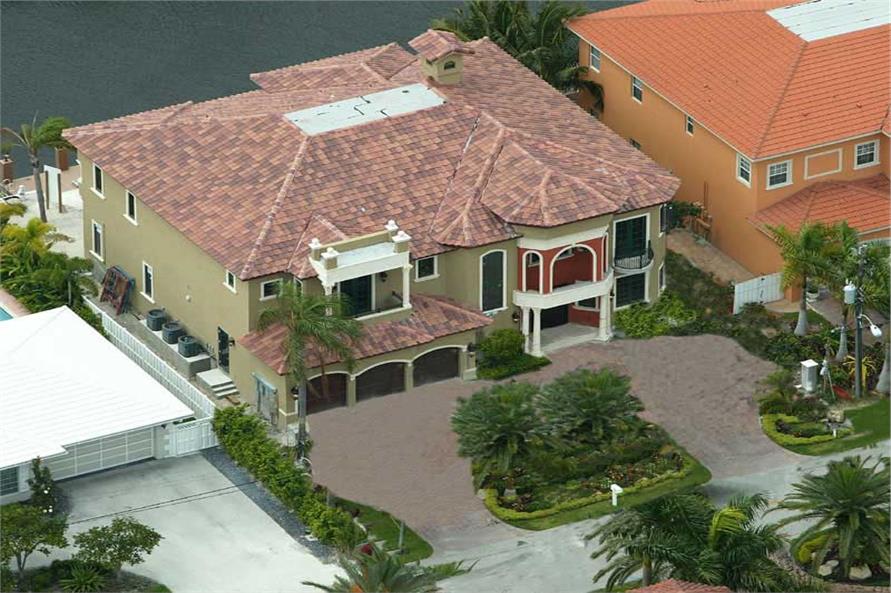

Color photograph of luxury house plan #107-1013
HOME PLAN AA 5176
HOME PLAN AA 5176
HOME PLAN AA 5176
HOUSE PLAN AA 5176
HOUSE PLAN AA 5176
HOME PLAN AA 5176
HOUSE PLAN AA 5176

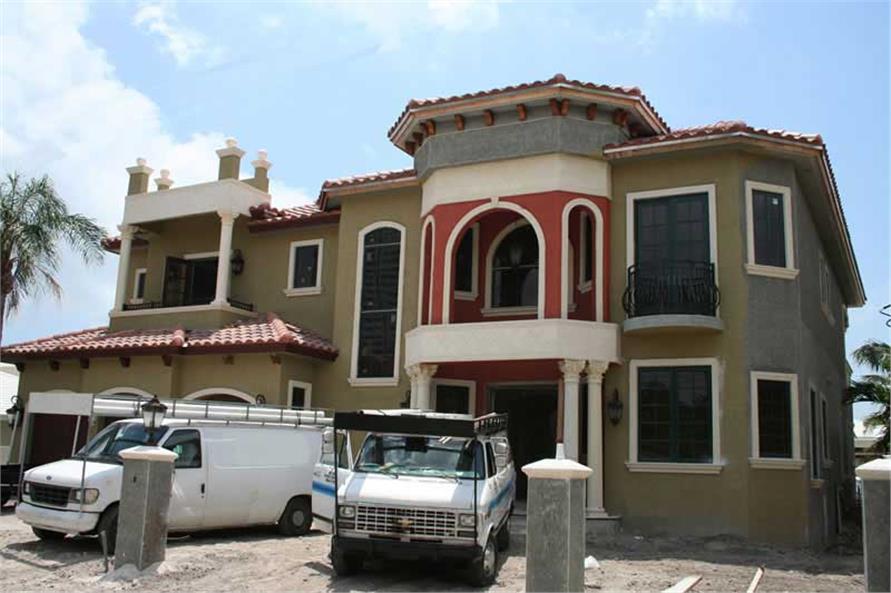

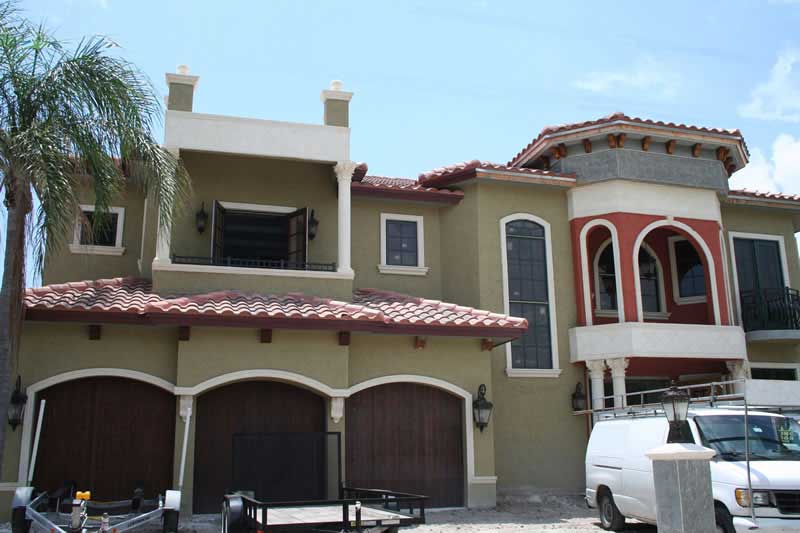

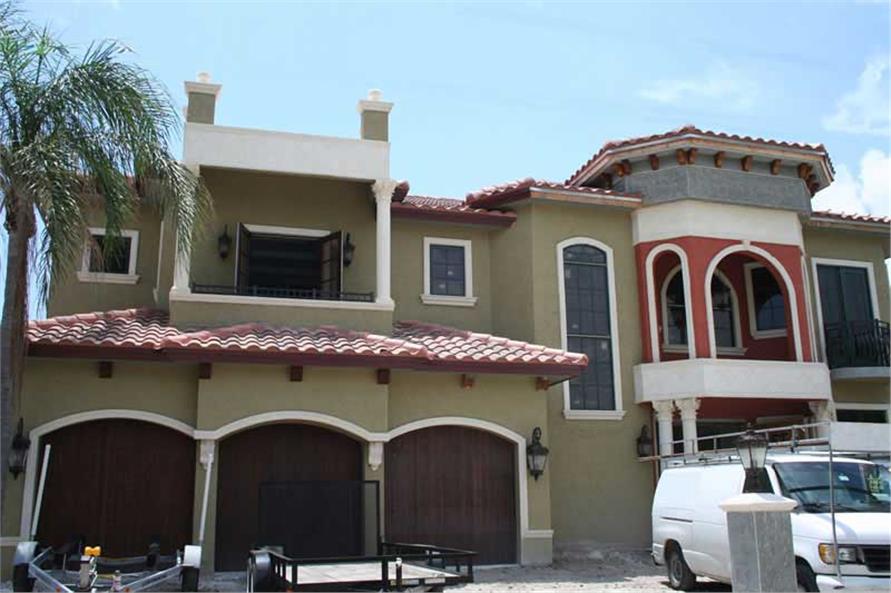

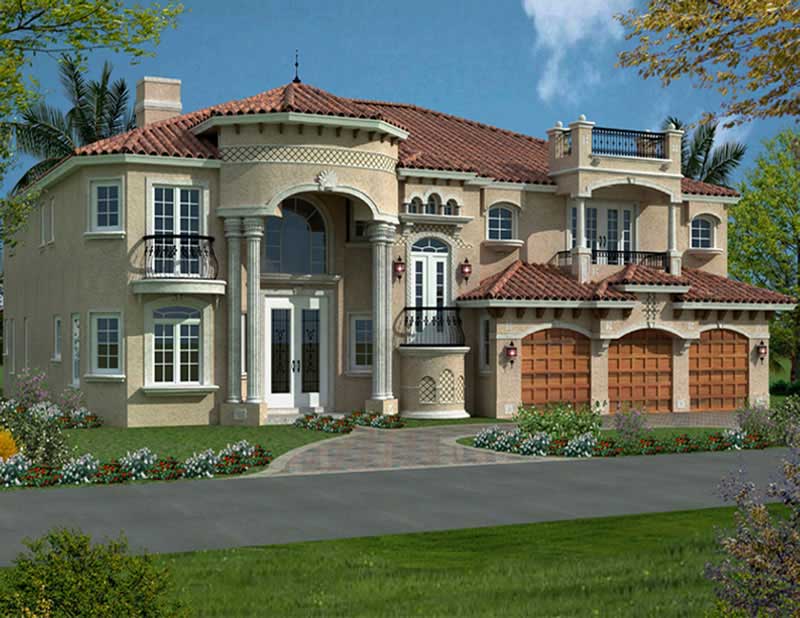

5-Bedroom, 5176 Sq Ft Luxury House Plan - 107-1013 - Front Exterior
HOME PLAN AA 5176
HOME PLAN AA 5176
HOME PLAN AA 5176
HOUSE PLAN AA 5176
HOUSE PLAN AA 5176
HOME PLAN AA 5176
HOUSE PLAN AA 5176

About Plan # 107-1013

About Plan # 107-1013

5176 SQUARE FEET 5 BEDROOMS 6 FULL BATH 1 HALF BATH
2 FLOOR 63' 10" WIDTH 59' 11" DEPTH 3 GARAGE BAY

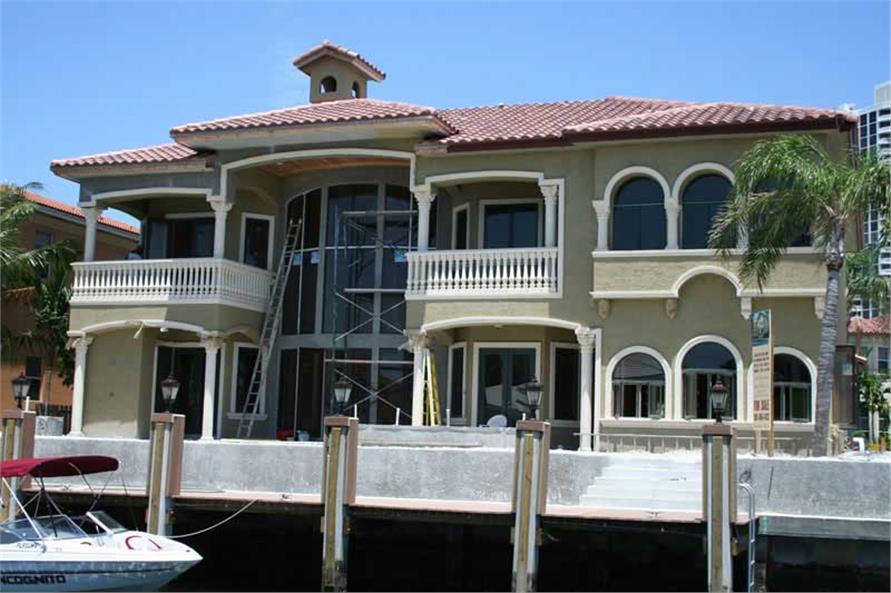

This Luxury Home Plans is a Florida / Spanish / Mediterranean-style waterfront design that features four bedrooms, five and one-half bathrooms, a cabana bath, a towering covered entrance with eight-foot-high doors, and a three-car garage. The columns and arches exude a strong curb appeal. The luxury first-story design presents a large living room with two-story ceilings, huge island kitchen with an eating bar and breakfast nook that opens to the family room, a media room complete with a wet bar, a cozy library that makes a perfect retreat, and a residential elevator. The second story of this magnificent home features a luxurious master suite with large walk-in closets, morning kitchen, tray ceilings, and a regal master bathroom opening onto a private balcony.

Each plan set includes the following:

  • FLOOR PLAN: Fully dimensioned floor plan indicating the size and location of all walls, doors, windows, and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Aerial view showing the elements that make up the roof, including roof slopes, ridges, hips, and valleys. In addition to the basic rooflines, our roof plans have specifically engineered truss drawings that show the length, spacing, and layout of all roof structural members.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Includes kitchen and bath layout.
  • KITCHEN & BATH LAYOUTS: The general layout of kitchens and baths is shown on the floor plan and includes fixtures and cabinetry.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

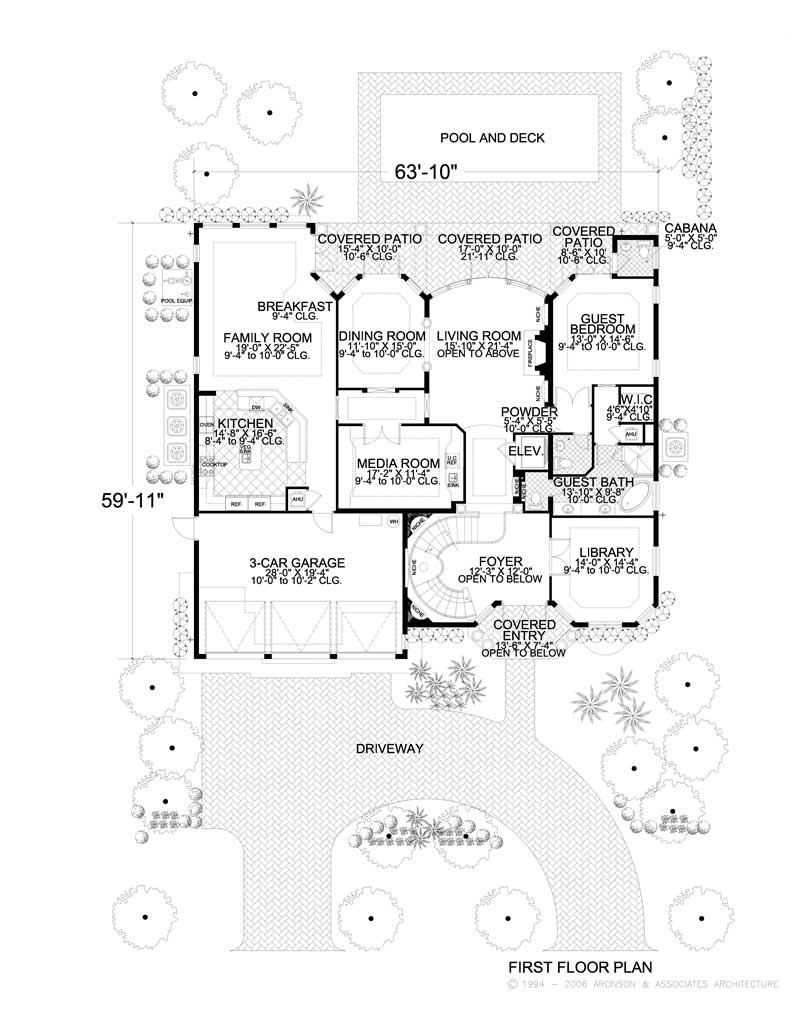

Home Plan: #107-1013 Floor Plan First Story - main Floor Plan First Story of Luxury Plan #107-1013

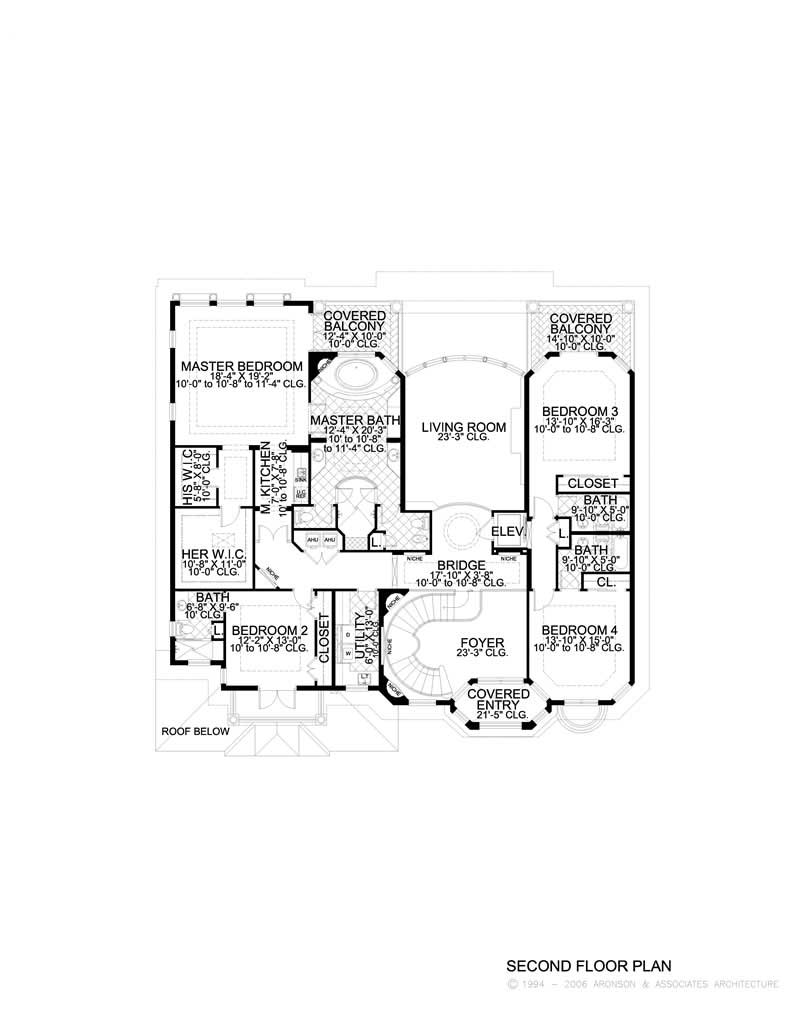

#107-1013 Floor Plan Second Story - second Floor Plan Second Story of Luxury Plan #107-1013
Home Plan: #107-1013 Floor Plan First Story - main Floor Plan First Story of Luxury Plan #107-1013
#107-1013 Floor Plan Second Story - second Floor Plan Second Story of Luxury Plan #107-1013
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 107-1013
Floors:
2
Bedrooms:
5
Full Baths:
6
Half Baths:
1

Square Footage

Heated Sq Feet:
5176
Main Floor:
2726
Upper Floor:
2450
Unfinished Sq Ft:
Garage :
576

Dimensions

Width:
63' 10"
Depth:
59' 11"
Ridge Height:
31'2' 0"

Architectural Styles

Concrete Block/ ICF Design
Florida Style
Luxury
Mediterranean
Spanish

Exterior Wall Material

Stucco

Roofing Type

Hip

Roofing Material

Tiles

Roof Pitch

5/12

Special Feature

Balcony
Color Photos
Dining Room
Elevator
Family Room
Fireplace
Guest Room
Library
Media Room
Open Floor Plan
Second Level Laundry

Garage Type

Attached Garage
Front Entry

Fireplaces

One Fireplace

Exterior Wall Framing

Concrete

Building Lot Type

Flat Site

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Secondary Kitchen
Walk-in Pantry

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Master Suite Features

Master Bathroom
Private Deck
Second Floor Master
Walk In Closet

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
