4-Bedroom, 4855 Sq Ft Coastal Plan with Master Bathroom

Main image for house plan # 9780
4-Bedroom, 4855 Sq Ft Coastal Home Plan - 107-1214 - Main Exterior

About Plan # 107-1214

About Plan # 107-1214

4855 SQUARE FEET 4 BEDROOMS 4 FULL BATH 2 HALF BATH
2 FLOOR 75' 3" WIDTH 71' 9" DEPTH 2 GARAGE BAY
This home plan offers a Covered Entry with French doors to Foyer Living Room with access to Patio Dining Room with circle recessed ceiling and access to Patio Kitchen with island range open to Breakfast Room with access to Rear Covered Patio Cabana with Sauna nearby Bedroom 2 with private bath Family Room with bar, fireplace and French doors Laundry Room with sink Sewing Room with bath Upper Floor Loft Master Suite with box ceiling, walk-in closet and access to private balcony Master Bath with corner whirlpool bath, shower and two vanities Bedroom 3 and 4 with private bath access and Balcony access. It is a Concrete block exterior construction plan

Each plan set includes the following:

  • FLOOR PLAN: Fully dimensioned floor plan indicating the size and location of all walls, doors, windows, and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Aerial view showing the elements that make up the roof, including roof slopes, ridges, hips, and valleys. In addition to the basic rooflines, our roof plans have specifically engineered truss drawings that show the length, spacing, and layout of all roof structural members.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Includes kitchen and bath layout.
  • KITCHEN & BATH LAYOUTS: The general layout of kitchens and baths is shown on the floor plan and includes fixtures and cabinetry.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

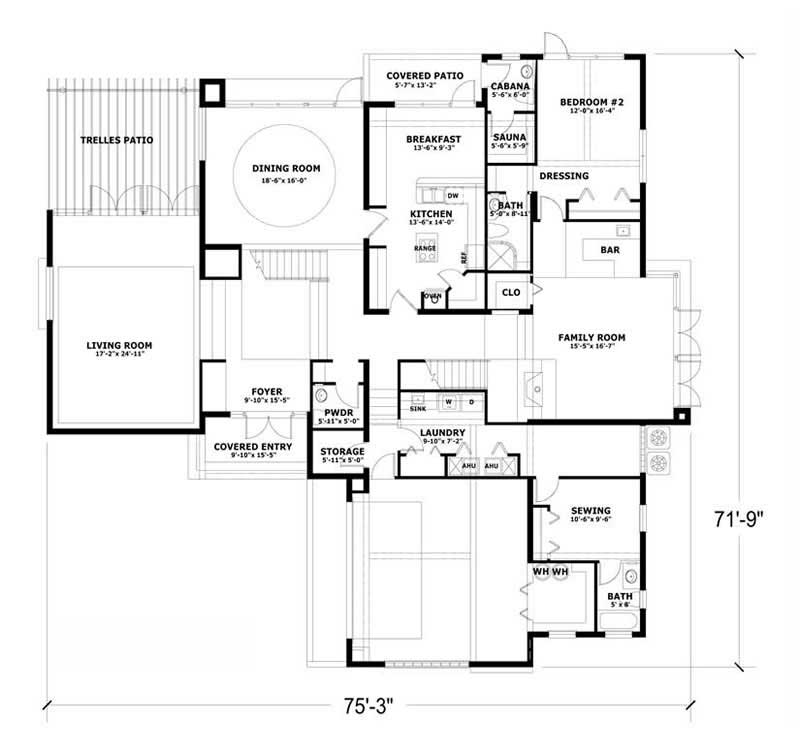

Home Plan: #107-1214 Floor Plan First Story - first level Floor Plan First Story of Coastal Plan #107-1214

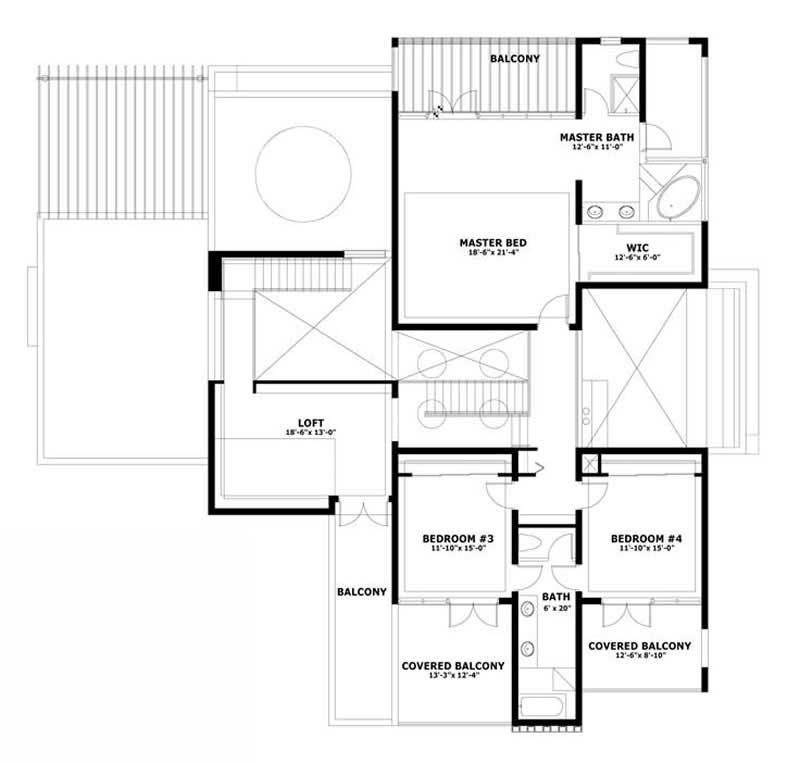

#107-1214 Floor Plan Second Story - second level Floor Plan Second Story of Coastal Plan #107-1214
Home Plan: #107-1214 Floor Plan First Story - first level Floor Plan First Story of Coastal Plan #107-1214
#107-1214 Floor Plan Second Story - second level Floor Plan Second Story of Coastal Plan #107-1214
