3-Bedroom, 4500 Sq Ft Traditional Plan with Nook/Breakfast Area

Front rendering of Traditional home plan (ThePlanCollection: House Plan #116-1097)
116-1097: Home Plan Left Elevation
116-1097: Home Plan Right Elevation
116-1097: Home Plan 3D Image
116-1097: Home Plan Rendering-Home at Night
116-1097: Home Plan Rendering
116-1097: Home Plan Rendering
116-1097: Home Plan Rendering
3-Bedroom, 4500 Sq Ft Traditional House Plan - 116-1097 - Front Exterior
116-1097: Home Plan Left Elevation
116-1097: Home Plan Right Elevation
116-1097: Home Plan 3D Image
116-1097: Home Plan Rendering-Home at Night
116-1097: Home Plan Rendering
116-1097: Home Plan Rendering
116-1097: Home Plan Rendering

About Plan # 116-1097

About Plan # 116-1097

4500 SQUARE FEET 3 BEDROOMS 3 FULL BATH 1 HALF BATH
2 FLOOR 66' 0" WIDTH 66' 0" DEPTH 0 GARAGE BAY

This lovely Traditional style home with Georgian influences (House Plan #116-1097) has 4500 square feet of living space. The 2 story floor plan includes 3 bedrooms.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

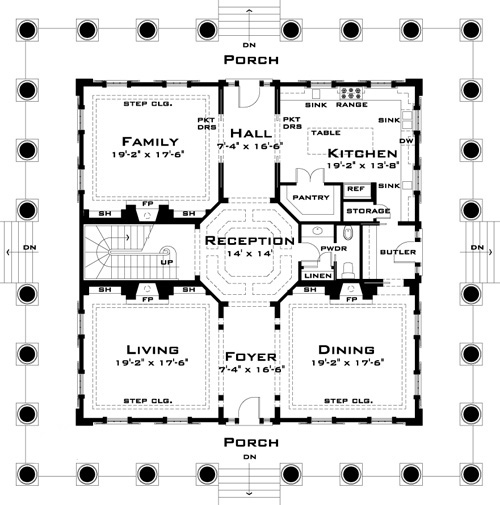

Home Plan: #116-1097 Floor Plan First Story - main level Floor Plan First Story of Traditional Plan #116-1097

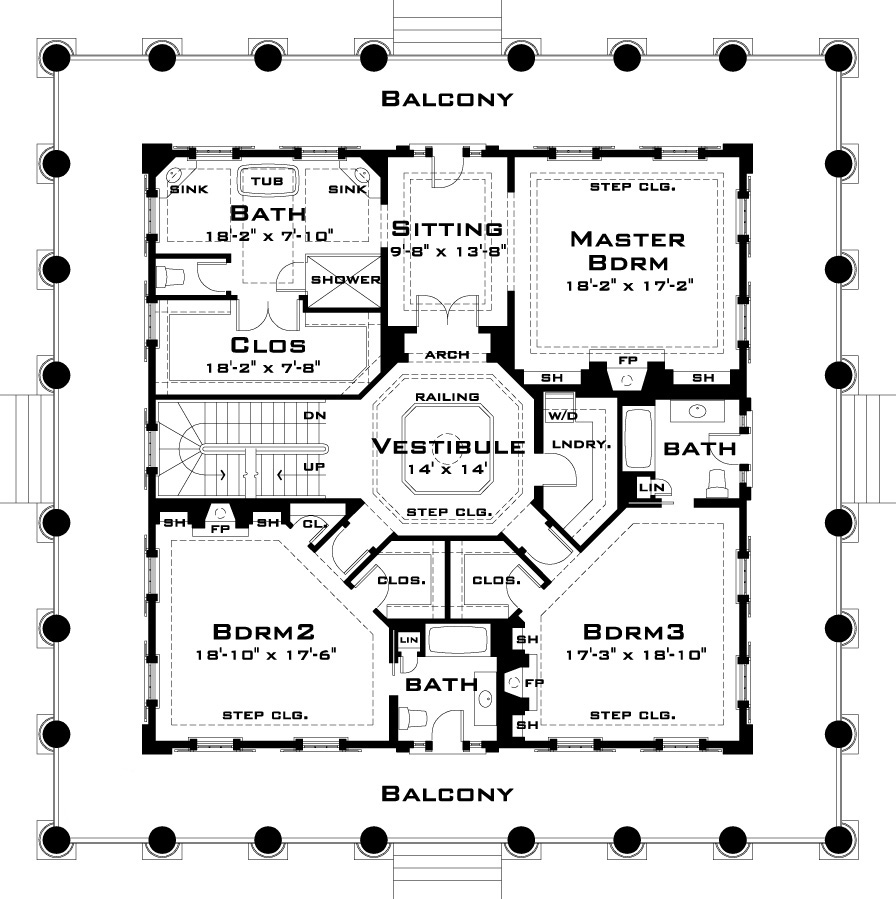

#116-1097 Floor Plan Second Story - upper level Floor Plan Second Story of Traditional Plan #116-1097

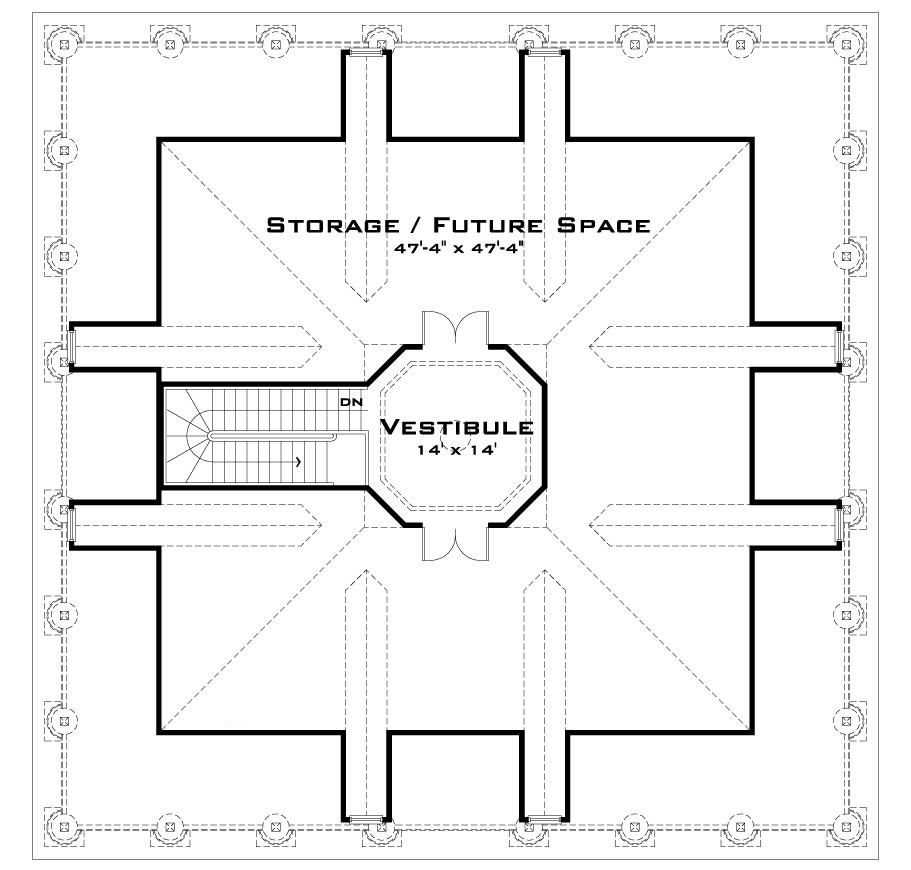

#116-1097 Floor Plan Bonus Room - bonus room Floor Plan Bonus Room of Traditional Plan #116-1097
Home Plan: #116-1097 Floor Plan First Story - main level Floor Plan First Story of Traditional Plan #116-1097
#116-1097 Floor Plan Second Story - upper level Floor Plan Second Story of Traditional Plan #116-1097
#116-1097 Floor Plan Bonus Room - bonus room Floor Plan Bonus Room of Traditional Plan #116-1097
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 116-1097
Floors:
2
Bedrooms:
3
Full Baths:
3
Half Baths:
1

Square Footage

Heated Sq Feet:
4500
Main Floor:
2300
Upper Floor:
2200
Unfinished Sq Ft:
Bonus Room:
2524

Dimensions

Width:
66' 0"
Depth:
66' 0"
Ridge Height:
46' 0"

Architectural Styles

Colonial
Georgian
Traditional

Exterior Wall Material

Stucco

Roofing Type

Hip

Roofing Material

Asphalt Shingles

Ceiling Height

10 Foot Ceiling
11 Foot Ceiling

Special Feature

Balcony
Dining Room
Family Room
Fireplace
Second Level Laundry
Split Bathroom
Storage
Vaulted Ceilings

Fireplaces

Four Fireplaces
One Fireplace
Three Fireplaces
Two Fireplaces

Kitchen Features

Butler's Pantry
Eat-In Kitchen
Kitchen Island
Nook/Breakfast Area
Walk-in Pantry

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch
Wrap Around Porch

Master Suite Features

Fireplace in Master
Master Bathroom
Private Deck
Second Floor Master
Sitting Area
Walk In Closet

Additional Notes from Designer

CAD files for this plan will be delivered in both DXF (AutoCad readable) and Sketchup Pro formats.

PRICING OPTIONS

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
