Traditional home (ThePlanCollection: Plan #140-1008)

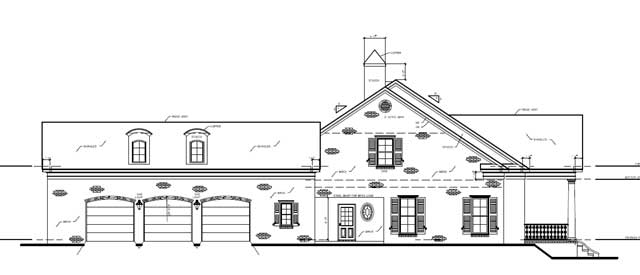

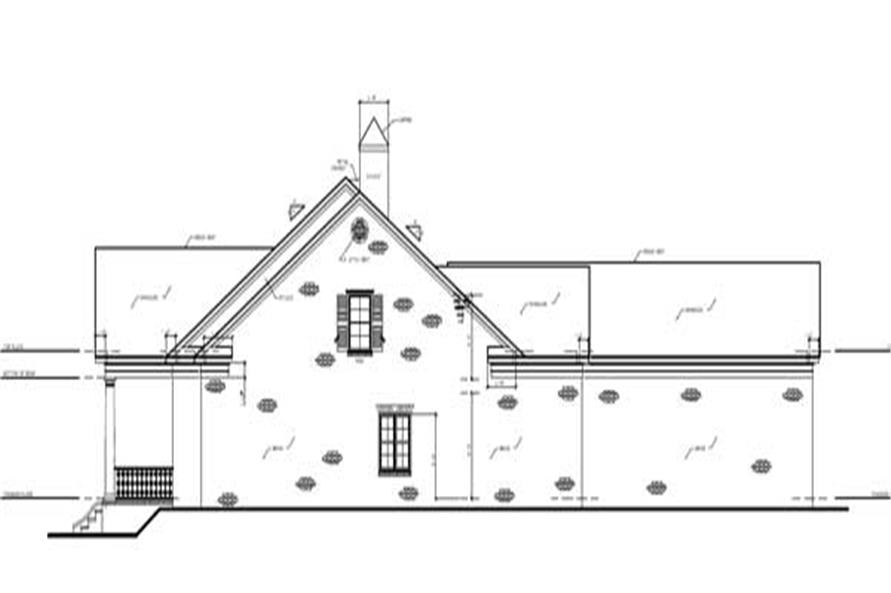

Home Plan Left Elevation

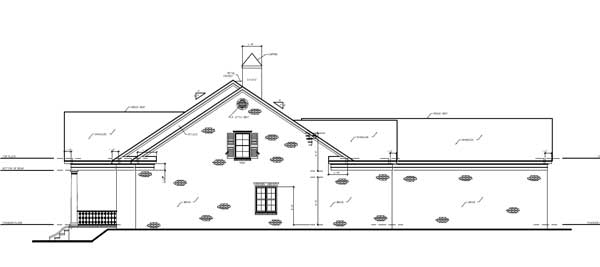

Home Plan Right Elevation
4-Bedroom, 4378 Sq Ft Traditional Home - Plan #140-1008 - Main Exterior
Home Plan Left Elevation
Home Plan Right Elevation

About Plan # 140-1008

About Plan # 140-1008

4378 SQUARE FEET 4 BEDROOMS 4 FULL BATH 1 HALF BATH
2 FLOOR 83' 8" WIDTH 100' 0" DEPTH 3 GARAGE BAY

This remarkable Traditional style home with Luxury attributes (Plan #140-1008) has 4378 square feet of living space. The 2-story floor plan includes 4 bedrooms and 4.5 baths. It has open living areas and plenty of additional amenities.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • GENERAL NOTES
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.
  • Window Specifications to e provided by Manufacturer




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

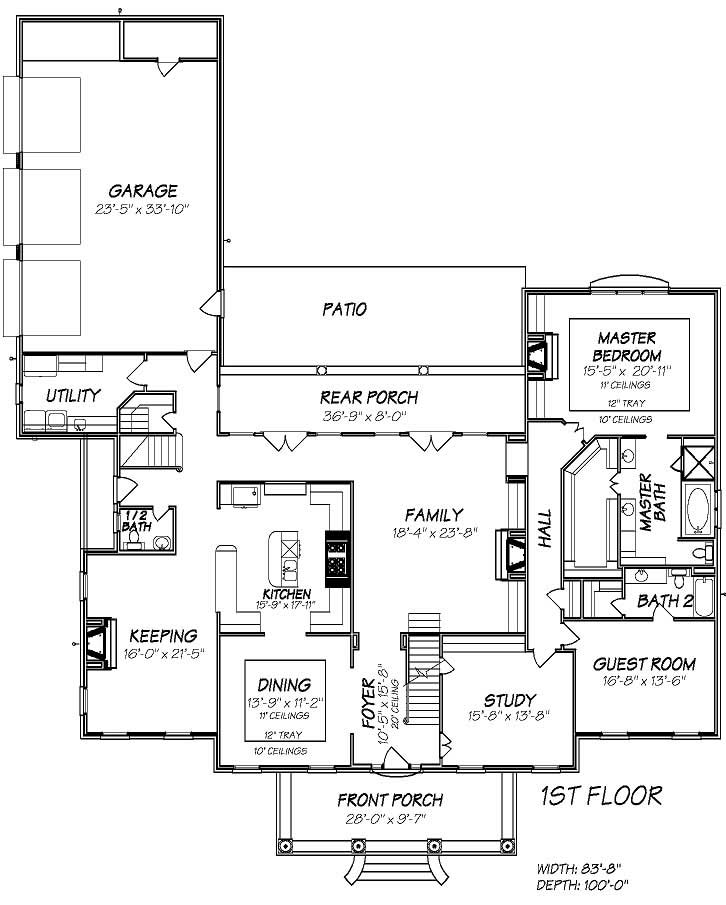

Home Plan: #140-1008 Floor Plan First Story - first story Floor Plan First Story of Country Plan #140-1008

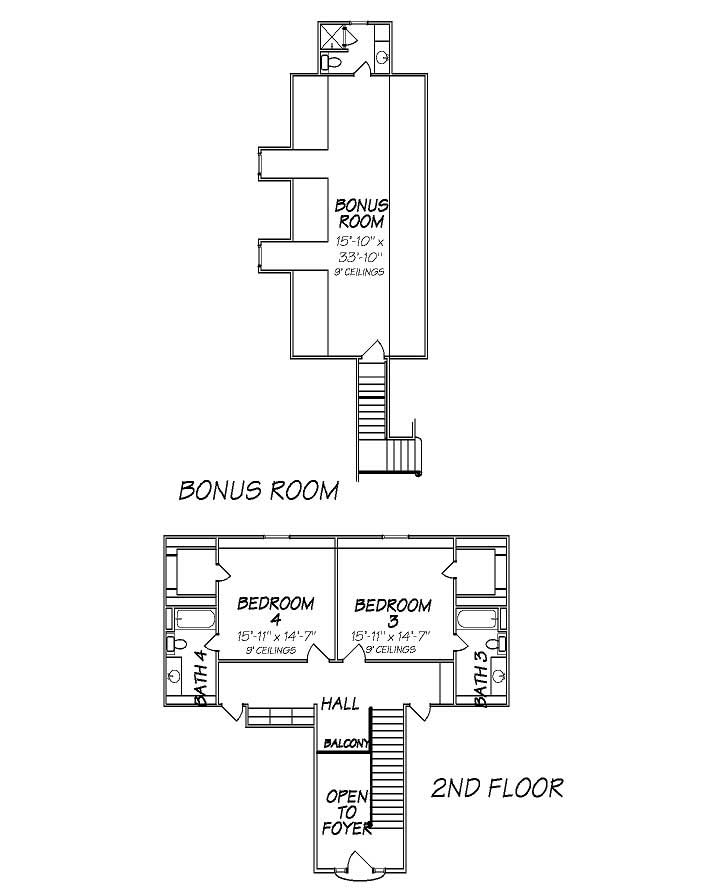

#140-1008 Floor Plan Second Story - second story Floor Plan Second Story of Country Plan #140-1008
Home Plan: #140-1008 Floor Plan First Story - first story Floor Plan First Story of Country Plan #140-1008
#140-1008 Floor Plan Second Story - second story Floor Plan Second Story of Country Plan #140-1008
