4-Bedroom, 4014 Sq Ft Florida Style Home Plan - 133-1033 - Main Exterior

About Plan # 133-1033

About Plan # 133-1033

4014 SQUARE FEET 4 BEDROOMS 4 FULL BATH 0 HALF BATH
1 FLOOR 77' 0" WIDTH 64' 4" DEPTH 0 GARAGE BAY

The Montelino House Plan is a beautiful, two story, Mediterranean style house plan with 4014 total living square feet. Some of the special features of this house plan include: In-Law Quarters, Main Floor Master, Split Bedrooms, Walk-in Closet, Covered Entry, Rear covered lanai,, Screened Lanai, Suited for sloping lot, Suited for view site, Over-Sized Garage, Tandem Garage, Handicapped Adaptable, Storage, Den/Home Office, Family Room, Open floor plan, Volume/vaulted ceilings, Island, Nook/Breakfast Area, Peninsula/Eating Bar, Walk-in Pantry.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

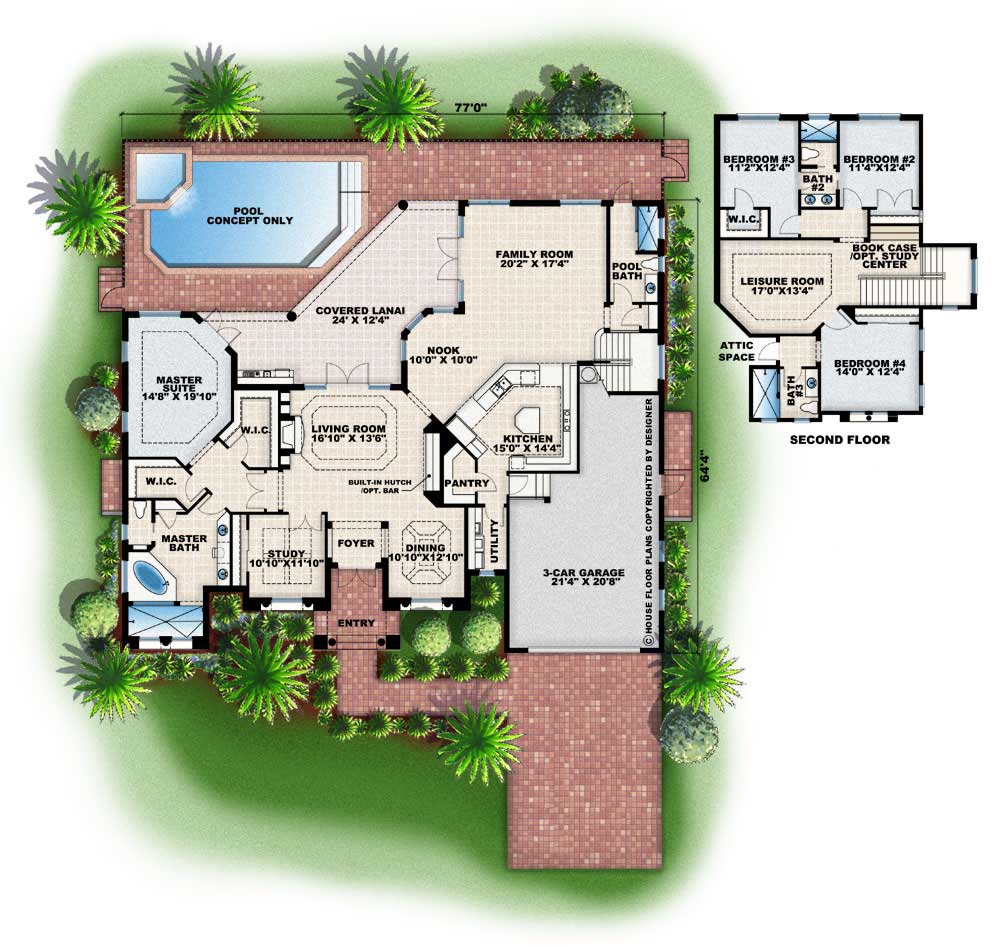

Home Plan: #133-1033 Floor Plan First Story - s Floor Plan First Story of Florida Style Plan #133-1033
Home Plan: #133-1033 Floor Plan First Story - s Floor Plan First Story of Florida Style Plan #133-1033
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 133-1033
Floors:
1
Bedrooms:
4
Full Baths:
4

Square Footage

Heated Sq Feet:
4014
Main Floor:
2856
Upper Floor:
1158
Unfinished Sq Ft:

Dimensions

Width:
77' 0"
Depth:
64' 4"

Architectural Styles

Mediterranean
Luxury
Concrete Block/ ICF Design
Florida Style
In-Law Suite
Handicap Accessible

Roofing Material

Tiles

Special Feature

Dining Room
Home Office
Family Room
Game Room
Main Level Laundry
Media Room
Split Bathroom
Storage
Den
Vaulted Ceilings

Garage Type

Attached Garage
Front Entry

Exterior Wall Framing

Concrete

Building Lot Type

View Lot

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Walk-in Pantry

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch
Screened in Lanai
Covered Lanai

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

Please Note that the designer's office will be closed between 8/4/22 to 8/9/2022. Any orders placed during this time will be processed once the designer resumes office after 8/9-2022.

PRICING OPTIONS

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
