4-5 Bedrm, 3869 Sq Ft Contemporary with Wide-Open Layout

Front elevation of Contemporary home plan (ThePlanCollection: House Plan #175-1129)
4-5 Bedroom, 3869 Sq Ft Contemporary House Plan - 175-1129 - Front Exterior

About Plan # 175-1129

About Plan # 175-1129

3869 SQUARE FEET 4 BEDROOMS 4 FULL BATH 0 HALF BATH
1 FLOOR 75' 0" WIDTH 123' 0" DEPTH 3 GARAGE BAY

This alluring contemporary home with Mediterranean elements has 3869 square feet of living space. The 1-story floor plan includes 4 bedrooms (5 bedrooms if the study is considered a bedroom). Striking features include:

  • Wide-open layout ideal for entertaining or simply relaxing.
  • CIrcular dining room with a 13-foot diameter.
  • Huge family room with sliding pocketing glass doors to let the outdoors easily merge with the indoors.
  • Gourmet kitchen with oversized island.
  • A study that could be used as a guest bedroom or game room with access to the outdoor kitchen.
  • A pool bath so wet feet don't walk through the house.
  • Split bedroom layout creating privacy for the grand master suite.
  • 3-car garage with plenty of storage in a courtyard layout.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size (if applicable), and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. Typical wall sections are also included. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

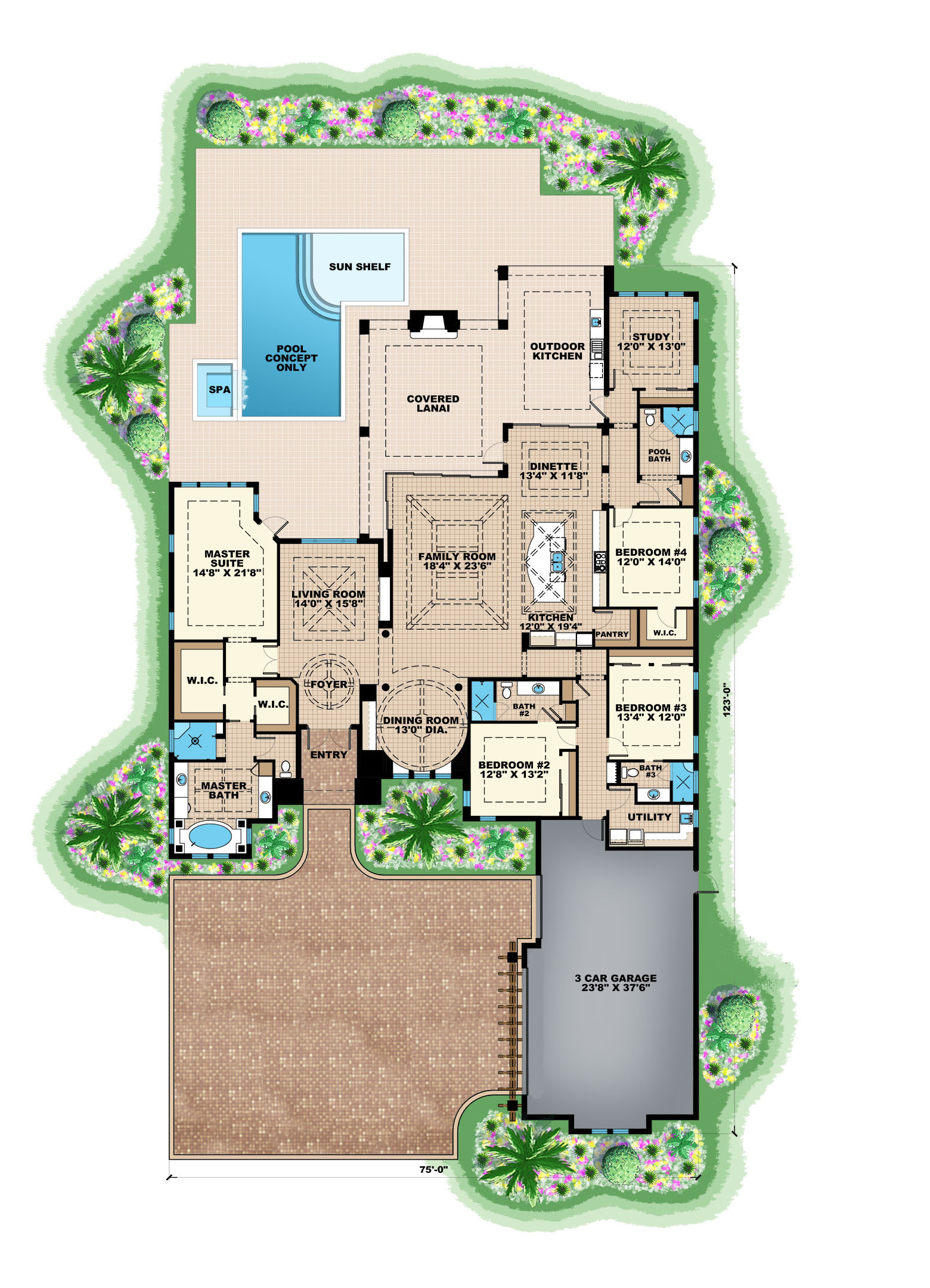

Home Plan: #175-1129 Floor Plan First Story - main level Floor Plan First Story of Contemporary Plan #175-1129
Home Plan: #175-1129 Floor Plan First Story - main level Floor Plan First Story of Contemporary Plan #175-1129
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 175-1129
Floors:
1
Bedrooms:
4
Full Baths:
4
Garage :
3

Square Footage

Heated Sq Feet:
3869
Main Floor:
3869
Unfinished Sq Ft:
Garage :
994
Porch :
803

Dimensions

Width:
75' 0"
Depth:
123' 0"
Ridge Height:
30' 0"

Architectural Styles

Beachfront
Coastal
Concrete Block/ ICF Design
Contemporary
Mediterranean
Modern
Transitional
Vacation Homes
Wheelchair Accessible

Exterior Wall Material

Stucco

Roofing Type

Hip

Roofing Material

Tiles

Roof Pitch

6/12

Ceiling Height

10 Foot Ceiling
11 Foot Ceiling
12 Foot Ceiling

Special Feature

Dining Room
Family Room
Home Office
Library
Main Level Laundry
Open Floor Plan
Split Bathroom
Storage
Swimming Pool
Vaulted Ceilings

Garage Type

Attached Garage
Side Entry

Exterior Wall Framing

Concrete

Building Lot Type

Corner Lot
View Lot

Kitchen Features

Eat-In Kitchen
Kitchen Island
Nook/Breakfast Area
Outdoor Kitchen
Peninsula/Eating Bar
Walk-in Pantry

Porches and Exterior Features

Covered Front Porch
Covered Lanai

Master Suite Features

Main Floor Master
Master Bathroom
Split Master Bedroom
Walk In Closet

Additional Notes from Designer

This plan is not available for build in Florida without prior consent.

This plan will still need to be engineered by a local engineering company and truss drawings done as well for most locations.  This includes all of Florida.

This plan is not for sale for use in the following areas without written consent of the designer:  Collier County, Florida, Lee County, Florida

The total square footage of this home plan is 5774

Exterior Wall 1st Floor: CMU


PLEASE NOTE: This designer has zip code restrictions on where their plans can be built!! Please contact us to see if you can purchase these plans BEFORE you order!! 2x6 and Right Reading Reverse are available. Please send in a modification request to receive a free quote. PLEASE NOTE: CAD files for this designer may take 2-3 business days to deliver. Thank you!
