4-Bedroom, 3800 Sq Ft Mediterranean Style Floor Plan with Covered Lanai

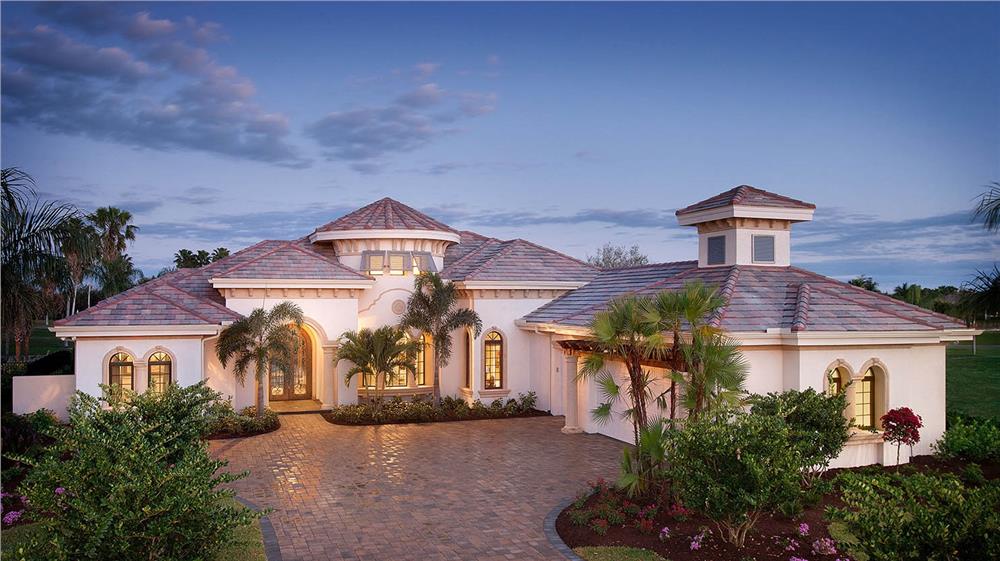

Color rendering of Mediterranean home plan (ThePlanCollection: House Plan #175-1086)

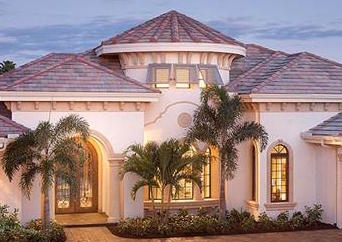

175-1086: Home Plan Rendering-Front Door

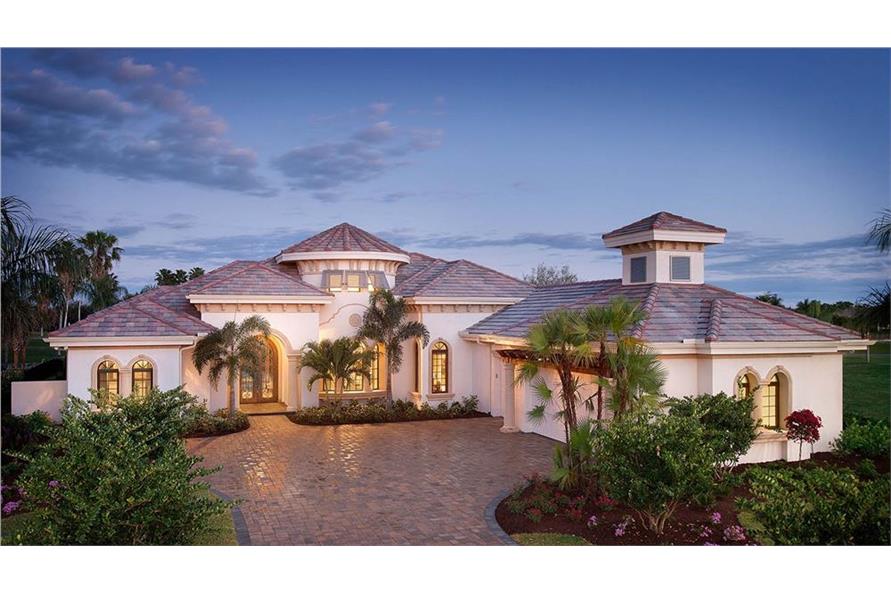

175-1086: Home Plan Rendering
175-1086: Home Plan Rendering

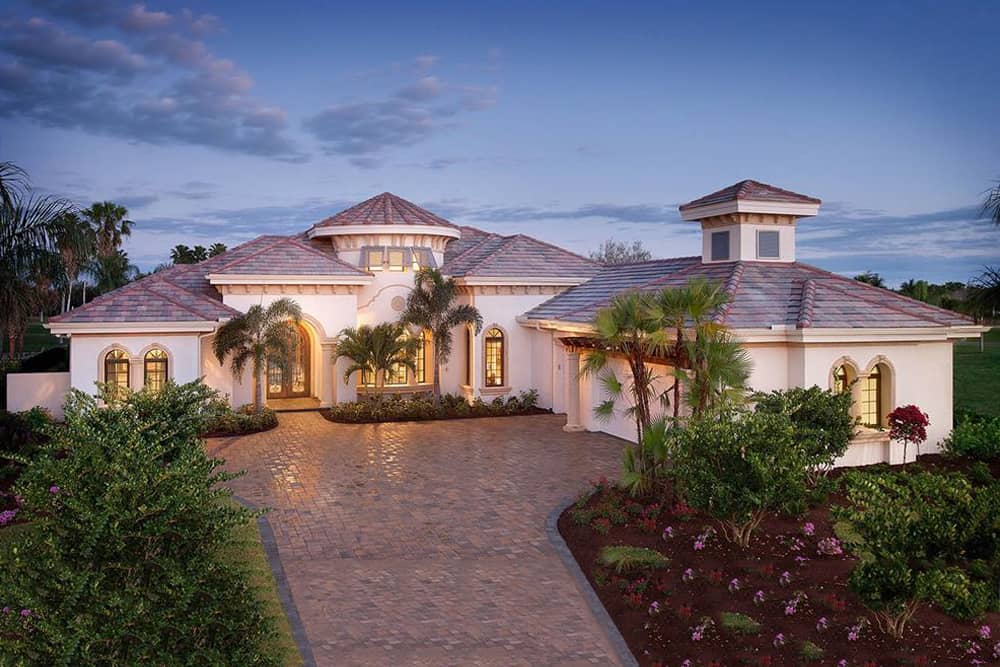

4-Bedroom, 3800 Sq Ft Mediterranean House Plan - 175-1086 - Front Exterior
175-1086: Home Plan Rendering-Front Door
175-1086: Home Plan Rendering
175-1086: Home Plan Rendering

About Plan # 175-1086

About Plan # 175-1086

3800 SQUARE FEET 4 BEDROOMS 4 FULL BATH 0 HALF BATH
1 FLOOR 75' 0" WIDTH 123' 0" DEPTH 3 GARAGE BAY

This impressive Mediterranean style home plan with Luxury influences has 3800 square feet of living space. The 1-story floor plan includes 4 bedrooms and 4 bathrooms.

With a luxurious Master suite, large island kitchen, a study that could easily become a 5th bedroom and elaborate ceiling designs throughout, this home plan features many attractive amenities including an outdoor kitchen with bar, plenty of windows for natural light and multiple glass sliders that pocket out of view for a seamless transition to the covered lanai.

Please Note: cannot be purchased for construction in the state of Florida.

Each plan set includes the following:

  • Elevations
  • Floor Plans
  • Building Section Markers
  • Electrical Layout
  • Slab Plan
  • Roof Plan
  • Building Sections
  • Typical Wall Sections
  • Miscellaneous Notes & Details



Not Included with the Plan:

  • NO MEPs, NO Framing,
  • No Trusses: The client gets that from the truss manufacturer
  • No Engineering, You will need to get the plans stamped and engineered locally
  • HVAC and Plumbing is not included




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

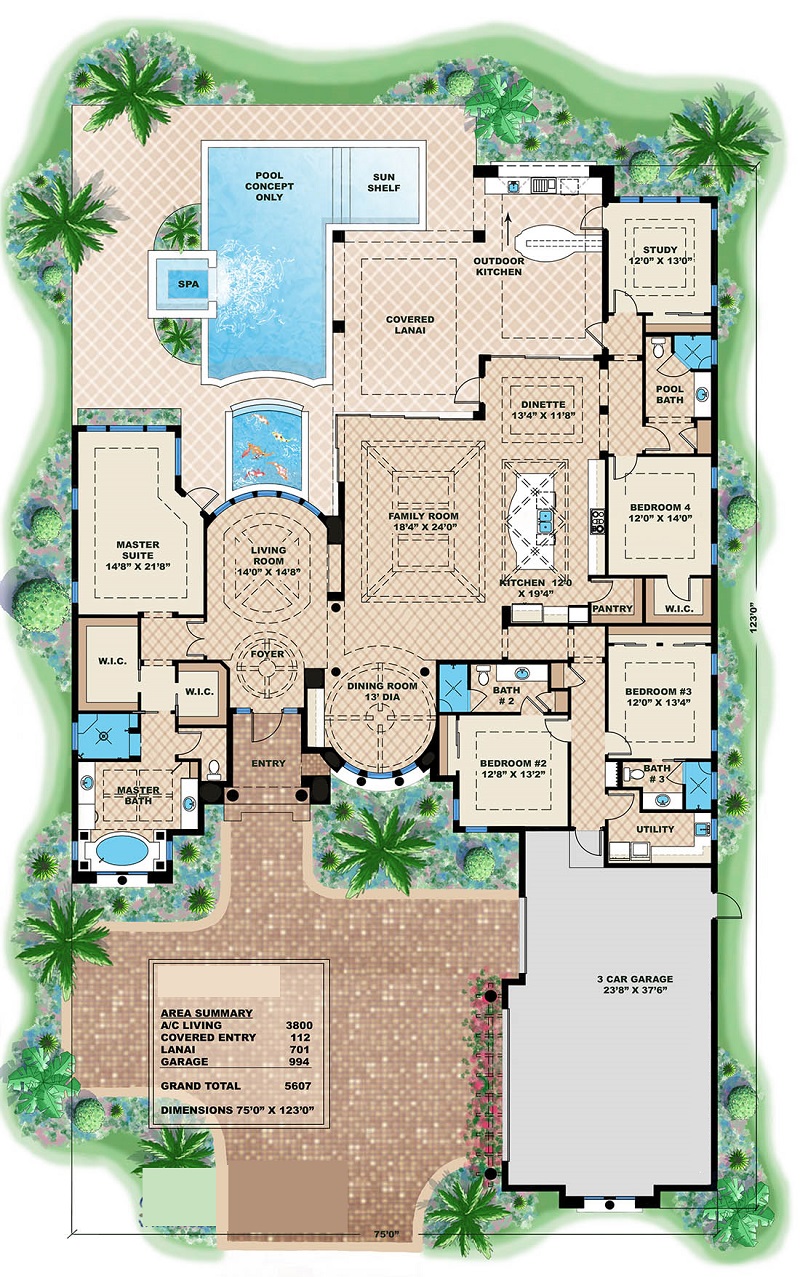

Home Plan: #175-1086 Floor Plan First Story - main level Floor Plan First Story of Mediterranean Plan #175-1086
Home Plan: #175-1086 Floor Plan First Story - main level Floor Plan First Story of Mediterranean Plan #175-1086
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 175-1086
Floors:
1
Bedrooms:
4
Full Baths:
4
Garage :
3

Square Footage

Heated Sq Feet:
3800
Main Floor:
3800
Unfinished Sq Ft:
Garage :
994

Dimensions

Width:
75' 0"
Depth:
123' 0"
Ridge Height:
26' 9"

Architectural Styles

Mediterranean
Luxury
Coastal
Concrete Block/ ICF Design
California Style
Florida Style

Exterior Wall Material

Stucco

Roofing Type

Hip

Roofing Material

Tiles

Roof Pitch

6/12

Special Feature

Dining Room
Home Office
Family Room
Main Level Laundry
Storage
Open Floor Plan

Garage Type

Attached Garage
Courtyard Entry

Exterior Wall Framing

Concrete

Building Lot Type

Flat Site

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Walk-in Pantry
Outdoor Kitchen

Porches and Exterior Features

Courtyard
Covered Lanai
Portico
Patio

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Split Master Bedroom

Additional Notes from Designer

Please Note: cannot be purchased for construction in the state of Florida. Exterior wall for first floor is CMU.


PLEASE NOTE: This designer has zip code restrictions and a 5-7 day processing time for their CAD and PDF orders. Please contact us to verify your zip code BEFORE you order!! 2x6 and Right-Reading Reverse options are available. PLEASE NOTE: The designer is currently not providing modifications. We suggest you purchase a CAD file and work with a local engineer for changes. Additionally, orders (including electronic formats) could take up to 5 days to be delivered or shipped. Thank you!

PRICING OPTIONS

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
