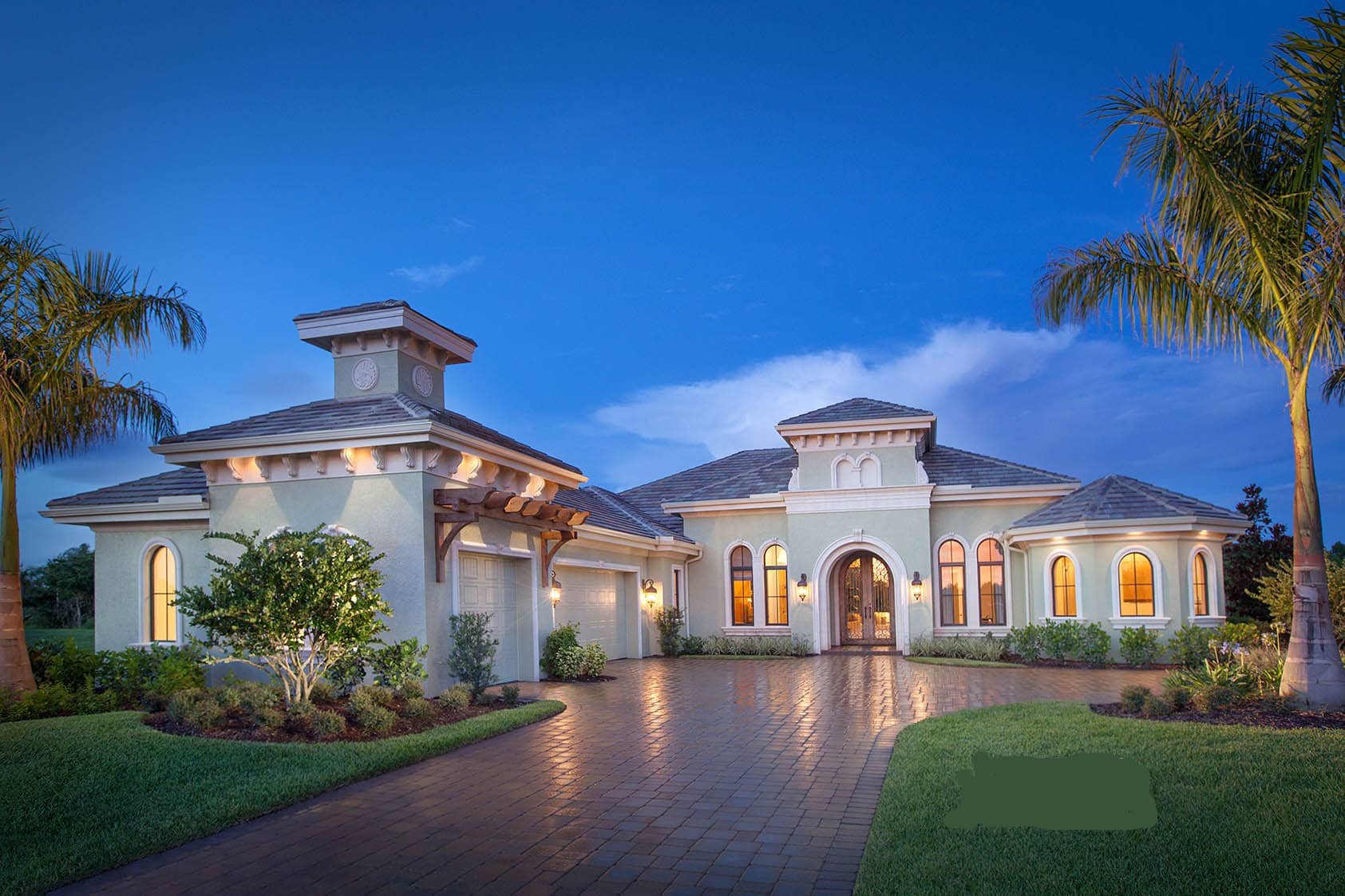

Luxury home (ThePlanCollection: Plan #175-1102)
175-1102: Home Exterior Photograph

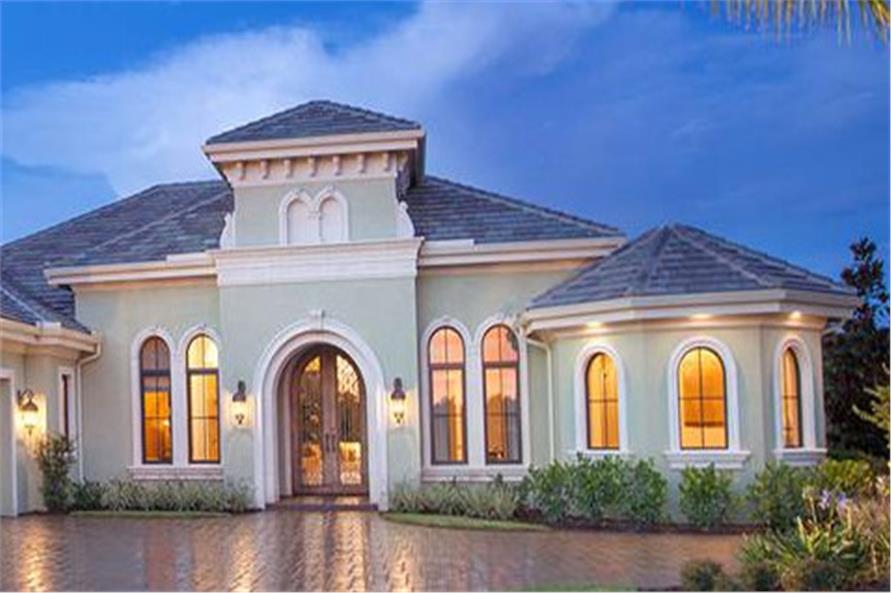

4-Bedroom, 4100 Sq Ft Luxury House - Plan #175-1102 - Front Exterior
175-1102: Home Exterior Photograph

About Plan # 175-1102

About Plan # 175-1102

4100 SQUARE FEET 4 BEDROOMS 4 FULL BATH 1 HALF BATH
1 FLOOR 75' 0" WIDTH 127' 6" DEPTH 3 GARAGE BAY

This amazing Luxury Meditteranean style home with Ranch characteristics (Plan #175-1102) has 4100 square feet of living space. The 1 story floor plan includes 4 bedrooms. This home cannot be built in Florida.

Each plan set includes the following:

  • Elevations
  • Floor Plans
  • Building Section Markers
  • Electrical Layout
  • Slab Plan
  • Roof Plan
  • Building Sections
  • Typical Wall Sections
  • Miscellaneous Notes & Details



Not Included with the Plan:

  • NO MEPs, NO Framing,
  • No Trusses: The client gets that from the truss manufacturer
  • No Engineering, You will need to get the plans stamped and engineered locally
  • HVAC and Plumbing is not included




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

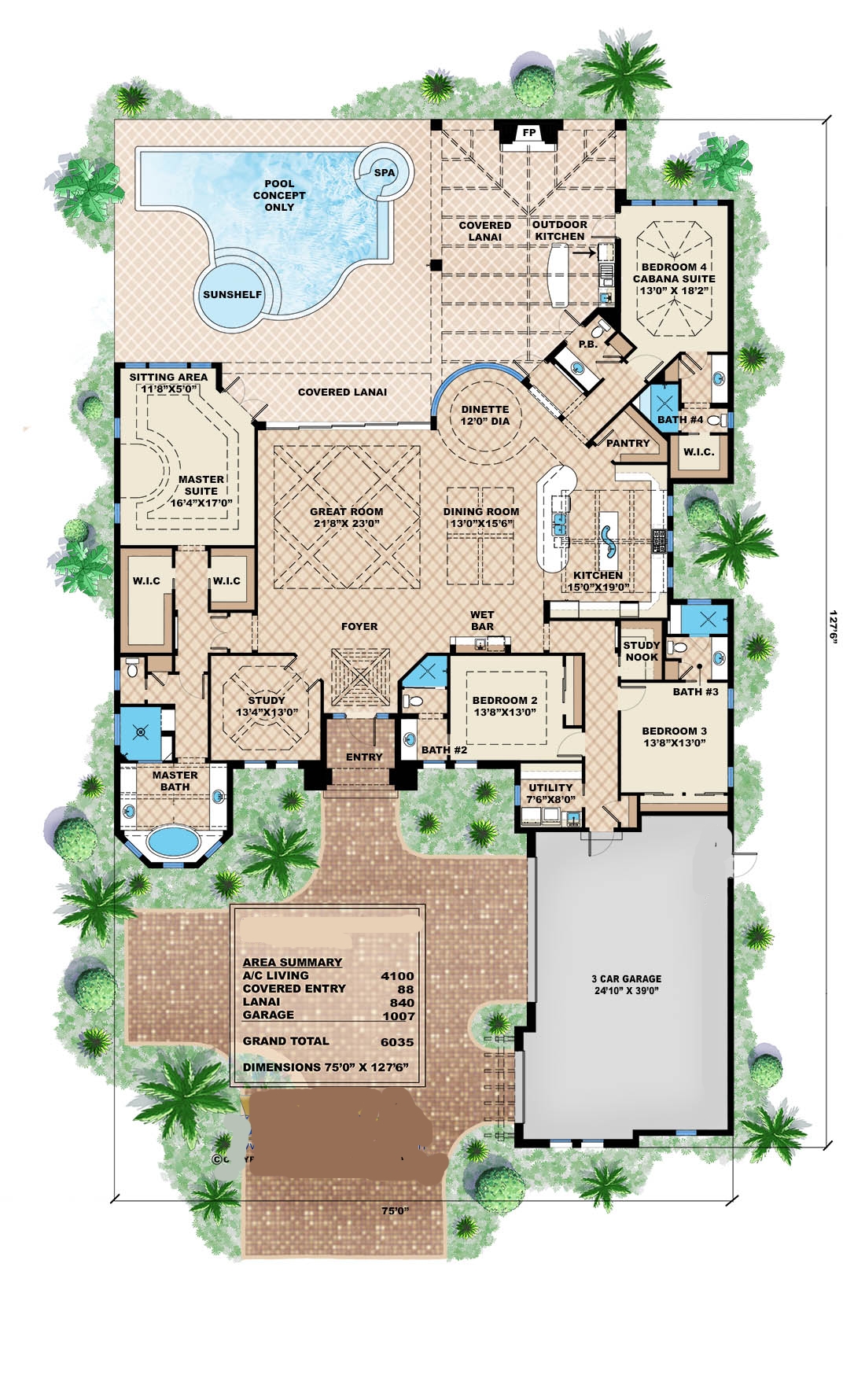

Home Plan: #175-1102 Floor Plan First Story - main level Floor Plan First Story of Luxury Plan #175-1102
Home Plan: #175-1102 Floor Plan First Story - main level Floor Plan First Story of Luxury Plan #175-1102
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 175-1102
Floors:
1
Bedrooms:
4
Full Baths:
4
Half Baths:
1
Garage :
3

Square Footage

Heated Sq Feet:
4100
Main Floor:
4100
Unfinished Sq Ft:
Garage :
1007
Porch :
928

Dimensions

Width:
75' 0"
Depth:
127' 6"
Ridge Height:
25' 2"

Architectural Styles

Ranch
Vacation Homes
Mediterranean
Luxury
Florida Style

Exterior Wall Material

Stucco

Roofing Type

Hip

Roofing Material

Tiles

Roof Pitch

6/12

Ceiling Height

10 Foot Ceiling
12 Foot Ceiling

Special Feature

Fireplace
Family Room
Main Level Laundry
Split Bathroom
Storage
Vaulted Ceilings
Open Floor Plan
L-Shaped

Garage Type

Attached Garage
Courtyard Entry

Kitchen Features

Kitchen Island
Butler's Pantry
Nook/Breakfast Area
Walk-in Pantry
Outdoor Kitchen
Peninsula/Eating Bar
Secondary Kitchen

Porches and Exterior Features

Covered Lanai

Master Suite Features

Main Floor Master
Two or More Master Suites
Master Bathroom
Walk In Closet
Sitting Area
Split Master Bedroom

Additional Notes from Designer

PLEASE NOTE: This designer has zip code restrictions and a 5-7 day processing time for their CAD and PDF orders. Please contact us to verify your zip code BEFORE you order!! 2x6 and Right-Reading Reverse options are available. PLEASE NOTE: The designer is currently not providing modifications. We suggest you purchase a CAD file and work with a local engineer for changes. Additionally, orders (including electronic formats) could take up to 5 days to be delivered or shipped. Thank you!

PRICING OPTIONS

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
