4-Bedroom Arts and Crafts House Plan with Courtyard Garage, 3156 Sq Ft
Images/Plans copyrighted by designer. Photos may reflect homeowner modifications.
About House Plan #100-1214
How much will it cost to build?
Estimate your costs based on your location and materials.
Can I modify this plan?
Yes! This plan can be customized—contact us for a free quote.

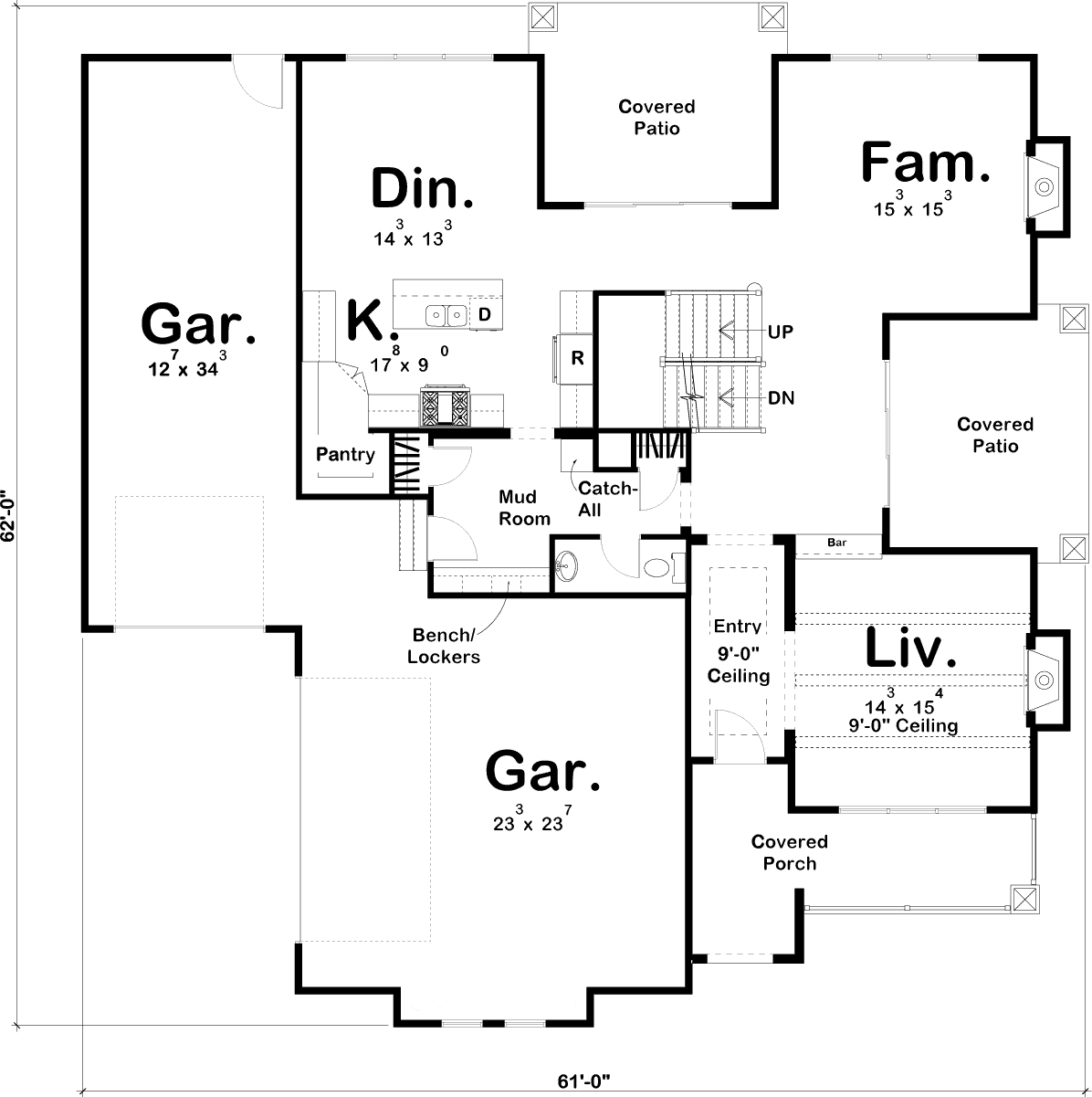

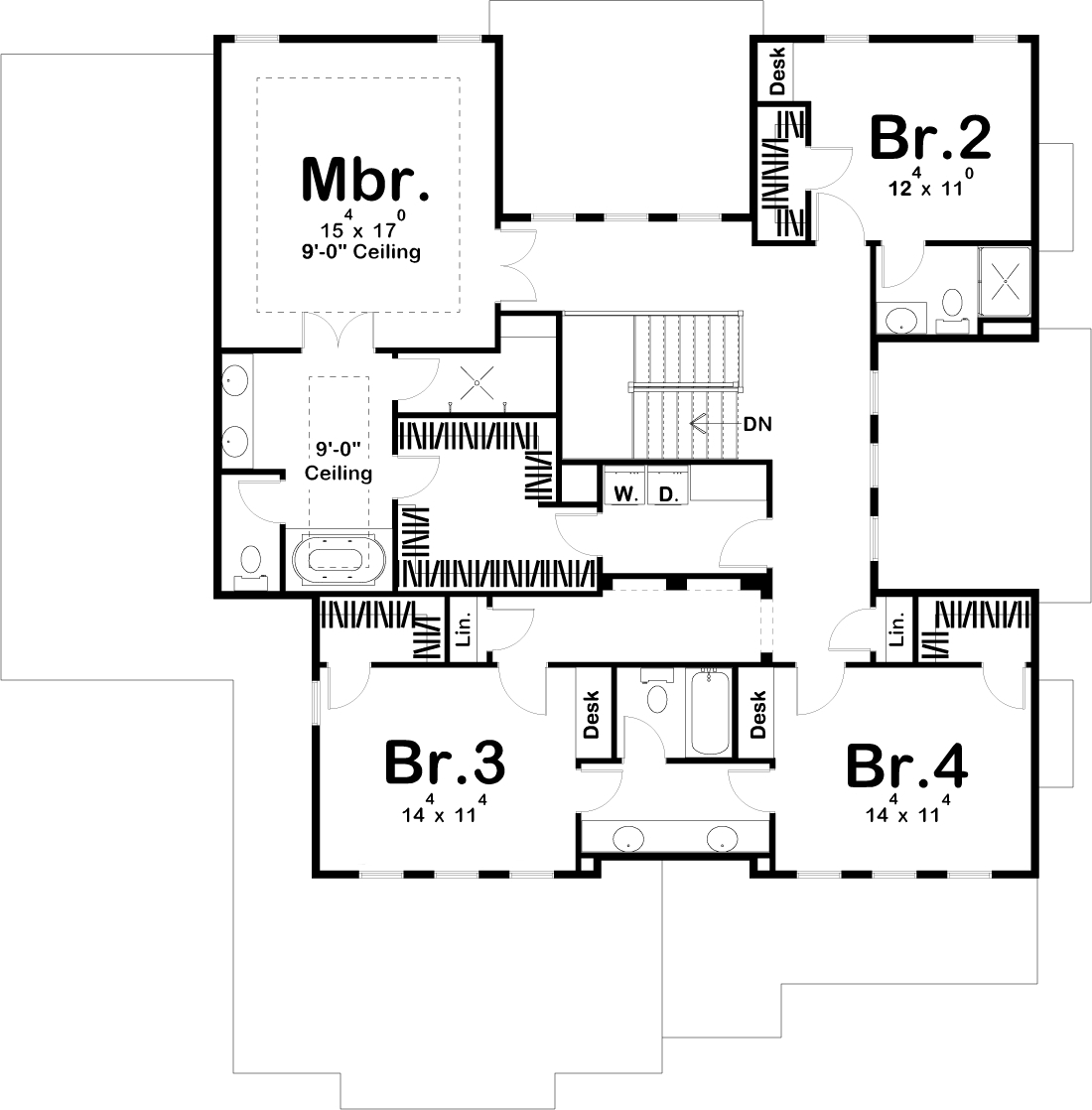

Floor Plans
Share Plans
Can I modify this plan?
Yes! This plan can be customized—contact us for a free quote.
Additional Notes from Designer
The CAD File formats are drawn in SoftPlan. PLEASE NOTE: Plans by this designer do NOT come with FRAMING! This designer does not do ICF.
House Plan Description

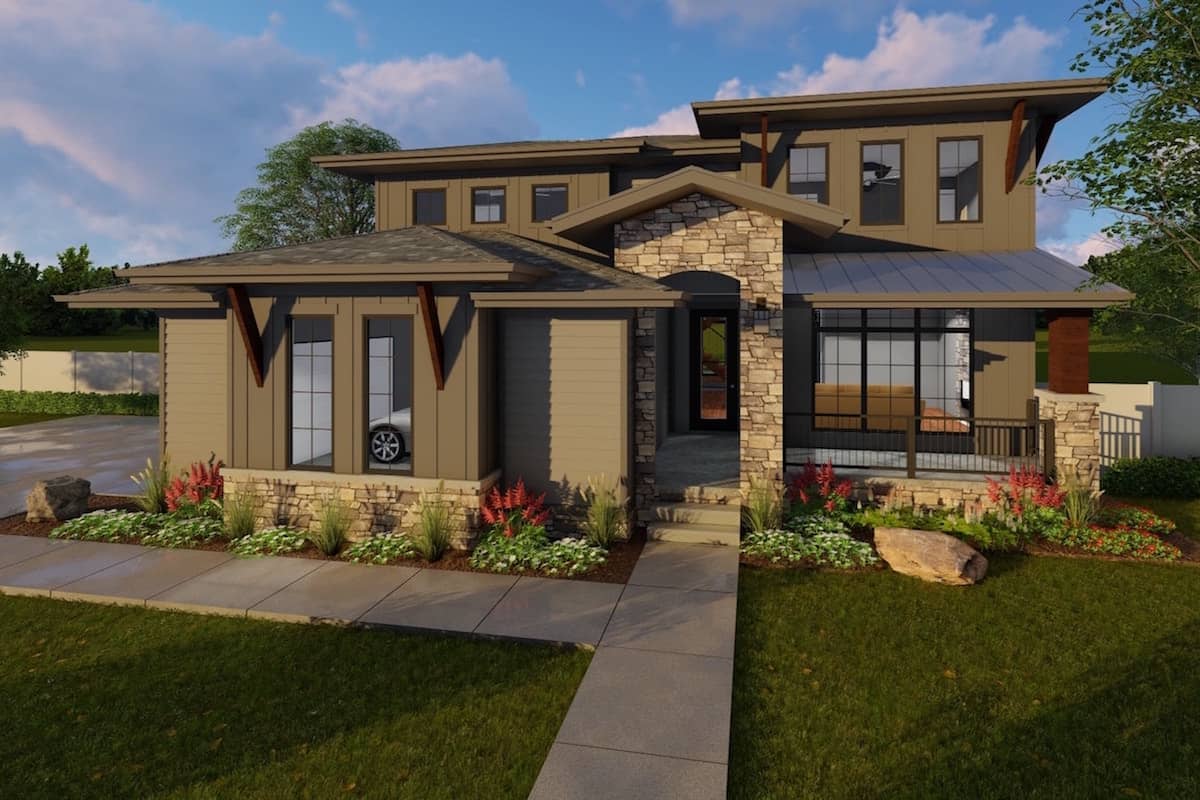

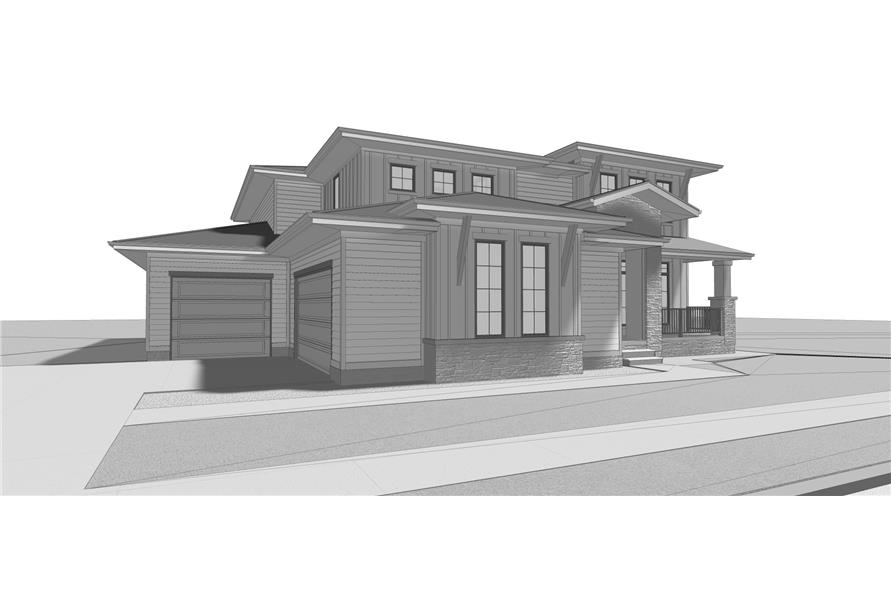

Open sightlines between the kitchen and family room define the main floor of this 3,156 sq ft 4-bedroom Arts and Crafts plan, where Prairie influence shows in the horizontal emphasis of the stone-and-siding exterior and the courtyard-entry 3-car garage that pulls the mass of parking off the front elevation.
The formal living room occupies its own space on the main level — separated from the family room rather than absorbed into it — with a fireplace and wet bar. That separation matters for households that entertain in two registers: a quieter front room and a more...
Home Details
How much will it cost to build?
Estimate your costs based on your location and materials.
What’s Included
Cover Sheet: Shows the front elevation and typical notes and requirements. Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor. Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation. Roof Plan Typical wall section Typical stair section Cabinets are shown on all plans. What’s Not Included
Architectural or Engineering Stamp - handled locally if required.Site Plan - handled locally when required.Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.Energy calculations - handled locally when required.Additional Information
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
