4-Bedroom, 2840 Sq Ft Southwest Plan with Patio

Front elevation of Southwest home (ThePlanCollection: House Plan #192-1022)
4-Bedroom, 2840 Sq Ft Southwest Home Plan - 192-1022 - Main Exterior

About Plan # 192-1022

About Plan # 192-1022

2840 SQUARE FEET 4 BEDROOMS 2 FULL BATH 1 HALF BATH
2 FLOOR 124' 4" WIDTH 75' 4" DEPTH 2 GARAGE BAY

This strking Southwest style home with contemporary influences (House Plan #192-1022) has 2840 square feet of living space. The 2 story floor plan includes 4 bedrooms.

Each plan set includes a minimum of the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

PLEASE NOTE!! Some plans may include more information. Please check with us if there is a specific plan you have a question on. We will then check with the designer.


Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

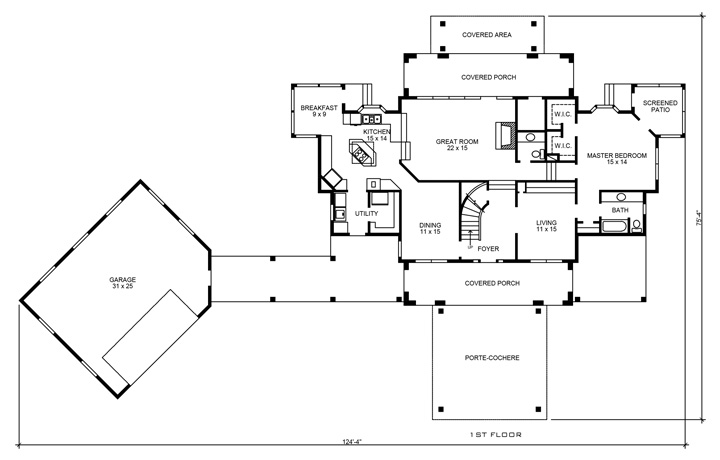

Home Plan: #192-1022 Floor Plan First Story - main level Floor Plan First Story of Southwest Plan #192-1022

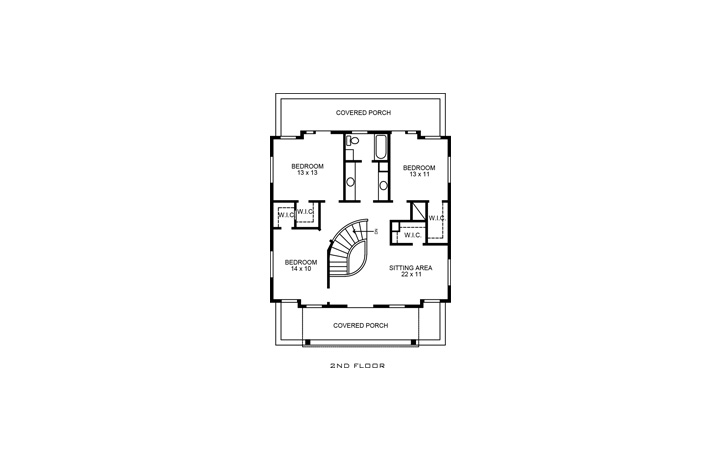

#192-1022 Floor Plan Second Story - upper level Floor Plan Second Story of Southwest Plan #192-1022
Home Plan: #192-1022 Floor Plan First Story - main level Floor Plan First Story of Southwest Plan #192-1022
#192-1022 Floor Plan Second Story - upper level Floor Plan Second Story of Southwest Plan #192-1022
