4-Bedroom, 2838 Sq Ft Craftsman Plan with Nook/Breakfast Area

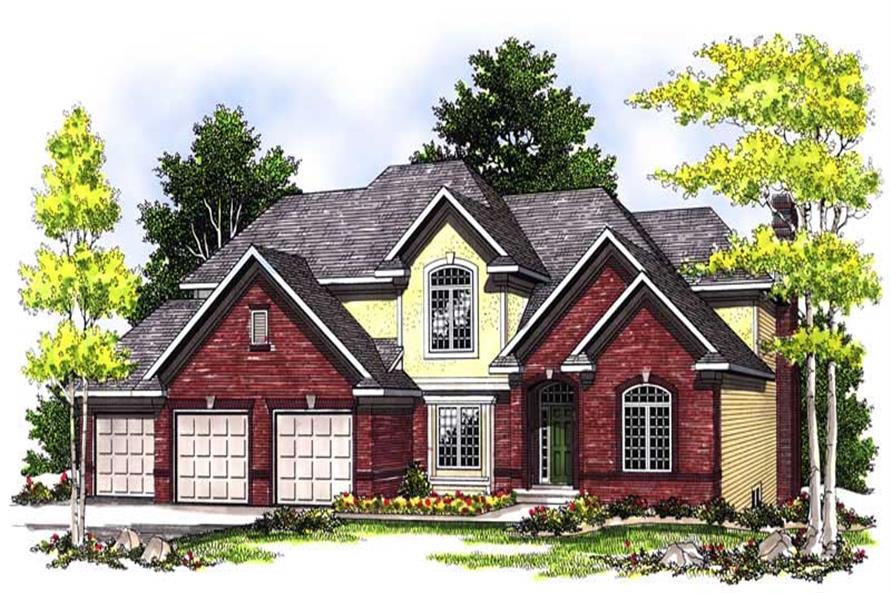

Main image for house plan # 13589

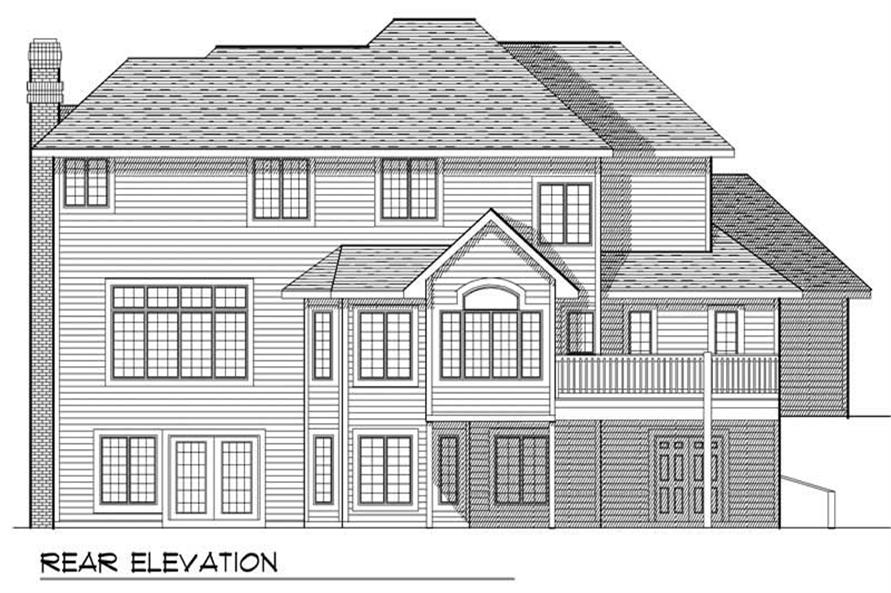

REAR ELEVATION
4-Bedroom, 2838 Sq Ft Craftsman Home Plan - 101-1393 - Main Exterior
REAR ELEVATION

About Plan # 101-1393

About Plan # 101-1393

2838 SQUARE FEET 4 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 71' 8" WIDTH 56' 0" DEPTH 3 GARAGE BAY
This two-story home offers an eye-catching exterior, four bedrooms, and a three-car garage. Both the dining room and the den are accessible immediately from the foyer. A columned entryway welcomes you to the great room, which features a fireplace, built-in shelves, and gorgeous arched windows that overlook the back yard. The chef in your family will appreciate the desk, center island, large walk-in pantry, and butler’s pantry in the kitchen, as well as the option to serve either in the nook or the sunroom. You can even eat outside on the rear deck. The main-floor master bedroom has a massive walk-in closet and a private bath. Upstairs, three additional bedrooms have walk-in closets; one bedroom has a private bath while the other two share a bath with a separate vanity area.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION LAYOUT: Dimensioned plan detailing the layout and construction of the foundation.
  • ROOF PLAN: A birdseye view showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. It does not include wiring schematics.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. These can include wall and stair sections. Kitchen layout and cabinet elevations included.
  • RENDERING: Sketch of what the finished home may look like. Also includes general notes.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and locations.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

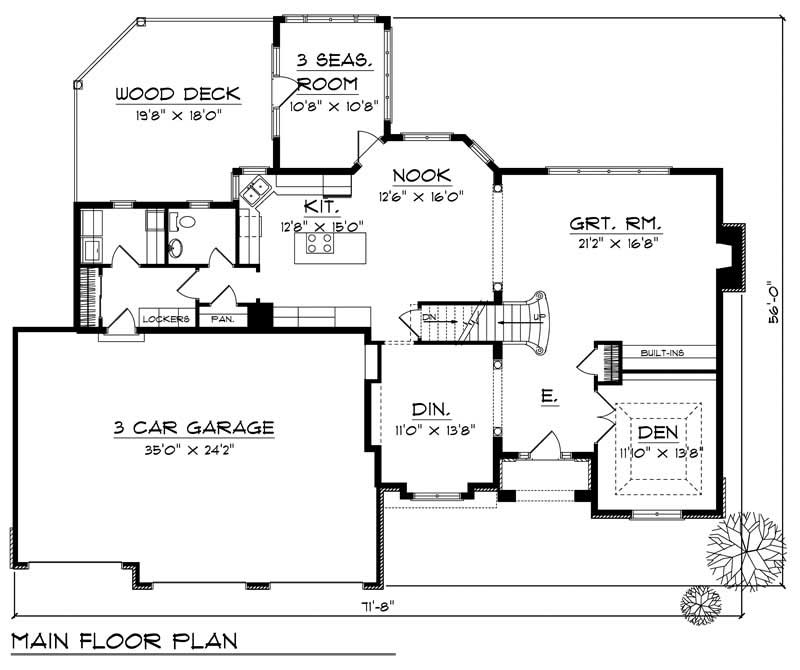

Home Plan: #101-1393 Floor Plan First Story - main Floor Plan First Story of Craftsman Plan #101-1393

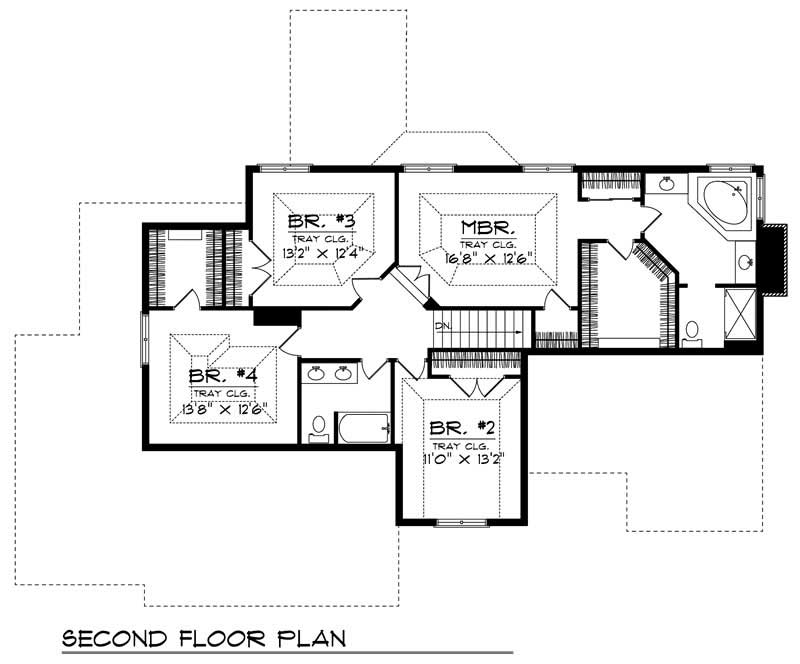

#101-1393 Floor Plan Second Story - second Floor Plan Second Story of Craftsman Plan #101-1393
Home Plan: #101-1393 Floor Plan First Story - main Floor Plan First Story of Craftsman Plan #101-1393
#101-1393 Floor Plan Second Story - second Floor Plan Second Story of Craftsman Plan #101-1393
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 101-1393
Floors:
2
Bedrooms:
4
Full Baths:
2

Square Footage

Heated Sq Feet:
2838
Main Floor:
1528
Upper Floor:
1310
Unfinished Sq Ft:

Dimensions

Width:
71' 8"
Depth:
56' 0"

Architectural Styles

Craftsman
Traditional

Exterior Wall Material

Brick
Stucco

Roof Pitch

8/12

Ceiling Height

9 Foot Ceiling

Special Feature

Dining Room
Fireplace

Exterior Wall Framing

2x6

Kitchen Features

Walk-in Pantry

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
