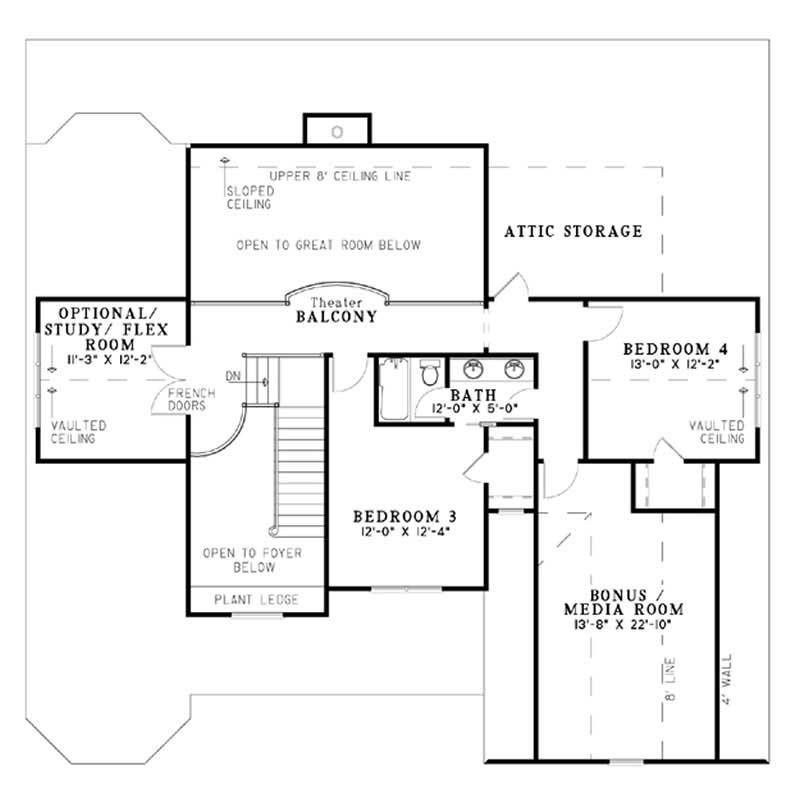

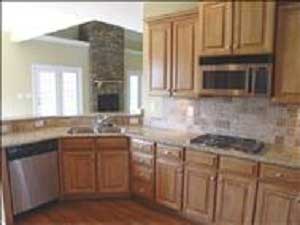

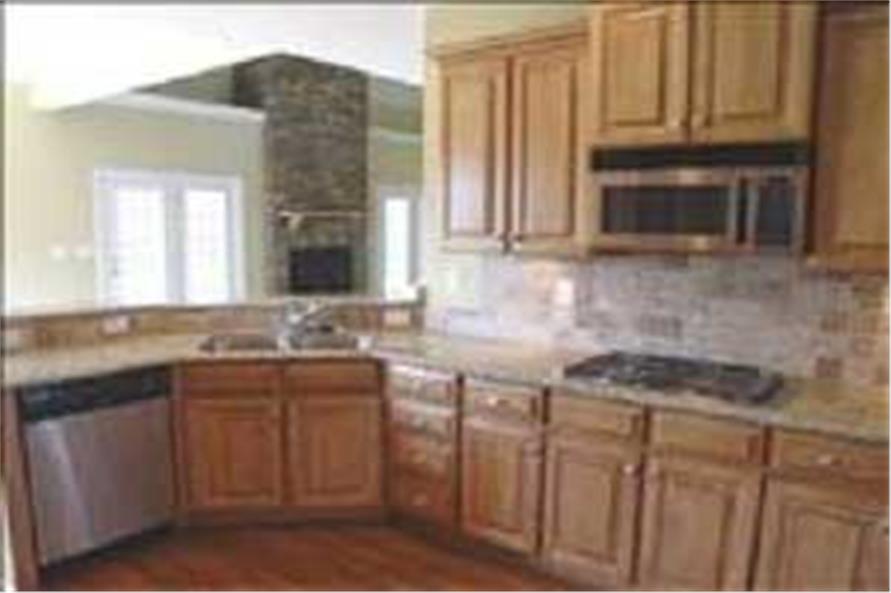

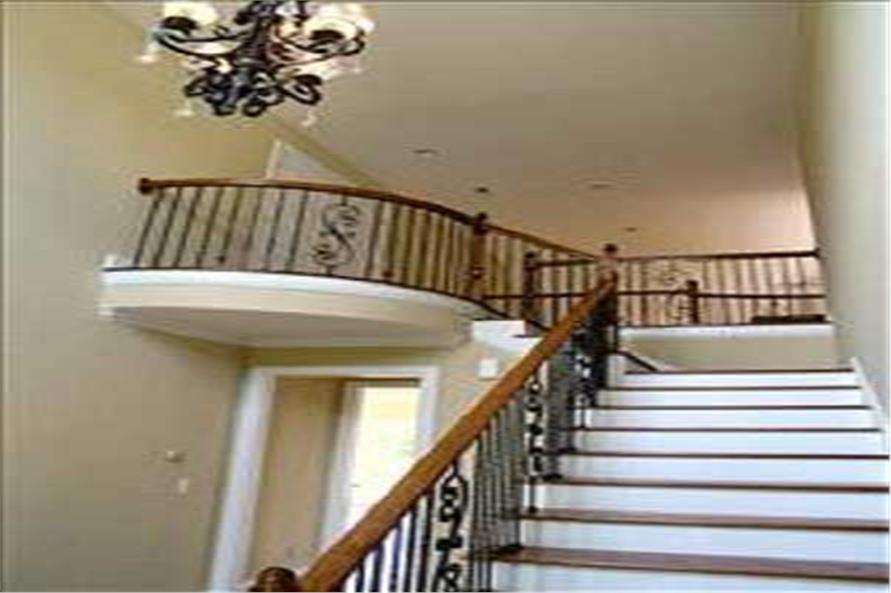

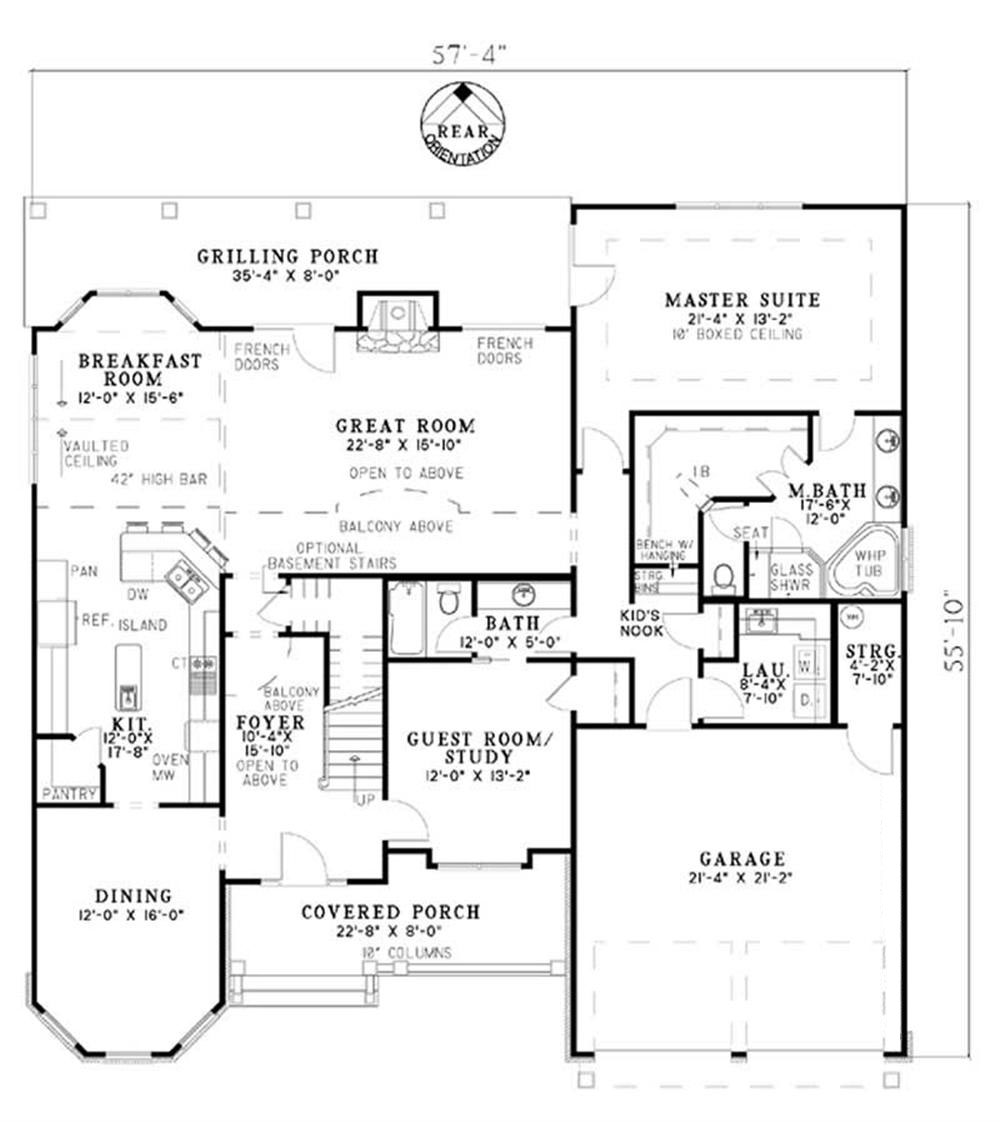

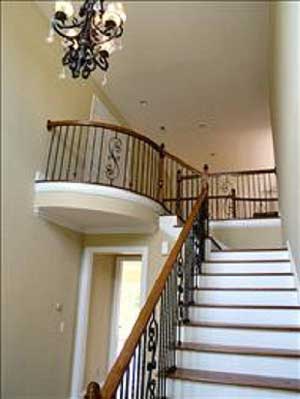

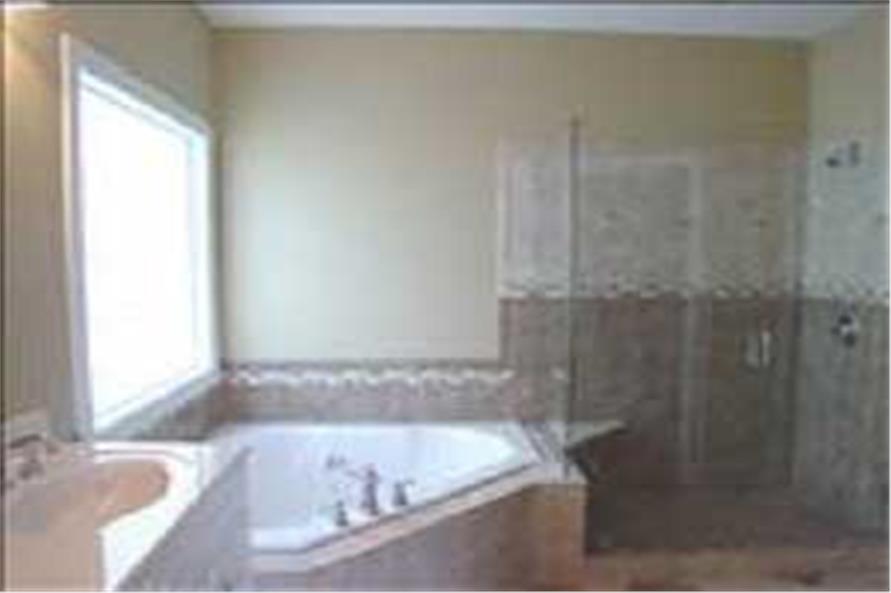

Bonus Room and Flex Room are not a part of the upper floor square footages, (bonus square footage). Front Porch with 10 inch box columns. Foyer open to above. Guest Room / optional Study with private bath access. Dining Room with bay window. Kitchen with walk-in pantry, snack bar, and open tot he Great Room and Breakfast Room. Breakfast Roomwith vaulted ceiling and rear view. Great Room with fireplace, french doors, and open to the balcony above. Master Suite with 10 fy box ceiling and access to Rear Porch. Master Bath with walkin closet, split vanities, corner whirlpool tub, and glass shower. Laundry with sink. Kid's Nook with storage. Upper Floor Bedrooms with walkin closetes. French Doors to Flex Room. Media Room / Bonus with sloped ceilings. For similar/related plans, see also: NDG 974, NDG 951, NDG 948, NDG 983.
Each plan set includes the following:

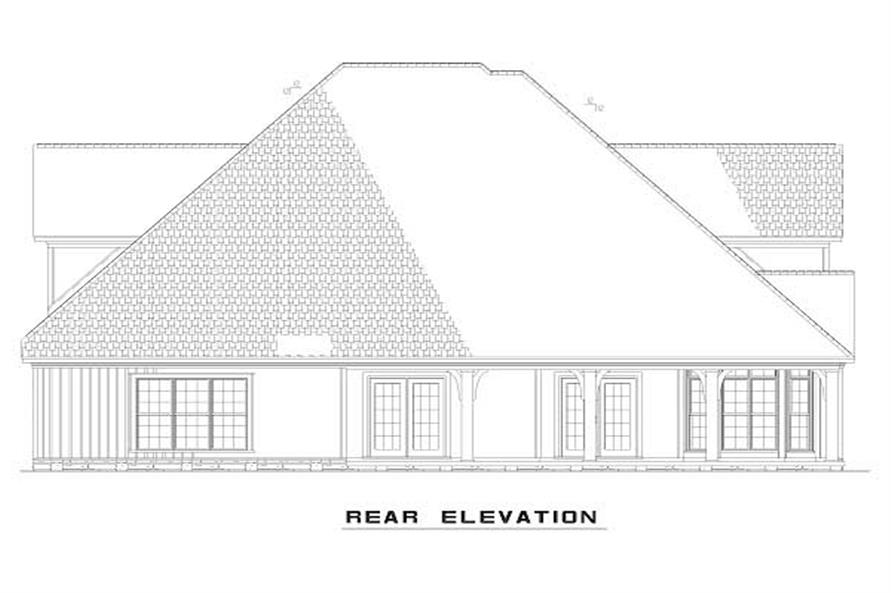

4 side exterior elevations,
birds-eye view of the roof,
and some miscellaneous details.
We do not offer plumbing, HVAC, or window scheduling. This will have to be done on a local level, probably by your building team!
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
