3-Bedroom, 2699 Sq Ft Ranch Plan with Courtyard
Related House Plans
| 2699 SQUARE FEET | 3 BEDROOMS | 2 FULL BATH | 1 HALF BATH |
| 1 FLOOR | 50' 0" WIDTH | 101' 0" DEPTH | 3 GARAGE BAY |

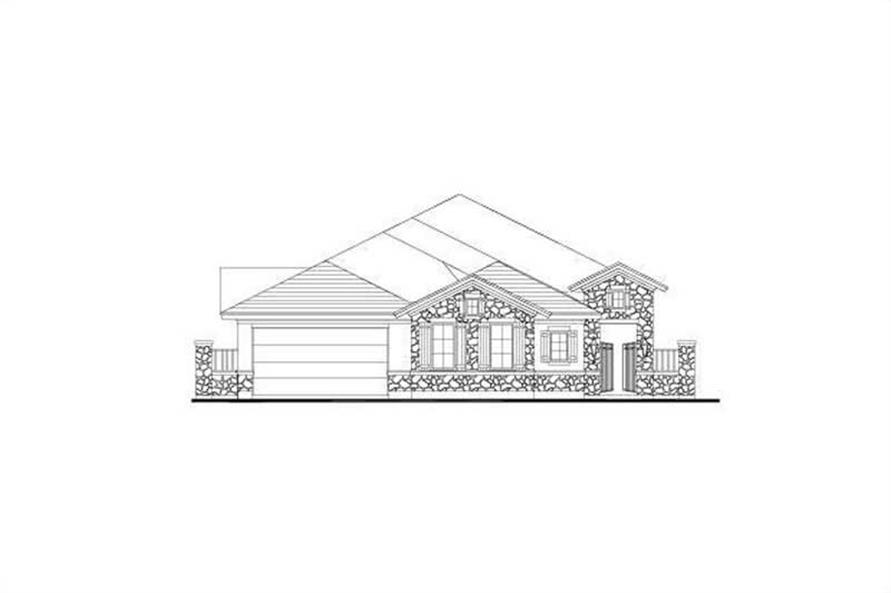

House Plan #990545-1 is a single story tuscan style home with stucco and cultured stone exterior and 2699 total living square feet. It has 3 bedrooms, 2 baths, and a split front load 3 car garage. This home plan also has 1 living area, 2 dining areas, a covered rear porch, a master with sitting area, a portico, an entry courtyard, an outdoor kitchen, and a separate master closet.
Each plan set includes the following:
- Exterior,
- Elevations
- Floor Plans
- Electrical Layout
- Building Sections
- Roofing Plan
- Interior Elevations
- General Details
- Wall Sections
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
Write Your Own Review

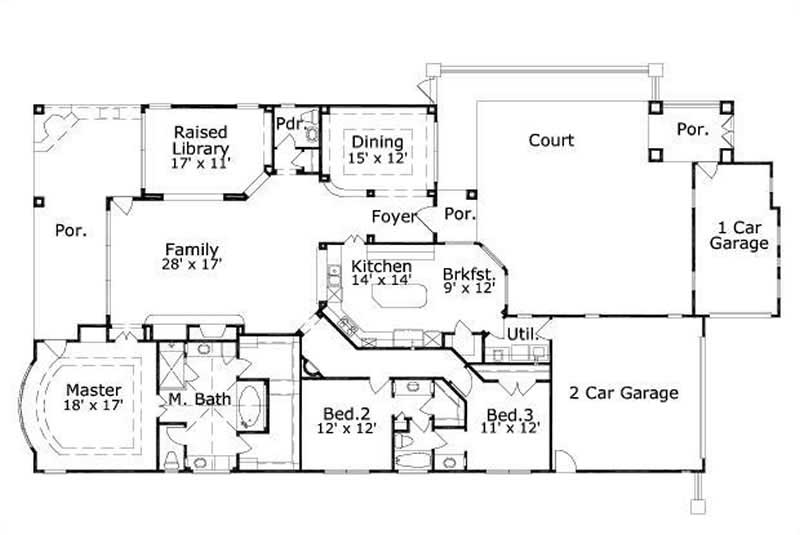

FLOOR PLANS Flip Images
Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!
To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
Additional specs and features
Summary Information
Square Footage
Dimensions
Architectural Styles
Exterior Wall Material
Roofing Type
Roofing Material
Ceiling Height
Special Feature
Garage Type
Fireplaces
Building Lot Type
Kitchen Features
Porches and Exterior Features
Master Suite Features
Additional Notes from Designer
PRICING OPTIONS
ADDITIONAL INFORMATION
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
