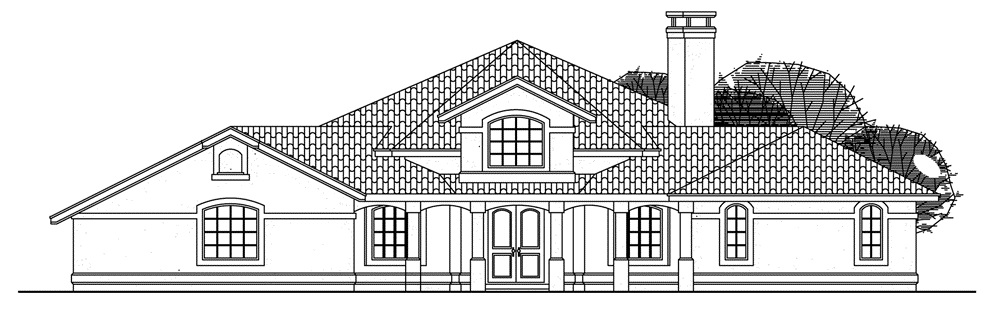

108-1350 house plan front elevation

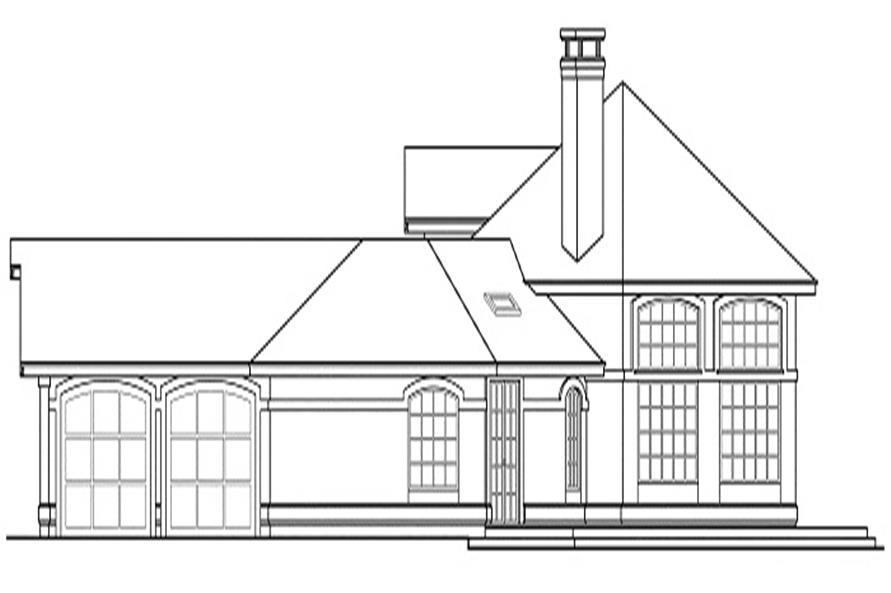

108-1350 house plan right elevation

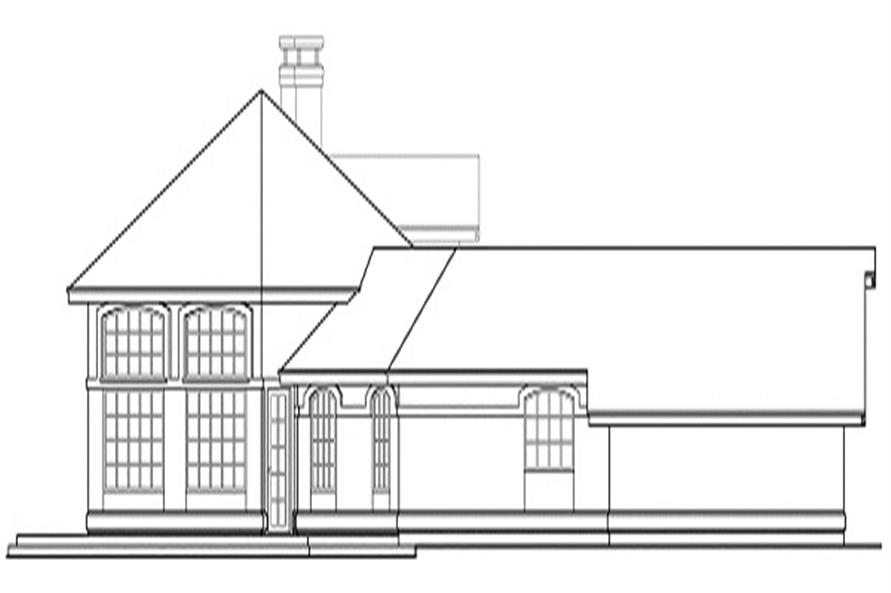

108-1350 house plan left elevation
3-Bedroom, 2603 Sq Ft Ranch House Plan - 108-1350 - Front Exterior
108-1350 house plan front elevation
108-1350 house plan right elevation
108-1350 house plan left elevation

About Plan # 108-1350

About Plan # 108-1350

2603 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
2 FLOOR 75' 0" WIDTH 75' 8" DEPTH 2 GARAGE BAY

This two story, Mediterranean house plan has 2603 total living square feet. Abundant natural light washes into the hexagonal, vaulted great room of this Spanish style home plan through high, arched windows and French doors that lead out onto the wrap-around patio. The large, open kitchen has a long conversation bar and a walk-in pantry. The wide loft that overlooks the great room has two deep storage areas.

Each plan set includes the following:

  • Artist’s rendering of the home,

  • Front/Rear/Left and Right Elevations,

  • Main floor plan, Second or Basement floor plans (if applicable),

  • Foundation plan and detail,

  • Floor framing plan,

  • Roof framing plan, supporting details and

  • Electric layout.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

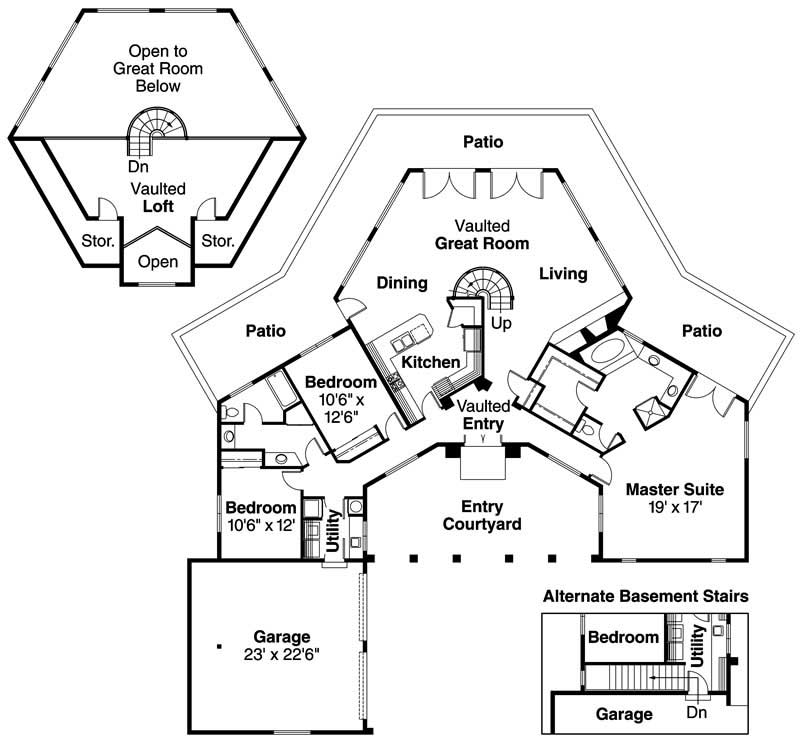

Home Plan: #108-1350 Floor Plan First Story - s Floor Plan First Story of Ranch Plan #108-1350
Home Plan: #108-1350 Floor Plan First Story - s Floor Plan First Story of Ranch Plan #108-1350
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 108-1350
Floors:
2
Bedrooms:
3
Full Baths:
2
Half Baths:
1
Garage :
2

Square Footage

Heated Sq Feet:
2603
Main Floor:
2302
Upper Floor:
301
Unfinished Sq Ft:
Garage :
554

Dimensions

Width:
75' 0"
Depth:
75' 8"
Ridge Height:
22' 10"

Architectural Styles

Ranch
Vacation Homes
Mediterranean

Exterior Wall Material

Stucco

Roofing Type

Hip

Roofing Material

Asphalt Shingles

Roof Pitch

6/12

Ceiling Height

8 Foot Ceiling

Special Feature

Dining Room
Main Level Laundry
Loft
Storage
Vaulted Ceilings

Garage Type

Attached Garage
Courtyard Entry
Side Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x6

Building Lot Type

Flat Site

Kitchen Features

Walk-in Pantry
Peninsula/Eating Bar

Porches and Exterior Features

Courtyard

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

PLEASE NOTE!! For this designer, The PDF that comes with the PRINT Packages (5 set+PDF and 8 set+PDF) is NOT Modifiable - it is for printing ONLY! PLEASE NOTE!! Optional Foundations (foundations that cost extra money) will take 5-10 business days to complete.

PRICING OPTIONS

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. A PDF of the working drawings will also be emailed. Comes with a license to build an unlimited number of homes with no re-use fees. Recommended if making major modifications to your plans.

Stamped "Not for Construction," this set allows you to review the home plan in detail and obtain bids. It is illegal to build a house from plans stamped this way and, due to copyright laws, they can not be copied.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
