3-Bedroom, 2513 Sq Ft Cape Cod Plan with Split Master Bedroom

Log Home Plans Front Elevation.

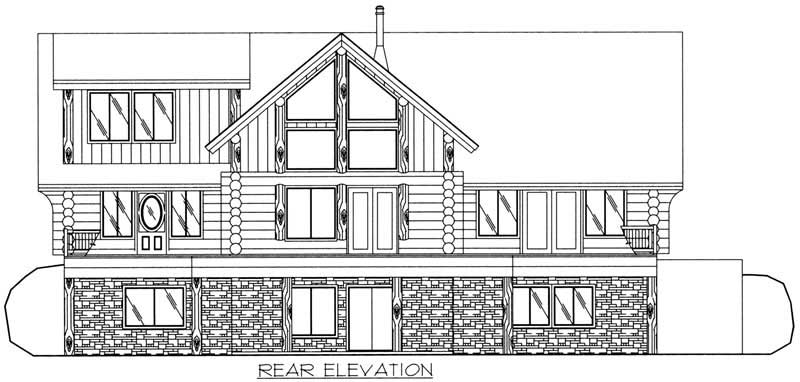

REAR ELEVATION
3-Bedroom, 2513 Sq Ft Cape Cod House Plan - 132-1294 - Front Exterior
REAR ELEVATION

About Plan # 132-1294

About Plan # 132-1294

2513 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 63' 8" WIDTH 52' 10" DEPTH 0 GARAGE BAY
Log House Plans GHD-1053 use Notched Log Home Construction and a daylight basement to provide you with the stable, secure vacation home that you've always dreamed of. The atmosphere inside is bright and cheery, due to the many windows and Large Great Room With a Wood Stove. The Kitchen Island With Range sure is handy for cooking, and the Large Walk-In Pantry means you won't have to worry about buying groceries too often while you're on your summer get-away. The Main Level Master Suite comes With a Full Bathroom, and the upstairs Loft is open to the floor below.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

Home Plan: #132-1294 Floor Plan First Story - main level Floor Plan First Story of Cape Cod Plan #132-1294
#132-1294 Floor Plan Second Story - second level Floor Plan Second Story of Cape Cod Plan #132-1294

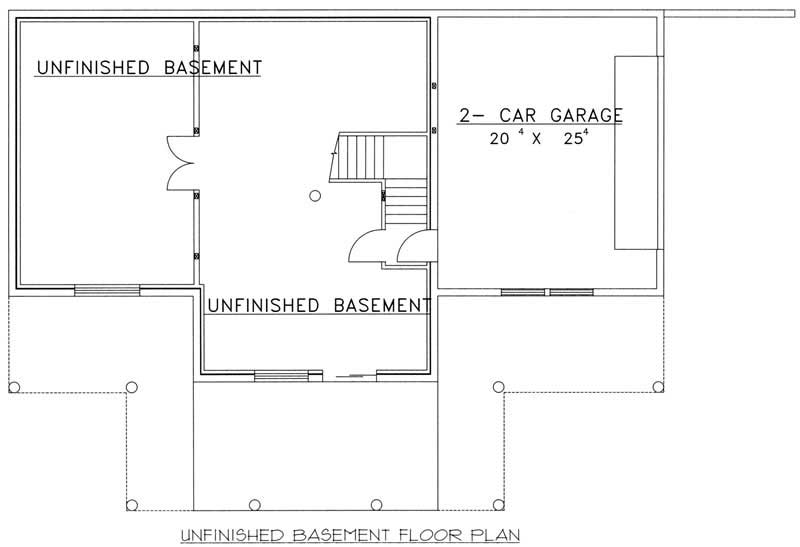

#132-1294 Floor Plan Basement - basement Floor Plan Basement of Cape Cod Plan #132-1294
Home Plan: #132-1294 Floor Plan First Story - main level Floor Plan First Story of Cape Cod Plan #132-1294
#132-1294 Floor Plan Second Story - second level Floor Plan Second Story of Cape Cod Plan #132-1294
#132-1294 Floor Plan Basement - basement Floor Plan Basement of Cape Cod Plan #132-1294
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
