3-Bedroom, 2459 Sq Ft Modern Plan with Master Bathroom

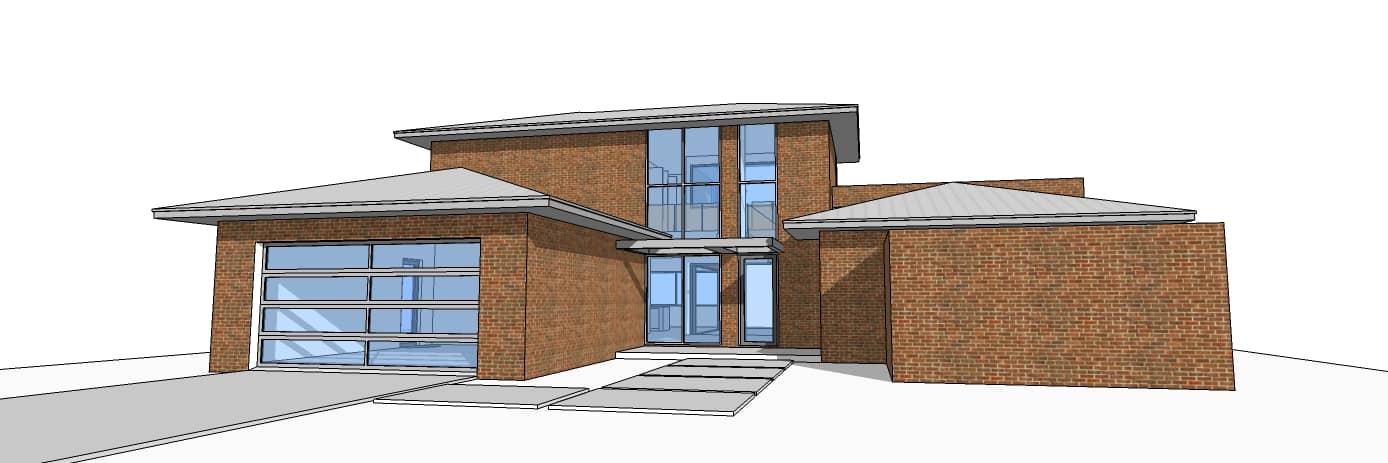

116-1079 front

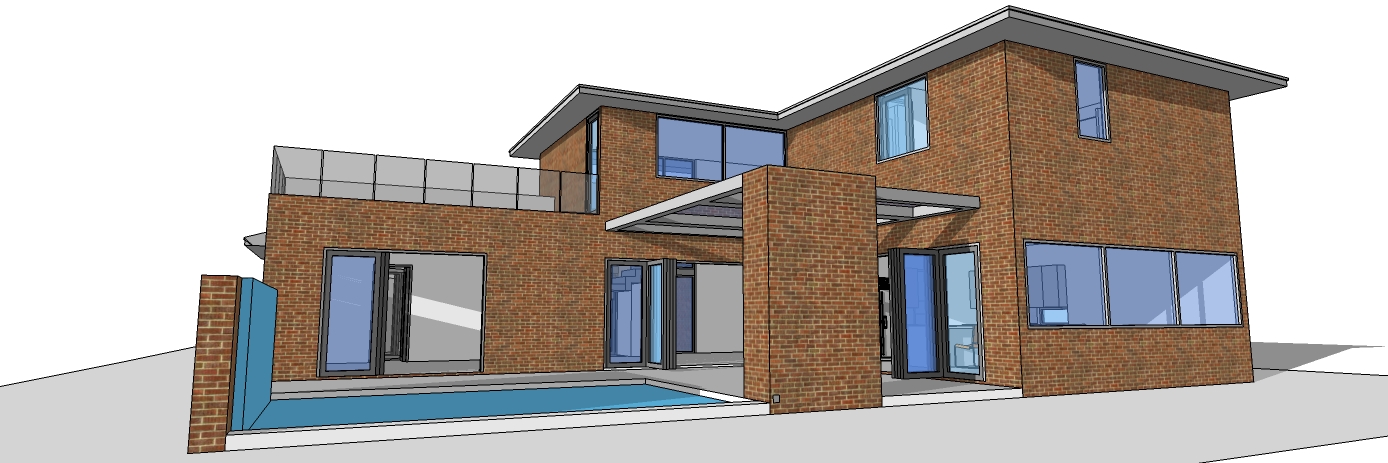

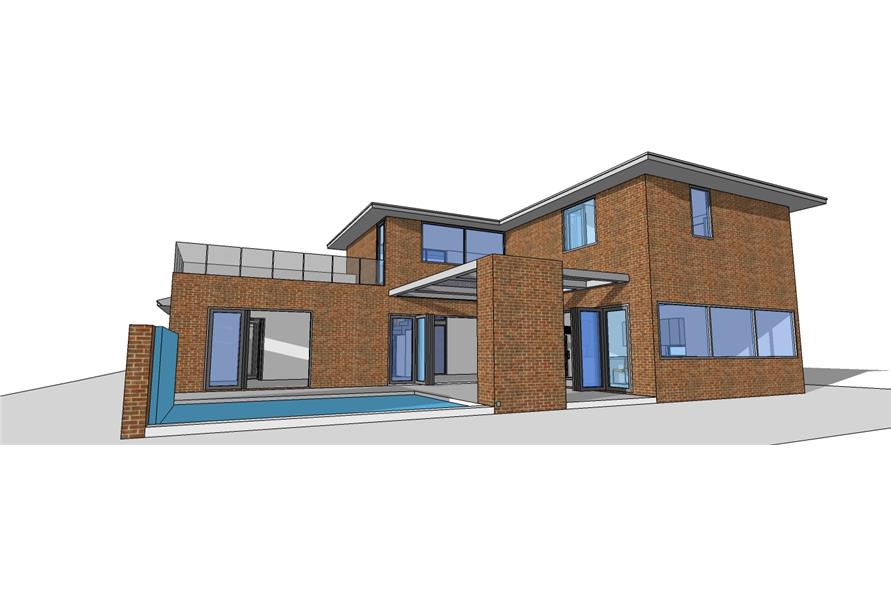

116-1079 rear elevation

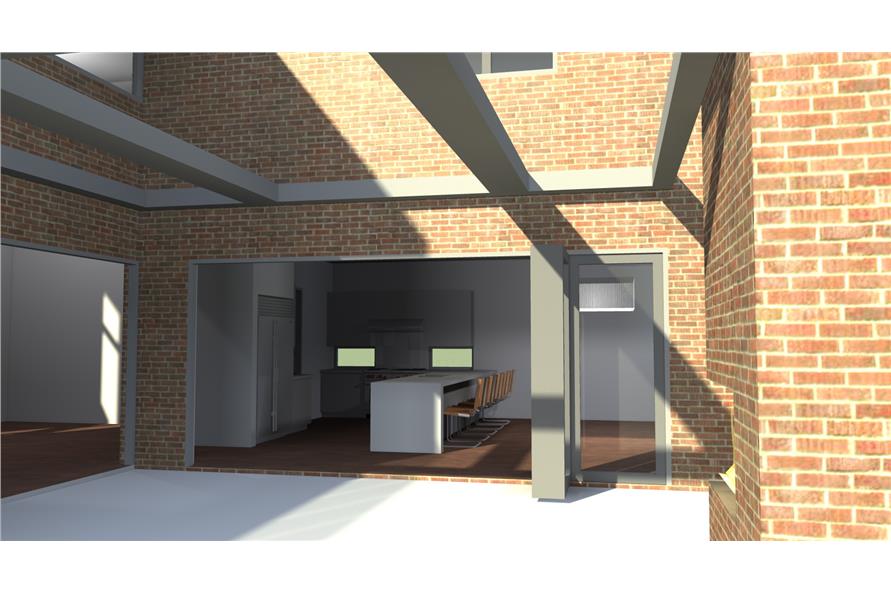

116-1079 house plan kitchen

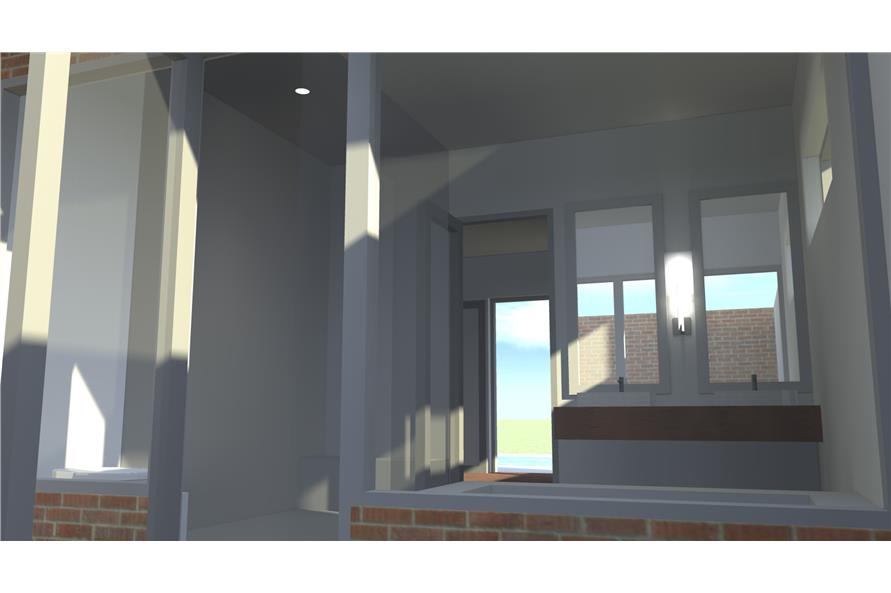

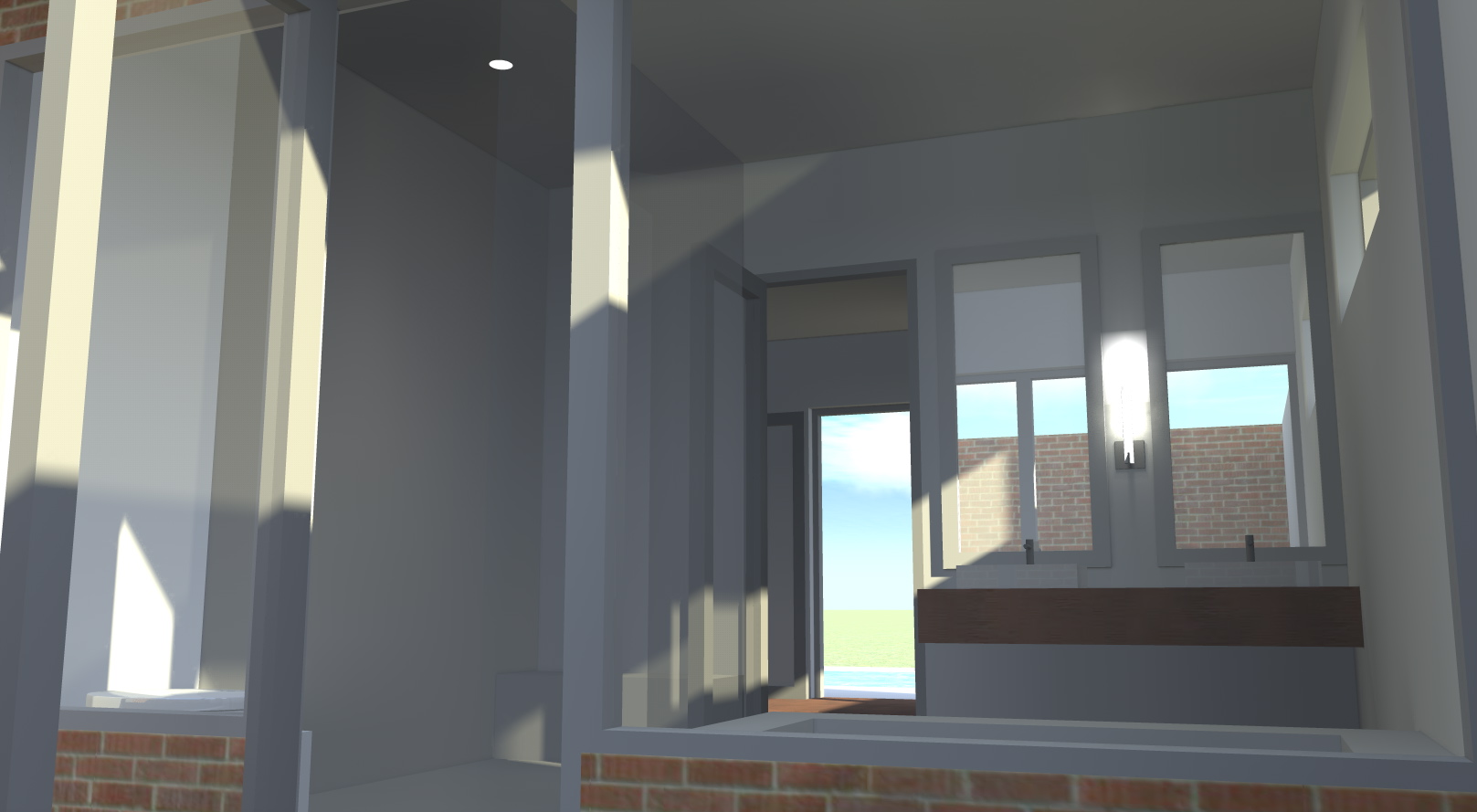

116-1079 house plan bath
116-1079 house plan living room

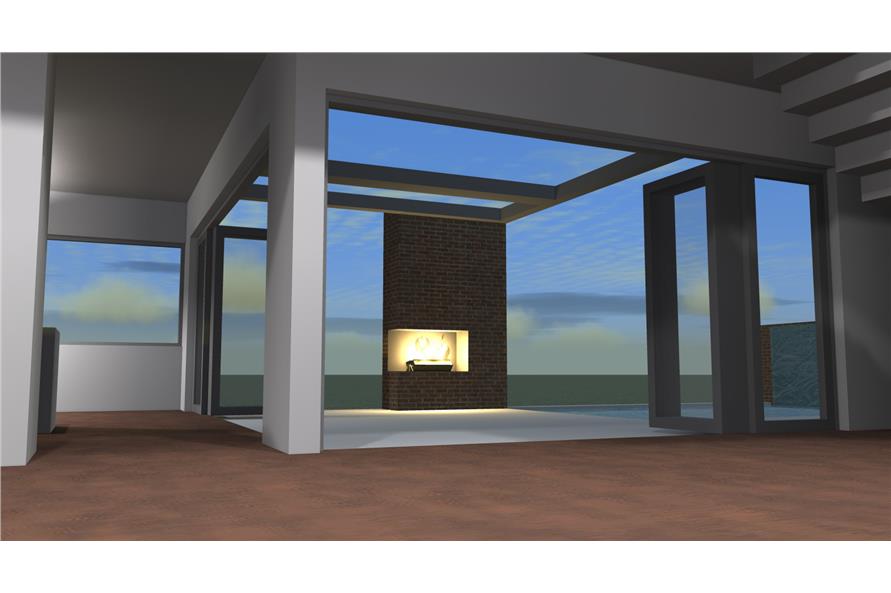

116-1079 house plan porch view

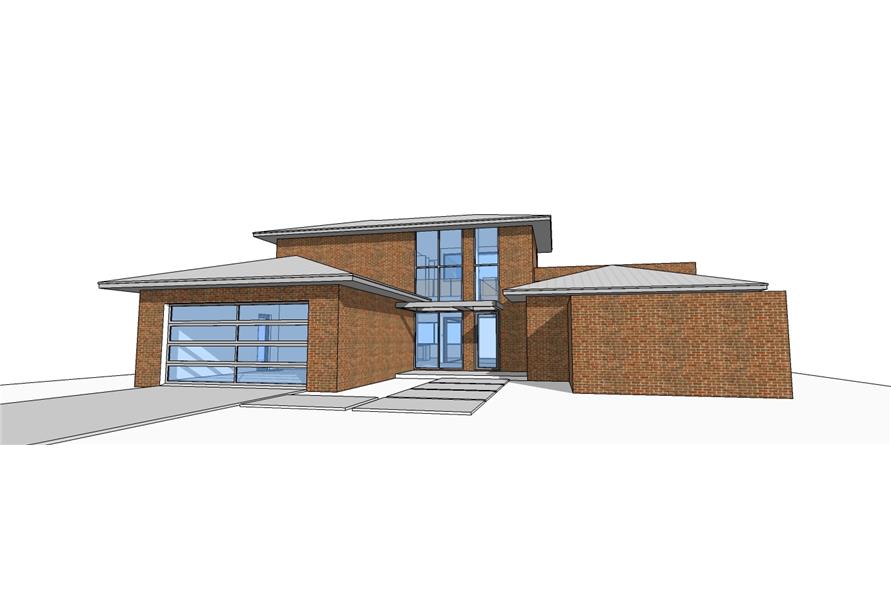

3-Bedroom, 2459 Sq Ft Modern House Plan - 116-1079 - Front Exterior

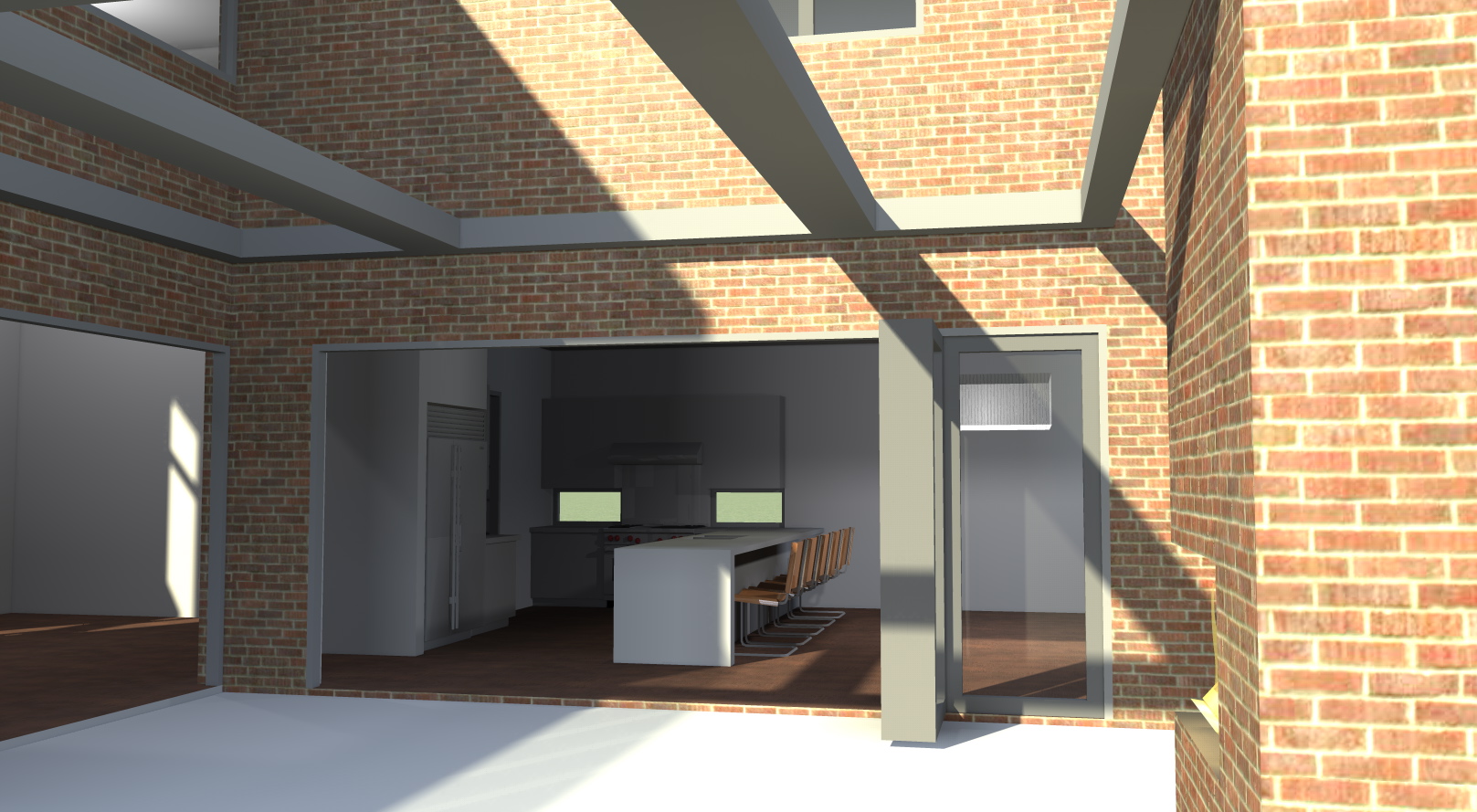

116-1079 rear elevation

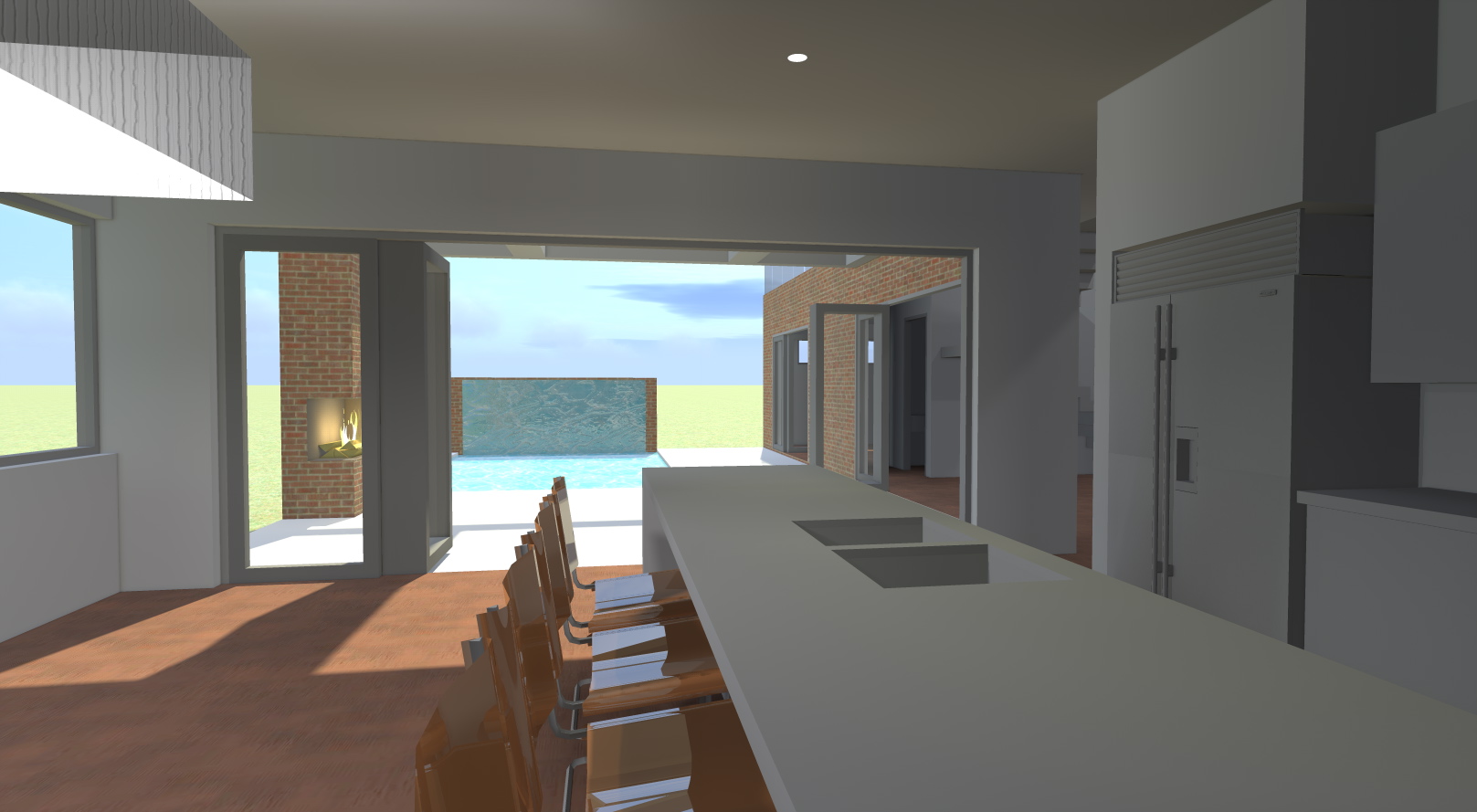

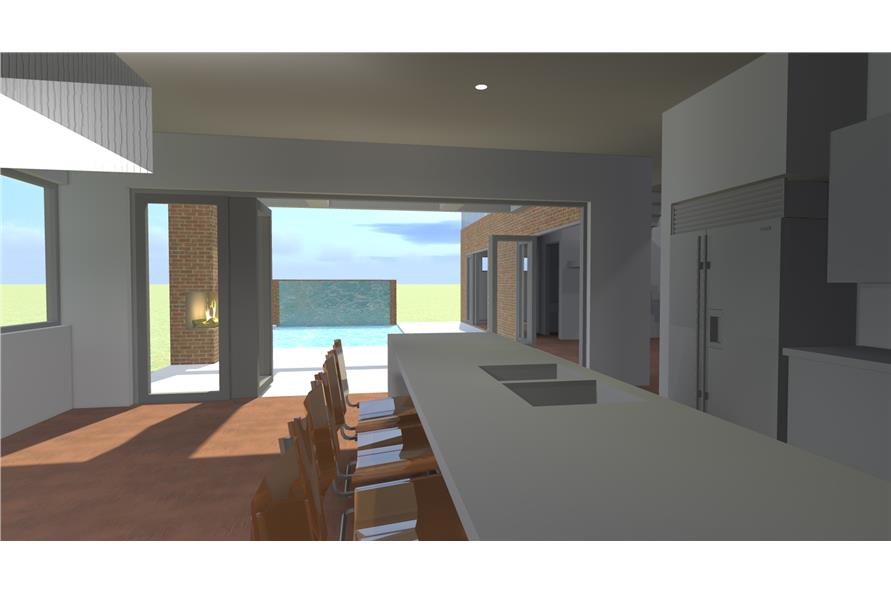

116-1079 house plan kitchen
116-1079 house plan bath
116-1079 house plan living room

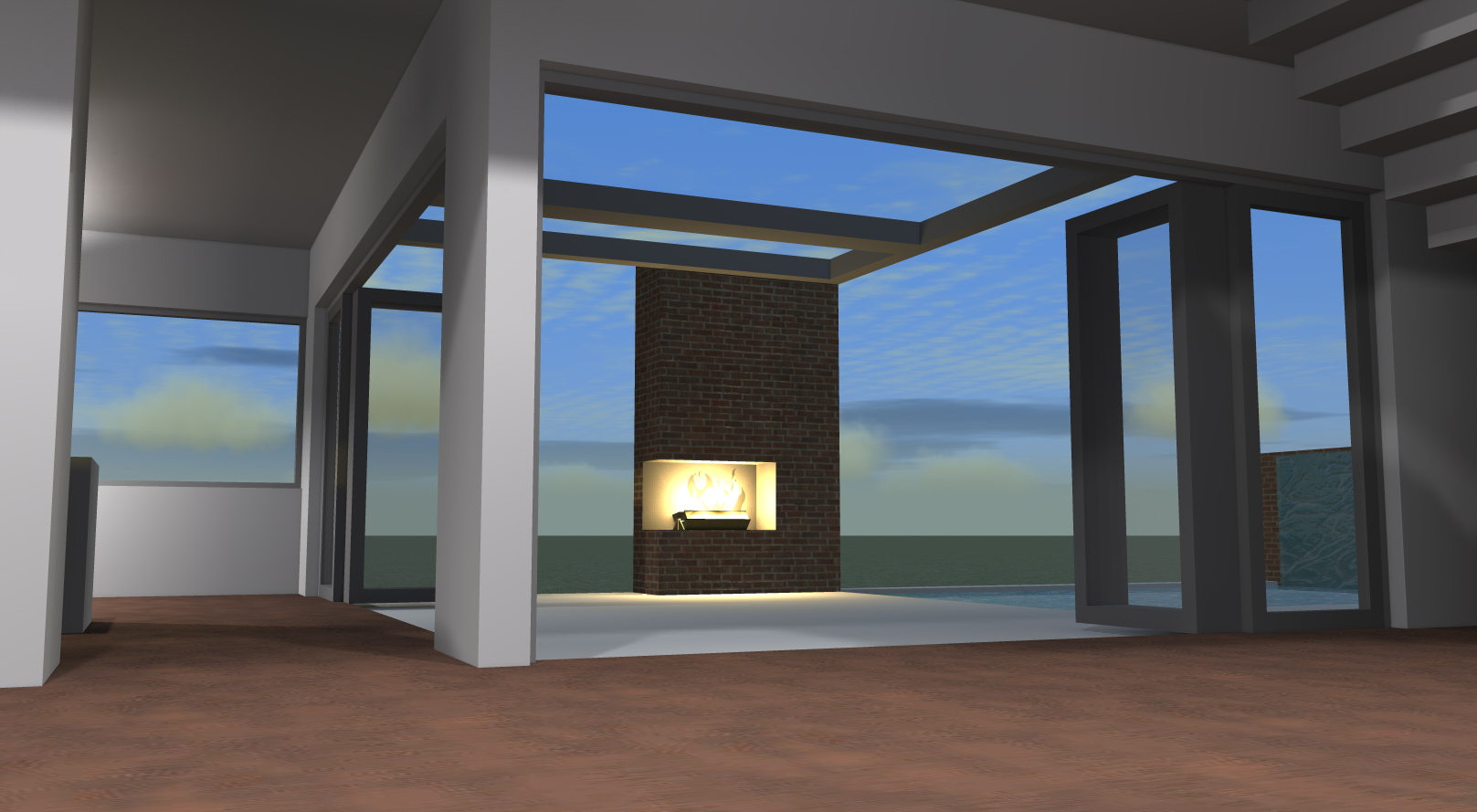

116-1079 house plan porch view

About Plan # 116-1079

About Plan # 116-1079

2459 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
2 FLOOR 60' 0" WIDTH 65' 0" DEPTH 2 GARAGE BAY

This is a modern home styled after the luxury beach homes of the caribbean coast, and is part of the Barbados Collection. The theater room has a 2-story ceiling and a modern stair leading to the upper floor. The modern kitchen serves an eating bar and dining. Folding doors open the back of the house to the outdoor living space with fireplace and waterfall pool. The master bath is open to the private outdoor garden, and is full of natural lighting. The upper floor with 2 bedrooms, and office and bath, also opens to a rooftop observation deck with glass railings. This plan is designed with a concrete slab on grade. The exterior walls are 2x8 wood framing with r30+ spray foam insulation. First and second floor systems are pre-engineered wood trusses. The roof is standing seam metal, a plywood deck, and pre-engineered wood trusses. 10' ceilings downstairs 20' ceilings in theatre 9' ceilings upstairs

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

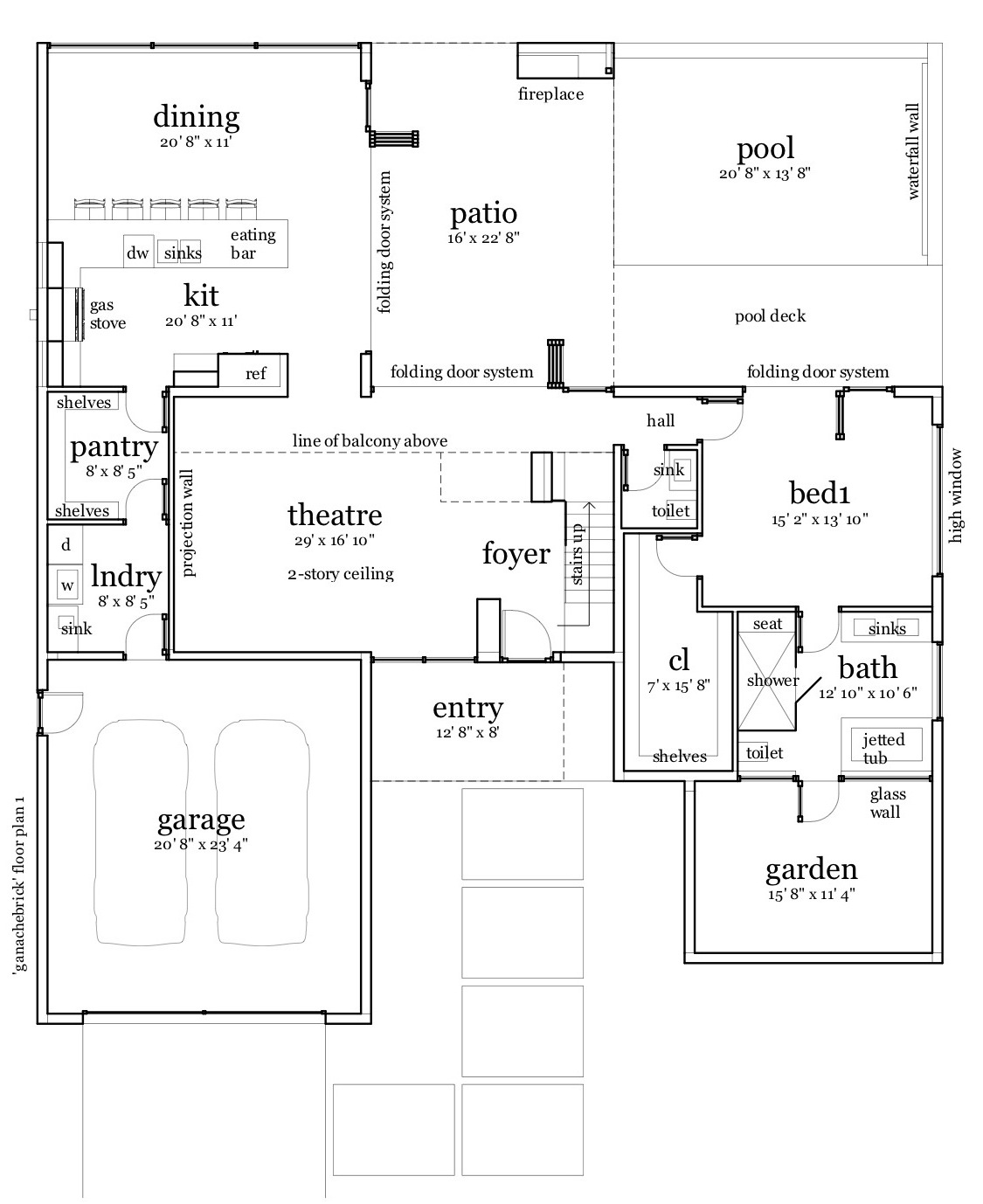

Home Plan: #116-1079 Floor Plan First Story - first floor Floor Plan First Story of Modern Plan #116-1079

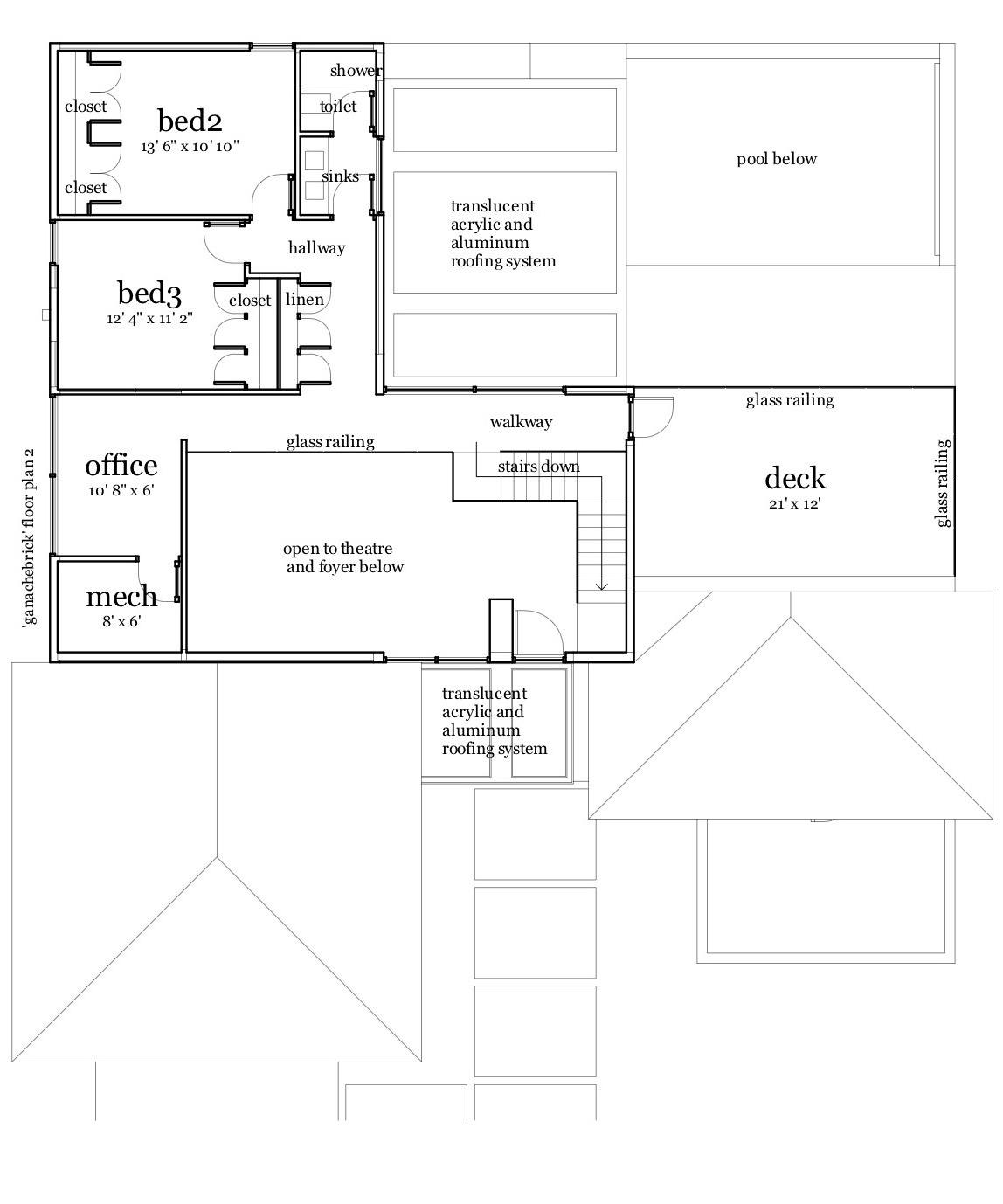

#116-1079 Floor Plan Second Story - second story Floor Plan Second Story of Modern Plan #116-1079
Home Plan: #116-1079 Floor Plan First Story - first floor Floor Plan First Story of Modern Plan #116-1079
#116-1079 Floor Plan Second Story - second story Floor Plan Second Story of Modern Plan #116-1079
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 116-1079
Floors:
2
Bedrooms:
3
Full Baths:
2
Half Baths:
1
Garage :
2

Square Footage

Heated Sq Feet:
2459
Main Floor:
1762
Upper Floor:
697
Unfinished Sq Ft:
Garage :
528

Dimensions

Width:
60' 0"
Depth:
65' 0"
Ridge Height:
26' 0"

Architectural Styles

Contemporary
Modern
Vacation Homes

Exterior Wall Material

Fiber Cement Product
Rock/Stone

Roofing Type

Flat

Roofing Material

Other Composites

Roof Pitch

Other

Ceiling Height

10 Foot Ceiling
9 Foot Ceiling

Special Feature

Color Photos
Fireplace
Main Level Laundry

Garage Type

Attached Garage

Exterior Wall Framing

2x8

Building Lot Type

Flat Site

Kitchen Features

Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch

Master Suite Features

Main Floor Master
Master Bathroom
Split Master Bedroom
Walk In Closet

Additional Notes from Designer

CAD files for this plan will be delivered in both DXF (AutoCad readable) and Sketchup Pro formats.

PRICING OPTIONS

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
