Each plan set includes the following:

• COVER SHEET: Features an elevation of the home, sheet number index for the plan, and contact information.
• FOUNDATION PLAN: These drawings will detail and illustrate the foundation of the home as well as exterior and interior footings to support the floors and structure above. If a basement is purchased, it will show the stairs, bearing walls, and basement windows and doors.

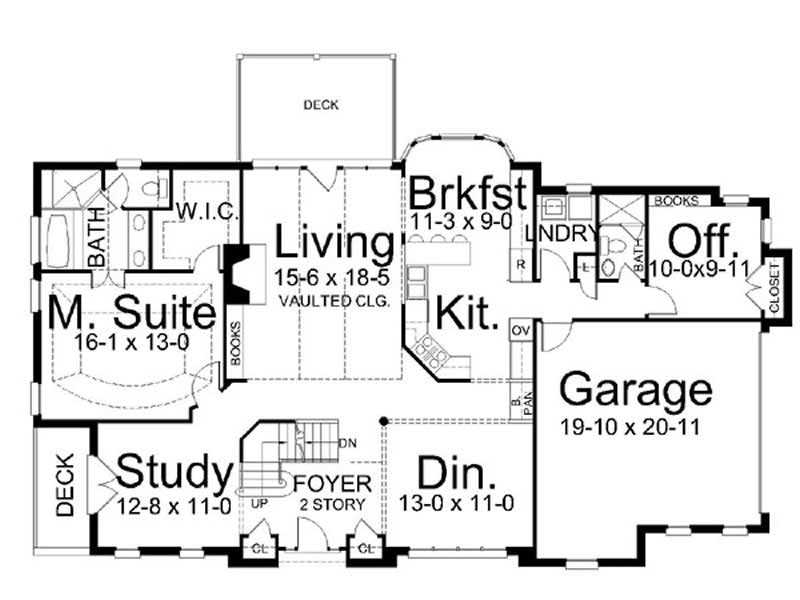

• FIRST FLOOR PLAN: Drawn to ¼”=1’-0” scale and includes exterior dimensions to build the home. The notes are precise directions for your builder. Important features such as built-ins, niches, and appliances are noted. Doors and windows are identified and specific sizing can be found on window and door schedules. Conventional framing.

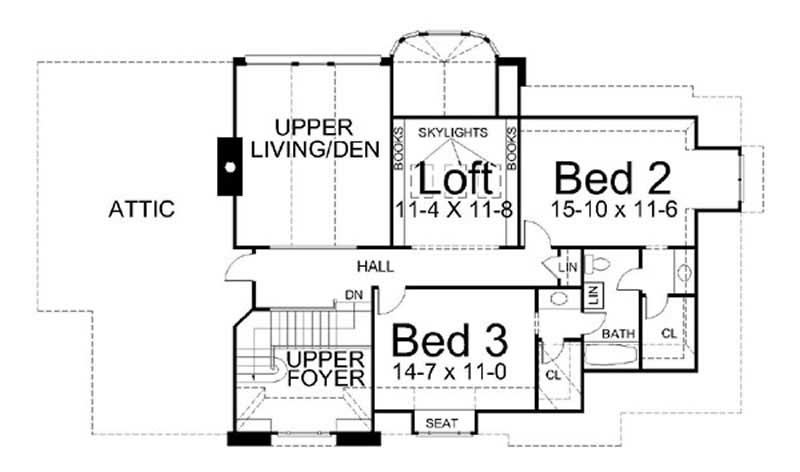

• SECOND FLOOR PLAN (if applicable): Includes stair details. Often the reflective roof detail is shown legibly over the second-floor plan.  This is helpful for the framing contractor.
• LIGHTING & ELECTRICAL: On this sheet, you have a schematic of the lights, electrical plugs, phone location, and code items such as smoke detectors. It is commonplace to build with your builder and/or electrician before the work starts to review this plan. Careful planning can make your home special and convenient for your family.
• SECOND FLOOR LIGHTING (if applicable): The same details as provided for the first floor.

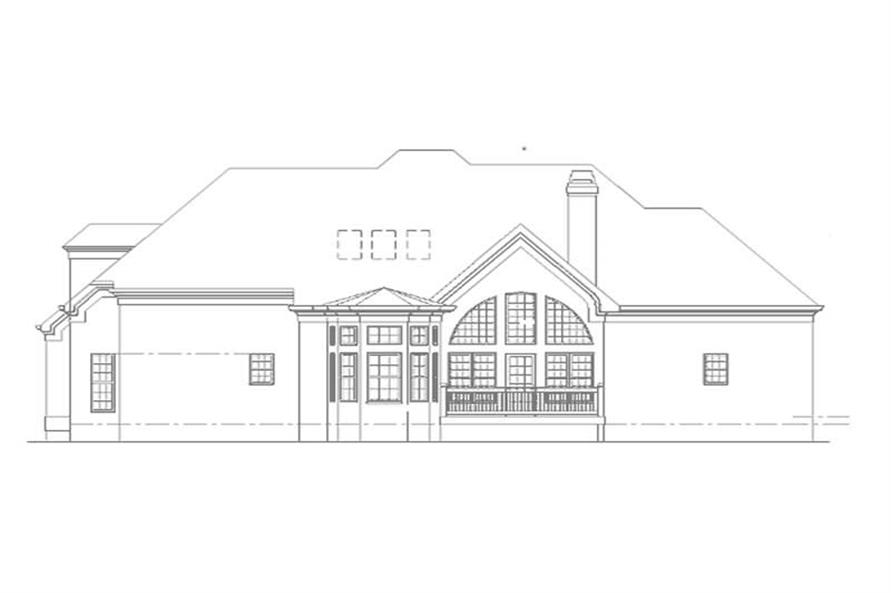

• FRONT AND REAR ELEVATIONS: The front and rear elevations may be on separate pages depending on the size of the house. This page comes with exterior dimensions and notes required to complete construction. This is where the windows, doors, and interior trim details are illustrated, as well as wall heights, roof pitches, and ridge heights.
• RIGHT AND LEFT ELEVATIONS: The right and left elevations provide the same details as the front and rear elevations.
• ROOF PLAN: This drawing, usually at ¼”=1’-0” scale, is a bird’s-eye view of the home. It will show the ridges, hips, and valleys. This page will show a beautifully designed roof.
• CROSS SECTIONS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. Sections are used to further describe any architectural intent necessary for the builder or framer. This drawing will illustrate important changes in the floor, ceiling, and roof heights.
• CABINET ELEVATIONS: Cabinet elevations are provided with the plans, and like the electrical plan, they are mainly a guide for estimating purposes. Cabinets are an area that is easy to customize and your builder or cabinet maker will work with you early on in the process to ensure that the correct cabinets are specified. After framing and sheetrock installation, the sizes of walls may change slightly. The cabinet maker must take as built measurements to properly size your cabinets. **NOTE: Most house plans will contain interior/cabinet elevations, however not all plans will. Please inquire prior to purchase.
• GENERAL NOTES: Separate sheets that provide standard construction notes, in addition, included are the details required to comply with International Residential Code (IRC) & Southern Building Code (SBC).

These items are NOT included:

• Framing.
• Architectural or Engineering Stamp - handled locally if required.
• Site Plan - handled locally when required.
• Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
• Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
• Energy calculations - handled locally when required.
