3–4-Bedroom, 2827 Sq Ft Tudor Plan with Upper Level Master
Related House Plans
| 2827 SQUARE FEET | 3 BEDROOMS | 3 FULL BATH | 0 HALF BATH |
| 2 FLOOR | 34' 0" WIDTH | 60' 0" DEPTH | 0 GARAGE BAY |

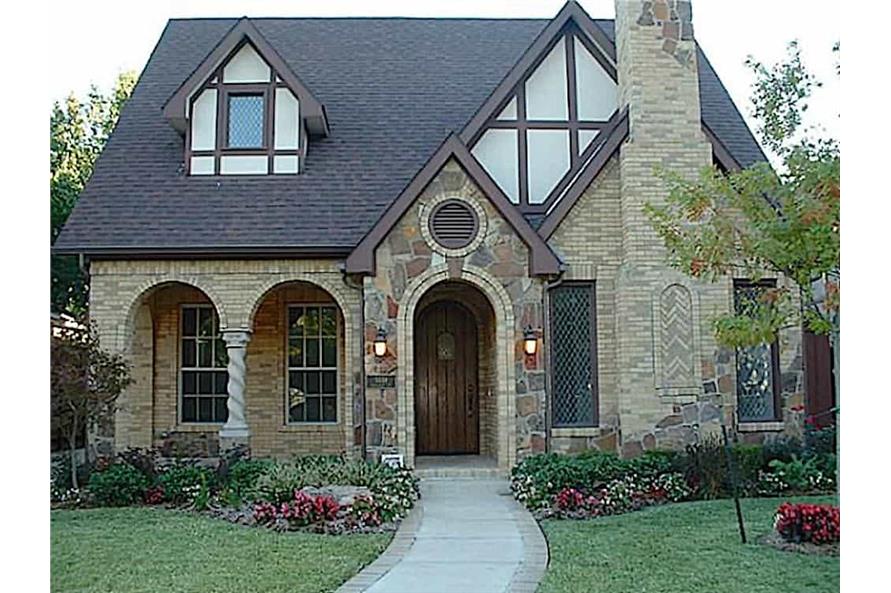

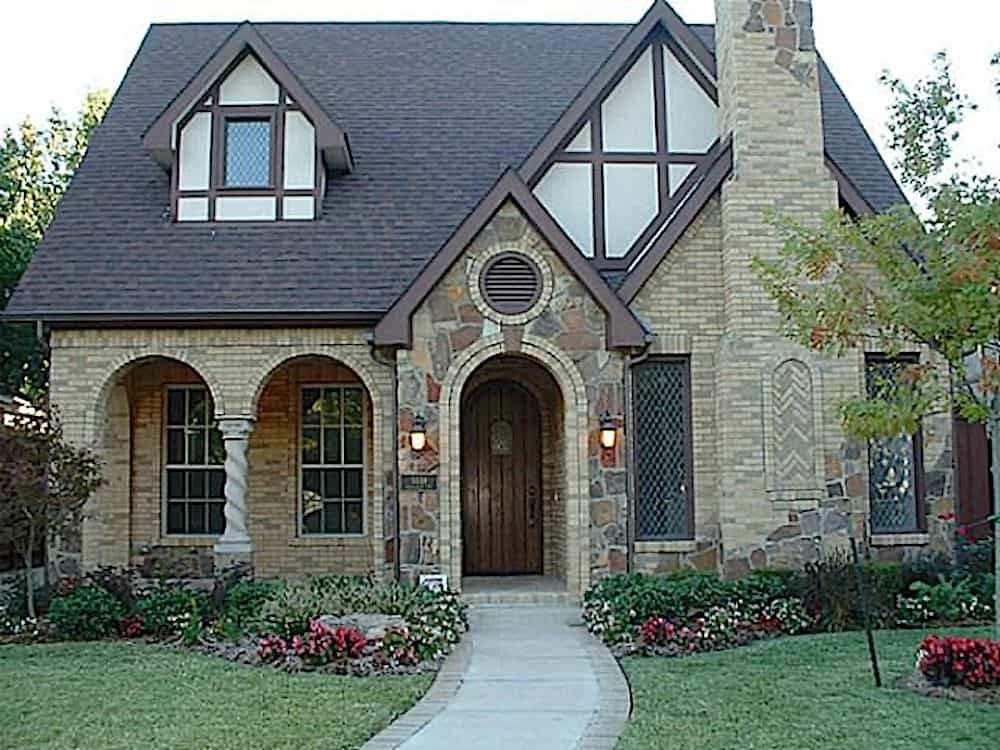

This Tudor style home with European influences is a true example of exquisite craftsmanship, refinement, and sophistication. The exterior of the home is a beautiful blend of stone and brick creating remarkable curb appeal. And inside provides you with a flexible open space plan perfect home for your entertaining pleasure. The beautiful 2-story floor plan has 2827 square feet of heated-cooled space on the main and upper levels and includes 3–4 bedrooms.
Each plan set includes the following:
- Dimension Plan
- Notation Plan
- Electrical Layout

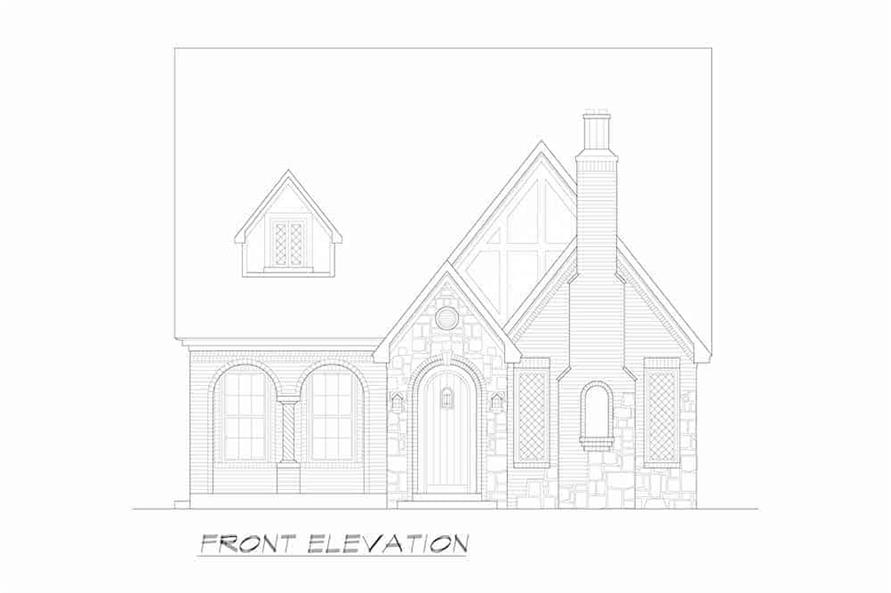

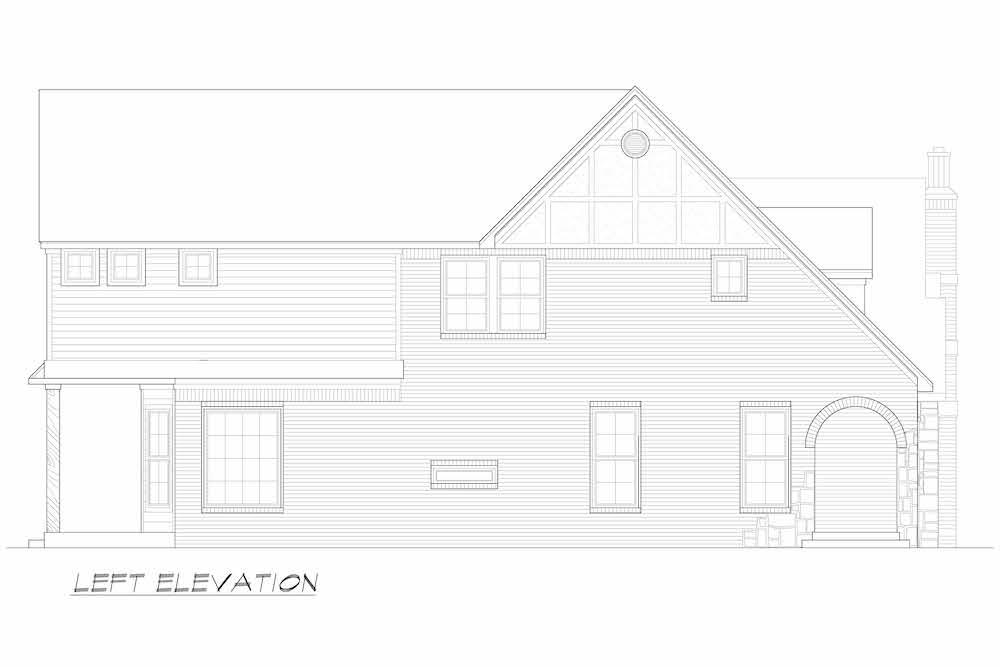

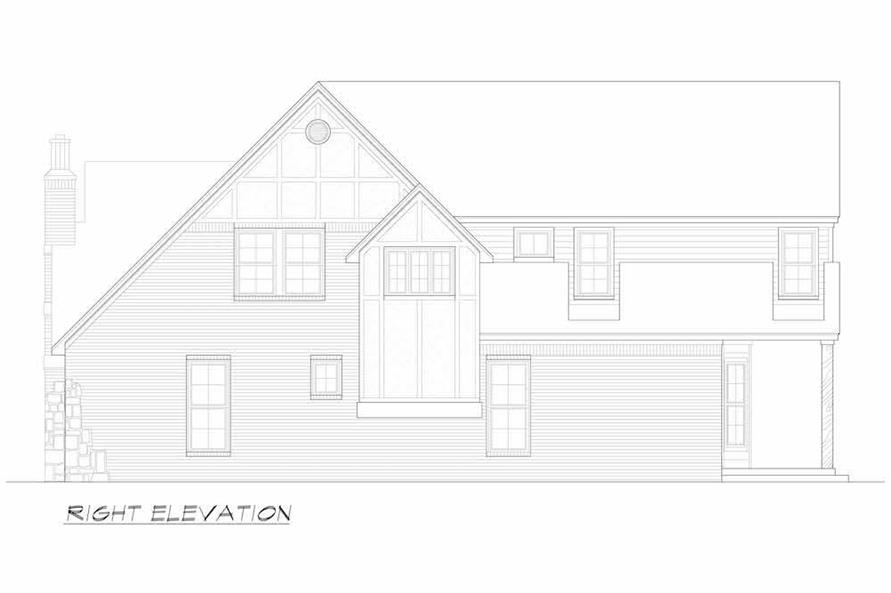

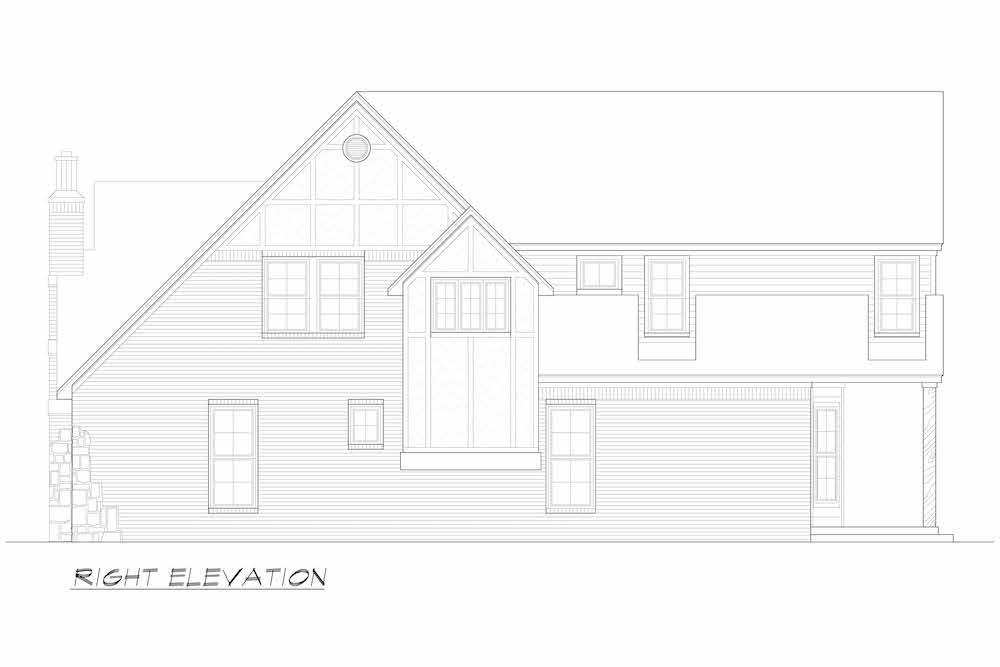

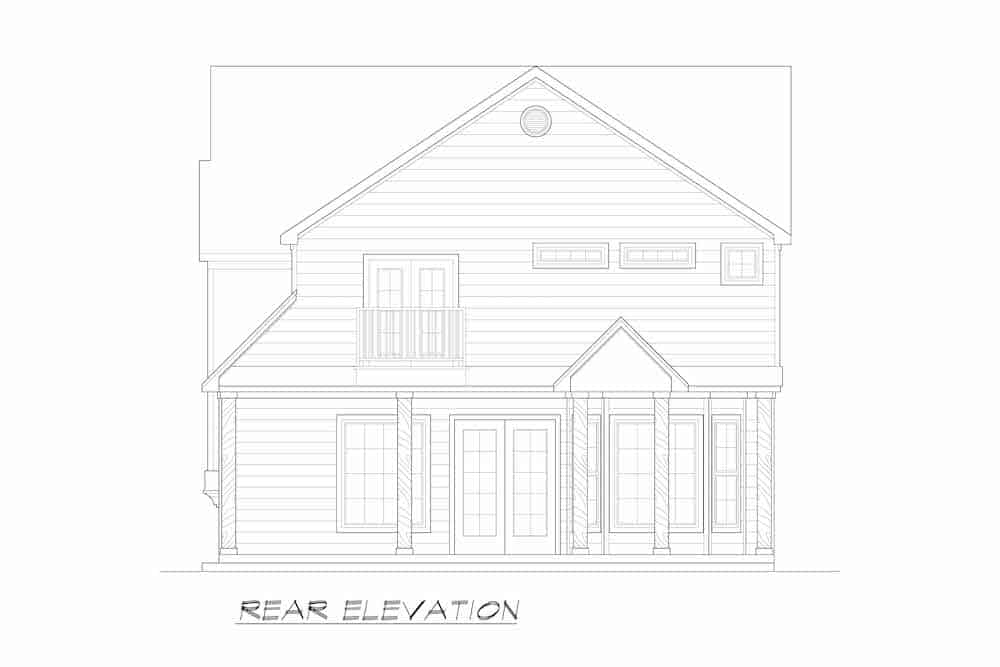

- Elevations
- Roof Plan
- General Specifications
- General Details
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
Write Your Own Review

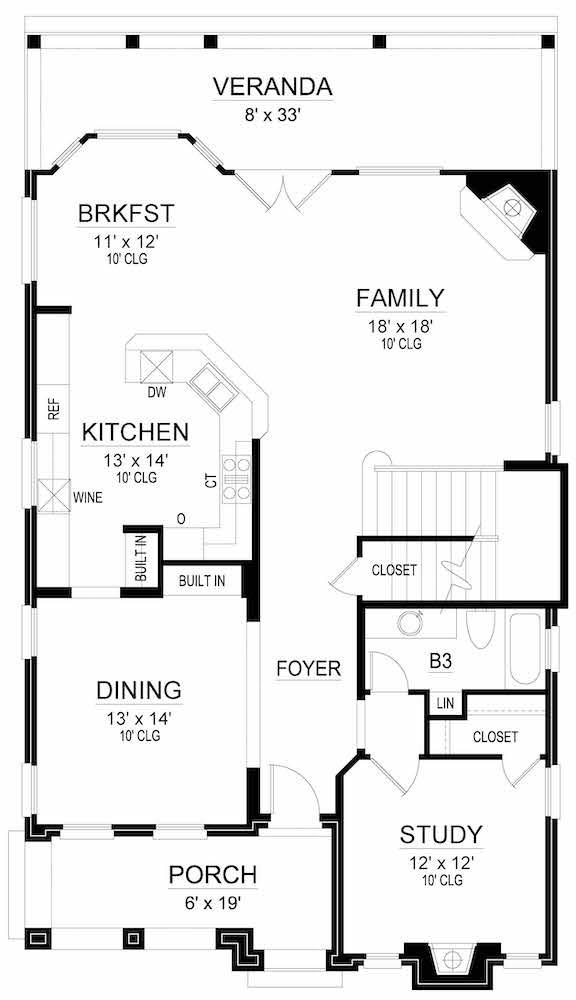

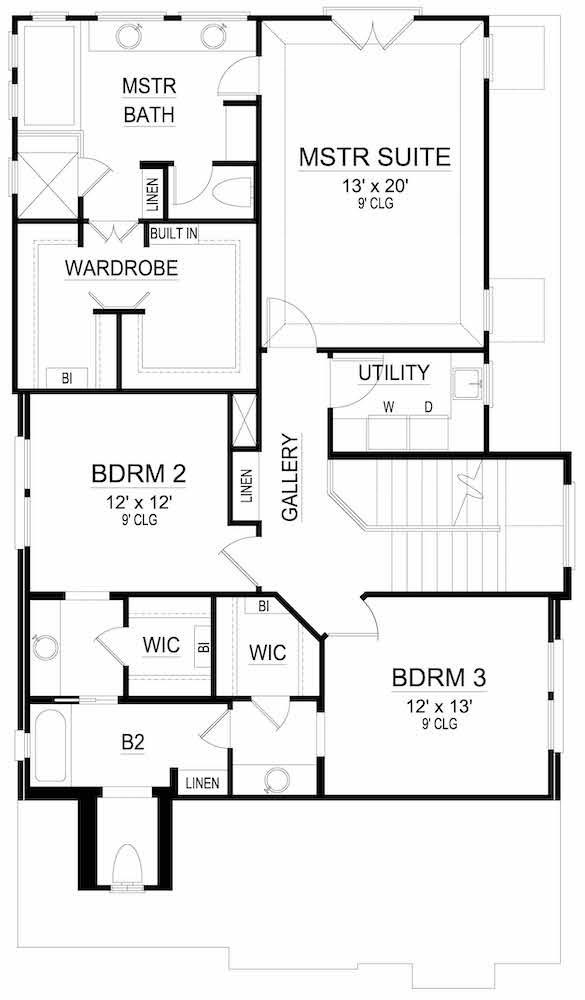

FLOOR PLANS Flip Images
Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!
To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
Additional specs and features
Summary Information
Square Footage
Dimensions
Architectural Styles
Exterior Wall Material
Roofing Type
Roofing Material
Ceiling Height
Special Feature
Fireplaces
Kitchen Features
Porches and Exterior Features
Master Suite Features
Additional Notes from Designer
PRICING OPTIONS
ADDITIONAL INFORMATION
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
How much will this plan cost to build?
