4-Bedroom, 2464 Sq Ft Florida Style Plan with Master Bathroom

Mediterranean plans color front elevation.
4-Bedroom, 2464 Sq Ft Florida Style Home Plan - 175-1031 - Main Exterior

About Plan # 175-1031

About Plan # 175-1031

2464 SQUARE FEET 4 BEDROOMS 3 FULL BATH 0 HALF BATH
2 FLOOR 59' 8" WIDTH 80' 8" DEPTH 3 GARAGE BAY

This house plan is a single story, Mediterranean and/or Florida Style house plan with 2464 total living square feet. This design has 4 bedrooms, 3 bathrooms, and a 3 car garage. Some of the special features of this house plan include an In-Law Quarters, Main Floor Bed & Bath, Main Floor Master, and Split Bedrooms.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size (if applicable), and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. Typical wall sections are also included. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

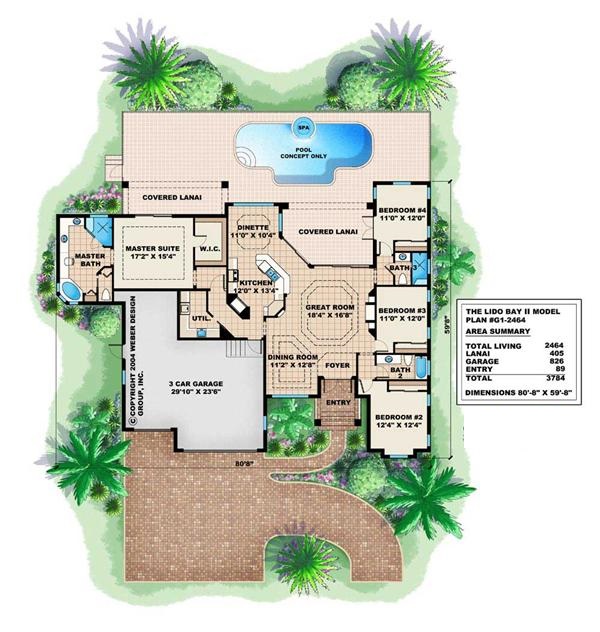

Home Plan: #175-1031 Floor Plan First Story - main level Floor Plan First Story of Florida Style Plan #175-1031
Home Plan: #175-1031 Floor Plan First Story - main level Floor Plan First Story of Florida Style Plan #175-1031
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 175-1031
Floors:
2
Bedrooms:
4
Full Baths:
3

Square Footage

Heated Sq Feet:
2464
Main Floor:
2464
Unfinished Sq Ft:
Garage :
826

Dimensions

Width:
59' 8"
Depth:
80' 8"
Ridge Height:
21.5' 0"

Architectural Styles

Florida Style
In-Law Suite
Mediterranean
Wheelchair Accessible

Exterior Wall Material

Stucco

Roofing Material

Tiles

Roof Pitch

6/12

Special Feature

Dining Room
Main Level Laundry
Vaulted Ceilings
Workshop

Garage Type

Attached Garage
Front Entry

Building Lot Type

Flat Site

Kitchen Features

Nook/Breakfast Area
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Covered Lanai
Covered Rear Porch
Screened in Lanai

Master Suite Features

Main Floor Master
Walk In Closet

Additional Notes from Designer

PLEASE NOTE: This designer has zip code restrictions on where their plans can be built!! Please contact us to see if you can purchase these plans BEFORE you order!! 2x6 and Right Reading Reverse are available. Please send in a modification request to receive a free quote. PLEASE NOTE: CAD files for this designer may take 2-3 business days to deliver. Thank you!
