4-Bedroom, 2232 Sq Ft Country Ranch Plan with Mud Room

Country Ranch home (ThePlanCollection: Plan #206-1034)

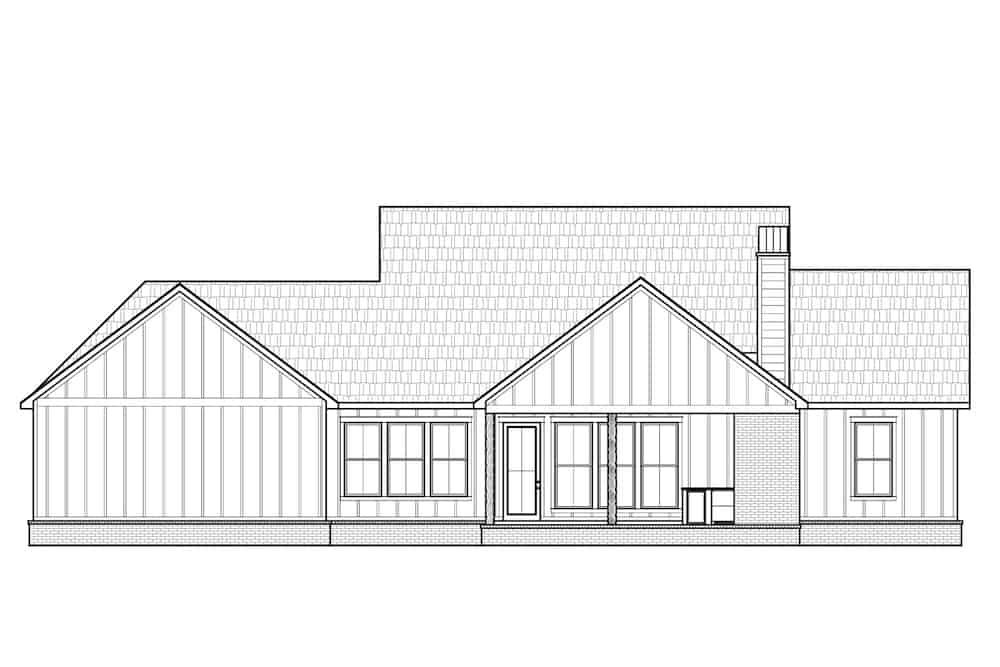

206-1034: Home Plan Rear Elevation
4-Bedroom, 2232 Sq Ft Ranch Home Plan - 206-1034 - Main Exterior
206-1034: Home Plan Rear Elevation

About Plan # 206-1034

About Plan # 206-1034

2232 SQUARE FEET 4 BEDROOMS 2 FULL BATH 1 HALF BATH
1 FLOOR 75' 3" WIDTH 70' 4" DEPTH 2 GARAGE BAY

This spectacular Country Ranch style home in the Cape Cod style is sure to grab your attention and make it to your dream home wish list. A brilliant achievement of architectural design is displayed in the house and the spacious interior layout, which every member of the family will surely love. The fascinating 1-story family home's floor plan has 2232 square feet of fully conditioned living space and includes 4 bedrooms.





Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

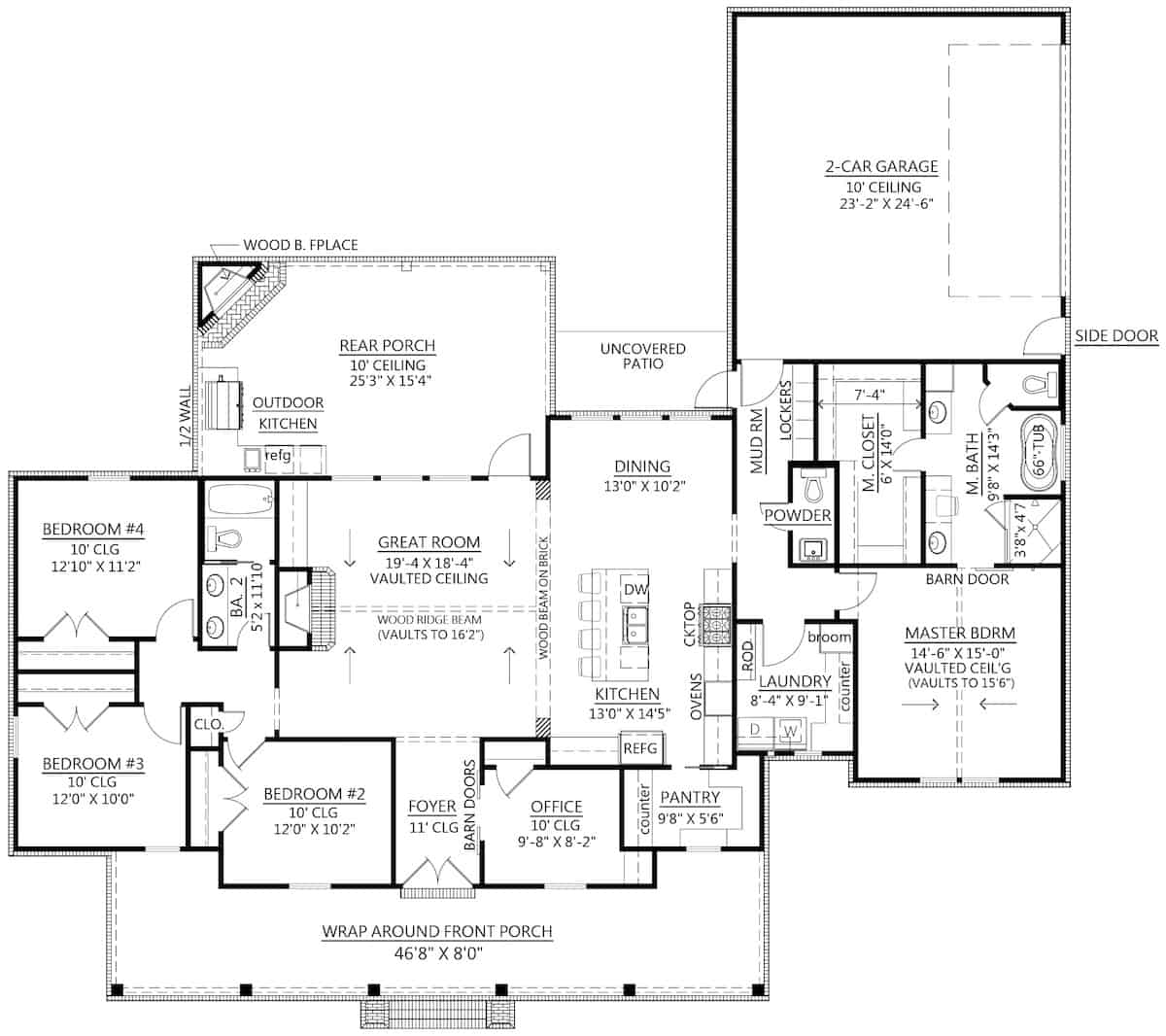

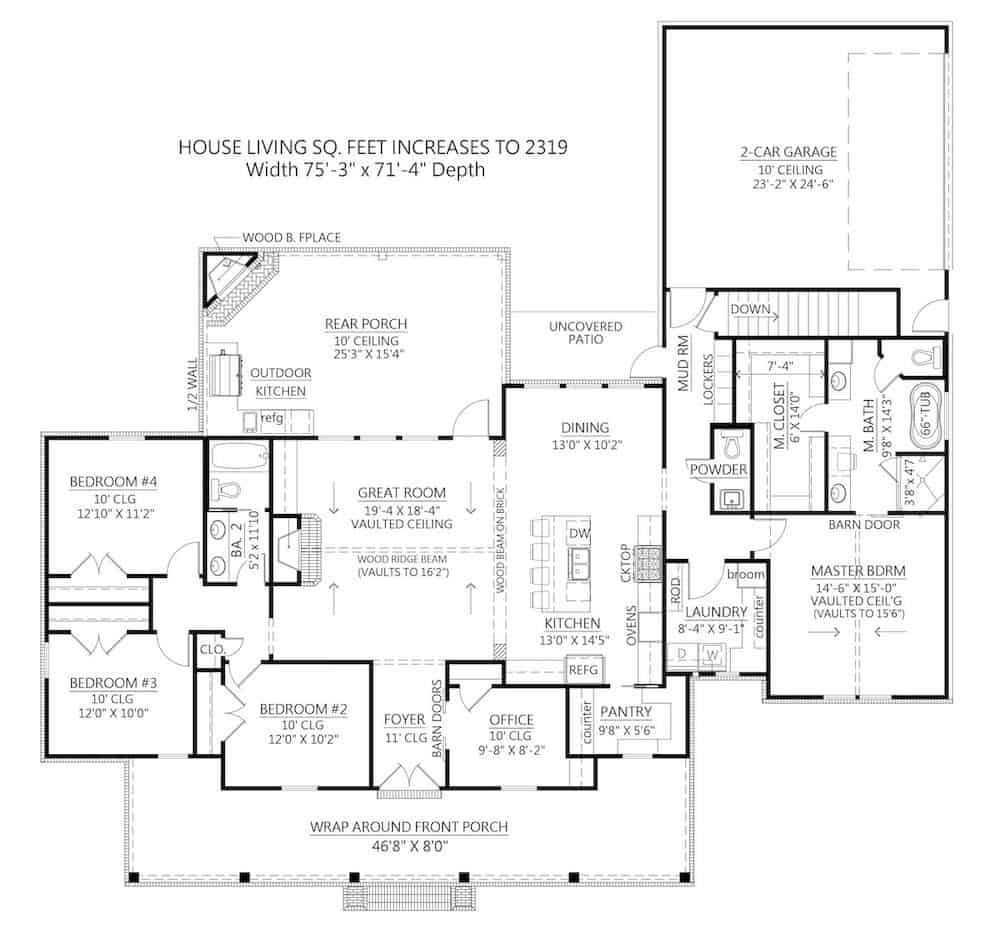

Home Plan: #206-1034 Floor Plan First Story - main level Floor Plan Main Level of Ranch Plan #206-1034

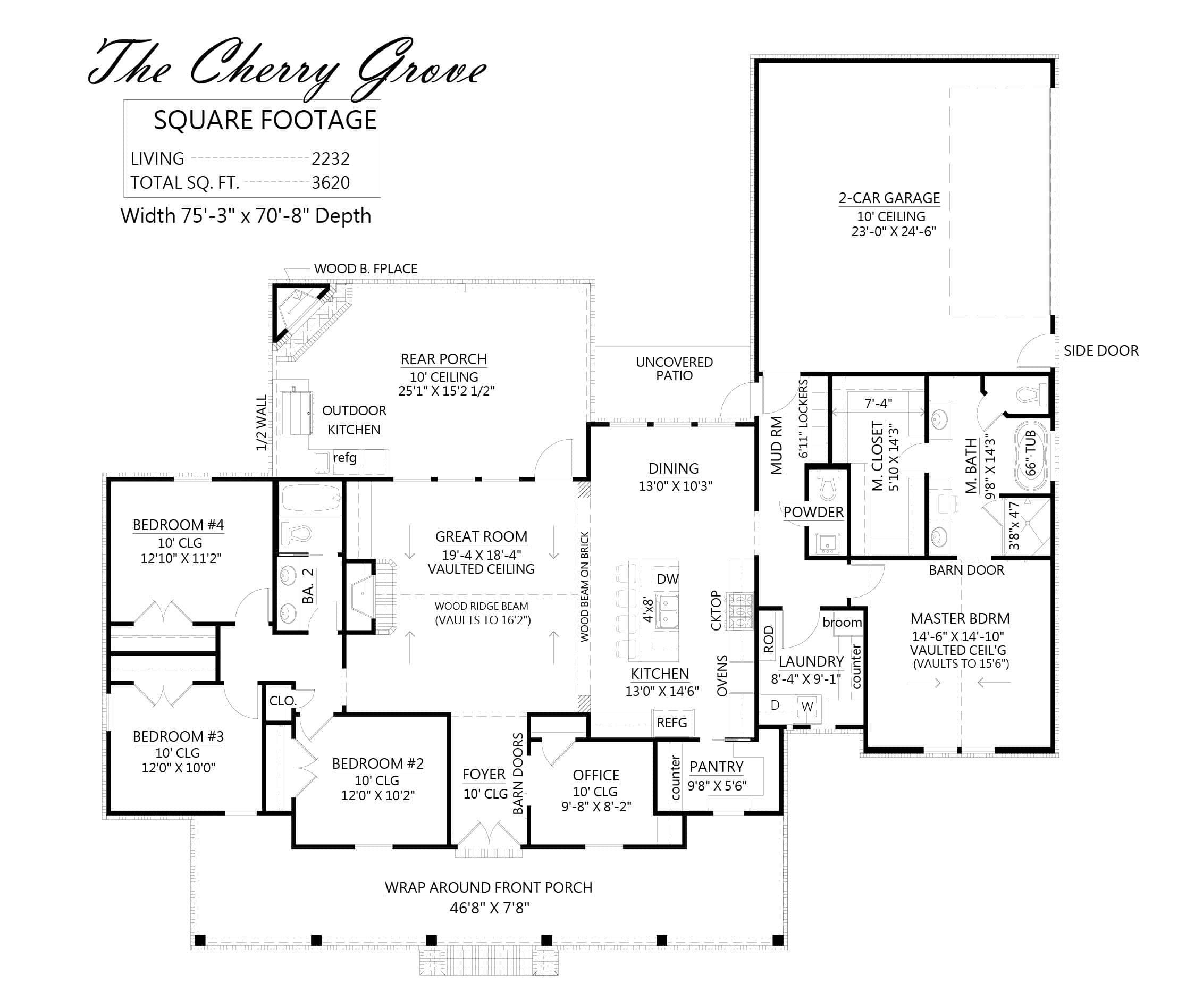

#206-1034 Floor Plan First Story - basement option stair location Main Level of Ranch Plan #206-1034

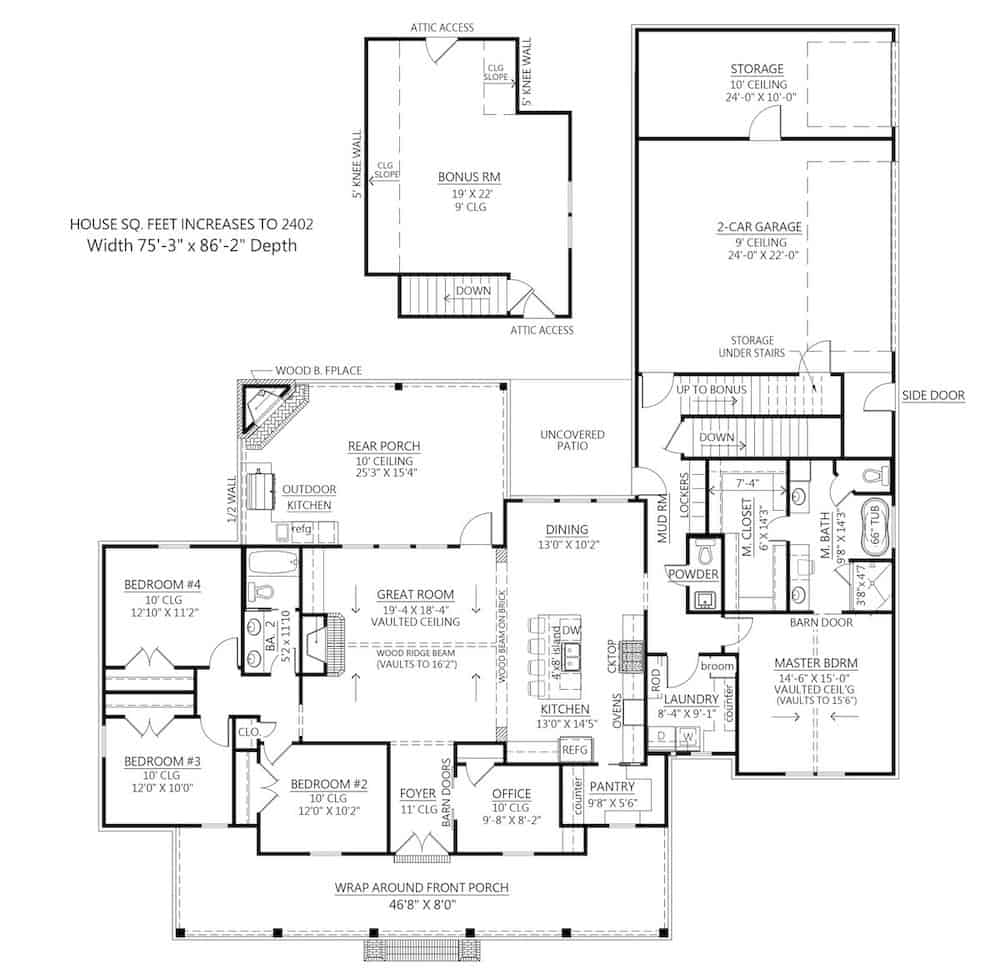

#206-1034 Floor Plan Bonus Room - bonus room Bonus Room of Ranch Plan #206-1034
Home Plan: #206-1034 Floor Plan First Story - main level Floor Plan Main Level of Ranch Plan #206-1034
#206-1034 Floor Plan First Story - basement option stair location Main Level of Ranch Plan #206-1034
#206-1034 Floor Plan Bonus Room - bonus room Bonus Room of Ranch Plan #206-1034
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 206-1034
Floors:
1
Bedrooms:
4
Full Baths:
2
Half Baths:
1
Garage :
2

Square Footage

Heated Sq Feet:
2232
Main Floor:
2232
Unfinished Sq Ft:
Garage :
600
Porch :
788

Dimensions

Width:
75' 3"
Depth:
70' 4"
Ridge Height:
25' 7"

Architectural Styles

Cape Cod
Colonial
Contemporary
Country
Ranch
Transitional

Exterior Wall Material

Vinyl Siding
Wood Siding

Roofing Type

Gable
Gable/Dormer

Roofing Material

Asphalt Shingles
Metal

Roof Pitch

12/12
9/12

Ceiling Height

10 Foot Ceiling

Special Feature

Family Room
Fireplace
Home Office
L-Shaped
Main Level Laundry
Mud Room
Open Floor Plan
Split Bathroom
Storage
Vaulted Ceilings

Garage Type

Attached Garage
Side Entry

Fireplaces

Two Fireplaces

Exterior Wall Framing

2x4

Building Lot Type

Corner Lot

Kitchen Features

Kitchen Island
Outdoor Kitchen
Peninsula/Eating Bar
Walk-in Pantry

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch
Patio

Master Suite Features

Main Floor Master
Master Bathroom
Split Master Bedroom
Walk In Closet

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a modifiable PDF with complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build unlimited number of homes with no re-use fees. PDF copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build an unlimited number of homes with no re-use fees. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
