About Plan # 120-1047

About Plan # 120-1047

2200 SQUARE FEET 4 BEDROOMS 2 FULL BATH 1 HALF BATH
2 FLOOR 49' 0" WIDTH 40' 0" DEPTH 2 GARAGE BAY
This well-done traditional home with Tudor design influences (House Plan #120-1047) has over 2200 square feet of living space. The two story floor plan includes 4 bedrooms.

Most plan sets include the following:

  • Cover Page. Each home plan features the front elevation and informative reference sections including, general notes and design criteria*, abbreviations, and symbols for your plan.
  • Elevations. Scaled elevations for the front, rear, and sides are provided. All elevations are detailed and an aerial view of the roof is provided.
  • Foundations. Foundations are fully engineered for each design, whether slab or basement.
  • Main Level Floor Plan
  • Second Level Floor Plan
  • Electrical layout
  • Wall & Stair Sections

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

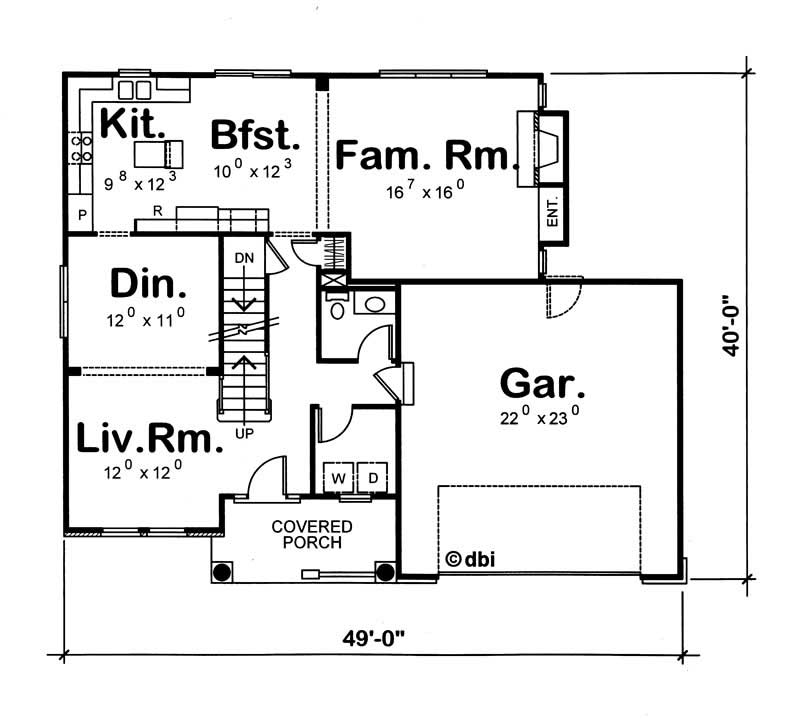

Home Plan: #120-1047 Floor Plan First Story - main Floor Plan First Story of Traditional Plan #120-1047

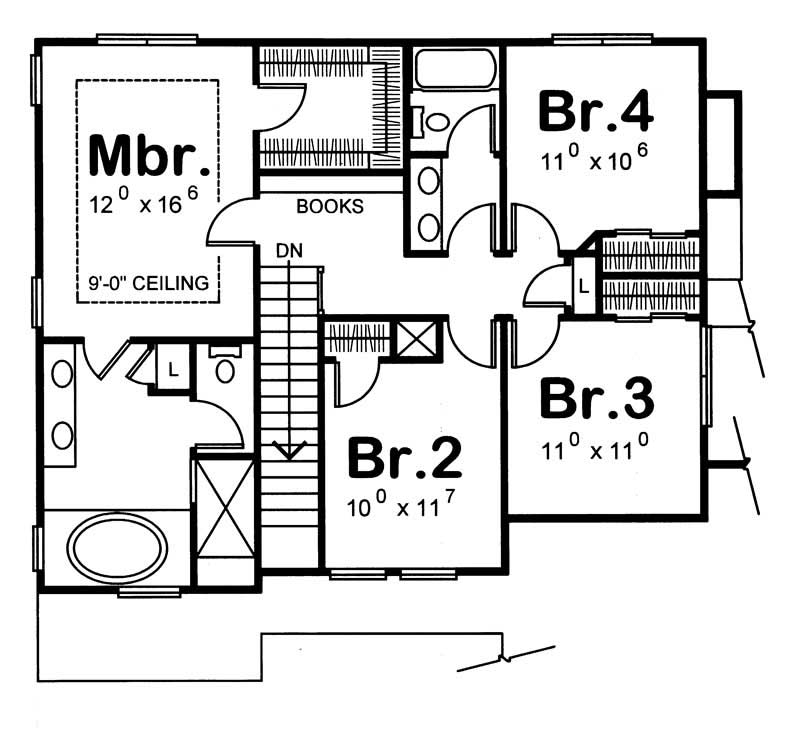

#120-1047 Floor Plan Second Story - upper level Floor Plan Second Story of Traditional Plan #120-1047
Home Plan: #120-1047 Floor Plan First Story - main Floor Plan First Story of Traditional Plan #120-1047
#120-1047 Floor Plan Second Story - upper level Floor Plan Second Story of Traditional Plan #120-1047
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 120-1047
Floors:
2
Bedrooms:
4
Full Baths:
2
Half Baths:
1

Square Footage

Heated Sq Feet:
2200
Main Floor:
1130
Upper Floor:
1070
Unfinished Sq Ft:

Dimensions

Width:
49' 0"
Depth:
40' 0"

Architectural Styles

Traditional
Tudor

Exterior Wall Material

Rock/Stone
Wood Siding

Roofing Type

Gable

Garage Type

Attached Garage

Fireplaces

One Fireplace

Additional Notes from Designer

PLEASE NOTE! If you order an optional foundation and a materials list, the materials list will NOT include the optional foundation, only the standard foundation. The designer can provide an updated materials list for a fee, so please ask for a quote!
