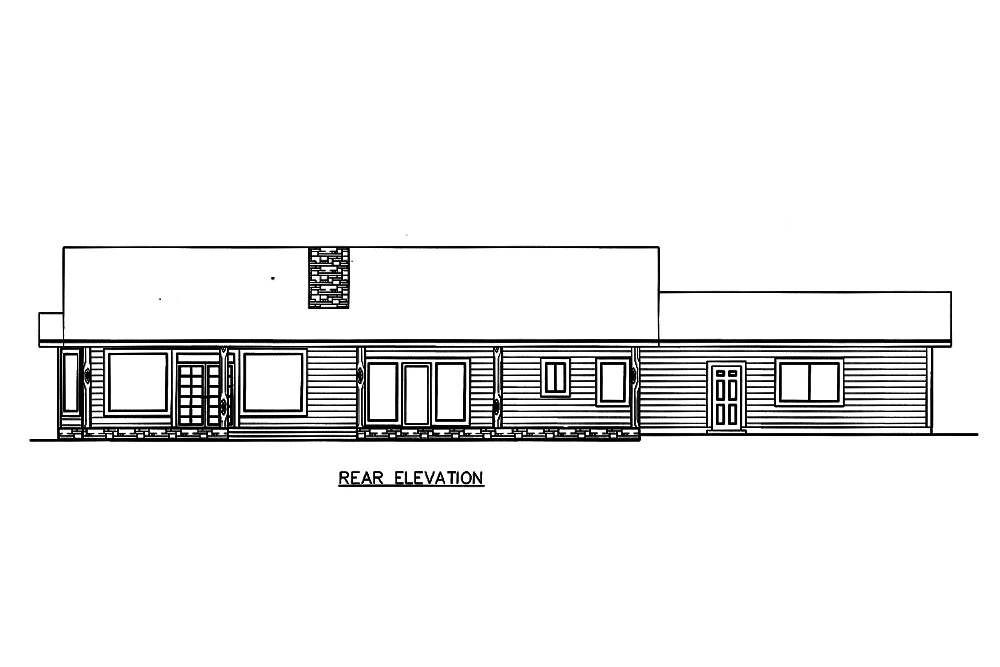

132-1584: Home Plan Rear Elevation

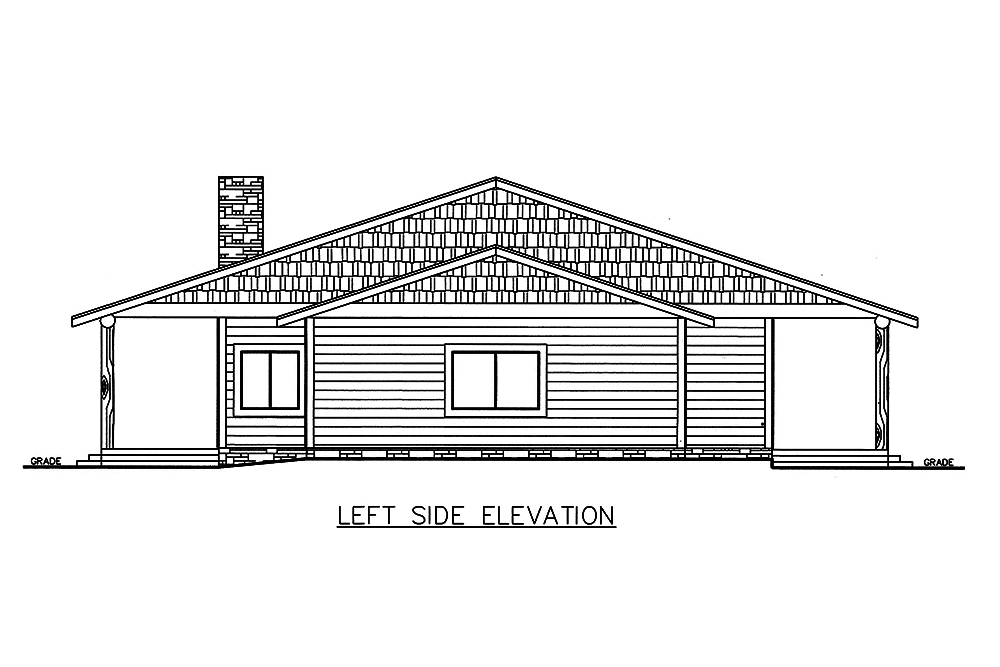

132-1584: Home Plan Left Elevation

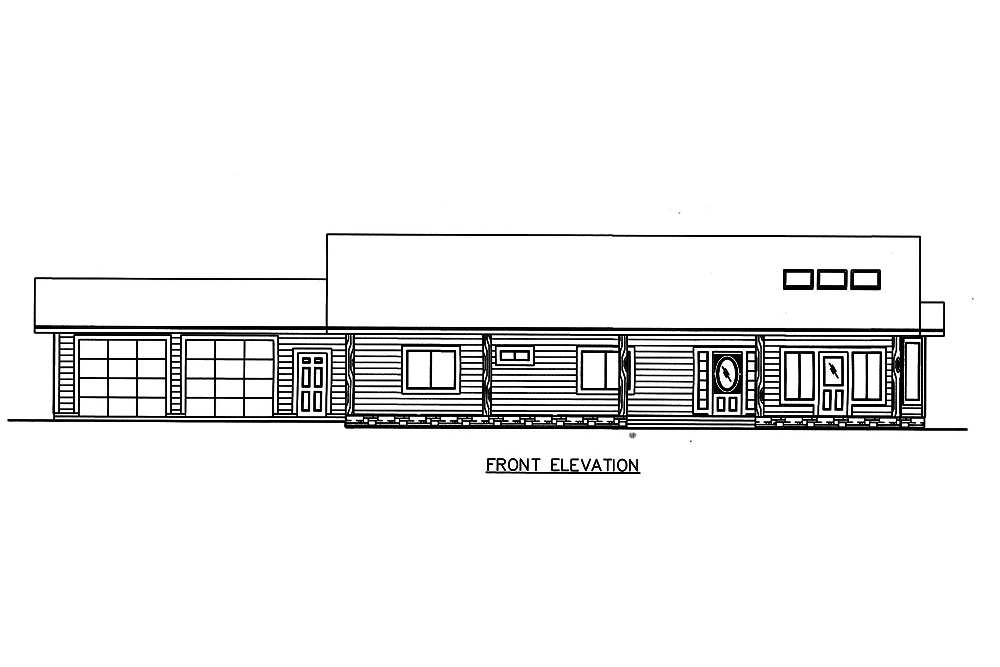

132-1584: Home Plan Front Elevation
3-Bedroom, 2076 Sq Ft Ranch Home Plan - 132-1584 - Main Exterior
132-1584: Home Plan Rear Elevation
132-1584: Home Plan Left Elevation
132-1584: Home Plan Front Elevation

About Plan # 132-1584

About Plan # 132-1584

2076 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 87' 0" WIDTH 38' 0" DEPTH 2 GARAGE BAY
This smartly-designed 3-bedroom, 2-bath, country ranch home is both attractive and economical to build. A wide, front porch greets guests as they approach the home. The main entry leads to the foyer. To the right, double doors lead to the sunroom which boasts three skylights and its own door to the porch — a welcoming place to relax or share drinks with friends on a cool day. The foyer leads to the main living areas of the home which have been configured in an open floor plan layout to make the spaces feel even larger. A vaulted ceiling adds to the sense of grandeur. The Great Room has a corner fireplace and double doors leading the rear porch. The dining area enjoys a bay window. The open-concept kitchen has an island with an eating bar plus a small walk-in pantry.

Each plan set includes the following:

  • Exterior elevations: shows the home on all four sides, calls out exterior finishes, rooflines, window and door locations.
  • Floor plans: includes interior and exterior dimensions, window/door schedule, wall framing details.
  • Foundation plan: shows footing, stem wall, and slab placement, including all connection details.
  • Floor and roof framing plans show truss/rafter placements, including all beams/connection details.
  • Cross-sections: cut-through view of the structure from roof to foundation, shows framing, plate heights, insulation, etc.
  • Electrical layout
  • General notes/details to cover the entirety of the project

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

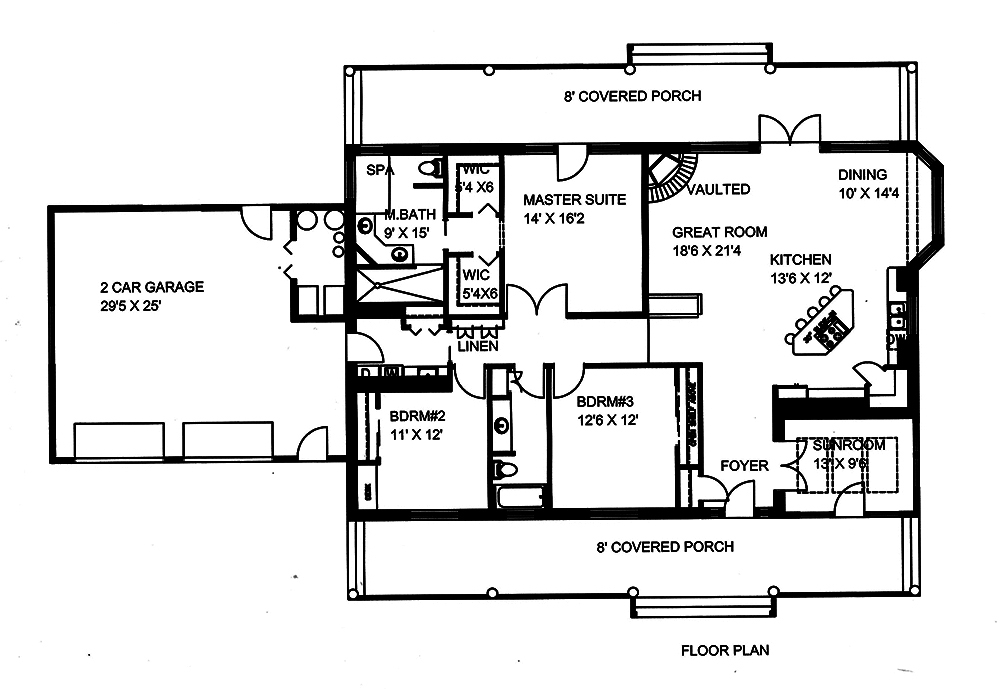

Home Plan: #132-1584 Floor Plan First Story - main level Floor Plan First Story of Craftsman Plan #132-1584
Home Plan: #132-1584 Floor Plan First Story - main level Floor Plan First Story of Craftsman Plan #132-1584
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 132-1584
Floors:
1
Bedrooms:
3
Full Baths:
2
Garage :
2

Square Footage

Heated Sq Feet:
2076
Main Floor:
2076
Unfinished Sq Ft:
Garage :
780
Porch :
135

Dimensions

Width:
87' 0"
Depth:
38' 0"
Ridge Height:
20' 0"

Architectural Styles

Country
Ranch
Traditional
Craftsman
Concrete Block/ ICF Design
Cottage

Exterior Wall Material

Vinyl Siding
Rock/Stone
Wood Siding

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

4/12

Ceiling Height

9 Foot Ceiling

Special Feature

Fireplace
Main Level Laundry
Vaulted Ceilings
Open Floor Plan

Garage Type

Attached Garage
Front Entry

Fireplaces

One Fireplace

Exterior Wall Framing

Concrete

Kitchen Features

Kitchen Island
Walk-in Pantry
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch
Screened Porch/Sunroom

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

The exterior framing is ICF. Ceiling height is 9' 1".


PLEASE NOTE! The CAD - Unlimited package is NOT an unlimited license - it is a license to build up to 5 homes. ATTENTION! Printed sets can ONLY be sent via ground shipping. NO priority or express shipping is available. ATTENTION! Printed sets can ONLY be sent by ground - NO priority or express shipping on printed sets!

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five printed sets and a modifiable PDF with complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build an unlimited number of homes with no re-use fees. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
