3-Bedroom, 2067 Sq Ft Ranch Plan with Peninsula/Eating Bar

Front elevation of Ranch home (ThePlanCollection: House Plan #101-1437)

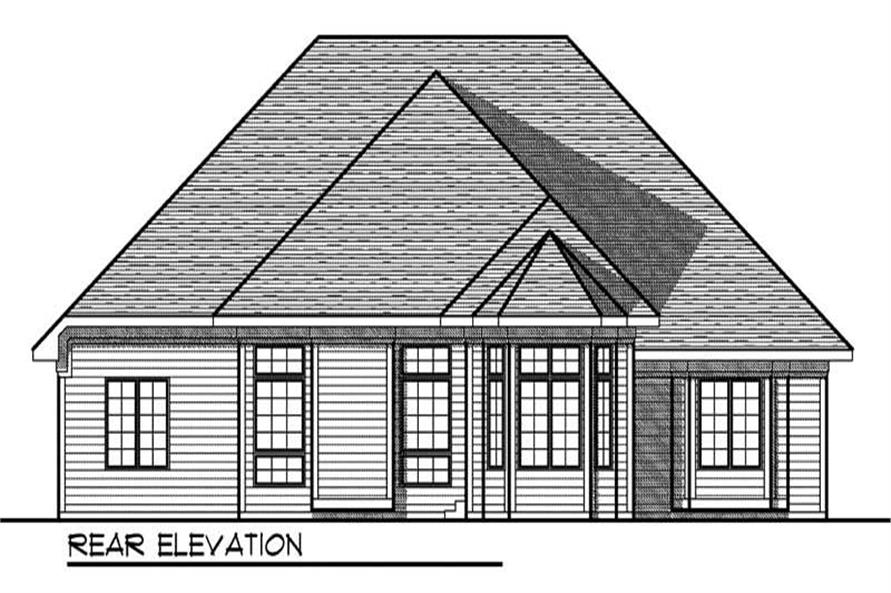

REAR ELEVATION

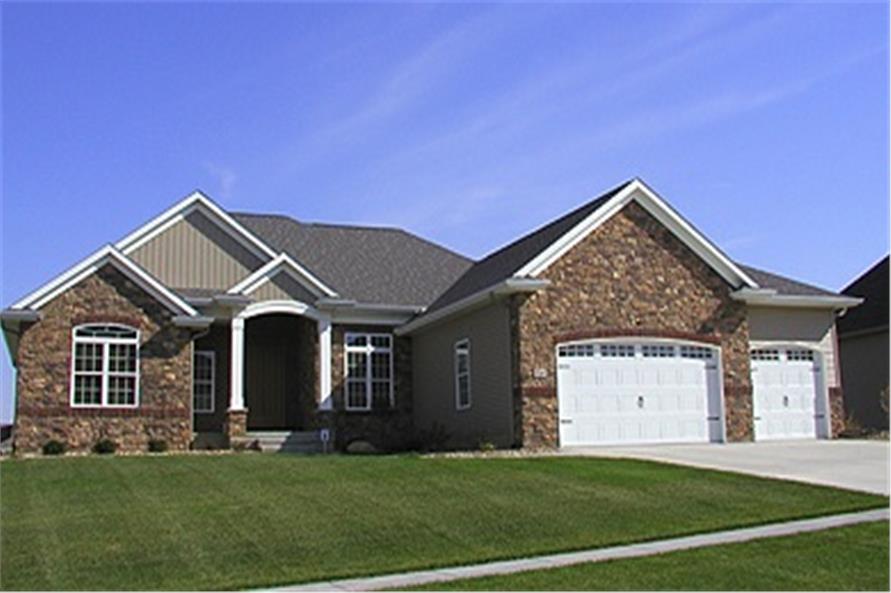

101-1437: Home Exterior Photograph
3-Bedroom, 2067 Sq Ft Ranch House Plan - 101-1437 - Front Exterior
REAR ELEVATION
101-1437: Home Exterior Photograph

About Plan # 101-1437

About Plan # 101-1437

2067 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 60' 0" WIDTH 82' 0" DEPTH 3 GARAGE BAY

From the curb, thir ranch home's mix of stone, shingle siding and shuttered windows is sure to capture your attention and imagination. From the front portico, step inside to the open floor plan that was smartly designed to create a large living space while also including a formal dining room -- complete with a built-in hutch. Towards the rear of the home and adjacent to the great room, the open-concept kitchen features a large eating bar that overlooks the breakfast nook -- ideal for those meals "on the go."

In the master suite, you'll be impressed with such details as the tray ceiling, large walk-in closet and spacious master bath. On the opposite side of this floor plan layout, you'll find two additional bedrooms and a full bath that allow for maximum privacy. The 3-car, side-load garage gives this home a unique design making its 2067 square feet especially appealing.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION LAYOUT: Dimensioned plan detailing the layout and construction of the foundation.
  • ROOF PLAN: A birdseye view showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. It does not include wiring schematics.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. These can include wall and stair sections. Kitchen layout and cabinet elevations included.
  • RENDERING: Sketch of what the finished home may look like. Also includes general notes.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and locations.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

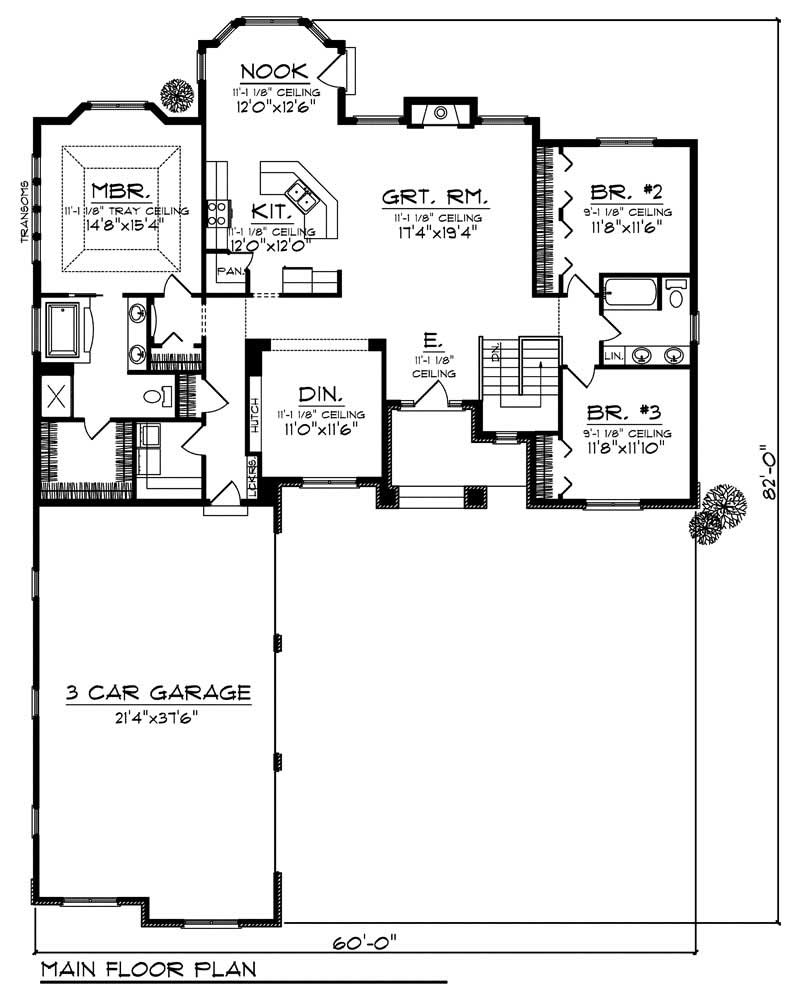

Home Plan: #101-1437 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #101-1437
