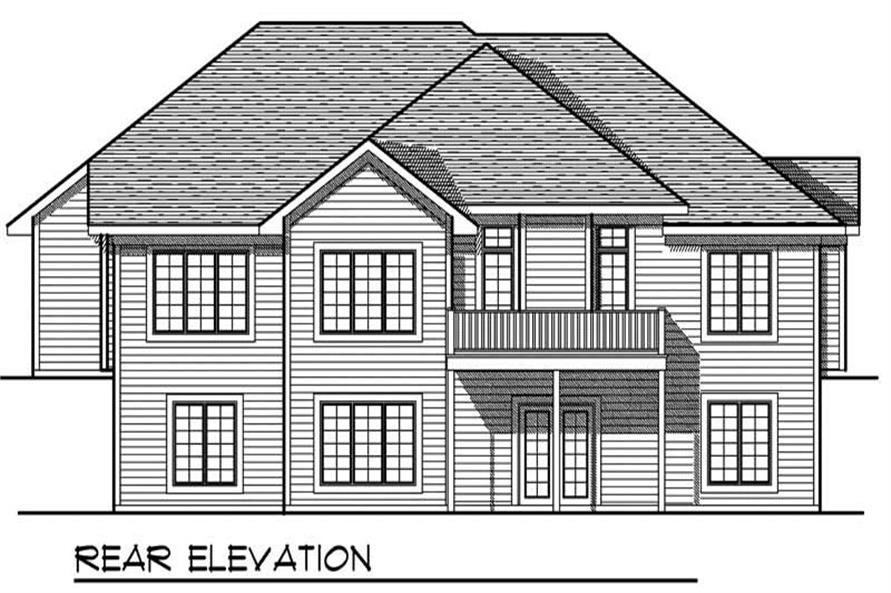

REAR ELEVATION

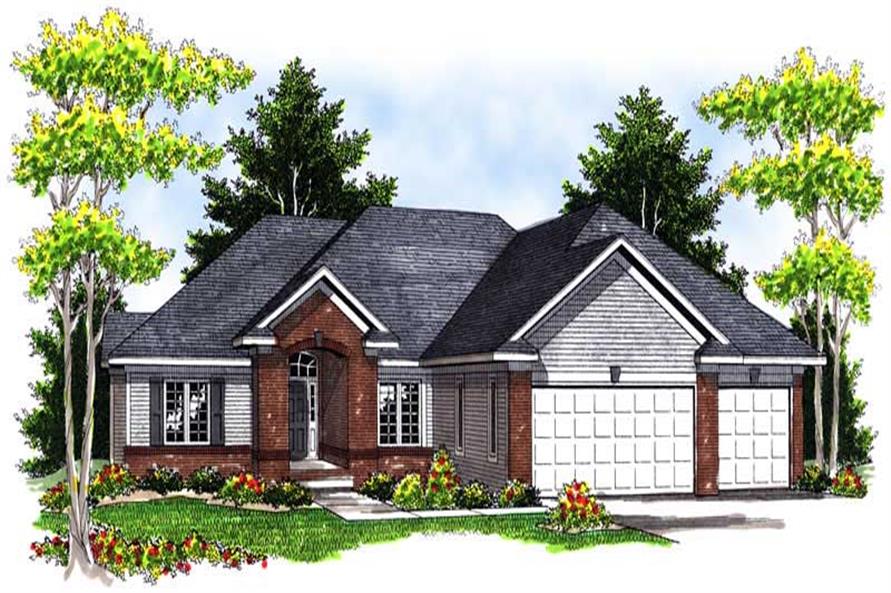

3-Bedroom, 2003 Sq Ft Ranch House Plan - 101-1706 - Front Exterior
REAR ELEVATION

About Plan # 101-1706

About Plan # 101-1706

2003 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
1 FLOOR 63' 8" WIDTH 66' 0" DEPTH 3 GARAGE BAY

Brick detailing, shuttered windows and hip roof lines makes this traditional ranch home the perfect addition to any neighborhood. The great room and kitchen are the heart of this home, and are located in the center of the plan for easy family access. The island kitchen provides seating for several and overlooks the nook and great room to create a comfortable living space. The dining room has front-facing windows, a step ceiling and easy access to the kitchen for serving formal meals. The master suite, topped by a tray ceiling, is sure to please with its large walk-in closet and Jacuzzi tub. Two additional family bedrooms share a bath and are located on the opposite side of the home for maximum privacy.

Each plan set includes the following:

  • Front, Back & Side Elevations
  • Floor Plans
  • Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
  • Roof Plan (Birdseye view)
  • Foundation Layout
  • Wall & Stair Sections
  • Cross Section
  • Kitchen Layout
  • General Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and locations.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

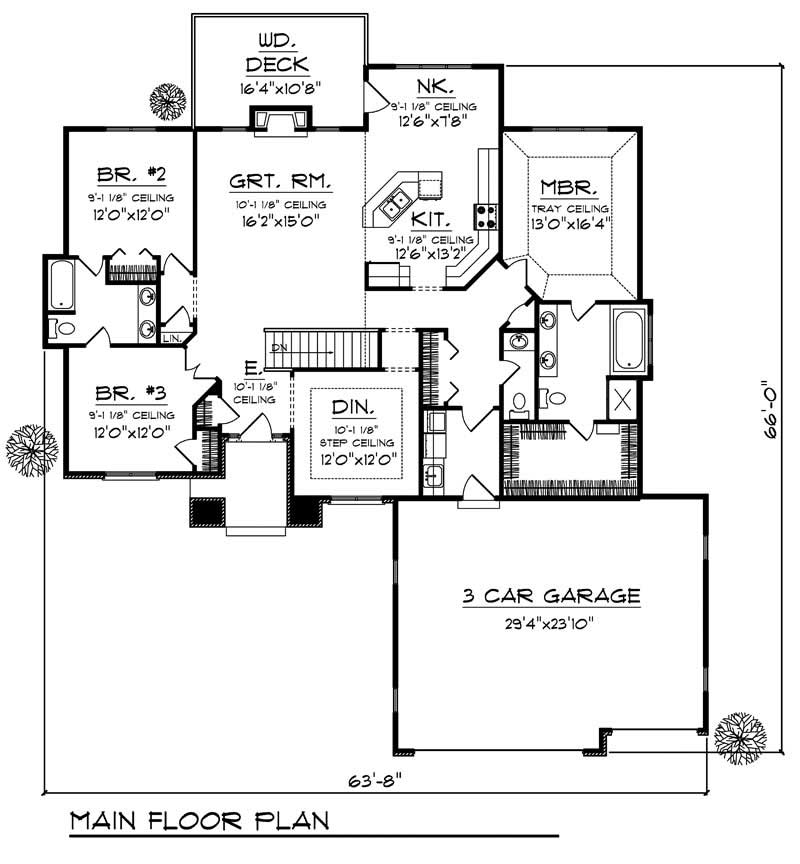

Home Plan: #101-1706 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #101-1706
Home Plan: #101-1706 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #101-1706
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 101-1706
Floors:
1
Bedrooms:
3
Full Baths:
2
Half Baths:
1

Square Footage

Heated Sq Feet:
2003
Main Floor:
2003
Unfinished Sq Ft:

Dimensions

Width:
63' 8"
Depth:
66' 0"

Architectural Styles

Ranch
Traditional

Exterior Wall Material

Vinyl Siding
Brick

Roof Pitch

8/12

Ceiling Height

10 Foot Ceiling
9 Foot Ceiling

Special Feature

Dining Room

Garage Type

Attached Garage

Exterior Wall Framing

2x6

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
