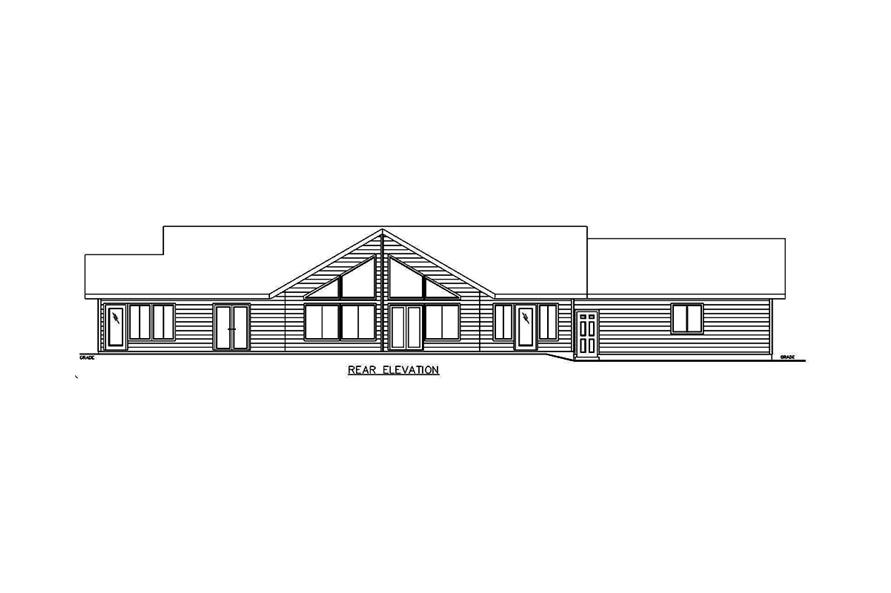

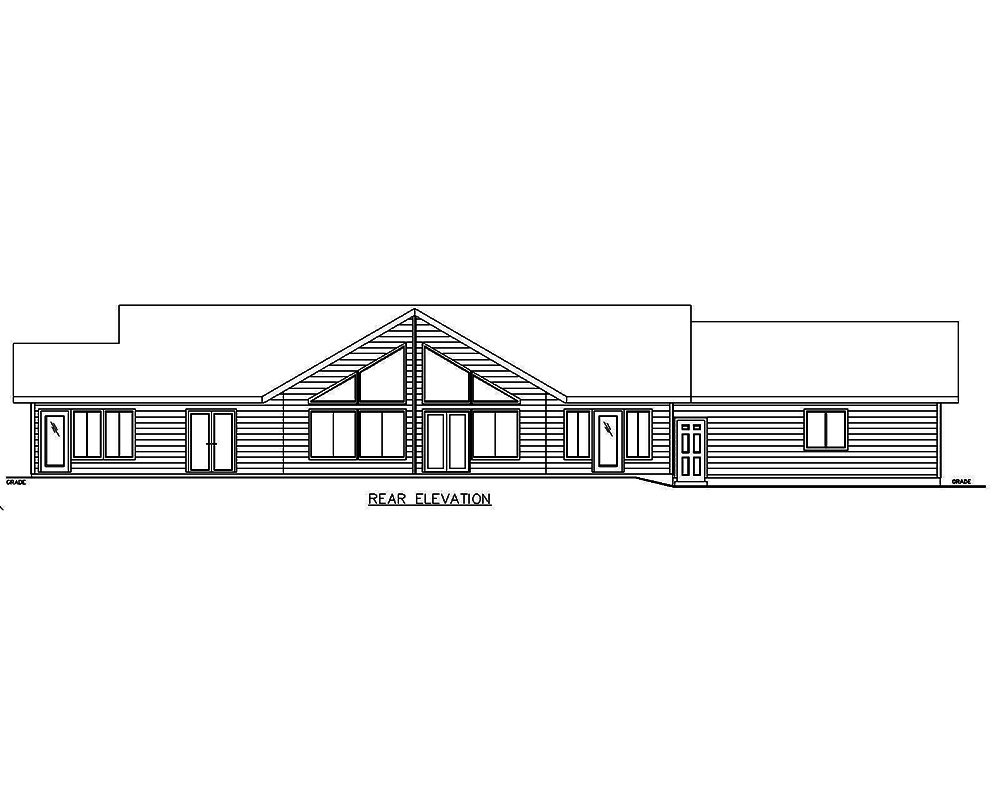

132-1687: Home Plan Rear Elevation

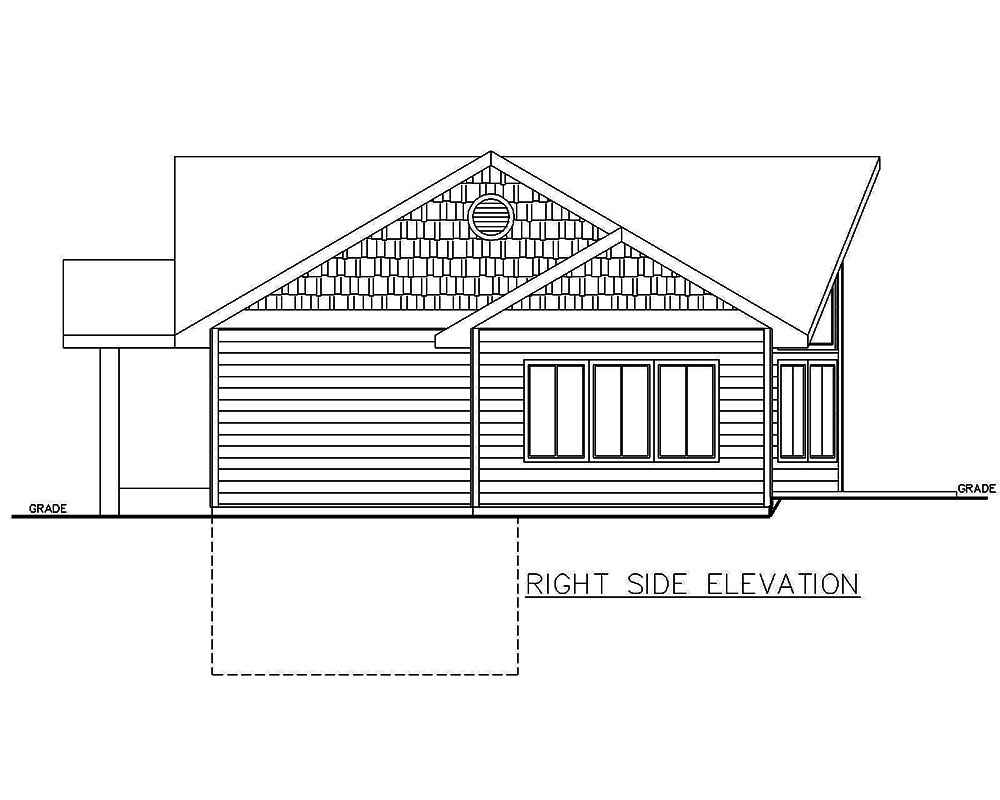

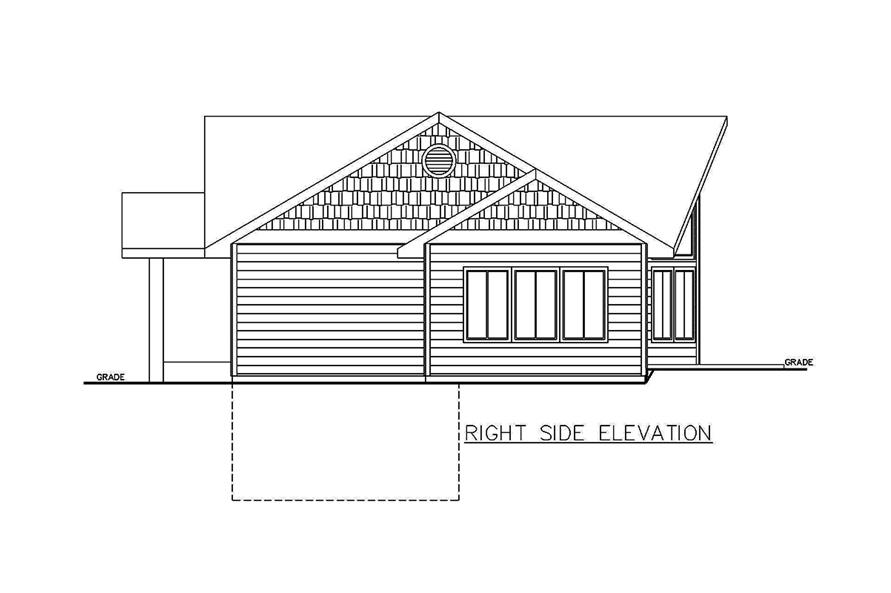

132-1687: Home Plan Right Elevation

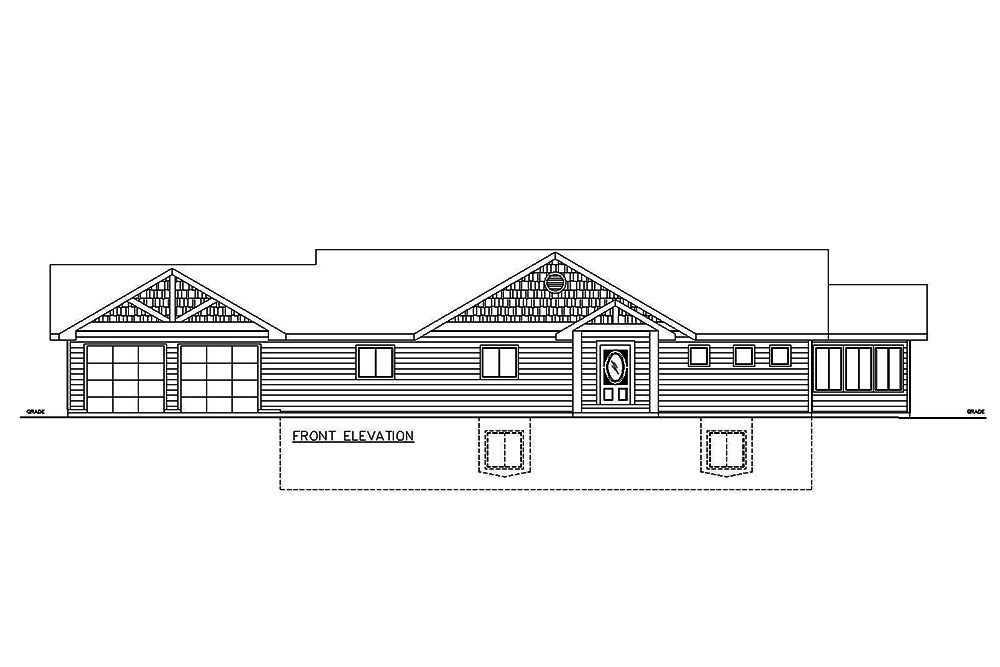

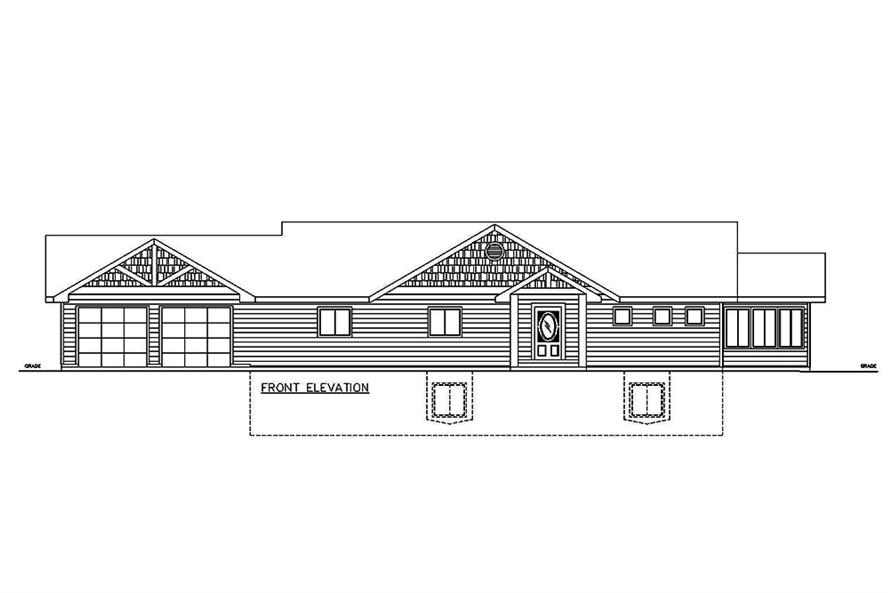

132-1687: Home Plan Front Elevation
2-Bedroom, 1978 Sq Ft Ranch House Plan - 132-1687 - Front Exterior
132-1687: Home Plan Rear Elevation
132-1687: Home Plan Right Elevation
132-1687: Home Plan Front Elevation

About Plan # 132-1687

About Plan # 132-1687

1978 SQUARE FEET 2 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 98' 6" WIDTH 33' 10" DEPTH 2 GARAGE BAY
This inviting ranch style home has 1978 square feet of living space. The one-story floor plan includes 2 bedrooms and 3 bathrooms. The exterior of this home has an attractive covered front porch. Inside, this house design's floor plan includes a well-designed main floor master.

Each plan set includes the following:

  • Exterior elevations: shows the home on all four sides, calls out exterior finishes, rooflines, window and door locations.
  • Floor plans: includes interior and exterior dimensions, window/door schedule, wall framing details.
  • Foundation plan: shows footing, stem wall, and slab placement, including all connection details.
  • Floor and roof framing plans show truss/rafter placements, including all beams/connection details.
  • Cross-sections: cut-through view of the structure from roof to foundation, shows framing, plate heights, insulation, etc.
  • Electrical layout
  • General notes/details to cover the entirety of the project

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

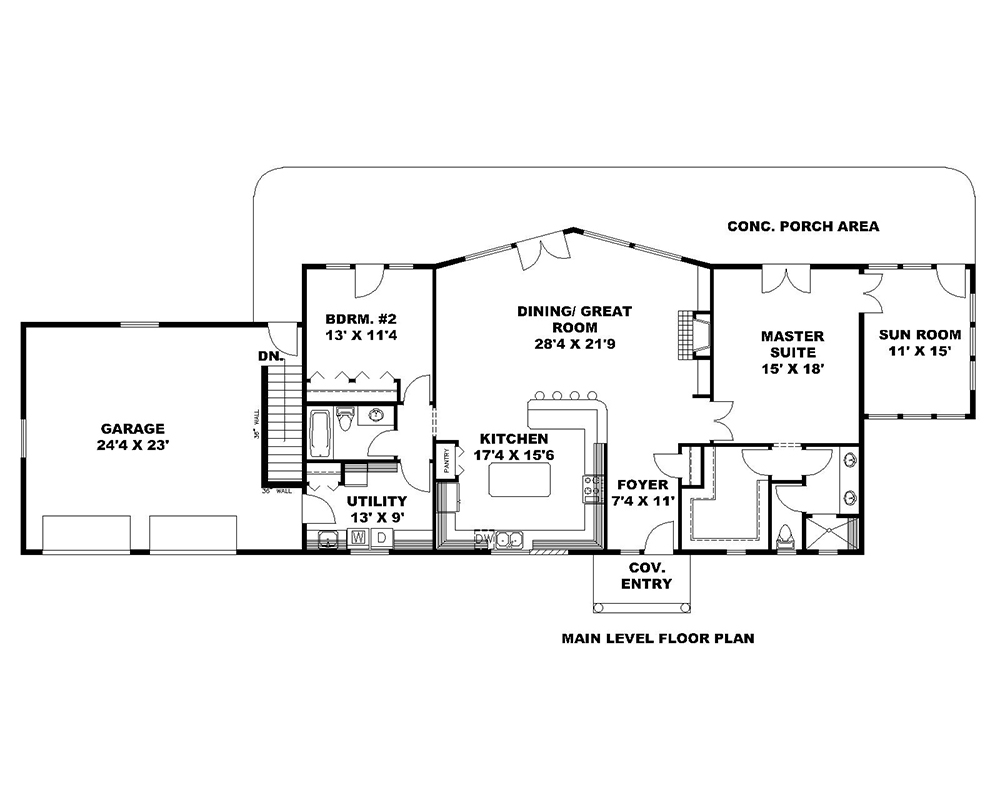

Home Plan: #132-1687 Floor Plan First Story - main level Floor Plan First Story of Ranch Plan #132-1687

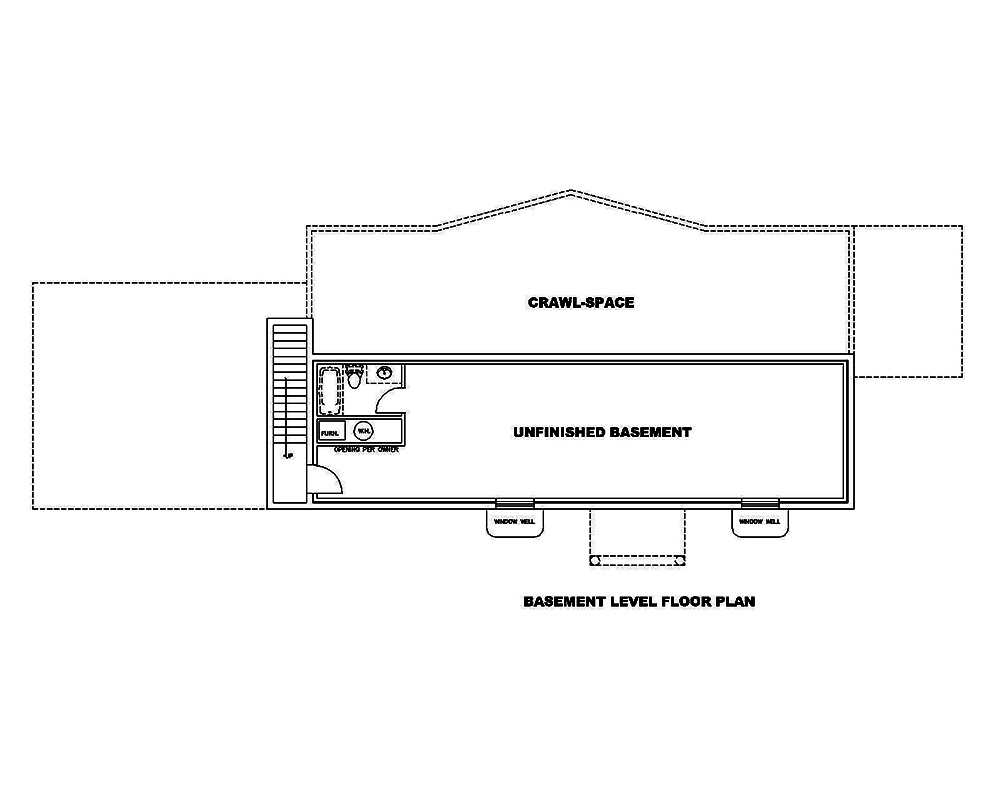

#132-1687 Floor Plan Basement - basement Floor Plan Basement of Ranch Plan #132-1687
Home Plan: #132-1687 Floor Plan First Story - main level Floor Plan First Story of Ranch Plan #132-1687
#132-1687 Floor Plan Basement - basement Floor Plan Basement of Ranch Plan #132-1687
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 132-1687
Floors:
1
Bedrooms:
2
Full Baths:
3
Garage :
2

Square Footage

Heated Sq Feet:
1978
Main Floor:
1978
Unfinished Sq Ft:
Lower Floor:
983
Garage :
696

Dimensions

Width:
98' 6"
Depth:
33' 10"
Ridge Height:
19' 8"

Architectural Styles

Ranch
Passive Solar
Traditional
Craftsman

Exterior Wall Material

Vinyl Siding
Wood Siding

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

7/12

Ceiling Height

9 Foot Ceiling

Special Feature

Fireplace
Main Level Laundry
Open Floor Plan

Garage Type

Attached Garage
Front Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x6

Kitchen Features

Kitchen Island
Walk-in Pantry
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Private Deck
Split Master Bedroom

Additional Notes from Designer

PLEASE NOTE! The CAD - Unlimited package is NOT an unlimited license - it is a license to build up to 5 homes. ATTENTION! Printed sets can ONLY be sent via ground shipping. NO priority or express shipping is available. ATTENTION! Printed sets can ONLY be sent by ground - NO priority or express shipping on printed sets!

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five printed sets and a modifiable PDF with complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build an unlimited number of homes with no re-use fees. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
