3-Bedroom, 1643 Sq Ft Country Ranch Plan with 2 Master Suites

Country Ranch home (ThePlanCollection: Plan #196-1198)

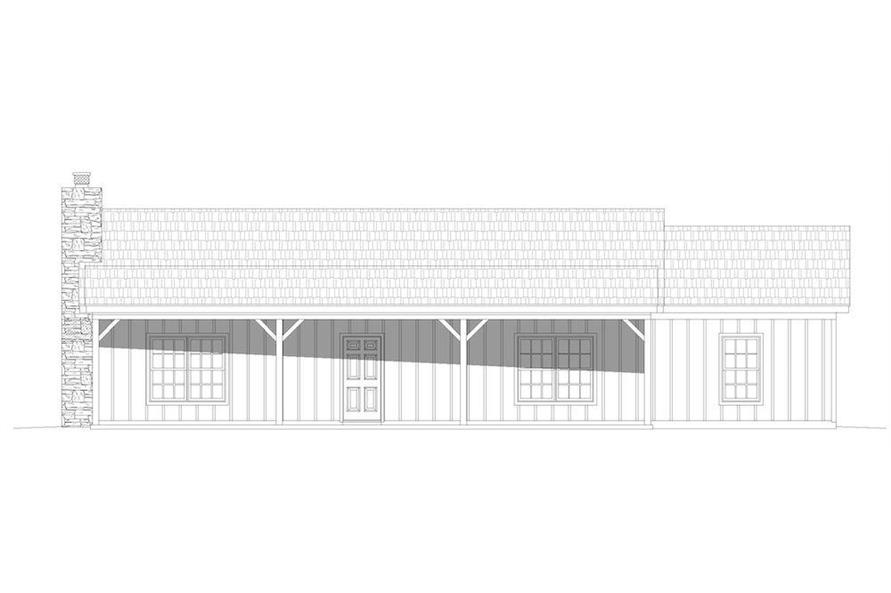

196-1198: Home Plan Rear Elevation

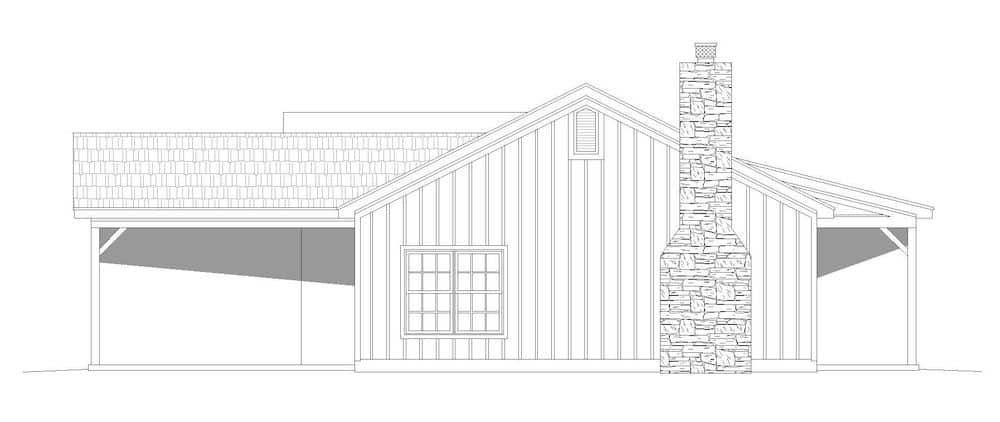

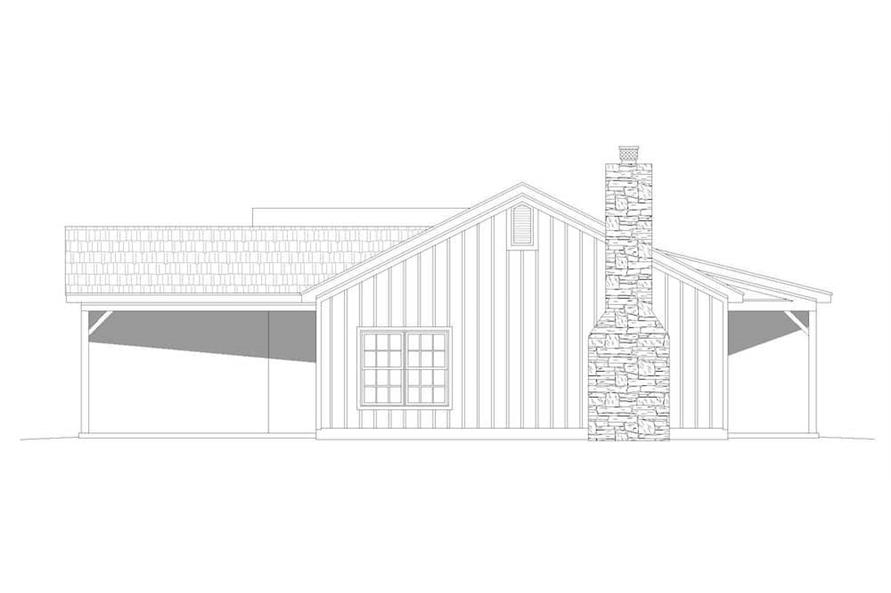

196-1198: Home Plan Left Elevation

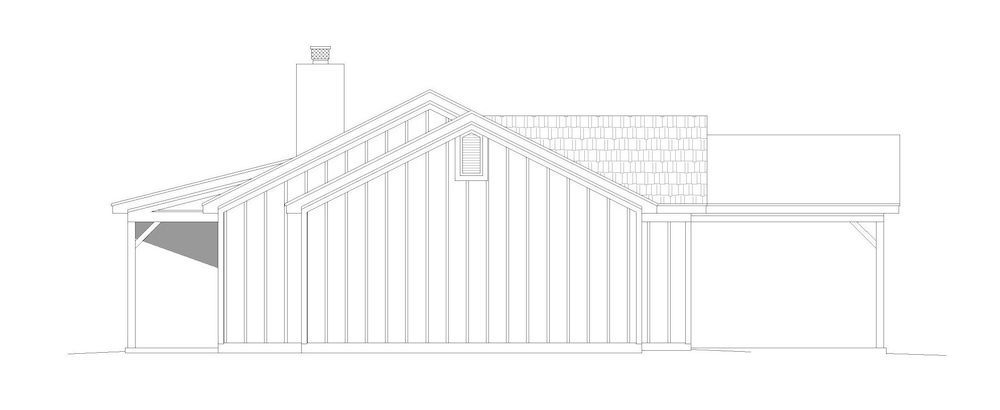

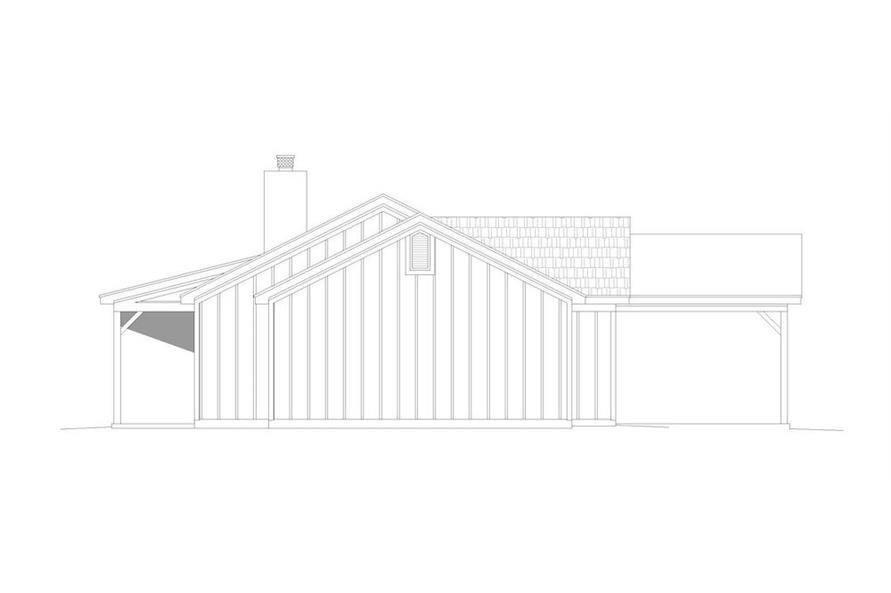

196-1198: Home Plan Right Elevation

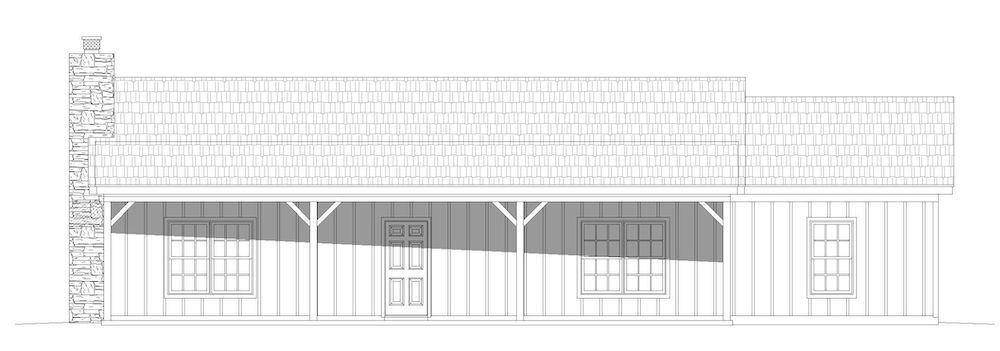

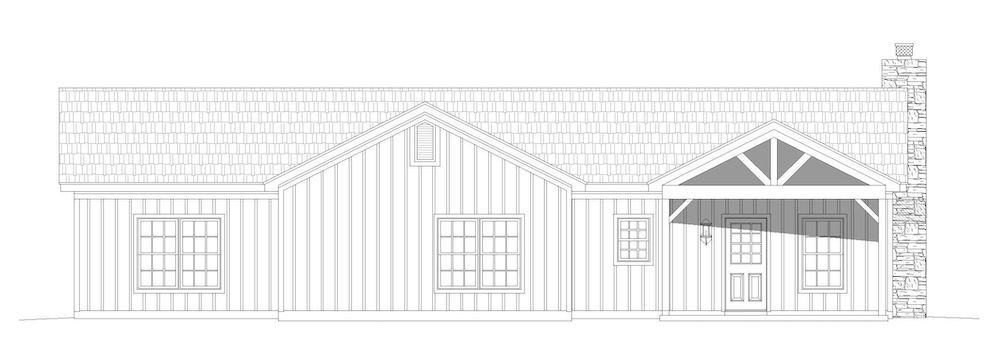

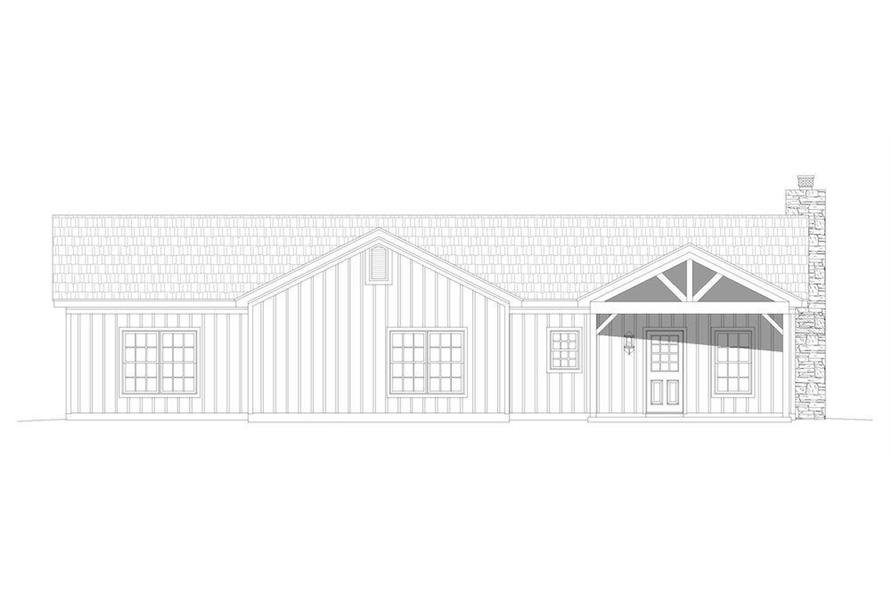

196-1198: Home Plan Front Elevation
3-Bedroom, 1643 Sq Ft Ranch House - Plan #196-1198 - Front Exterior
196-1198: Home Plan Rear Elevation
196-1198: Home Plan Left Elevation
196-1198: Home Plan Right Elevation
196-1198: Home Plan Front Elevation

About Plan # 196-1198

About Plan # 196-1198

1643 SQUARE FEET 2 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 58' 8" WIDTH 31' 3" DEPTH 0 GARAGE BAY

You’ll love the spacious country feeling in this Ranch home with its open layout, excellent design, and Country style flavor. The simple wide covered entry porch provides a nice transition into the home. HIghlights include two master suites, a vaulted Great Room, and a large covered rear porch with vaulted roof. The adorable single-story home's floor plan has 1643 square feet of heated and cooled living space and includes 2 bedrooms and a bunk room for occasional guests.

Each plan set includes the following:

  • FLOOR PLAN: Floor plan drawings indicating dimensions for construction
  • FOUNDATION PLAN: Dimensioned drawings describing specific foundation conditions for the structure
  • ROOF PLAN: Drawings indicating roof slopes and unique conditions
  • ELECTRICAL LAYOUT: Basic layout showing the suggested location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • EXTERIOR ELEVATIONS: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • BUILDING SECTIONS: Drawings cut through important locations in the structure
  • CONSTRUCTION DETAILS: Drawings showing specific construction of building elements at a large scale

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

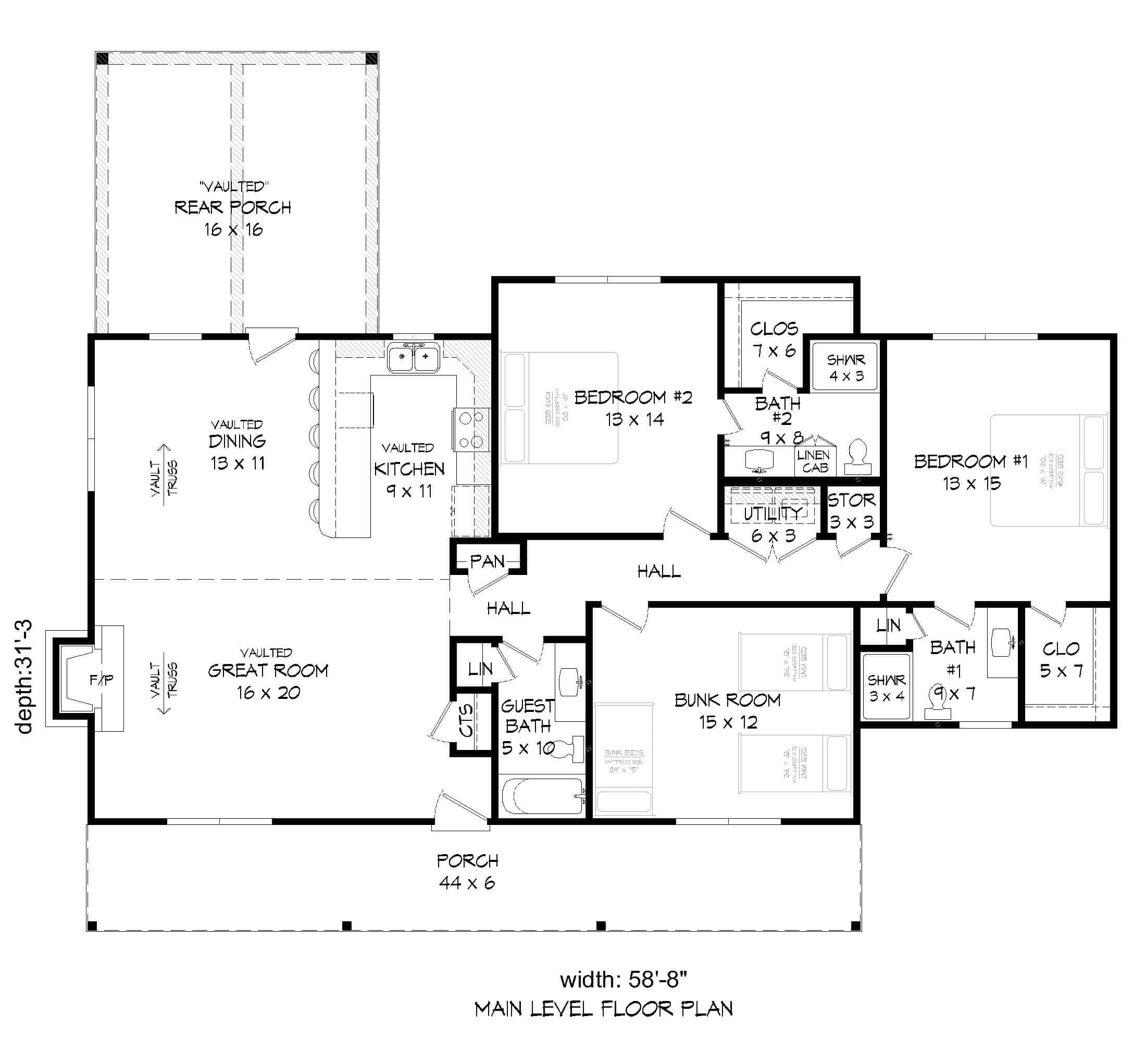

Home Plan: #196-1198 Floor Plan First Story - main level Floor Plan Main Level of Ranch Plan #196-1198
Home Plan: #196-1198 Floor Plan First Story - main level Floor Plan Main Level of Ranch Plan #196-1198
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 196-1198
Floors:
1
Bedrooms:
2
Full Baths:
3

Square Footage

Heated Sq Feet:
1643
Main Floor:
1643
Unfinished Sq Ft:
Porch :
520

Dimensions

Width:
58' 8"
Depth:
31' 3"
Ridge Height:
16' 9"

Architectural Styles

Country
Ranch
Small House Plans
Texas Style
Traditional
Vacation Homes

Exterior Wall Material

Wood Siding

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

3/12
6/12

Ceiling Height

9 Foot Ceiling

Special Feature

Family Room
Fireplace
Guest Room
Main Level Laundry
Open Floor Plan
Storage
Vaulted Ceilings

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Kitchen Features

Eat-In Kitchen
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Master Suite Features

Main Floor Master
Master Bathroom
Two or More Master Suites
Walk In Closet

Additional Notes from Designer

NOTE FROM DESIGNER REGARDING PLAN PURCHASES: 80% of a 5 set purchase price can be applied to any PDF or CAD license upgrade. Additionally, 80% of PDF Study purchase price can be applied to any CAD or PDF license upgrade.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

Stamped "Not for Construction," this PDF file set allows you to review the home plan in detail and obtain bids. It is illegal to build a house from plans stamped this way and, due to copyright laws, they can not be copied.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
