Front elevation of Ranch home (ThePlanCollection: House Plan #108-1509)
3-Bedroom, 1975 Sq Ft Ranch House Plan - 108-1509 - Front Exterior

About Plan # 108-1509

About Plan # 108-1509

1975 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 70' 10" WIDTH 68' 1" DEPTH 2 GARAGE BAY

This is a single story, contemporary style house plan with 1975 total living square feet. The panoramic vista from the vaulted, hexagonal great room looks out over a wide railed deck that spans the entire rear of this contemporary home plan. Its kitchen has two peninsular counters, one with a raised eating bar. The vaulted owners suite is well isolated from the secondary bedrooms and their shared bathroom.

Each plan set includes the following:

  • Artist’s rendering of the home,

  • Front/Rear/Left and Right Elevations,

  • Main floor plan, Second or Basement floor plans (if applicable),

  • Foundation plan and detail,

  • Floor framing plan,

  • Roof framing plan, supporting details and

  • Electric layout.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

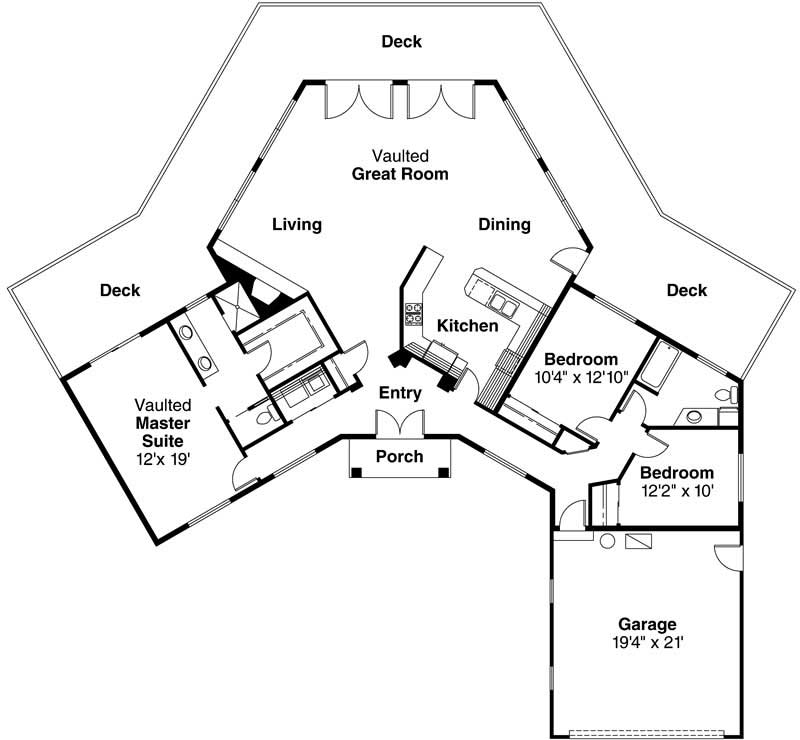

Home Plan: #108-1509 Floor Plan First Story - first story Floor Plan First Story of Ranch Plan #108-1509
Home Plan: #108-1509 Floor Plan First Story - first story Floor Plan First Story of Ranch Plan #108-1509
