3-Bedroom, 1939 Sq Ft Craftsman Plan with Sundeck

This image shows the front elevation of these Craftsman Houseplans.

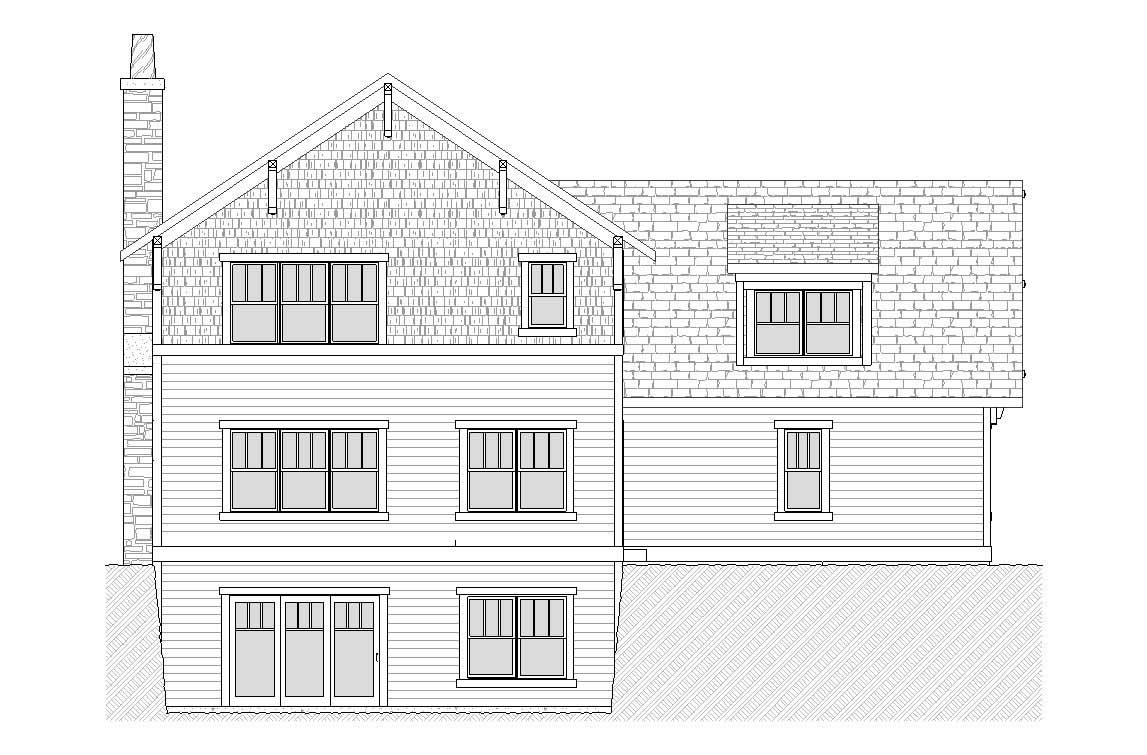

Home Plan Rear Elevation
3-Bedroom, 1939 Sq Ft Craftsman House Plan - 168-1078 - Front Exterior
Home Plan Rear Elevation

About Plan # 168-1078

About Plan # 168-1078

1939 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
2 FLOOR 50' 0" WIDTH 44' 0" DEPTH 2 GARAGE BAY
Your quest for the perfect set of Craftsman House Plans may finally be coming to an end. Everything about the Quest is well-designed and well-crafted --- everything a craftsman home should be. Youll absolutely love the floorplan; it is just so smart and comfortable.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

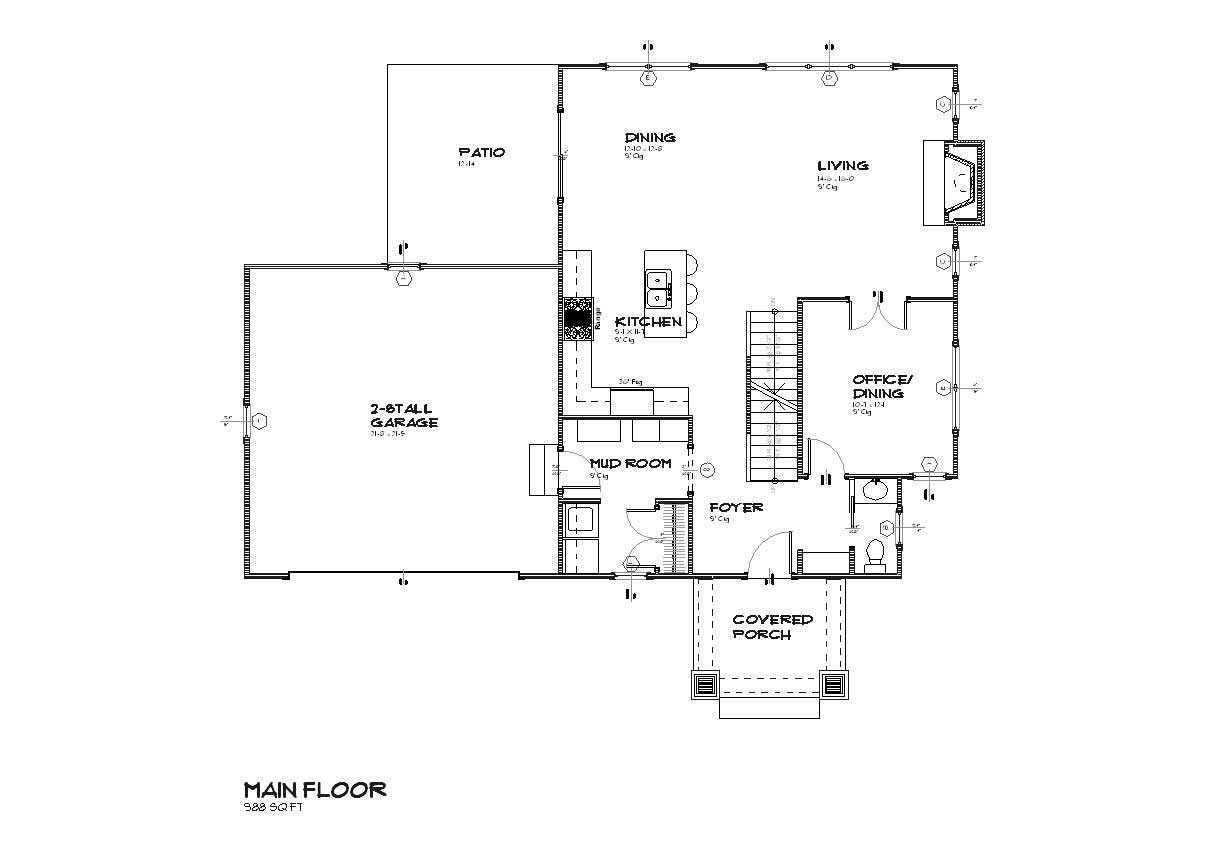

Home Plan: #168-1078 Floor Plan First Story - first story Floor Plan First Story of Craftsman Plan #168-1078

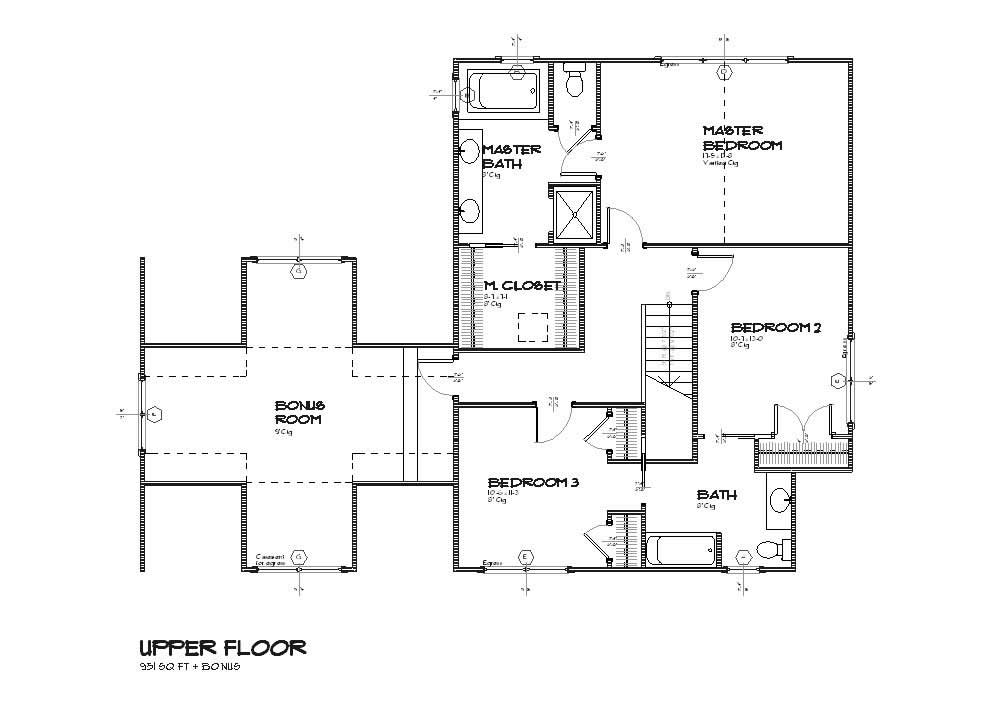

#168-1078 Floor Plan Second Story - second story Floor Plan Second Story of Craftsman Plan #168-1078
Home Plan: #168-1078 Floor Plan First Story - first story Floor Plan First Story of Craftsman Plan #168-1078
#168-1078 Floor Plan Second Story - second story Floor Plan Second Story of Craftsman Plan #168-1078
