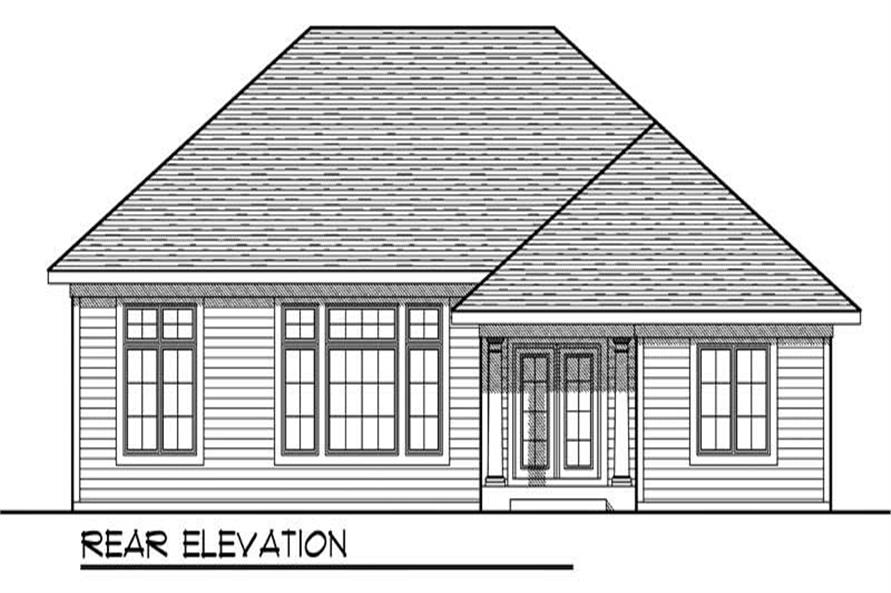

REAR ELEVATION
3-Bedroom, 1867 Sq Ft Colonial House Plan - 101-1657 - Front Exterior
REAR ELEVATION

About Plan # 101-1657

About Plan # 101-1657

1867 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 52' 0" WIDTH 59' 0" DEPTH 3 GARAGE BAY
This narrow ranch home packs many features into only 1867 square feet while cutting no corners. The spacious great room is adorned by columns and an arched soffit as well as large windows that let in the view from the back of the home. The kitchen features a breakfast bar that over looks the great room and the dining room creating a space large enough for entertaining. The master suite, complete with walk-in closet and Jacuzzi tub, features a beautiful tray ceiling and transom windows. Two additional bedrooms can be found on the other side of the home for maximum privacy. A three-stall garage makes this home a smart, yet affordable choice.

Each plan set includes the following:

  • Front, Back & Side Elevations
  • Floor Plans
  • Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
  • Roof Plan (Birdseye view)
  • Foundation Layout
  • Wall & Stair Sections
  • Cross Section
  • Kitchen Layout
  • General Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and locations.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

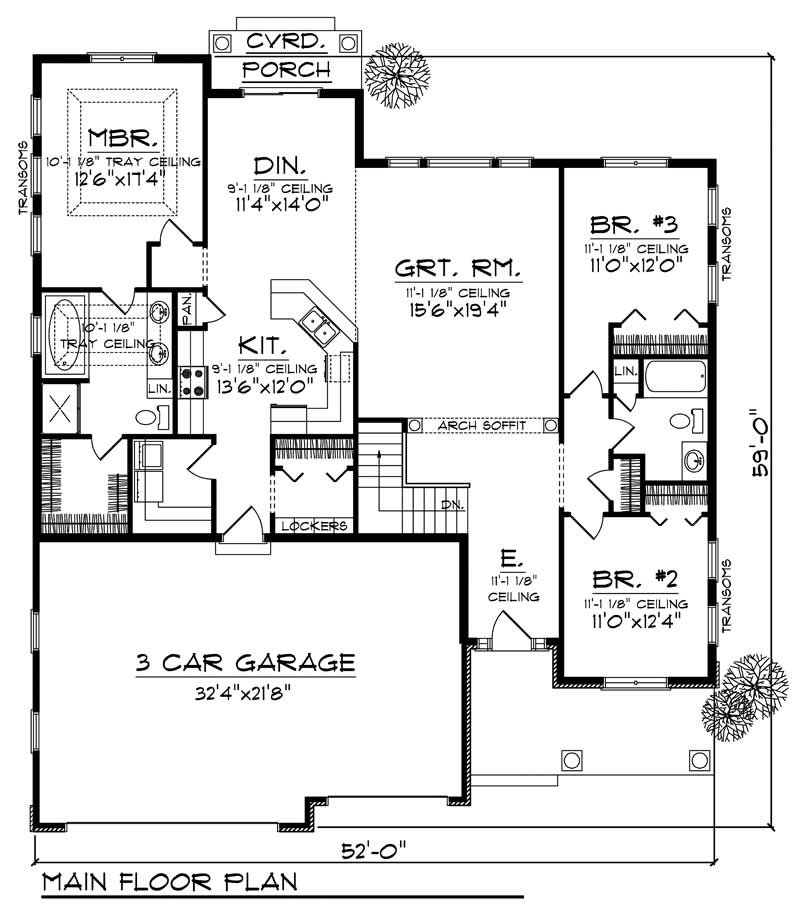

Home Plan: #101-1657 Floor Plan First Story - main Floor Plan First Story of Colonial Plan #101-1657
