3-Bedroom, 1772 Sq Ft Ranch Plan with Family Room
Related House Plans
| 1772 SQUARE FEET | 3 BEDROOMS | 2 FULL BATH | 0 HALF BATH |
| 1 FLOOR | 85' 0" WIDTH | 47' 0" DEPTH | 2 GARAGE BAY |
This unique angled design offers spectacular backyard views, a delightful sun room and two enticing terraces. The reception hall opens to the huge combination living and dining area, which is enhanced by a 13½-ft.-high ceiling. A stone fireplace and walls of glass add to the expansive look and the inviting atmosphere. The adjoining family room, kitchen and nook are just as appealing. The family room features a built-in entertainment center and sliding glass doors that access the energy-saving sun room. The comfortable kitchen has a handy snack counter facing the sunny dinette. The sleeping wing offers three bedrooms and two baths. The master suite boasts a 13½-ft. sloped ceiling, a private terrace, a large walk-in closet and a personal bath with a whirlpool tub. The two remaining bedrooms are just steps away from another full bath.
Each plan set includes the following:
- Elevations
- Sections - Include structural design & specifications
- Kitchen cabinet elevations
- Floor Plan
- Roof Plan
- Typical wall section
- Construction & Specification notes
- Special detail sections
- Plumbing riser diagram
- Window and door sizes
- Structural design joists and beams
- Electrical Layout
- Special Notes
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Framing layouts with beam sizes and location
- Energy calculations - handled locally when required.
Write Your Own Review

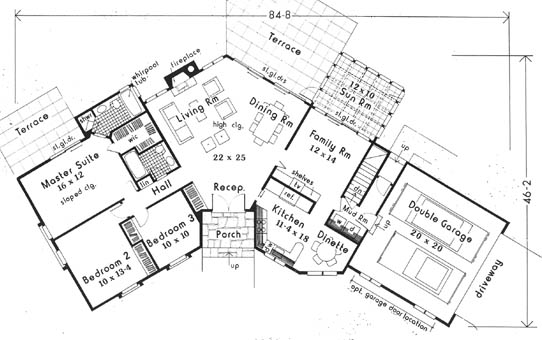

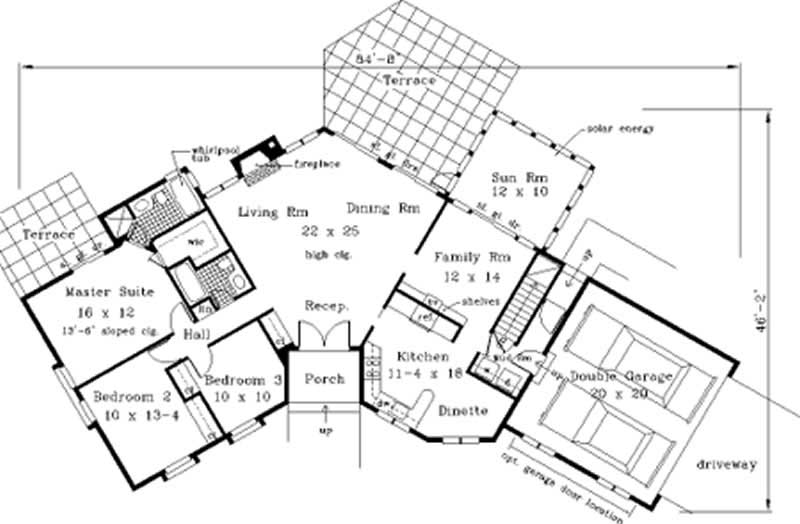

FLOOR PLANS Flip Images
