Ranch style house design (ThePlanCollection: Plan #169-1193)

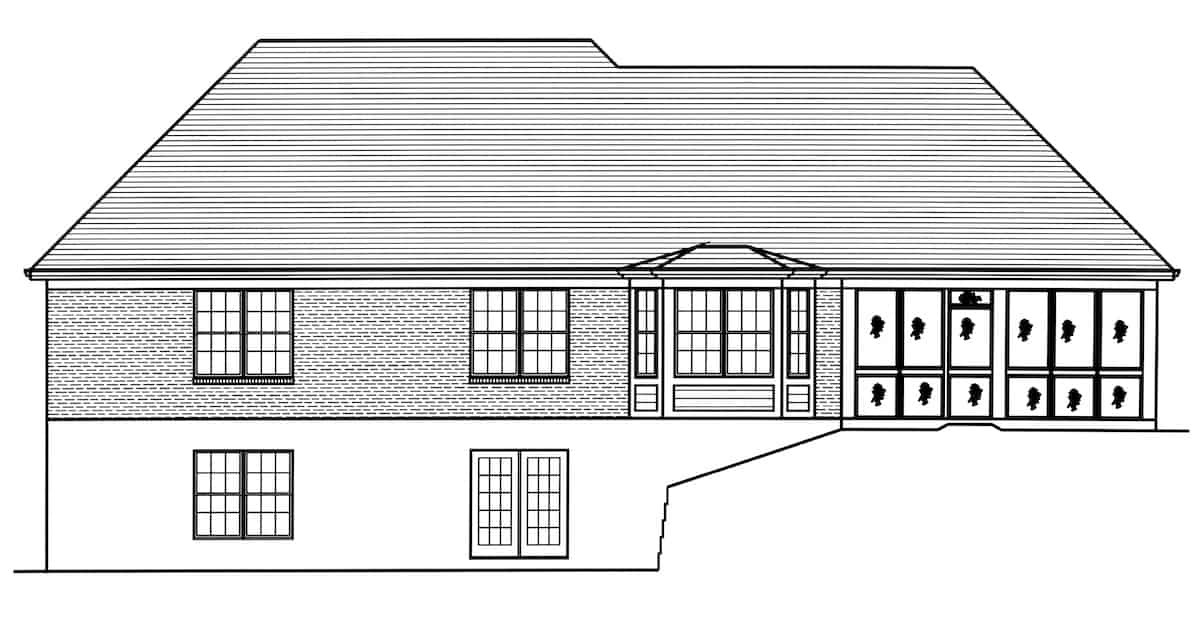

169-1193: Home Plan Rear Elevation

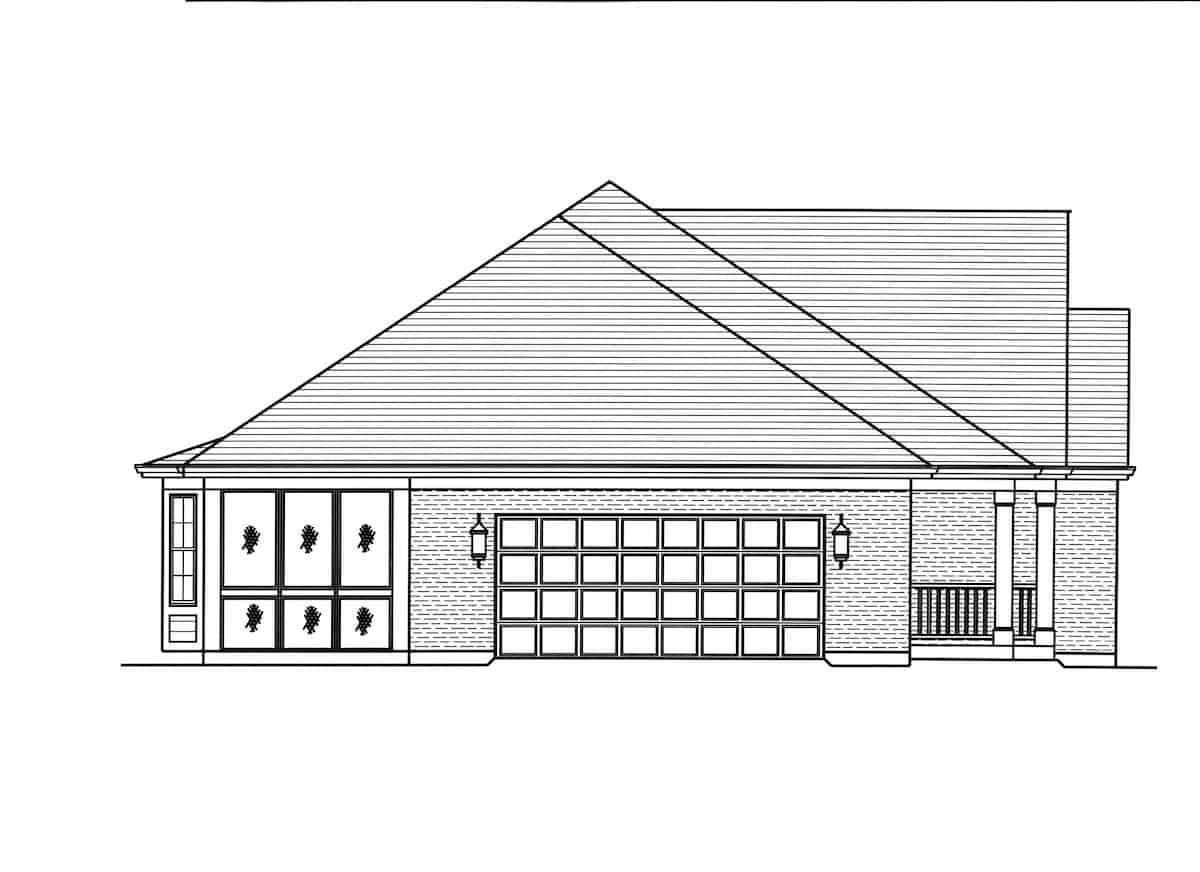

169-1193: Home Plan Left Elevation

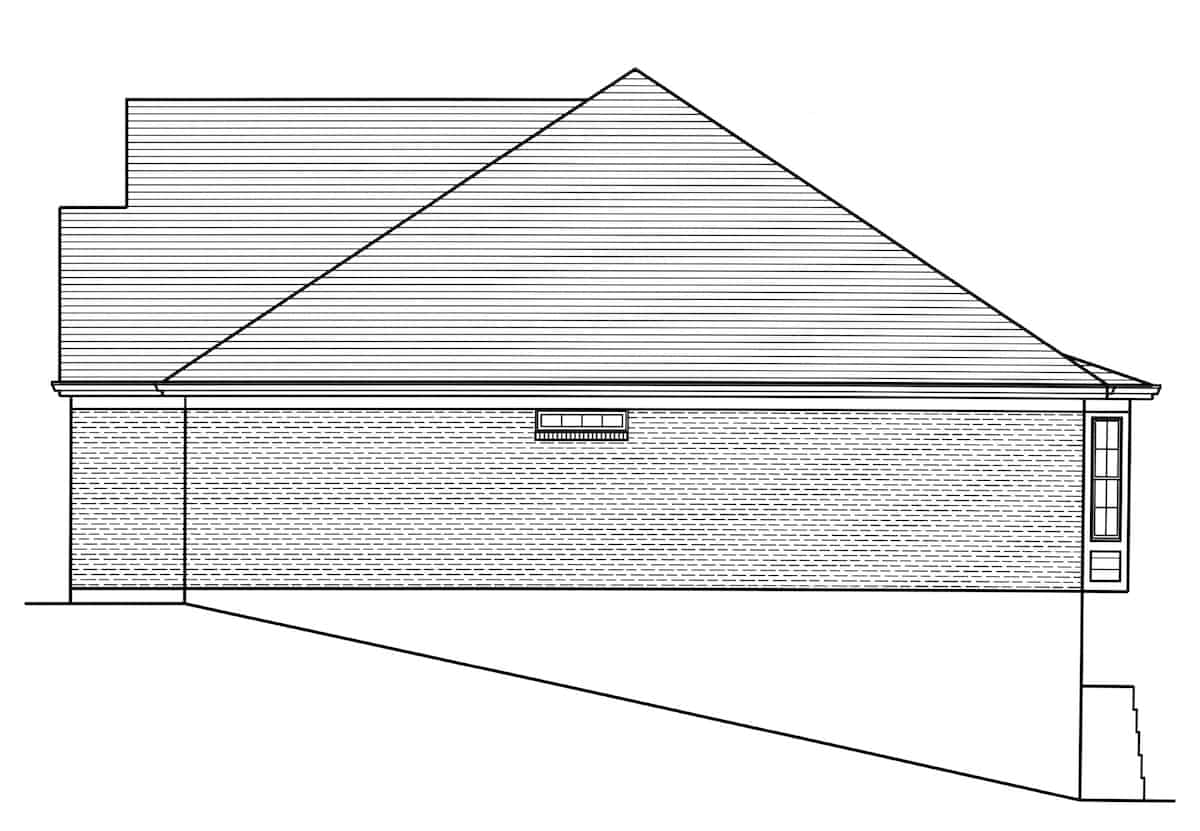

169-1193: Home Plan Right Elevation

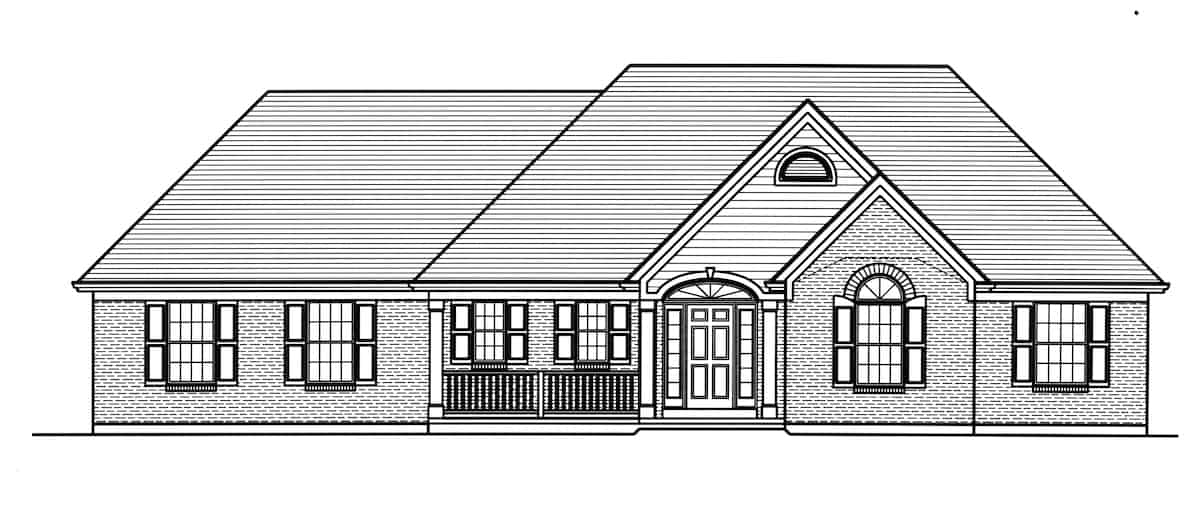

169-1193: Home Plan Front Elevation

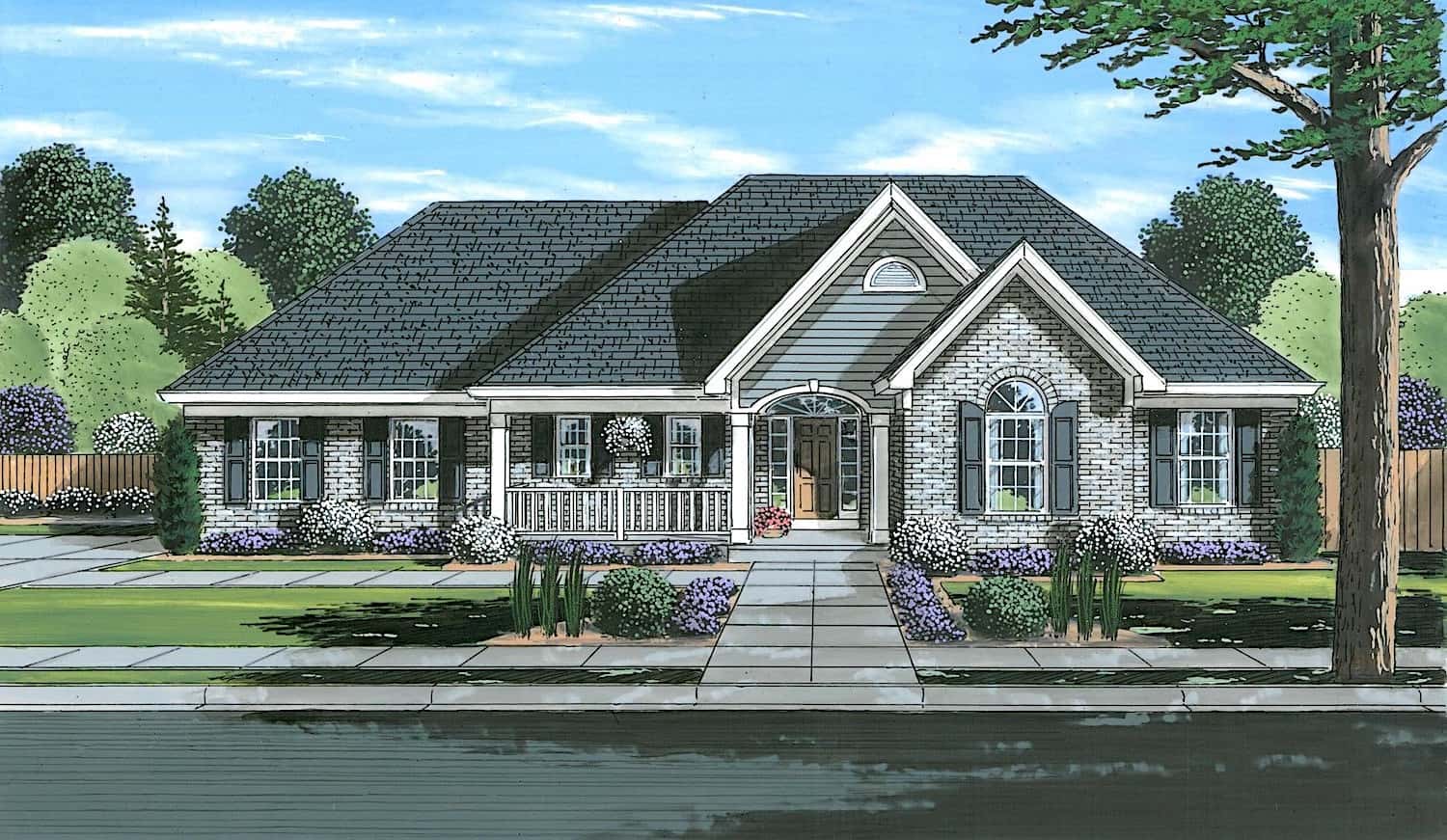

3-Bedroom, 1764 Sq Ft Ranch House - Plan #169-1193 - Front Exterior
169-1193: Home Plan Rear Elevation
169-1193: Home Plan Left Elevation
169-1193: Home Plan Right Elevation
169-1193: Home Plan Front Elevation

About Plan # 169-1193

About Plan # 169-1193

1764 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 67' 0" WIDTH 46' 4" DEPTH 2 GARAGE BAY

What an impressive house! The exterior and interior of the home project a cool and homey yet practical ambiance that's just ideal for a growing family. This European design influenced Ranch home is loaded with charm, comfort, and convenience, featuring a well designed 1764-square-foot-floor plan with its many amenities, such as the following:

• Walk-in kitchen pantry
• Screened-in porch
• Great Room with corner fireplace
• Split his and her vanities in the master bathroom
• Lots of storage in the unfinished walkout basement

Each plan set includes the following:

  • General notes and specifications
  • Front, rear and side elevations (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction method
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas



These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

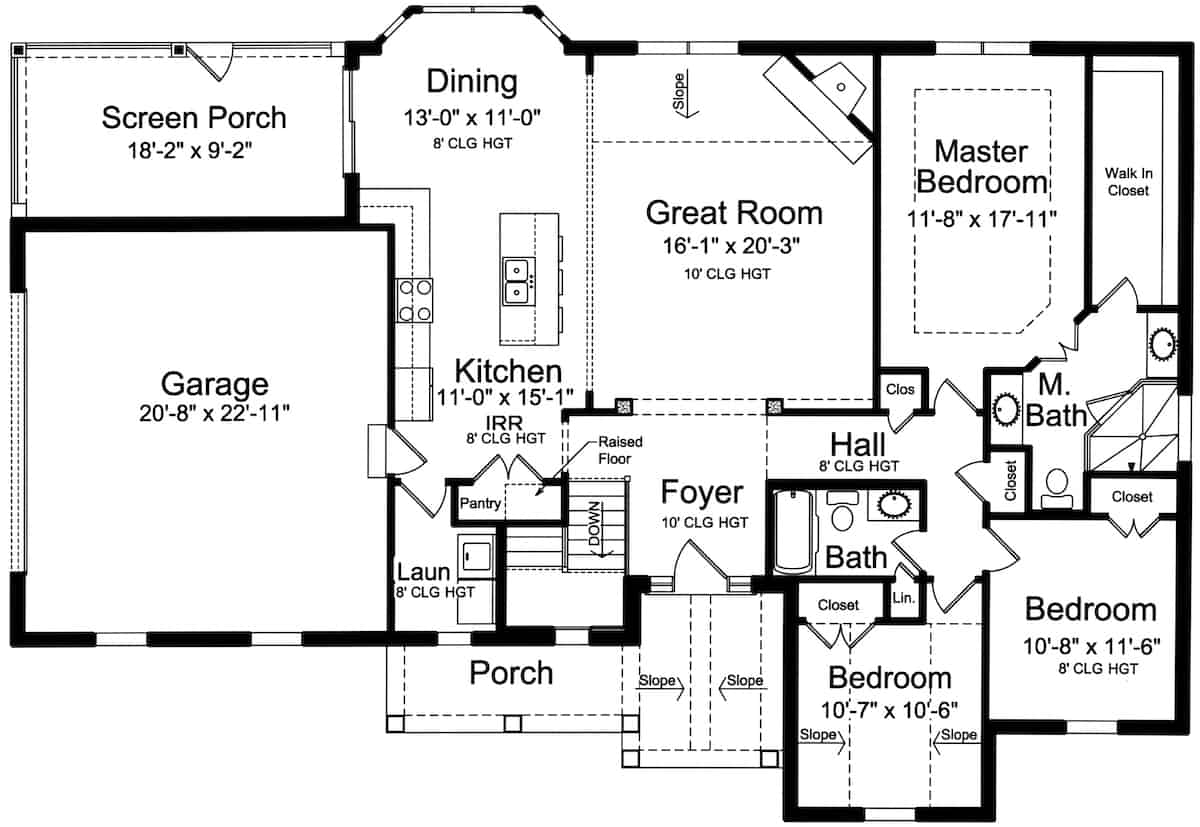

Home Plan: #169-1193 Floor Plan First Story - main level Main Level of Ranch Plan #169-1193

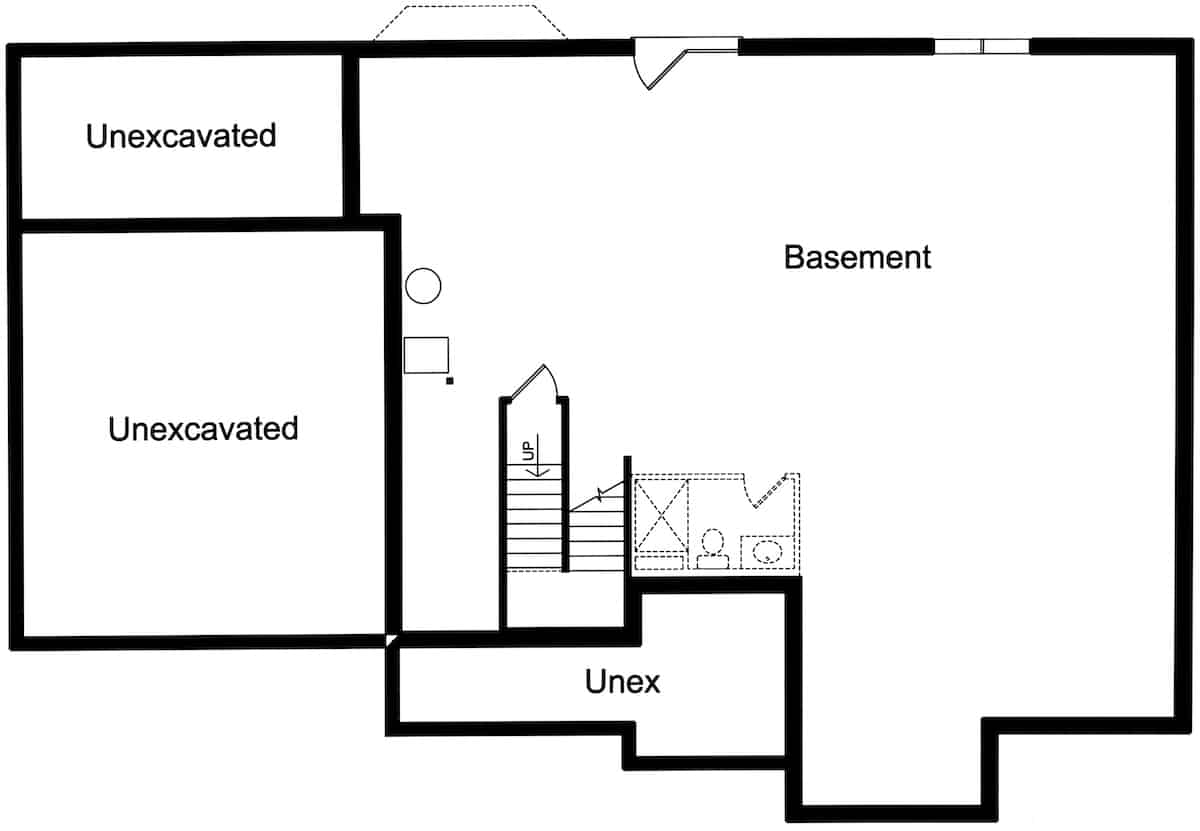

#169-1193 Floor Plan Basement - basement Basement of Ranch Plan #169-1193
Home Plan: #169-1193 Floor Plan First Story - main level Main Level of Ranch Plan #169-1193
#169-1193 Floor Plan Basement - basement Basement of Ranch Plan #169-1193
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 169-1193
Floors:
1
Bedrooms:
3
Full Baths:
2
Garage :
2

Square Footage

Heated Sq Feet:
1764
Main Floor:
1764
Unfinished Sq Ft:
Lower Floor:
1764
Garage :
474
Porch :
334

Dimensions

Width:
67' 0"
Depth:
46' 4"
Ridge Height:
23' 0"

Architectural Styles

Country
European
Ranch
French
Transitional
Small House Plans

Exterior Wall Material

Vinyl Siding
Brick
Wood Siding

Roofing Type

Gable
Hip

Roofing Material

Asphalt Shingles

Roof Pitch

12/12
8/12

Ceiling Height

10 Foot Ceiling
9 Foot Ceiling
8 Foot Ceiling

Special Feature

Fireplace
Mud Room
Family Room
Main Level Laundry
Storage
Open Floor Plan

Garage Type

Attached Garage
Side Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Building Lot Type

Down Site
Corner Lot

Kitchen Features

Kitchen Island
Walk-in Pantry
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Screened Porch/Sunroom

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

PLEASE NOTE: 5 sets and 8 sets include a PDF as well.

PRICING OPTIONS

A NON-modifiable, print-only PDF that is emailed. Includes a complete set of working drawings delivered in a digital format. Print as many sets as you need. No shipping costs. Comes with a license to build one home.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

Eight printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 8 sets ship. Comes with a license to build one home.

For use by design professionals. This file may be available. Please call or email us first so we can confirm for you. This set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

Stamped "Not for Construction," this set allows you to review the home plan in detail and obtain bids. It is illegal to build a house from plans stamped this way and, due to copyright laws, they can not be copied.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
