3-Bedroom, 1748 Sq Ft Ranch Plan with Walk-in Pantry

Ranch home (ThePlanCollection: Plan #147-1164)

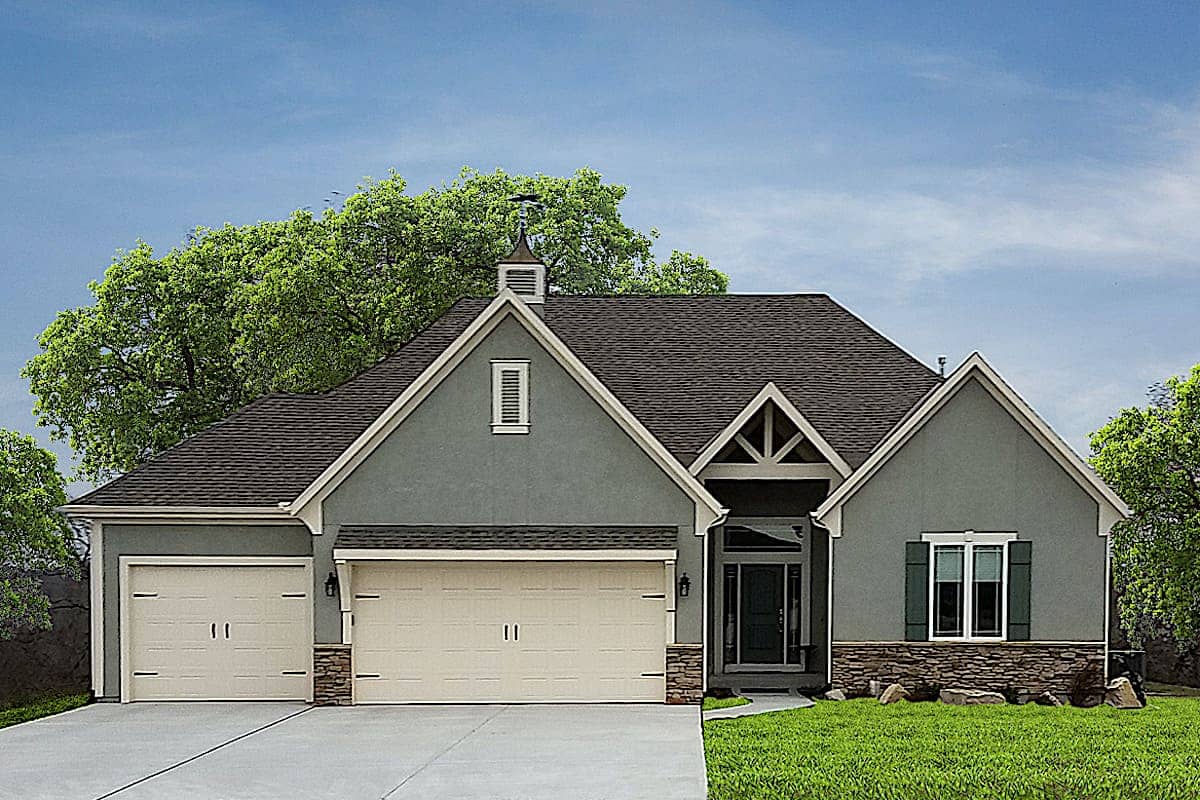

3-Bedroom, 1748 Sq Ft Ranch House - Plan #147-1164 - Front Exterior

About Plan # 147-1164

About Plan # 147-1164

1748 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 52' 4" WIDTH 56' 4" DEPTH 3 GARAGE BAY

Check out this Ranch style home with European design characteristics, such as the steeply sloped combination gable-and-hip roof. The magnificent single-story floor plan has 1748 square feet of heated and cooled living space. With wonderful amenities – such as a large walk-in kitchen pantry, 10-foot-high ceilings, and a mud-room area with bench off the 3-car garage – and and a straightforward design, the house may be the ideal place for you and your family!

Each plan set includes the following:

  • Foundation Plan
  • Floor plans
  • Roof plan
  • Exterior Elevations
  • Cross Sections & typical details
  • Interior elevations as needed
  • Door & Window schedule
  • Electrical layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

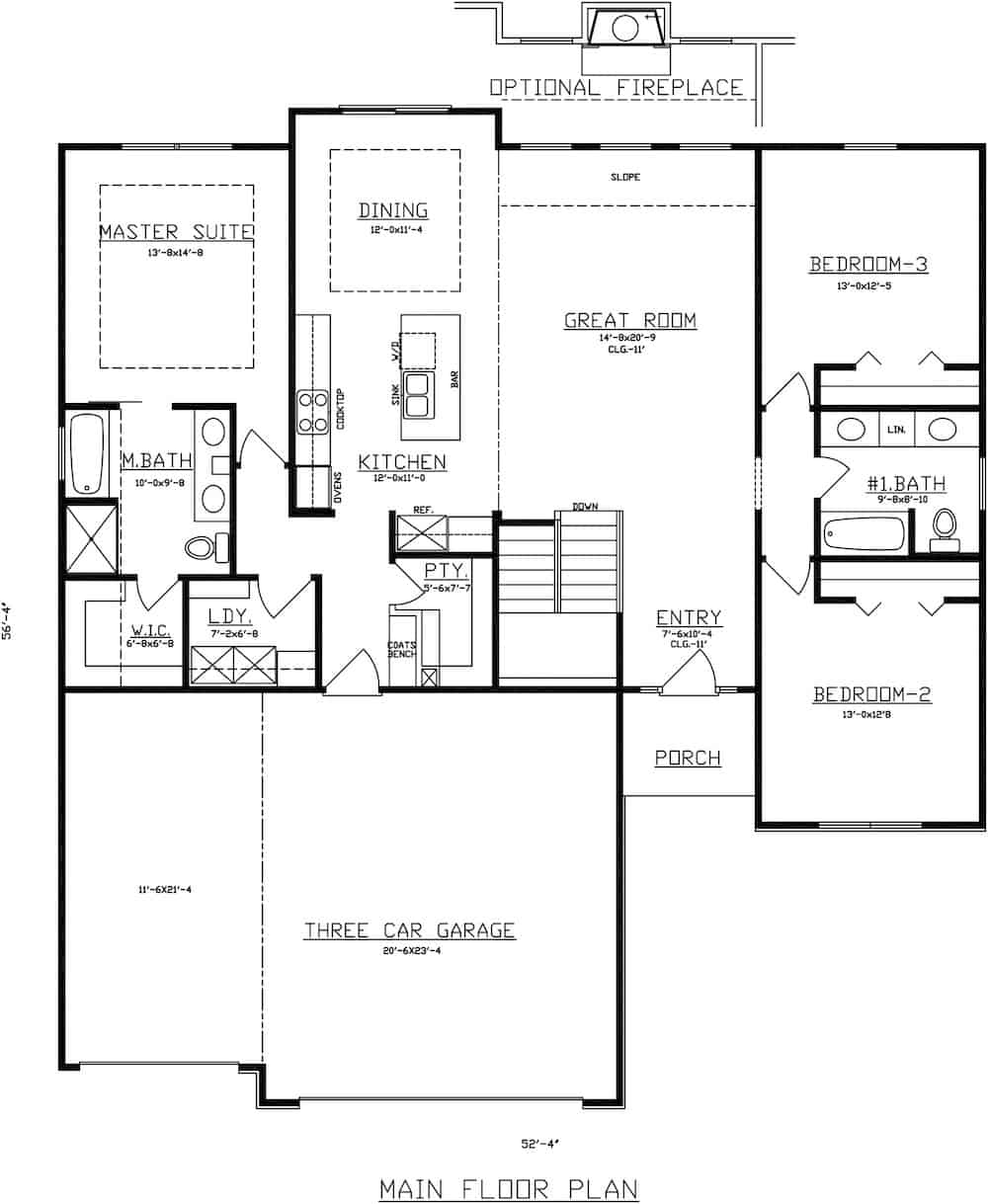

Home Plan: #147-1164 Floor Plan First Story - main level Floor Plan Main Level of Ranch Plan #147-1164
Home Plan: #147-1164 Floor Plan First Story - main level Floor Plan Main Level of Ranch Plan #147-1164
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 147-1164
Floors:
1
Bedrooms:
3
Full Baths:
2
Garage :
3

Square Footage

Heated Sq Feet:
1748
Main Floor:
1748
Unfinished Sq Ft:
Lower Floor:
1748
Garage :
725
Porch :
44

Dimensions

Width:
52' 4"
Depth:
56' 4"
Ridge Height:
27' 6"

Architectural Styles

Colonial
Country
European
Ranch
Traditional
Transitional

Exterior Wall Material

Stucco
Rock/Stone

Roofing Type

Gable
Hip

Roofing Material

Asphalt Shingles

Roof Pitch

12/12

Ceiling Height

10 Foot Ceiling

Special Feature

Family Room
Main Level Laundry
Split Bathroom
Open Floor Plan

Garage Type

Attached Garage
Front Entry

Fireplaces

Optional Fireplace

Kitchen Features

Kitchen Island
Walk-in Pantry
Peninsula/Eating Bar

Porches and Exterior Features

Portico

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Split Master Bedroom

Additional Notes from Designer

PLEASE NOTE!! Mirror Reverse ONLY available if purchasing a PDF. Right Reading Reverse ONLY available if purchasing a CAD!

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
