4-Bedroom, 3168 Sq Ft Country Ranch Plan with Mud Room

Ranch style house (ThePlanCollection: Plan #147-1166)
4-Bedroom, 3168 Sq Ft Ranch House - Plan #147-1166 - Front Exterior

About Plan # 147-1166

About Plan # 147-1166

3168 SQUARE FEET 4 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 56' 0" WIDTH 63' 0" DEPTH 3 GARAGE BAY

Looking for a wonderful, simple, but elegant and spacious design that will surely satisfy the family? This Country Ranch style house may be just what you're looking for. The impressive 1-story home's floor plan has 3168 square feet of heated and cooled living space with a finished basement that is so spacious it could be outfitted with a media room, study, and/or home office in addition to the 2 bedrooms and full bathroom – and over 300 square feet of cold storage.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

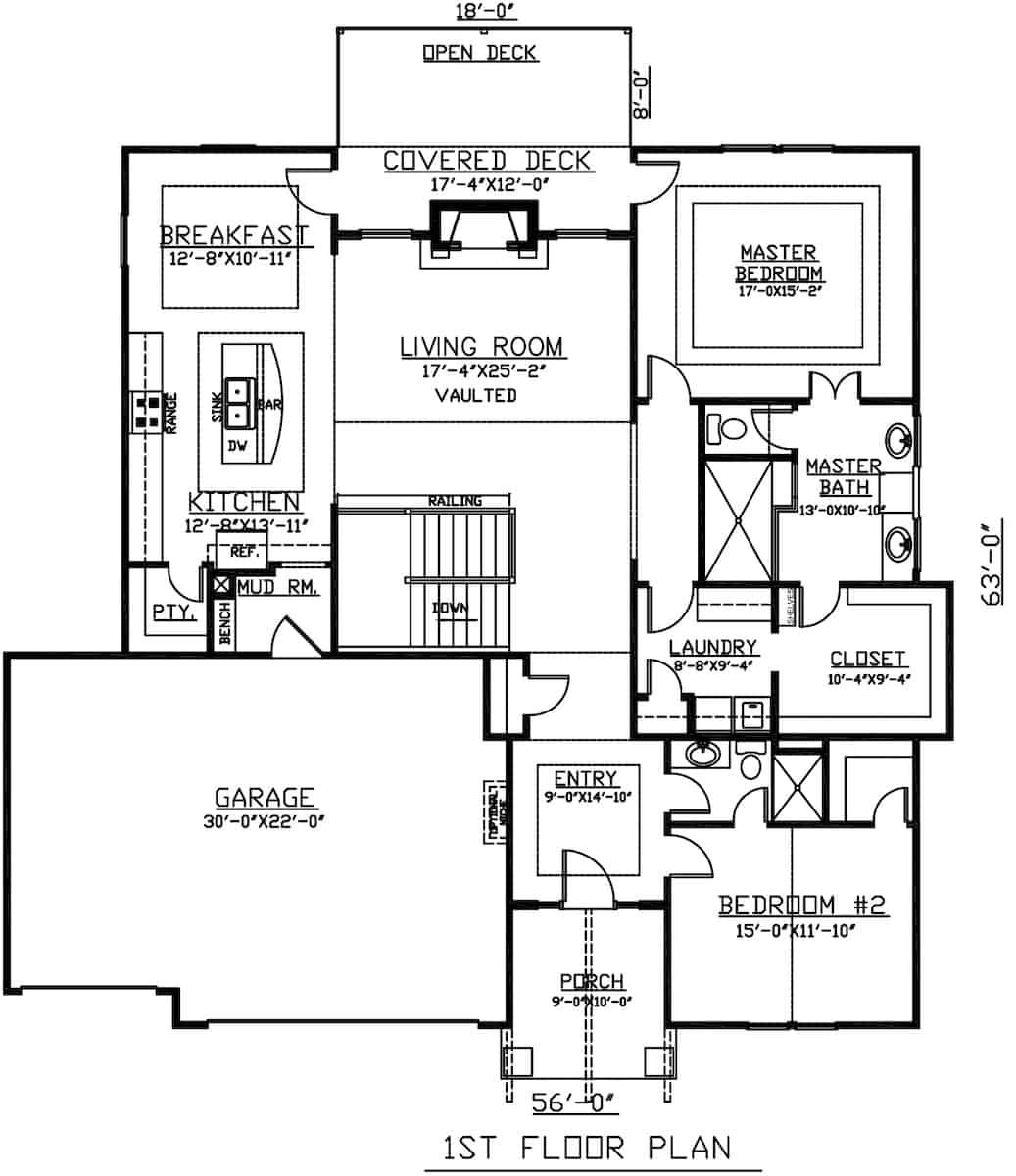

Home Plan: #147-1166 Floor Plan First Story - main level Floor Plan Main Level of Ranch Plan #147-1166

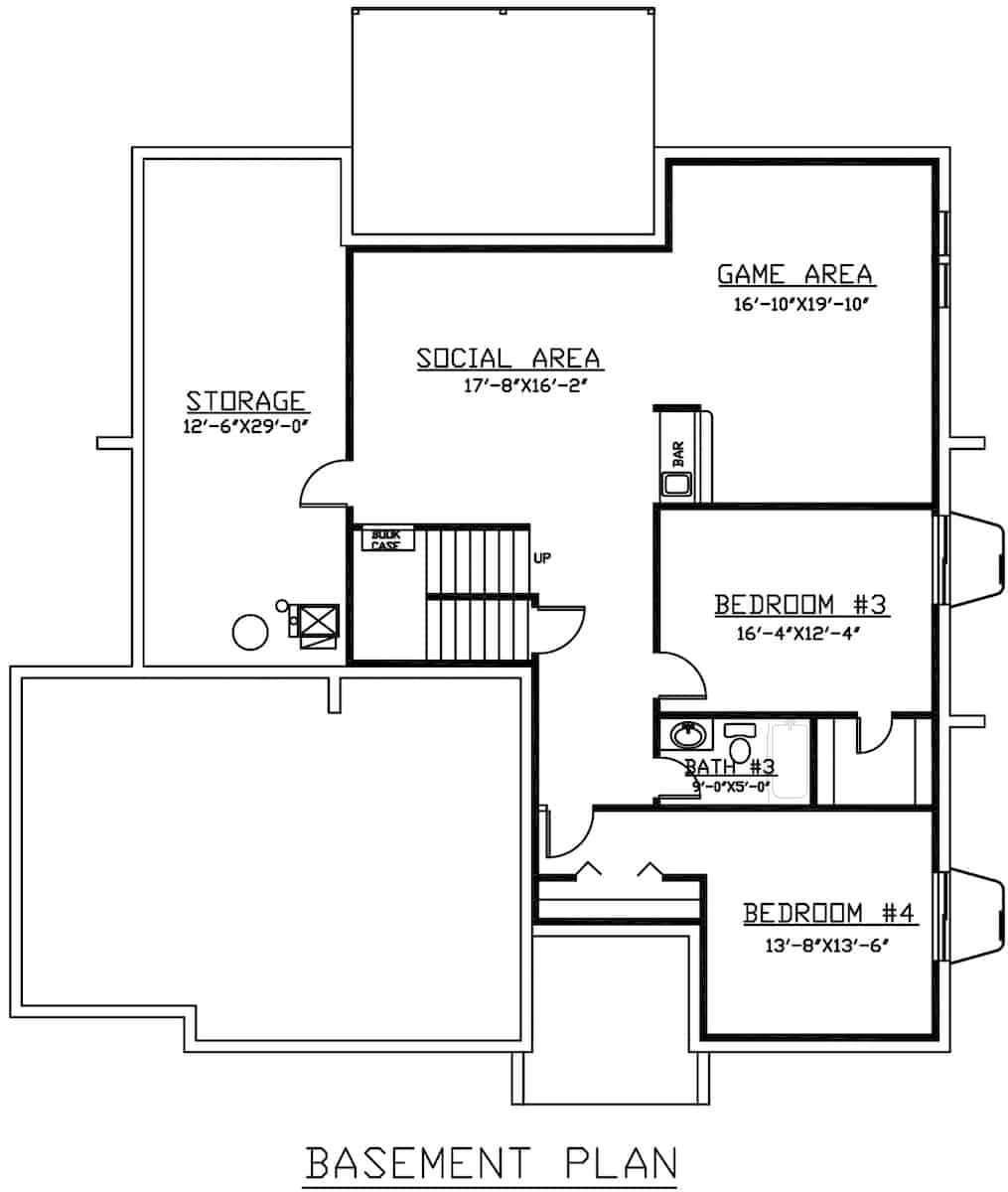

#147-1166 Floor Plan Basement - basement Floor Plan Basement of Ranch Plan #147-1166
