Ranch home (ThePlanCollection: Plan #108-1494)

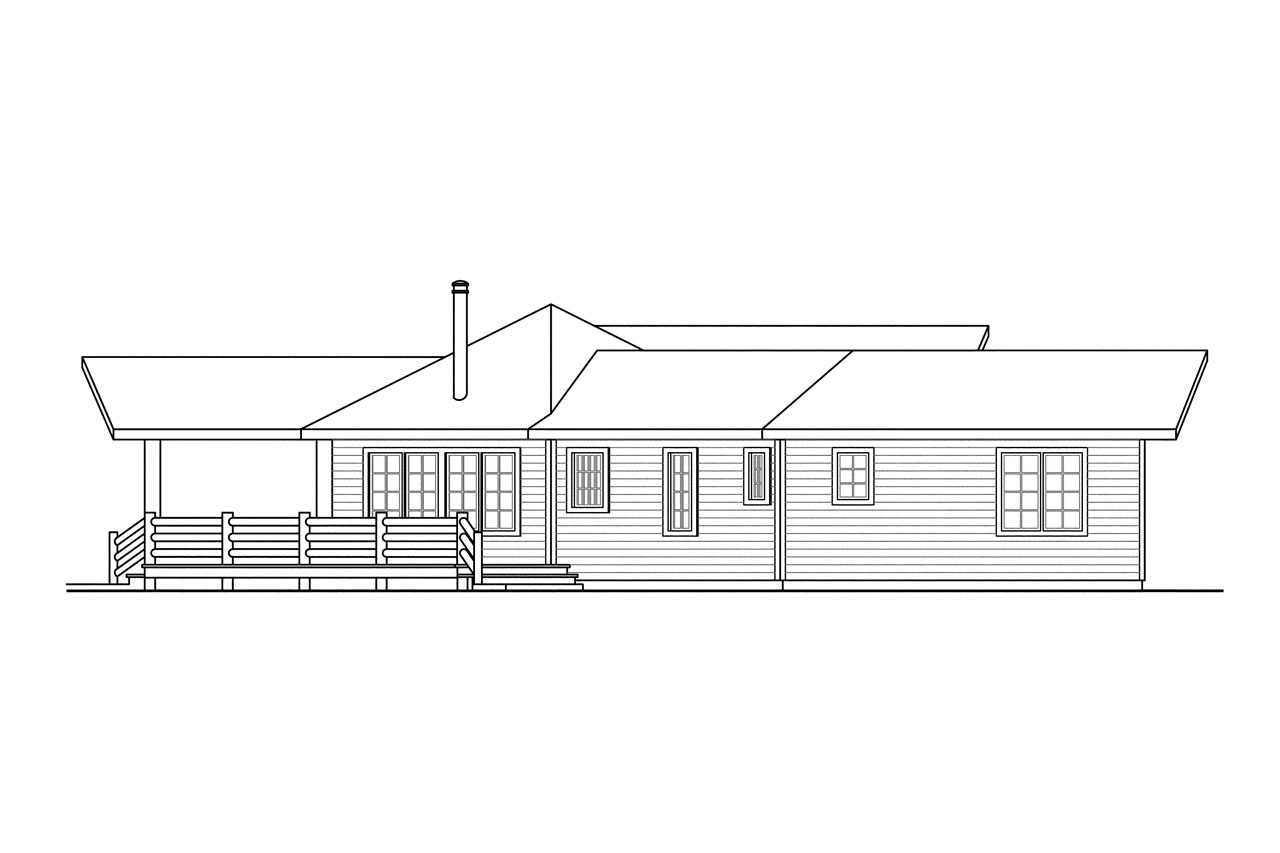

108-1494: Home Plan Left Elevation

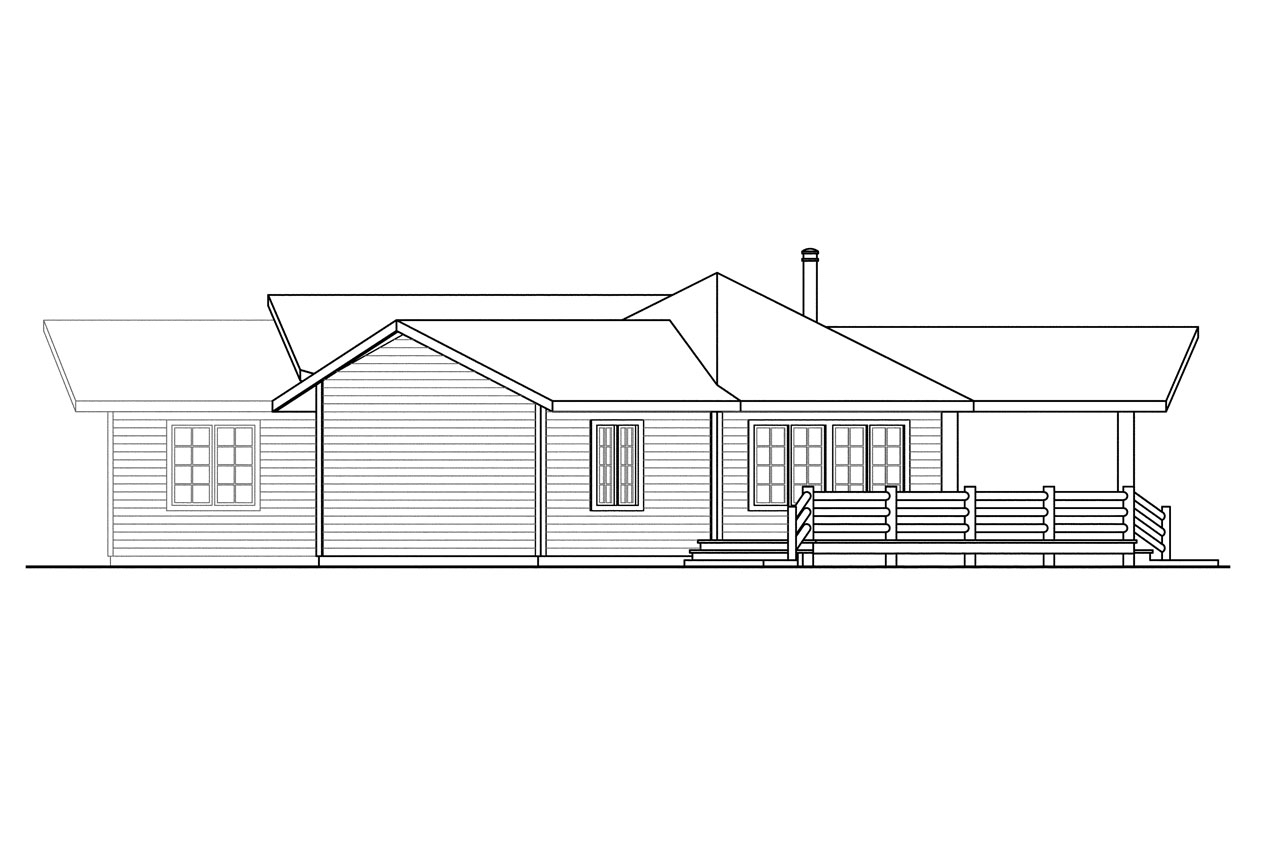

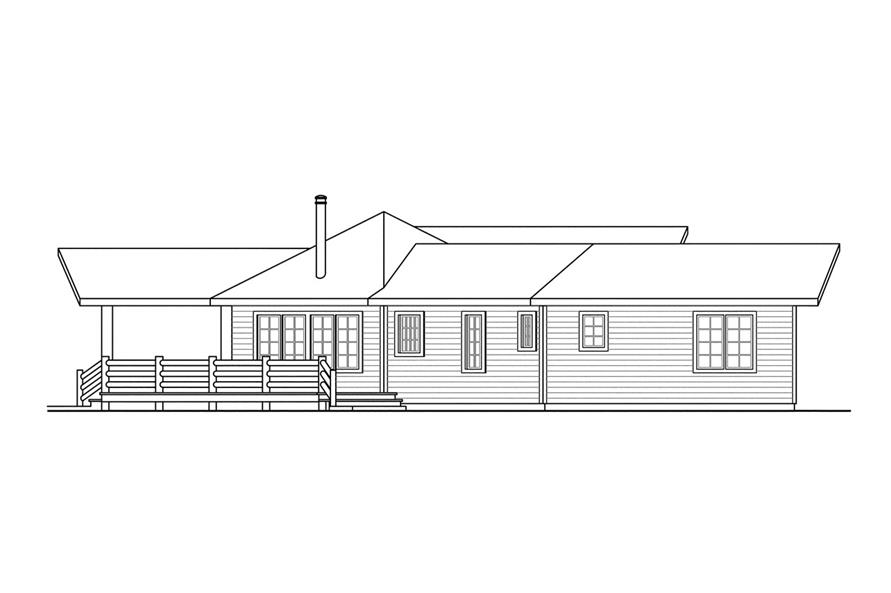

108-1494: Home Plan Right Elevation

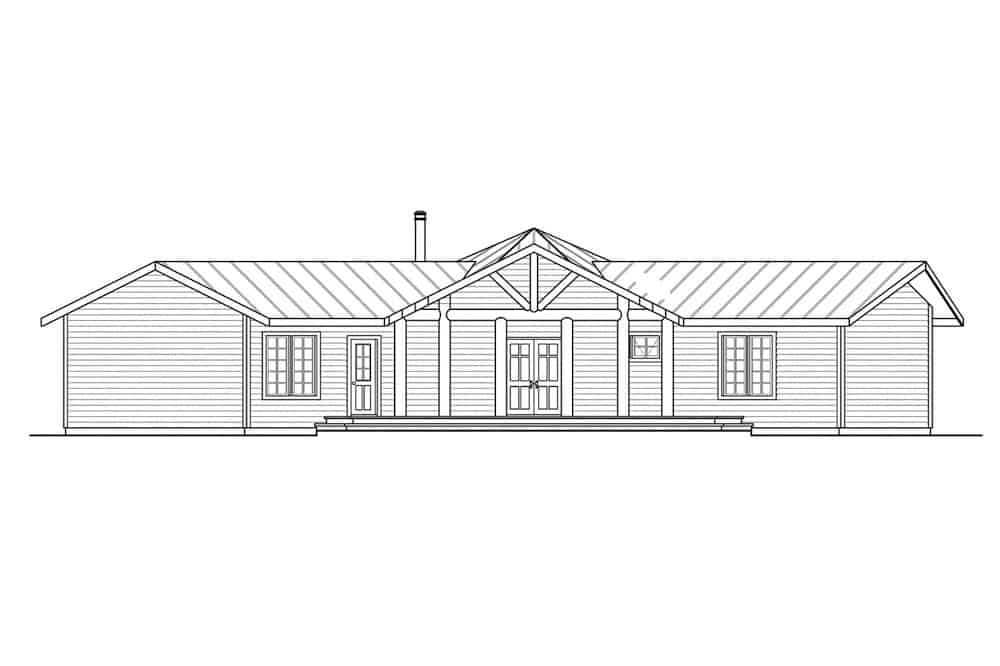

108-1494: Home Plan Front Elevation
108-1494: Home Other Image-Front View
3-Bedroom, 1735 Sq Ft Ranch House - Plan #108-1494 - Front Exterior
108-1494: Home Plan Left Elevation
108-1494: Home Plan Right Elevation
108-1494: Home Plan Front Elevation
108-1494: Home Other Image-Front View

About Plan # 108-1494

About Plan # 108-1494

1735 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 76' 10" WIDTH 64' 0" DEPTH 2 GARAGE BAY

This single-story rustic Ranch style home has 1735 total living square feet. The Country-style would be great as a vacation retreat and has a beautiful wrap-around covered porch and a partly covered deck. Its huge hexagonal great room has a wood stove and a great panoramic view. The kitchen features include a central work island, a pantry, and a raised eating bar.

Each plan set includes the following:

  • Artist’s rendering of the home,

  • Front/Rear/Left and Right Elevations,

  • Main floor plan, Second or Basement floor plans (if applicable),

  • Foundation plan and detail,

  • Floor framing plan,

  • Roof framing plan, supporting details and

  • Electric layout.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

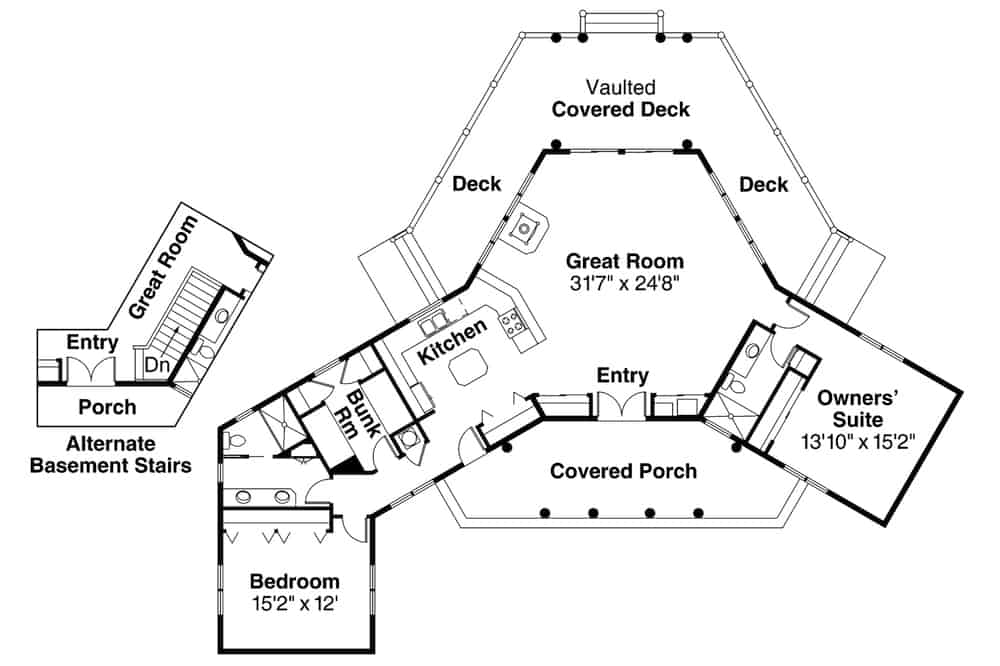

Home Plan: #108-1494 Floor Plan First Story - main level Floor Plan Main Level of Ranch Plan #108-1494

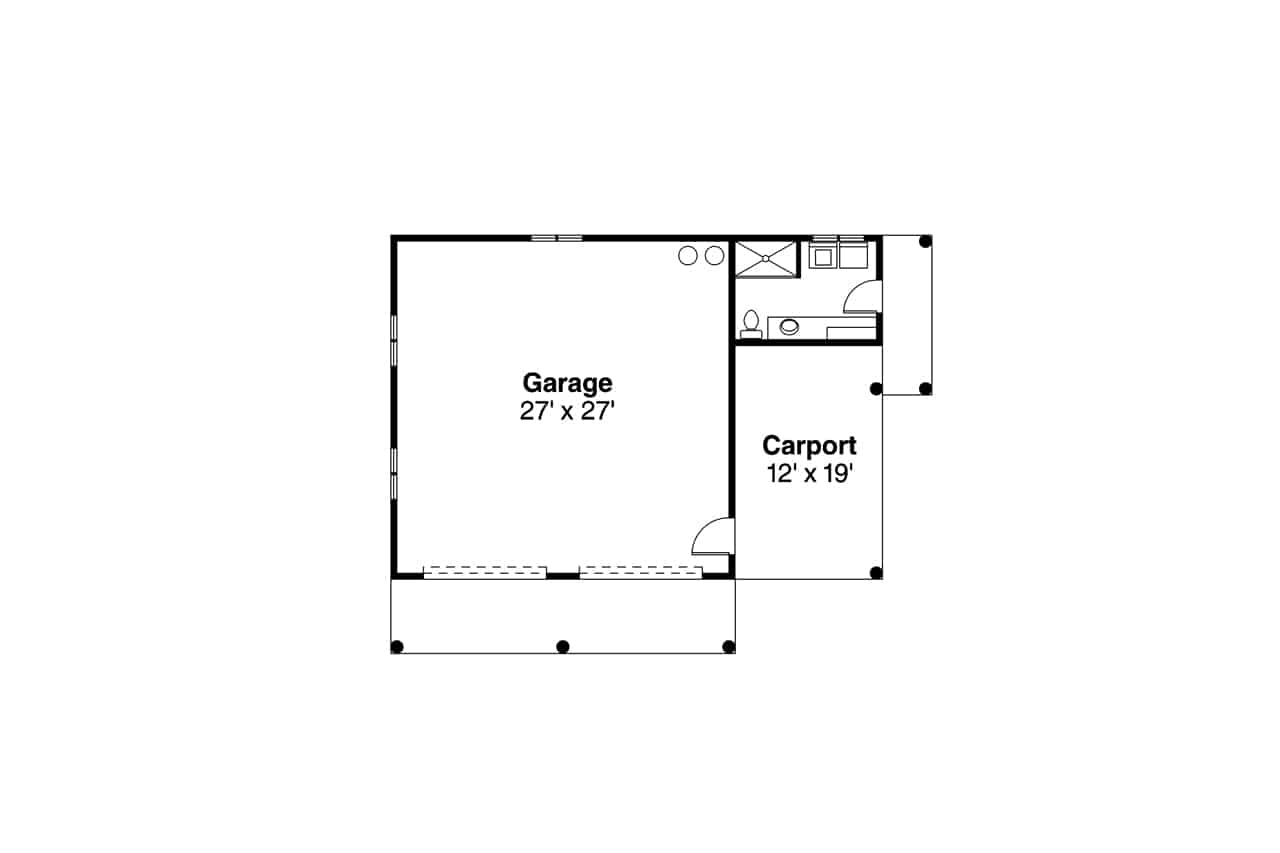

#108-1494 Floor Plan Garage - garage Floor Plan Garage of Ranch Plan #108-1494
