3-Bedroom, 1700 Sq Ft Ranch Plan with Split Master Bedroom
Related House Plans
| 1700 SQUARE FEET | 3 BEDROOMS | 2 FULL BATH | 0 HALF BATH |
| 1 FLOOR | 66' 0" WIDTH | 46' 0" DEPTH | 2 GARAGE BAY |
The simple styling of this Ranch style home makes it more captivating and alluring. You’ll be amazed by the open and pleasant ambiance, magnified by the numerous multi-pane windows that make the rooms throughout the house sunny and bright. The beautiful 1-story floor plan has 1700 square feet of fully conditioned living space and includes these great amenities:
• Roomy walk-in kitchen pantry
• Vaulted ceiling
• Fireplace in the living room
• Mudroom
Each plan set includes the following:
- Fillable site plan, rendering, and general notations page
- Floor plans
- Foundation plan
- Roof plan

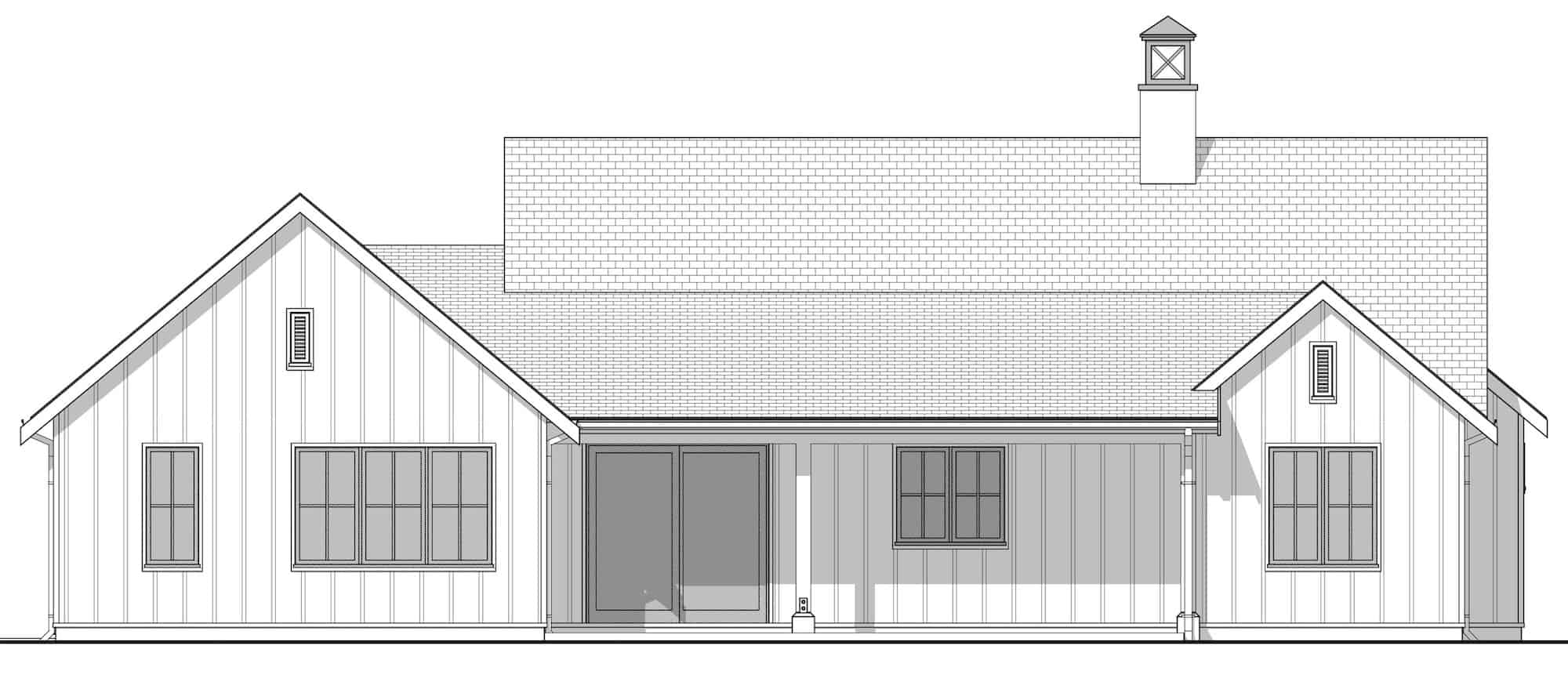

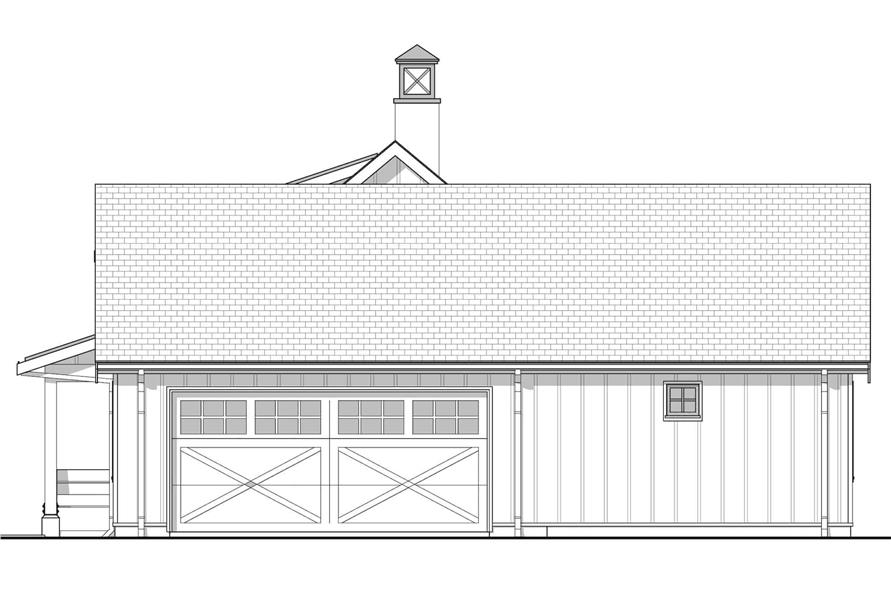

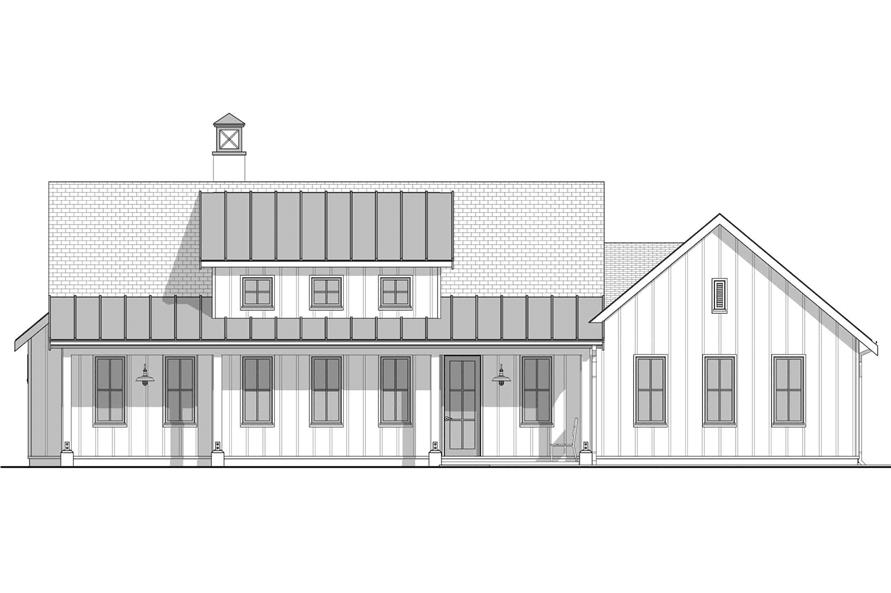

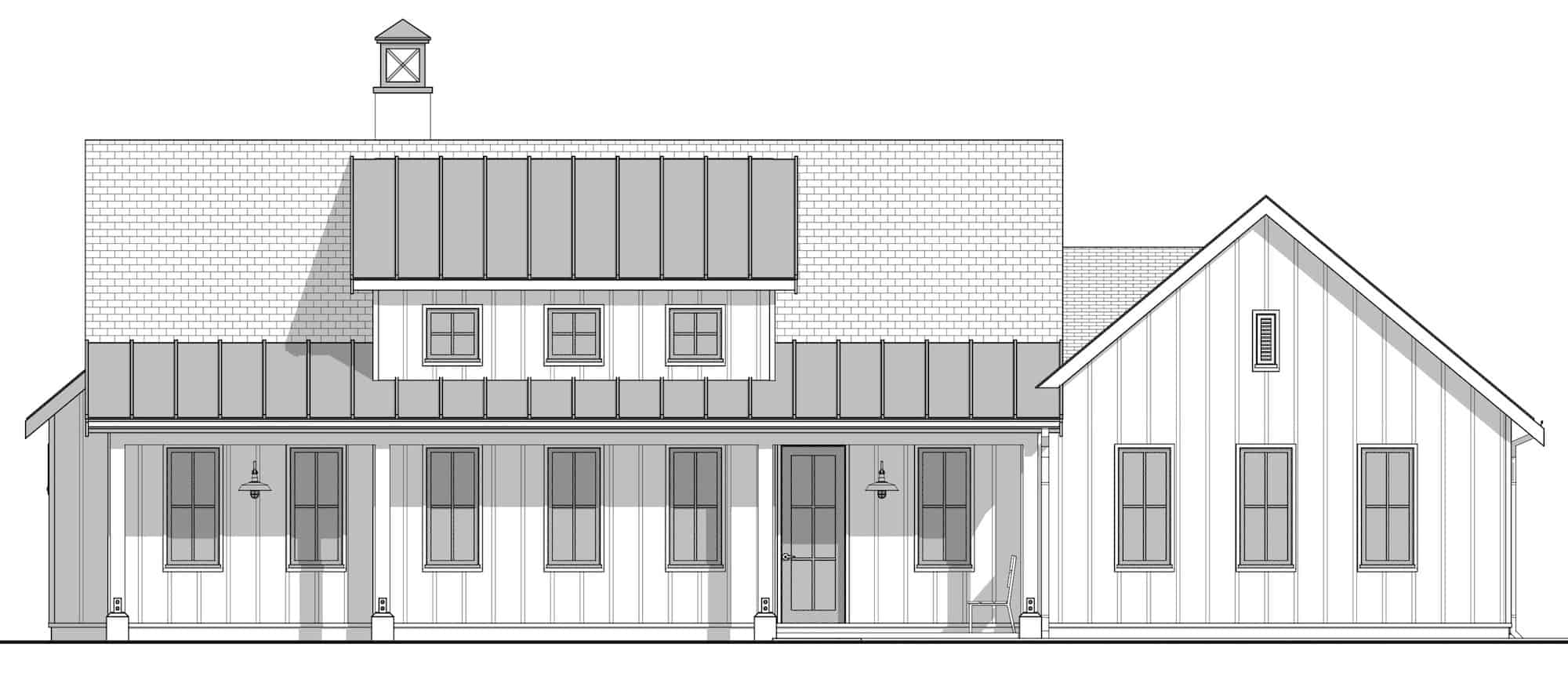

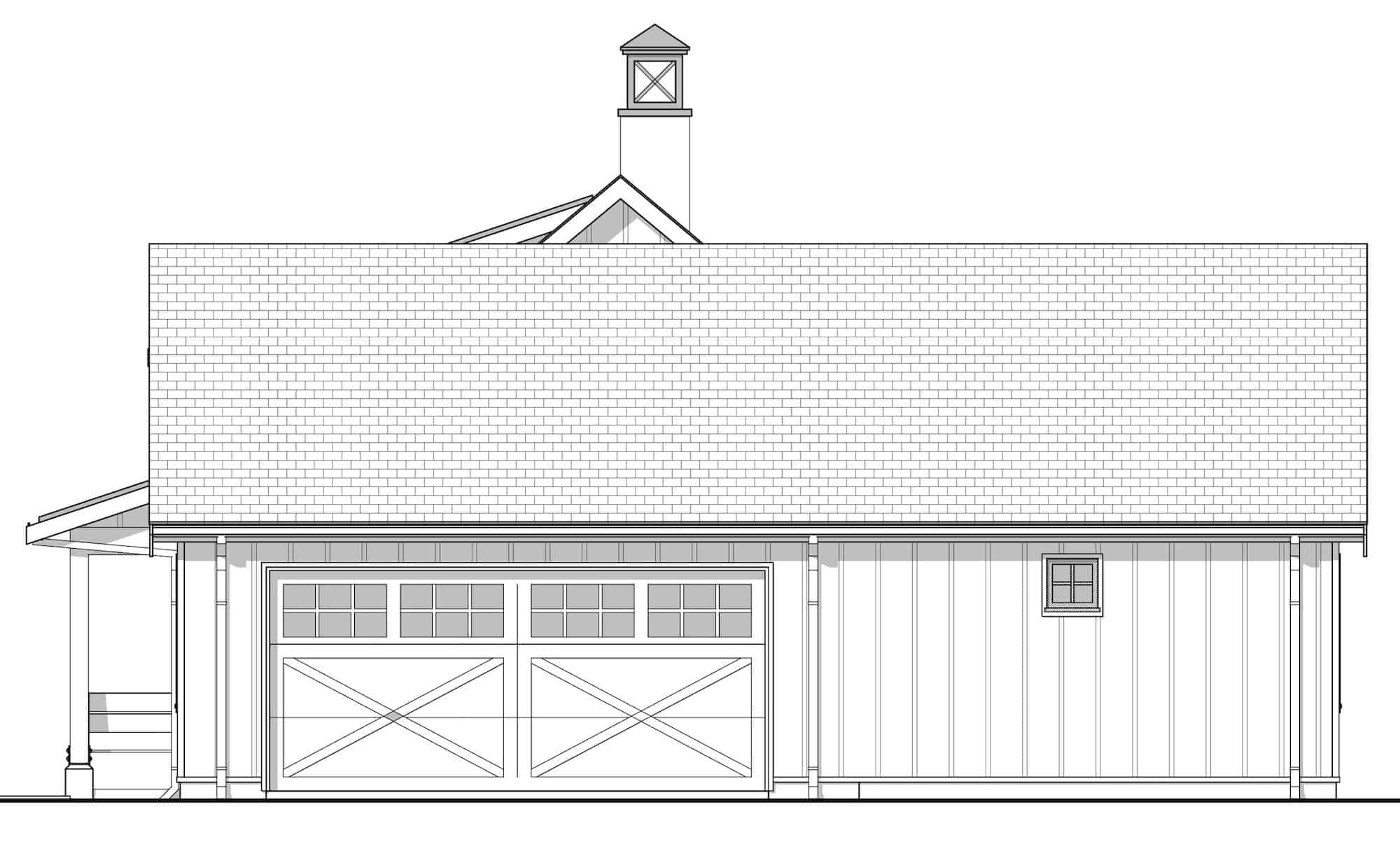

- Elevations
- minimum of 2 sections + 1 typical wall section
- Electrical plan
.
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy Calculations - handled locally when required.
- No Framing
Write Your Own Review

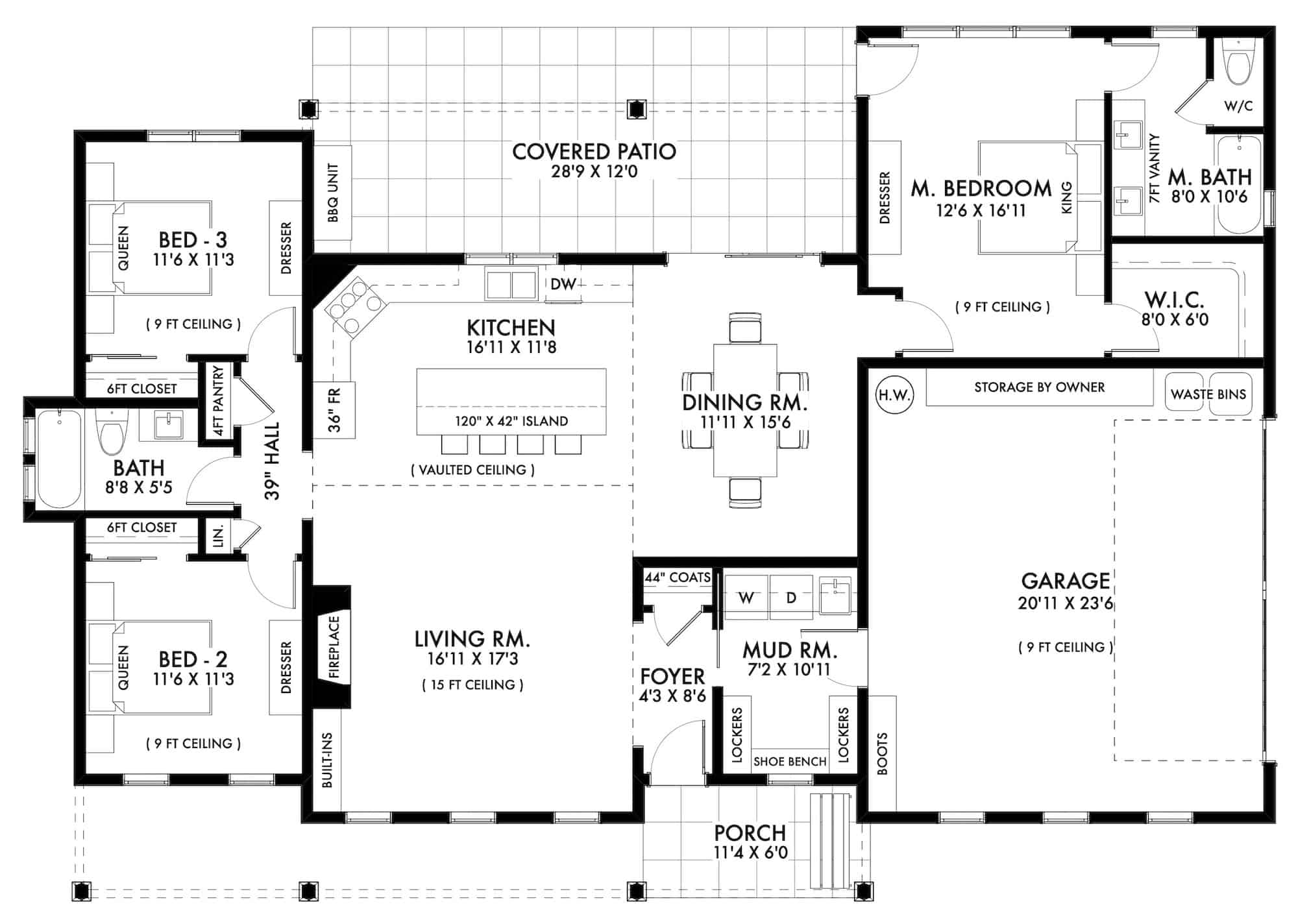

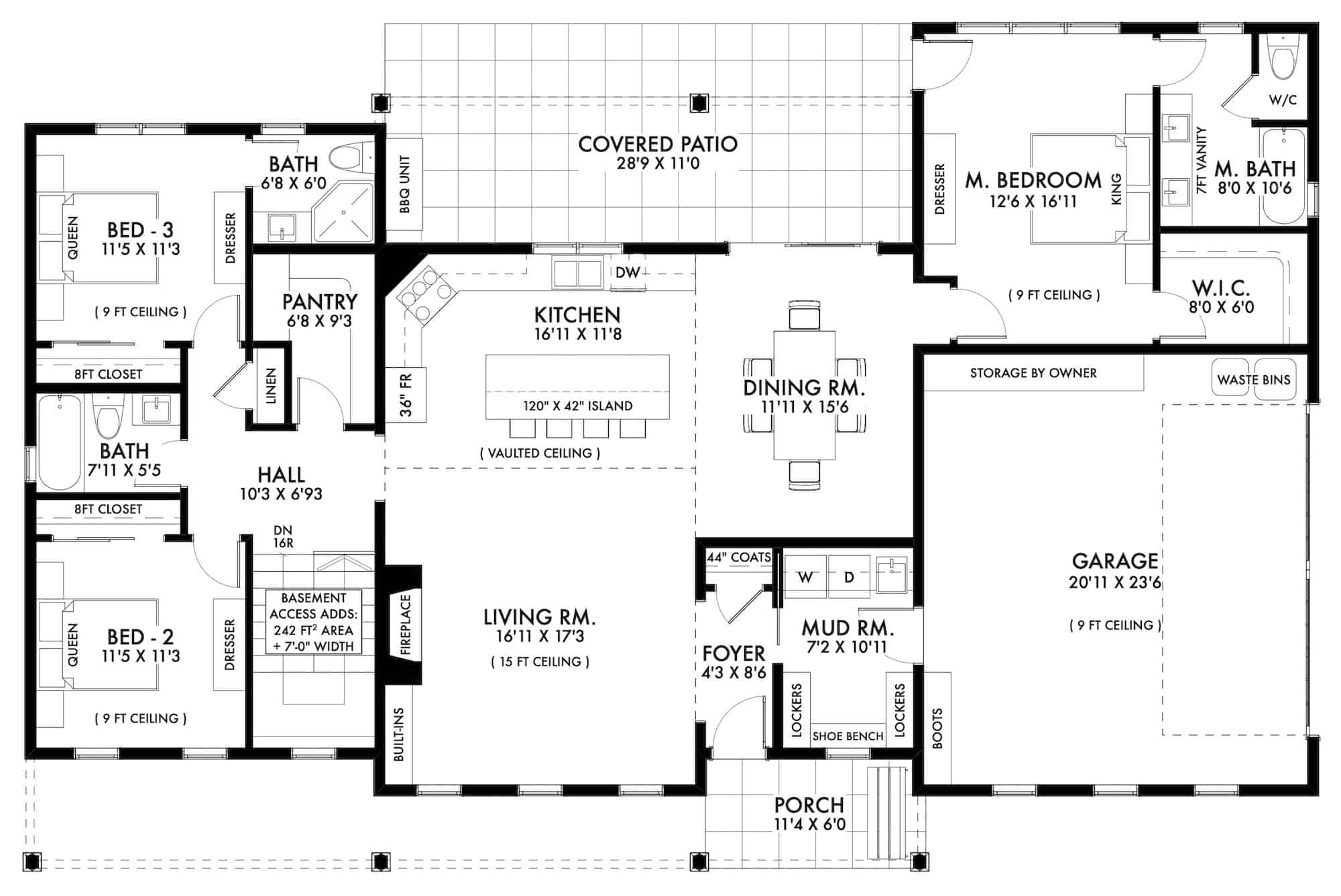

FLOOR PLANS Flip Images
Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!
To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
Additional specs and features
Summary Information
Square Footage
Dimensions
Architectural Styles
Exterior Wall Material
Roofing Type
Roofing Material
Roof Pitch
Ceiling Height
Special Feature
Garage Type
Fireplaces
Exterior Wall Framing
Building Lot Type
Kitchen Features
Porches and Exterior Features
Master Suite Features
Additional Notes from Designer
PRICING OPTIONS
ADDITIONAL INFORMATION
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
How much will this plan cost to build?
