3-Bedroom, 1698 Sq Ft Traditional Plan with Covered Lanai

Color rendering of Traditional home plan(ThePlanCollection: House Plan #169-1039)

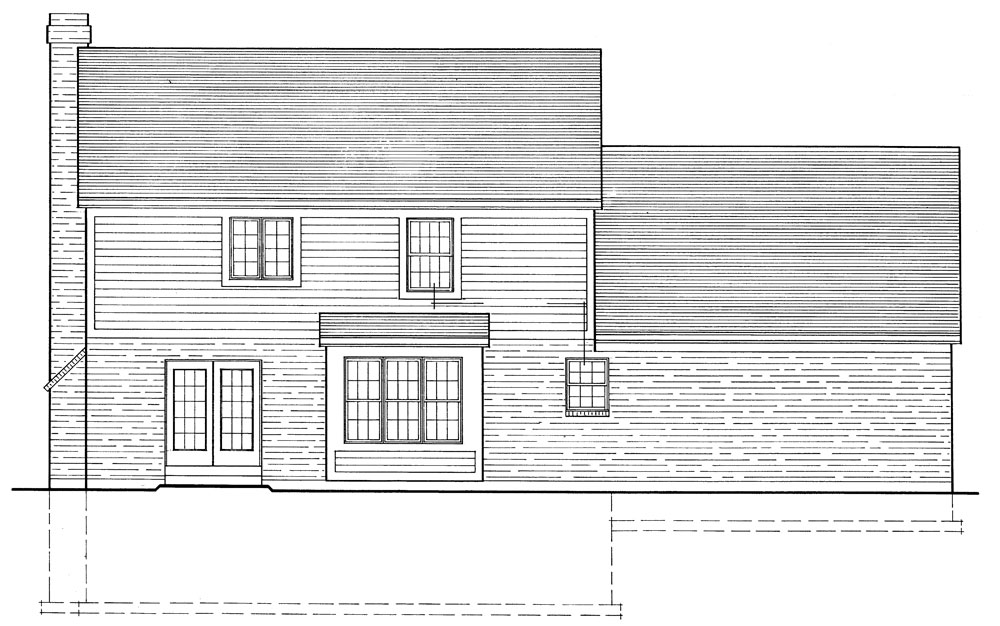

169-1039: Home Plan Rear Elevation
169-1039: Home Plan Left Elevation
169-1039: Home Plan Right Elevation
3-Bedroom, 1698 Sq Ft Traditional Home Plan - 169-1039 - Main Exterior

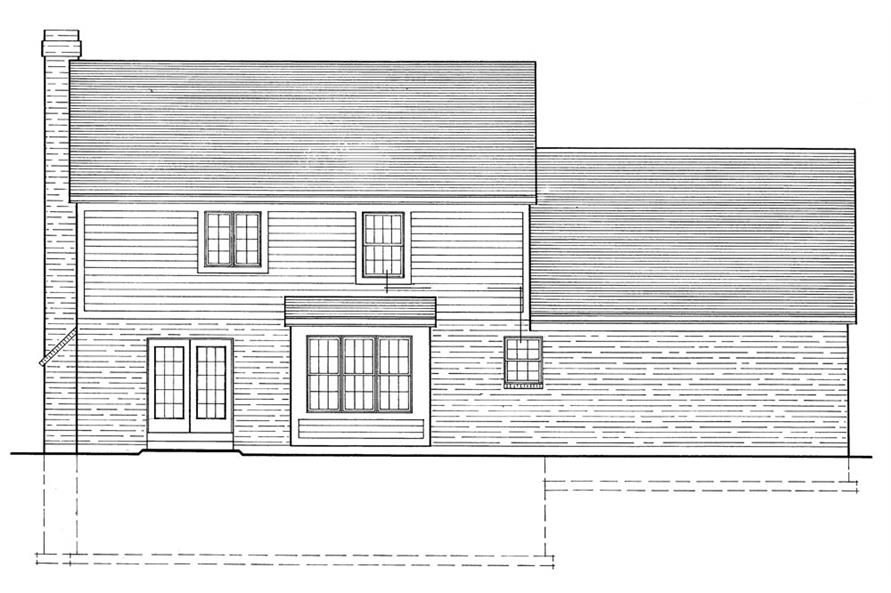

169-1039: Home Plan Rear Elevation

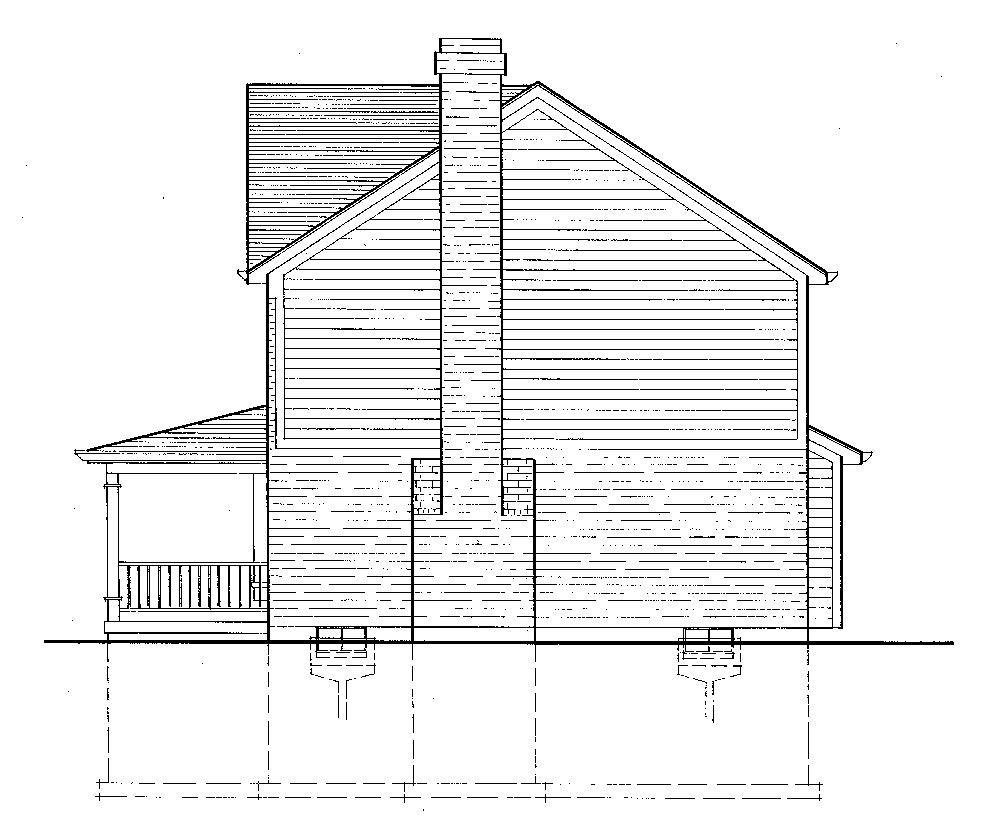

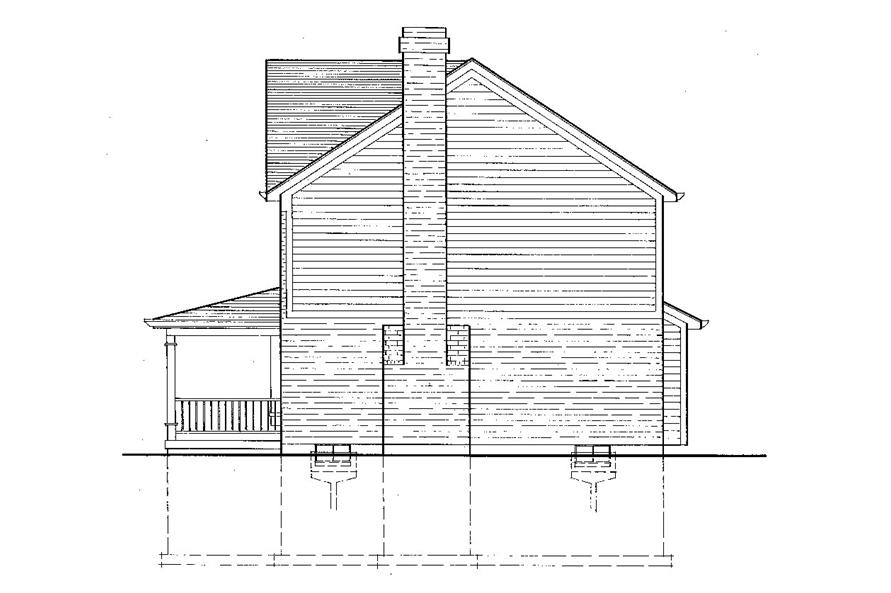

169-1039: Home Plan Left Elevation

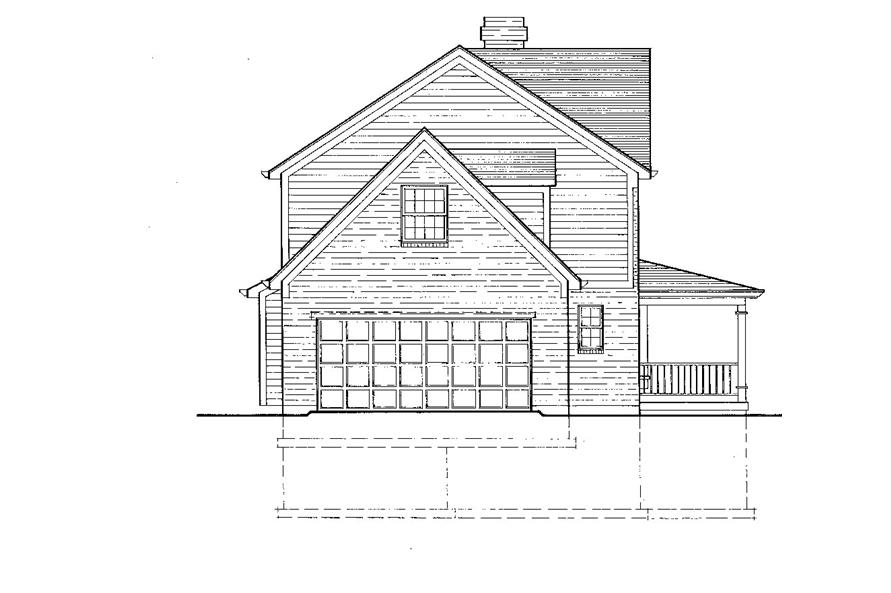

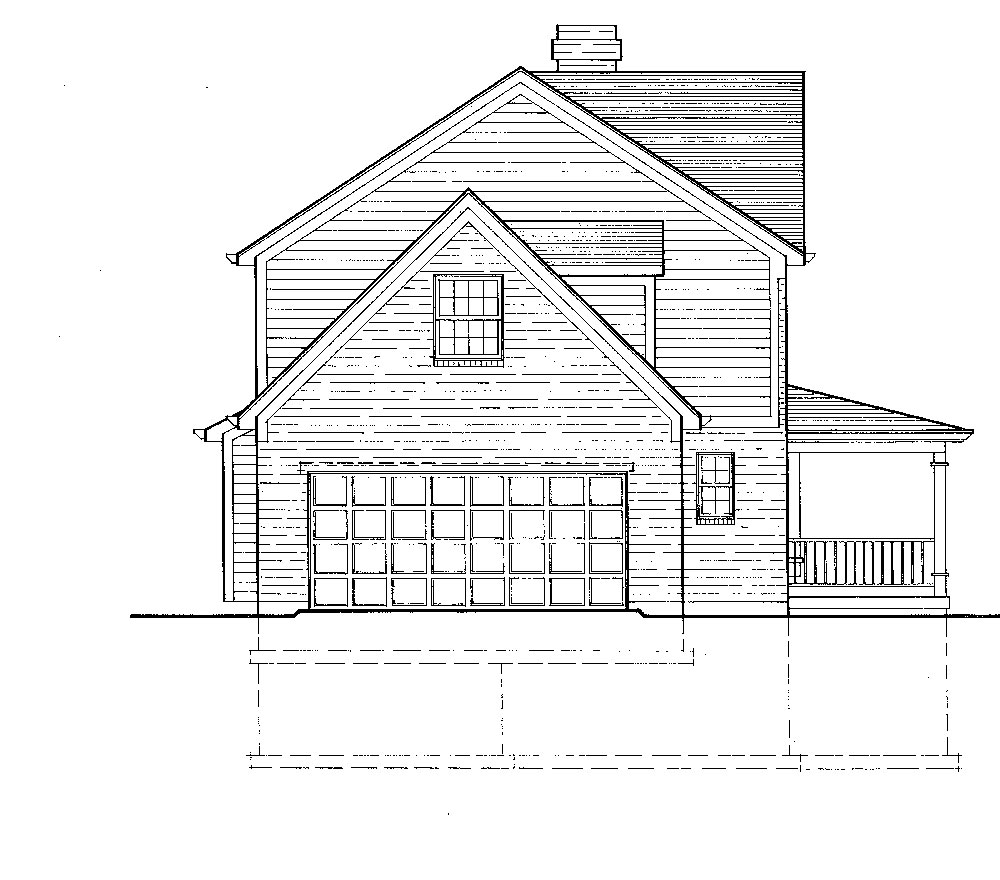

169-1039: Home Plan Right Elevation

About Plan # 169-1039

About Plan # 169-1039

1698 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
2 FLOOR 54' 4" WIDTH 26' 8" DEPTH 2 GARAGE BAY

This lovely Traditional-style home with Country influences (House Plan #169-1039) has 1698 square feet of living space. The 2-story floor plan includes 3 bedrooms, 2 full bathrooms, and 1 half bath.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

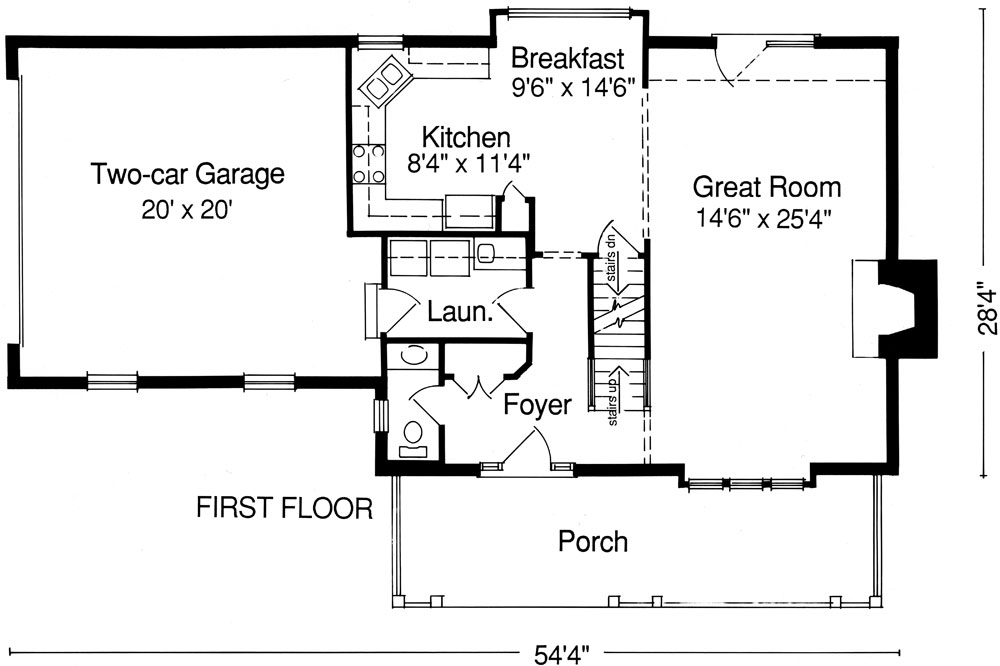

Home Plan: #169-1039 Floor Plan First Story - main level Floor Plan First Story of Traditional Plan #169-1039

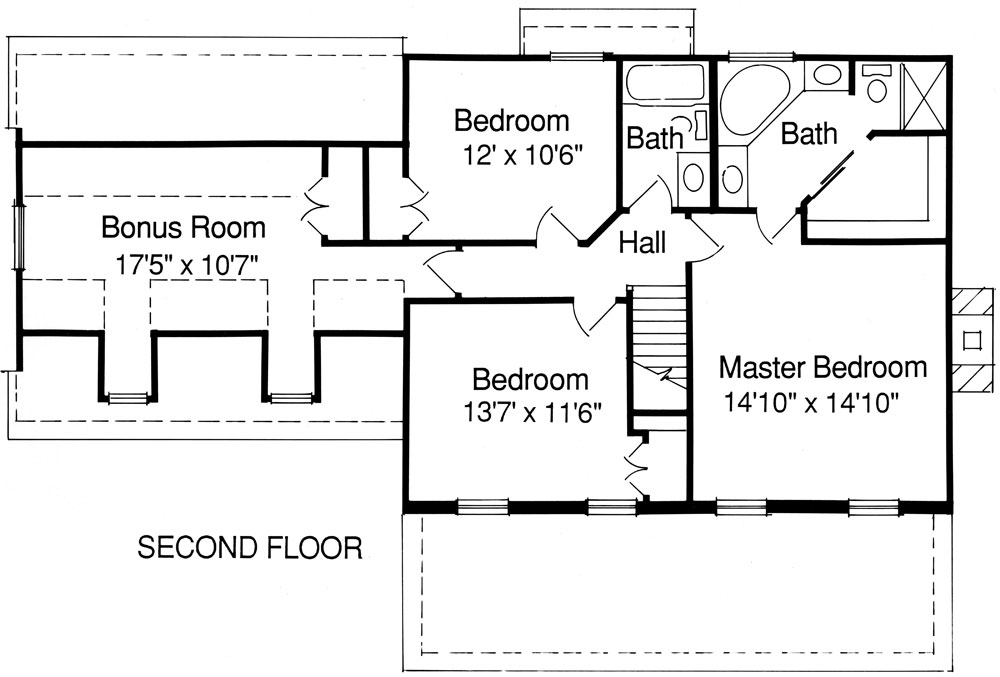

#169-1039 Floor Plan Second Story - upper level Floor Plan Second Story of Traditional Plan #169-1039
Home Plan: #169-1039 Floor Plan First Story - main level Floor Plan First Story of Traditional Plan #169-1039
#169-1039 Floor Plan Second Story - upper level Floor Plan Second Story of Traditional Plan #169-1039
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 169-1039
Floors:
2
Bedrooms:
3
Full Baths:
2
Half Baths:
1
Garage :
2

Square Footage

Heated Sq Feet:
1698
Main Floor:
1698
Upper Floor:
830
Garage:
417
Unfinished Sq Ft:
Lower Floor:
1698

Dimensions

Width:
54' 4"
Depth:
26' 8"
Ridge Height:
28' 0"

Architectural Styles

Colonial
Country
Traditional

Exterior Wall Material

Brick
Vinyl Siding
Wood Siding

Roofing Type

Gable/Dormer

Roofing Material

Asphalt Shingles

Roof Pitch

12/12
8/12

Ceiling Height

8 Foot Ceiling

Special Feature

Bonus Room
Family Room
Fireplace
Main Level Laundry
Open Floor Plan

Garage Type

Attached Garage
Side Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Building Lot Type

Flat Site

Kitchen Features

Eat-In Kitchen
Nook/Breakfast Area

Porches and Exterior Features

Covered Front Porch

Master Suite Features

Master Bathroom
Second Floor Master
Walk In Closet

Additional Notes from Designer

PLEASE NOTE: 5 sets and 8 sets include a PDF as well.

PRICING OPTIONS

A NON-modifiable, print-only PDF that is emailed. Includes a complete set of working drawings delivered in a digital format. Print as many sets as you need. No shipping costs. Comes with a license to build one home.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

Eight printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 8 sets ship. Comes with a license to build one home.

For use by design professionals. This file may be available. Please call or email us first so we can confirm for you. This set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

Stamped "Not for Construction," this set allows you to review the home plan in detail and obtain bids. It is illegal to build a house from plans stamped this way and, due to copyright laws, they can not be copied.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
