Ranch Floor Plan - 3 Bedrms, 2 Baths - 1638 Sq Ft

Images/Plans copyrighted by designer. Photos may reflect homeowner modifications.

About House Plan #141-1196

1638

Sq Ft

3

Bedrooms

2

Baths

0

Half Baths

2

Cars

1

Stories

72' 10'

Width

41

Depth

From$1300What's included

STEP 1

How much will it cost to build?

Estimate your costs based on your location and materials.

Start with Instant Estimator

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Floor Plans

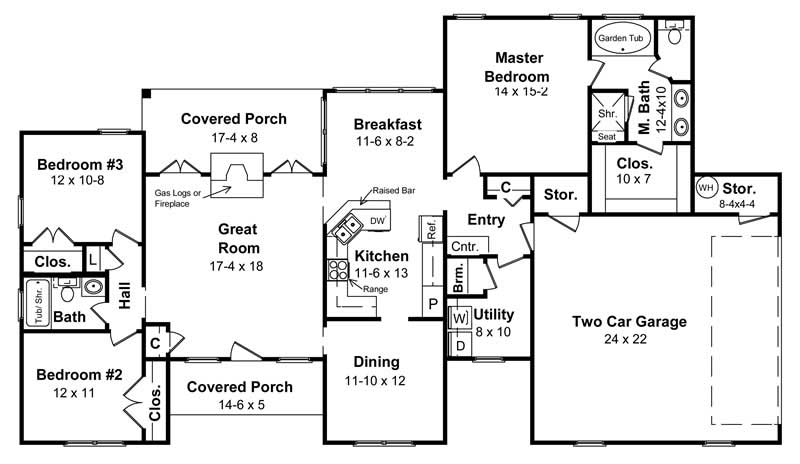

FLOOR PLAN

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Additional Notes from Designer

PLEASE NOTE! If you order an optional foundation and a materials list, the materials list will NOT include the optional foundation, only the standard foundation. The designer can provide an updated materials list for a fee, so please ask for a quote!

House Plan Description

Beautiful traditional ranch house plan features and open floor plan, spacious bedrooms and covered front & rear porches. Cottage/Traditional, double-car garage, split plan, jet tub, formal dining and breakfast, and raised eating bar. Please note the photo shown is a modified version of this plan. The rendering reflects the working drawings for this plan.

Home Details

Summary

Plan #:141-1196

Floors:1

Bedrooms:3

Full Baths:2

Half Baths:0

Garage:

Square Footage

Heated Area::1638 Sq. Ft.

Main Floor:1638 Sq. Ft.

Dimensions

Width:72' 10''

Ridge Height:22' 0''

Architectural Styles

Country Ranch Southern Small House Plans

Exterior Wall Material

Vinyl SidingBrickStucco

Roofing Type

Hip

Roofing Material

Asphalt Shingles

Roof Pitch

12/1210/12

Ceiling Height

9 Foot Ceiling

Special Feature

Main Level LaundryEnergy EfficientColor PhotosStorageInterior Photos

Garage Type

Attached GarageSide Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Building Lot Type

Flat SiteCorner Lot

Kitchen Features

Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch

Master Suite Features

Main Floor MasterMaster BathroomWalk In ClosetSplit Master Bedroom

How much will it cost to build?

Estimate your costs based on your location and materials.

-OR-

What's the differnce?

What’s Included

Most plan sets include the following:

Cover page with rendering

foundation plan with typical details

floor plans with ceiling framing notes

four exterior views of exterior

roof plan, and rafter layout plan

full cross section through house, and typical wall sections

stair section (if there are stairs)

Bonus room/garage section if there is a bonus room/garage

Interior cabinet drawings

Misc. structural details

Electrical plan with lighting, outlets, switches, etc..

What’s Not Included

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required.

Site Plan - handled locally when required.

Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.

Energy calculations - handled locally when required.

Additional Information

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
