3-Bedroom, 1636 Sq Ft Ranch Plan with Peninsula/Eating Bar

Main image for house plan # 9810

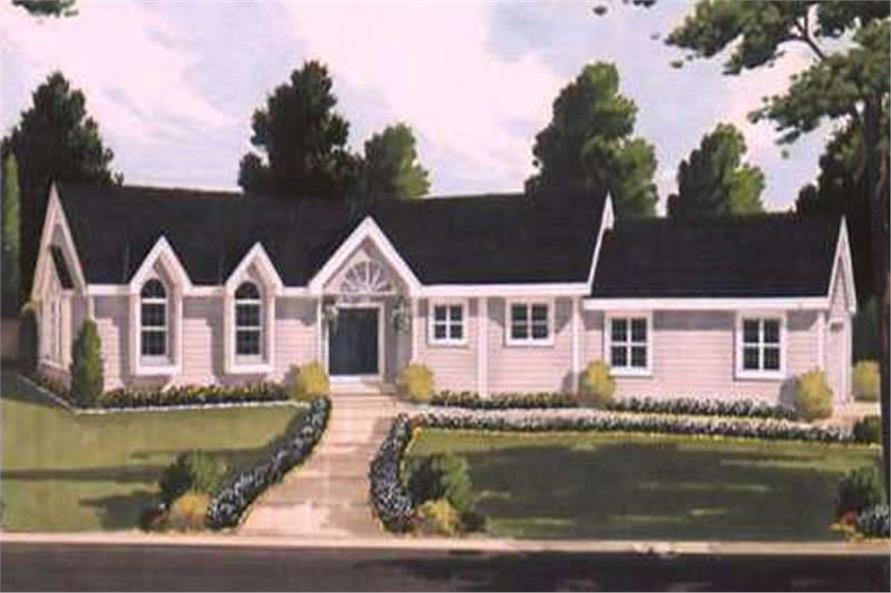

3-Bedroom, 1636 Sq Ft Ranch House Plan - 105-1003 - Front Exterior

About Plan # 105-1003

About Plan # 105-1003

1636 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 85' 0" WIDTH 47' 0" DEPTH 2 GARAGE BAY

House Plan Description

The classic exterior introduces this one-story home. Dramatic double doors open to the reception area that extends to the formal areas ahead. A cozy fireplace is found in the living room. The U-shaped kitchen contains an eating bar and connects to the family room and den. Sliding glass doors lead from the family room to the terrace. The master suite has sloped ceilings and a private master bath. Sliding doors lead to a private terrace. Two additional bedrooms share another full bath.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

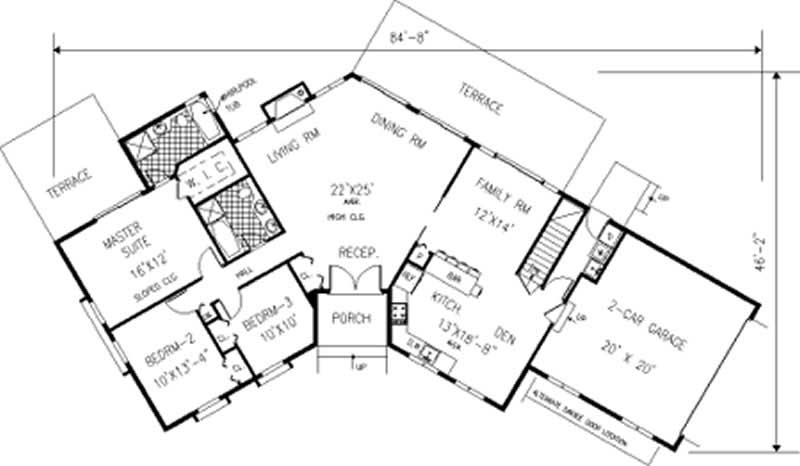

Home Plan: #105-1003 Floor Plan First Story Floor Plan First Story of Ranch Plan #105-1003
Home Plan: #105-1003 Floor Plan First Story Floor Plan First Story of Ranch Plan #105-1003
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 105-1003
Floors:
1
Bedrooms:
3
Full Baths:
2

Square Footage

Heated Sq Feet:
1636
Main Floor:
1636
Unfinished Sq Ft:

Dimensions

Width:
85' 0"
Depth:
47' 0"

Architectural Styles

Ranch

Exterior Wall Material

Wood Siding

Special Feature

Family Room
Fireplace

Garage Type

Attached Garage

Exterior Wall Framing

2x4

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
