3-Bedroom, 1500 Sq Ft Craftsman Plan with Covered Front Porch

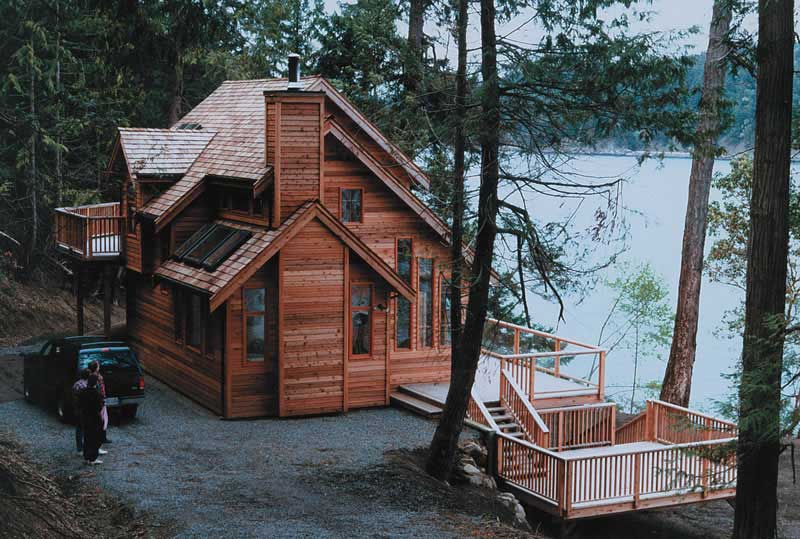

This is an artist's rendering of these small house plans # 9772
3-Bedroom, 1500 Sq Ft Craftsman Home Plan - 105-1017 - Main Exterior

About Plan # 105-1017

About Plan # 105-1017

1500 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 31' 0" WIDTH 47' 0" DEPTH 0 GARAGE BAY

A wraparound deck and soaring windows are some of the eye-catching elements of this vacation home. The living and dining rooms are open to the spectacular views of the front deck through a wall of glass. A stone fireplace and high ceiling give a grand feeling to this space. Upstairs, a balcony overlook leads to the master suite. A large walk-in closet, a private bath and a high ceiling are among its highlights.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Includes a typical wall section, special detail sections, and kitchen cabinet elevations.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and location
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

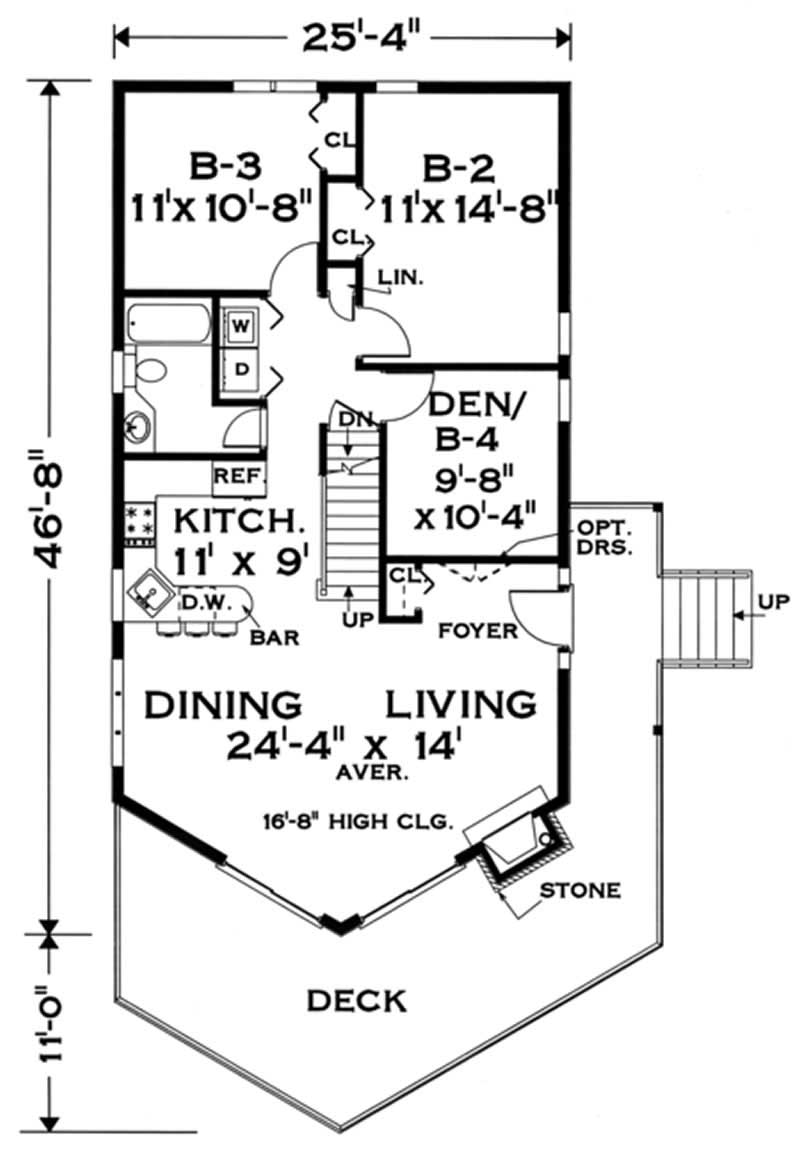

Home Plan: #105-1017 Floor Plan First Story Floor Plan First Story of Craftsman Plan #105-1017

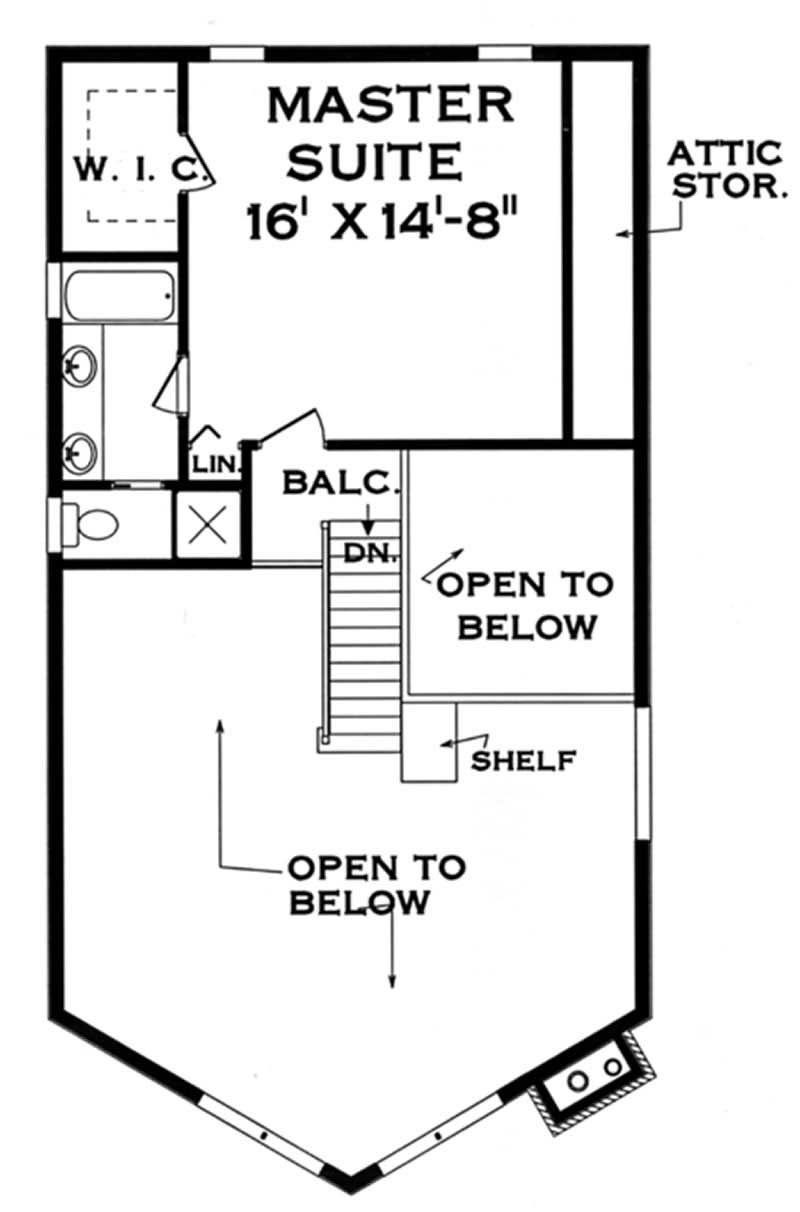

#105-1017 Floor Plan Second Story Floor Plan Second Story of Craftsman Plan #105-1017
Home Plan: #105-1017 Floor Plan First Story Floor Plan First Story of Craftsman Plan #105-1017
#105-1017 Floor Plan Second Story Floor Plan Second Story of Craftsman Plan #105-1017
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 105-1017
Floors:
2
Bedrooms:
3
Full Baths:
2

Square Footage

Heated Sq Feet:
1500
Main Floor:
1088
Upper Floor:
412
Unfinished Sq Ft:
Garage :
312

Dimensions

Width:
31' 0"
Depth:
47' 0"

Architectural Styles

Craftsman
Small House Plans
Vacation Homes

Exterior Wall Material

Rock/Stone
Wood Siding

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Special Feature

Den
Dining Room
Fireplace
Main Level Laundry
Split Bathroom

Garage Type

Attached Garage
Under Main Floor Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x6

Building Lot Type

Narrow Lot Design
View Lot

Kitchen Features

Eat-In Kitchen
Nook/Breakfast Area
Peninsula/Eating Bar

Porches and Exterior Features

Sundeck
Wrap Around Porch

Master Suite Features

Master Bathroom
Second Floor Master
Walk In Closet

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
